Becker Vacuum Pump/ Blower Unit : 2001

ReflowX SKU: REF-44

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

BECKER (Made in Germany)
Equipment code

Get Quotation Whatsapp

Short Description

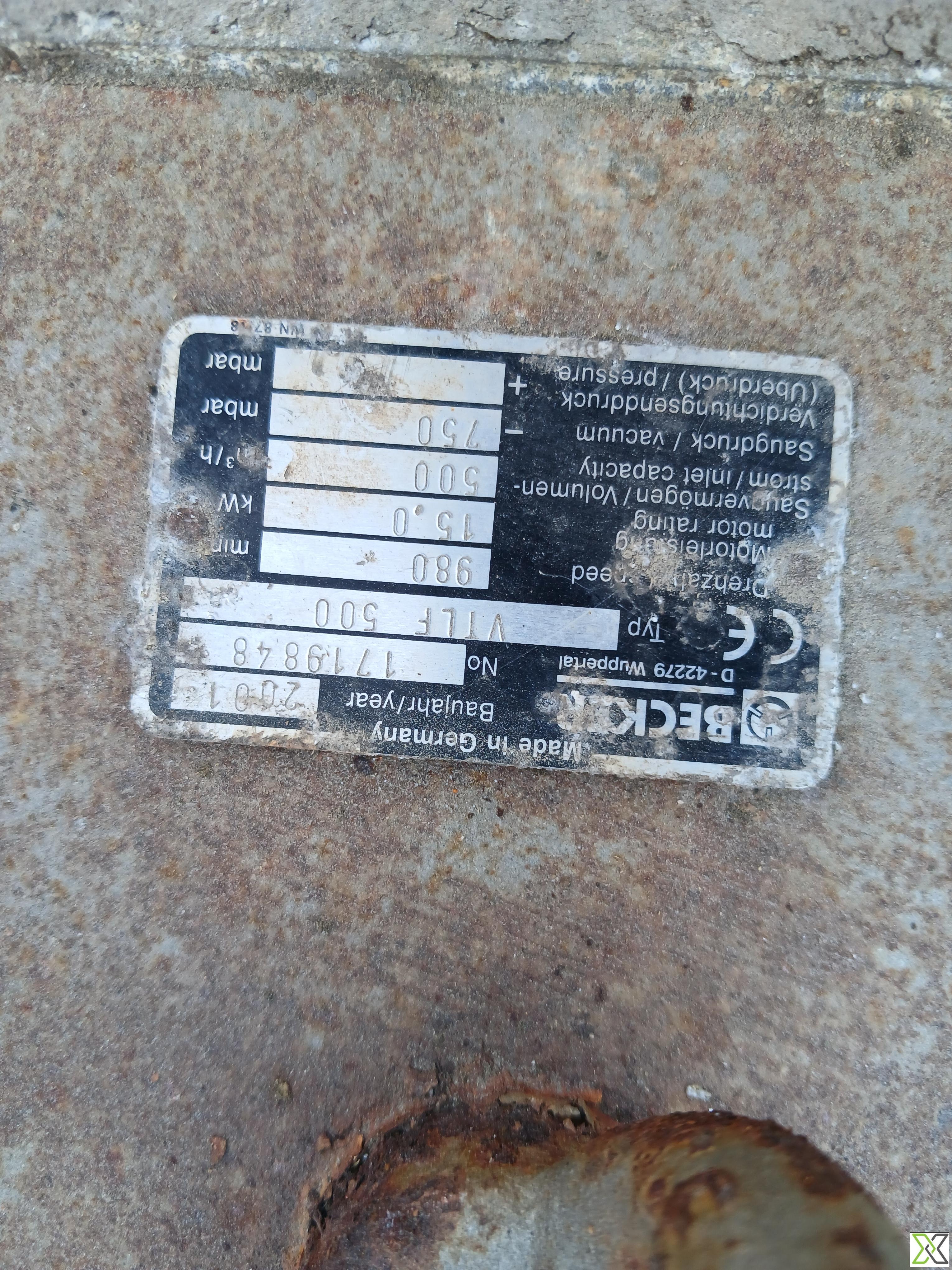

Manufacturer: BECKER (Made in Germany) Model: VTLF 500 Year: 2001 Serial No.: 1179848 Motor Rating: 15.0 kW Nominal Speed: 980 RPM Suction Volume: 500 m³/h Vacuum (Suction Pressure): -500 mbar Overpressure (Positive Pressure): +750 mbar

Description

Becker VTLF 500 – Technical Specifications

General Information

Manufacturer: Becker (Made in Germany)

Model: VTLF 500

Year of Manufacture: 2001

Serial Number: 1179848

Pump Type: Oil-Free Rotary Vane Vacuum Pump (Capable of dual vacuum & overpressure operation)

Application: Industrial vacuum systems, pneumatic conveying, packaging, printing, medical, and automation

Performance Characteristics

Suction Volume (Capacity): 500 m³/h (High-capacity vacuum system suitable for demanding industrial applications)

Vacuum (Suction Pressure): -500 mbar (Strong negative pressure for effective material handling & process control)

Overpressure (Positive Pressure): +750 mbar (Dual-function capability for versatile applications)

Nominal Speed: 980 RPM (Optimized for efficiency and noise reduction)

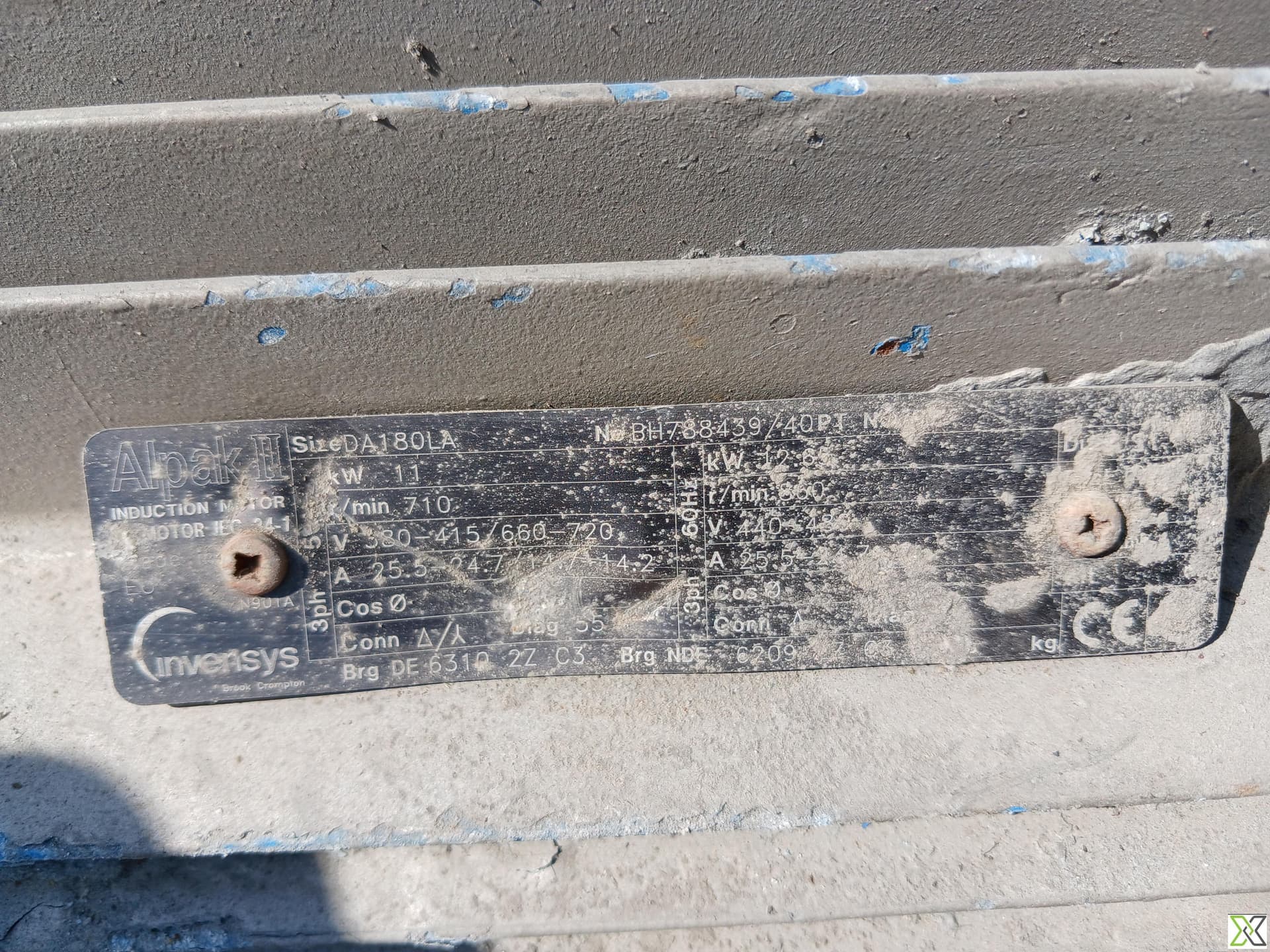

Electric Motor Specifications

Brand: Invensys / Brook Crompton – Alpak II Series

Motor Size: DA180LA

Motor Rating:

11 kW @ 710 RPM (Optimized for low-speed operations with high torque)

12.6 kW @ 900 RPM (Higher speed and power for demanding applications)

Voltage Options:

380–415 V / 660–720 V (50 Hz) (Common industrial voltage range for European markets)

440 V / 460 V (60 Hz) (Supports North American power standards)

Maximum Current Draw: Up to 25.5 A

Insulation Class: B (Provides adequate thermal resistance for extended operations)

Bearings:

Drive End (DE): 6310 ZZ C3

Non-Drive End (NDE): 6209

Connection Type: Δ (Delta Connection for efficient power utilization)

Mechanical Features

Pump Design: Oil-Free Rotary Vane (Low maintenance, environmentally friendly, and high efficiency)

Cooling Method: Likely Air-Cooled (Ensures stable operation without additional liquid cooling requirements)

Construction Material: High-Grade Alloy (Durability and long service life in industrial settings)

Noise Level: Low (Designed for smooth, quiet operation in commercial environments)

Standard Compliance

CE Certified (Meets European safety and performance regulations)

ISO 9001: Quality management compliance

IEC 60034: Electrical motor efficiency and safety standard

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	VTLF 500
Year of Manufacturing	2001
Voltage	380–415 V
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Direction of Rotation	Clockwise
Fluid Name	Air or process gas
Insulation Class	Class F or H
Immersed	No; this is a dry-installed
Normal Operating Inlet Pressure	approx. 1013 mbar
Orientation	Horizontal installation
