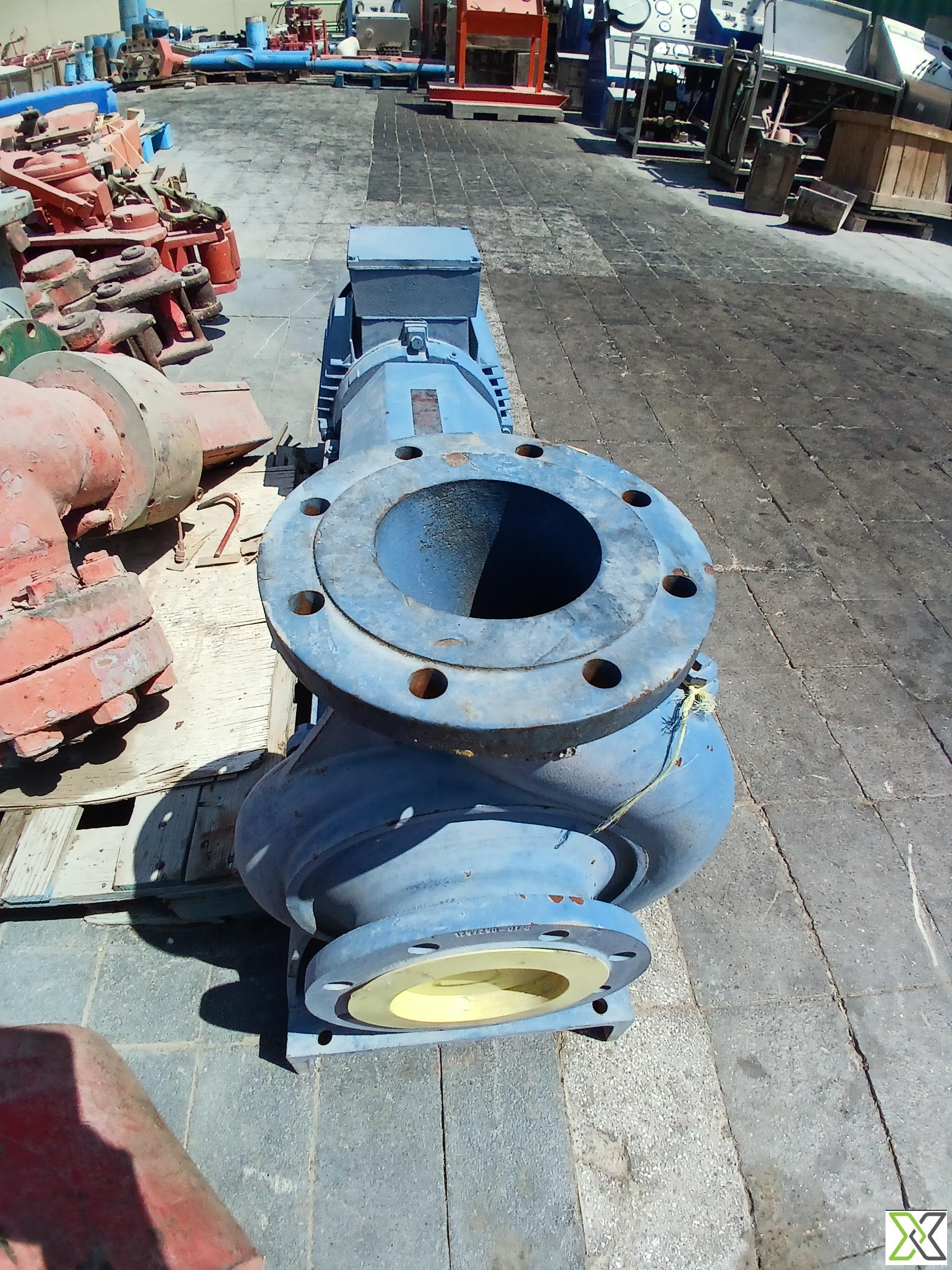

Blue Vertical Pump & Motor Assembly

ReflowX SKU: REF-2575

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Appears to be RITZ Pumpenfabrik GmbH (logo readable as RITZ)
Equipment code

Get Quotation Whatsapp

Short Description

Manufacturer: ELK Pumpen GmbH

Description

Electric Motor Specifications

General Information

Manufacturer: ELK Pumpen GmbH

Model: ASKM3-TRP

Serial No.: 2348567

Country of Origin: Germany

Electrical Specifications

Power Output: 10 kW

Rated Voltage: 230V (Delta) / 400V (Star)

Rated Current: 19.4 A (Δ) / 10.2 A (Y)

Frequency: 50 Hz

Power Factor (cos φ): 0.85 (Approx.)

Efficiency Class: IE2 (High Efficiency, per IEC 60034-30)

Starting Method: Direct-On-Line (DOL) / Star-Delta

Connection Type: Δ/Y (Delta/Star)

Mechanical Specifications

Rated Speed: 1465 RPM

Torque: 65 Nm (Approx.)

Frame Size: Likely IEC 160M (Not confirmed from plate)

Cooling Method: IC 411 (Self-Ventilated, Fan-Cooled)

Mounting Type: IM B3 / B5 / B35 (Check nameplate for exact type)

Shaft Diameter: Ø 38 mm (Estimate, based on motor size)

Rotor Type: Squirrel Cage Induction

Enclosure Type: Totally Enclosed Fan Cooled (TEFC)

Pump Specifications

General Information

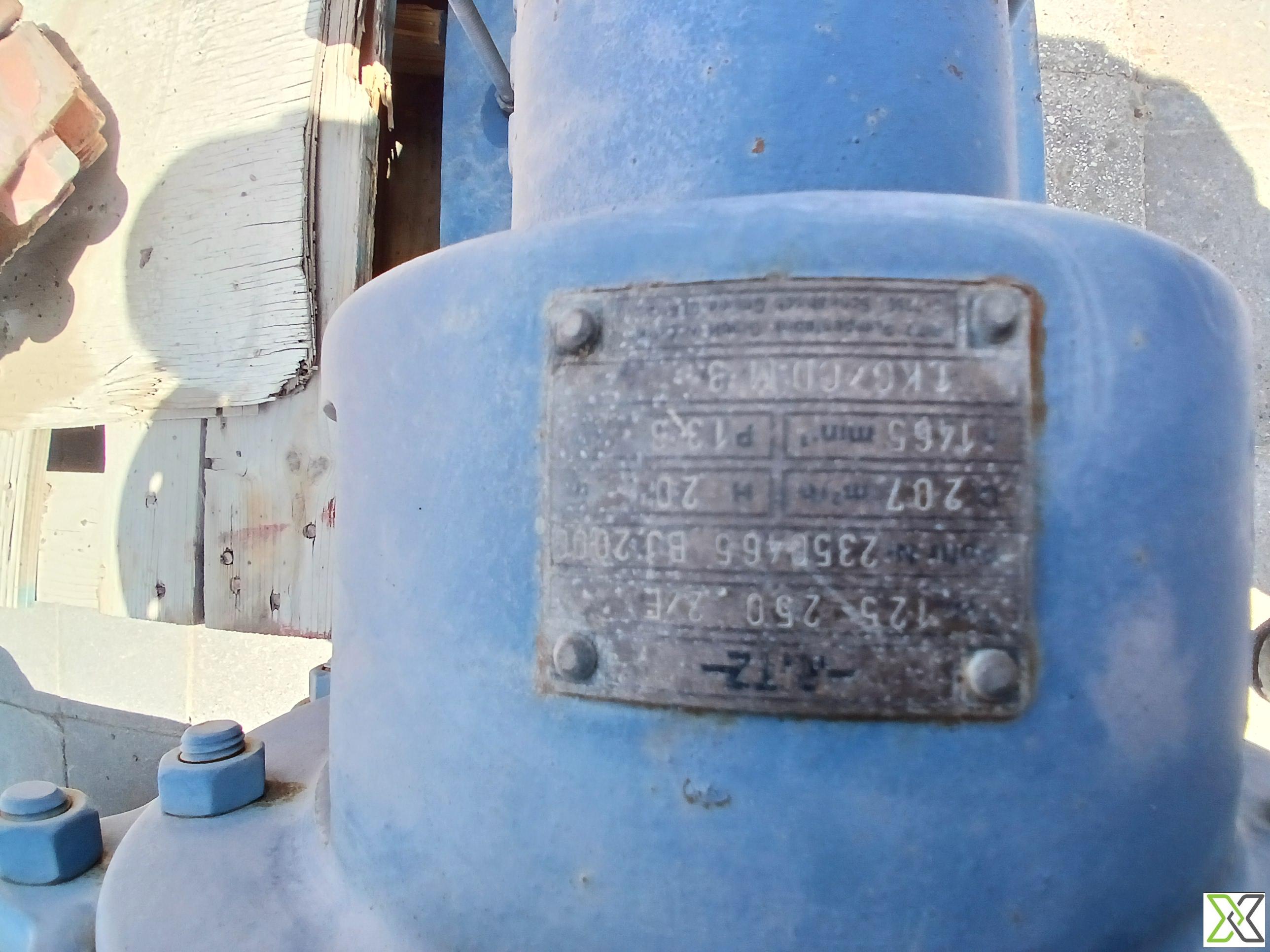

Manufacturer: RITZ Pumpenfabrik GmbH

Pump Model: K107DM3

Hydraulic Performance

Flow Rate (Q): 123–250 m³/h

Head (H): 23.5–64.5 m

Max Pressure: 13.5 bar (P1.35)

Mechanical Specifications

Rated Speed: 1465 RPM

Impeller Diameter: 207 mm

Stage: Single-stage (H - Horizontal or Vertical, not confirmed)

Construction Type: Likely End-Suction or Inline Centrifugal

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	ASKM3-TRP, K107DM3
Voltage	230V (Delta) / 400V (Star)
Color	Blue
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Output Power	10 kW
Direction of Rotation	Clockwise
Design Specification	vortex, open impeller, grinder, and high-head configurations
Fluid Name	soiled wastewater, sewage, rainwater, and seepage containing solids or filaments.
Explosion Protection Gas Group	Group IIC
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 2
Insulation Class	Class F
Density	1.1 kg/dm³
Immersed	Yes
Normal Operating Inlet Temperature	40°C
Normal Operating Outlet Pressure	1.23 bar
Orientation	Vertical
Upper Limit Design Pressure	1.23 bar
