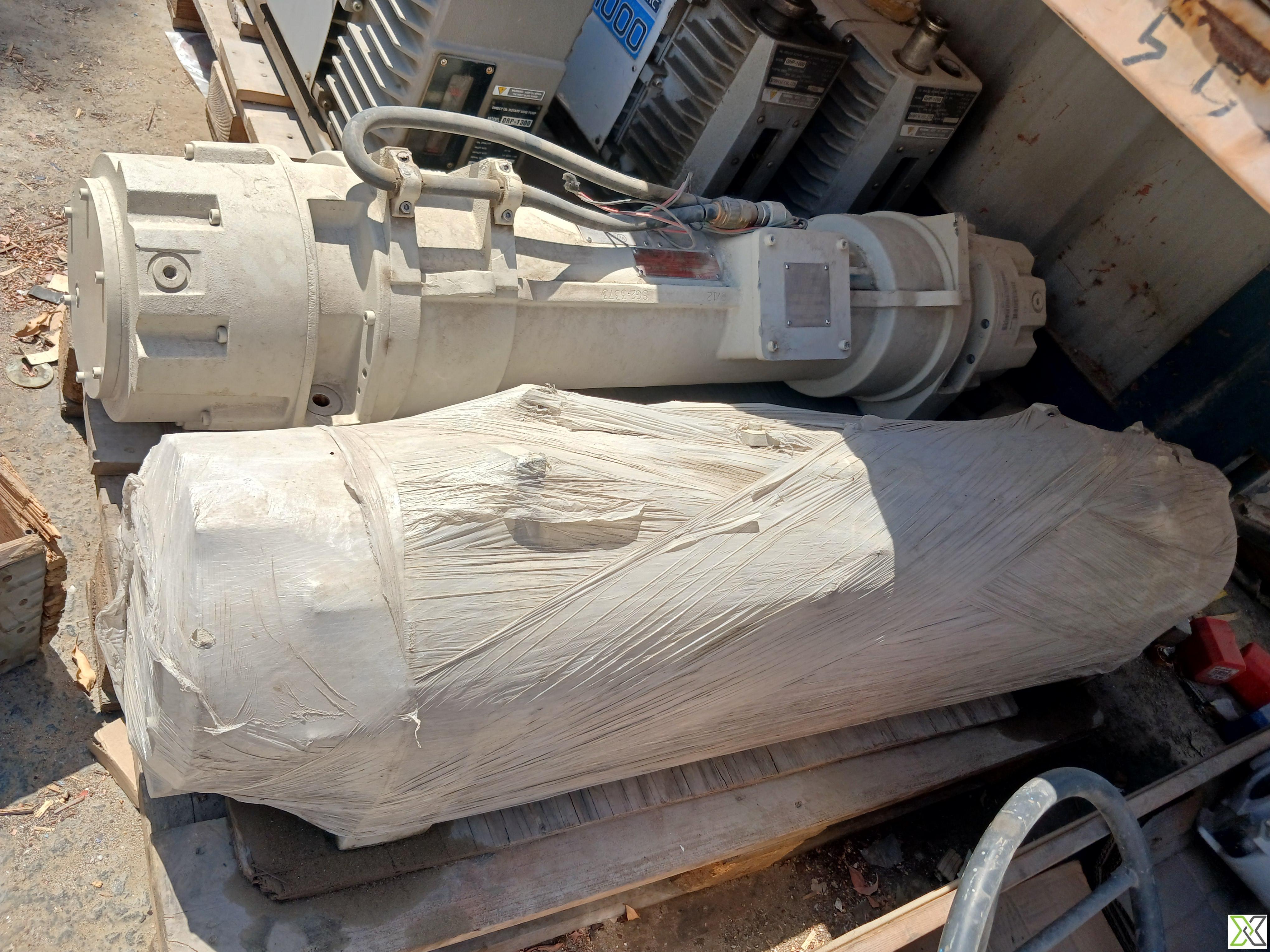

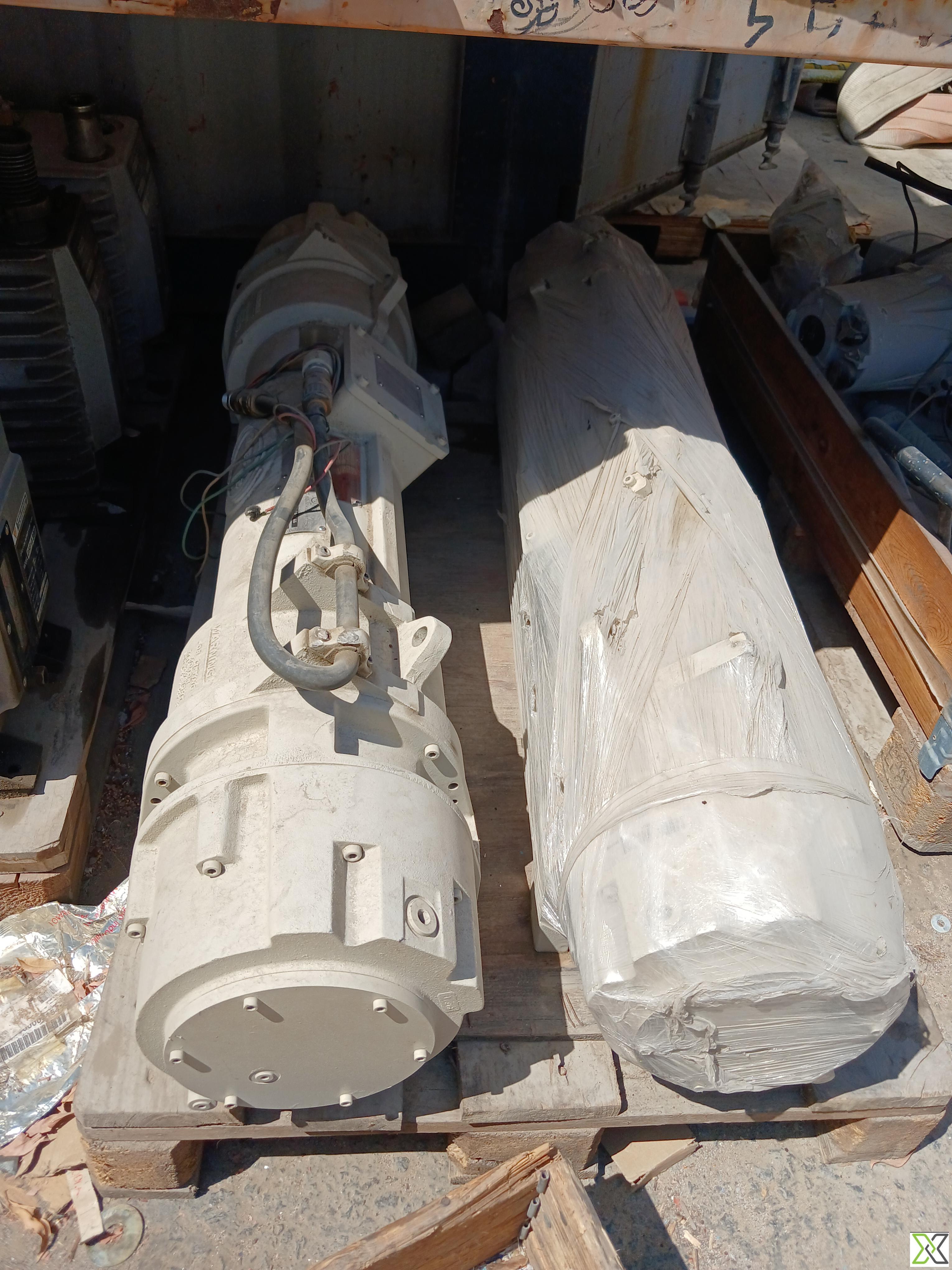

Industrial Vibrator Motor – 5DX-26-18-460/480-60-01, 2.5 kW, 1800 RPM

The 5DX-26-18-460/480-60-01 is a robust industrial vibrator motor designed for high-performance applications requiring sustained vibration and dependable operation. Delivering approximately 2.5 kW (3.4 HP) at a synchronous speed of 1800 RPM, this motor supports a voltage range of 460–480 V, three-phase, operating at 60 Hz.

Engineered for continuous-duty (S1) service, the unit features Class F insulation (155°C max winding temperature) and is rated for ambient environments up to 55°C. The heavy-duty, totally enclosed construction makes it highly suitable for dusty or harsh operating conditions common in material handling, vibrating screens, hoppers, and feeder systems.

This model employs an internal eccentric weight mechanism to generate high-frequency rotary vibration and meets ISO standards for vibration balancing. It is mounted via a base platform and can be adapted for side-mount or custom frame applications. The motor uses permanently lubricated bearings for low-maintenance operation and long service life. Typical noise output is within standard industrial limits, between 75–85 dB depending on installation and load conditions.

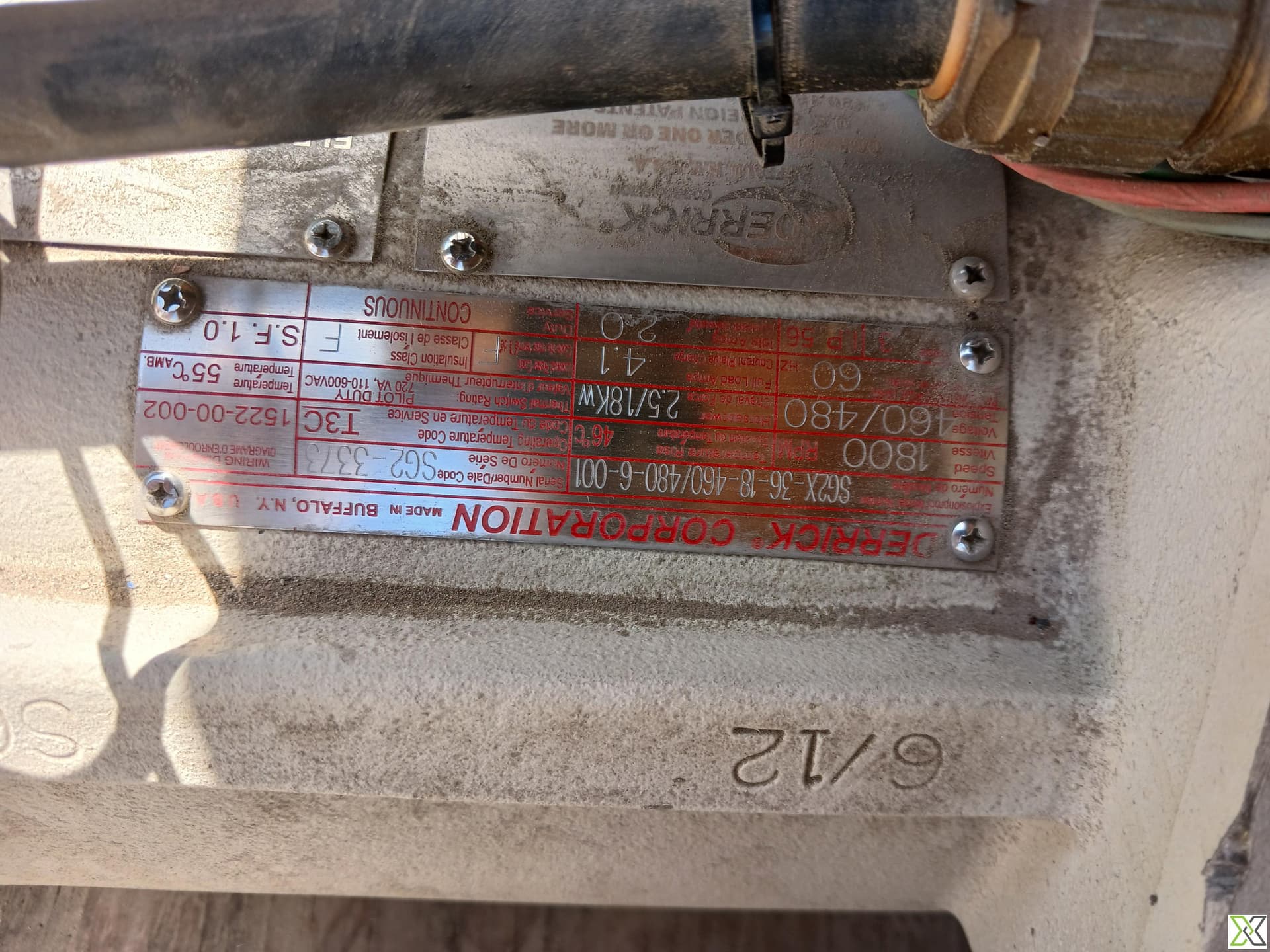

Specifications:

– Model Number: 5DX-26-18-460/480-60-01
– Serial Number: 1522-00-002
– Model Reference: 5143-00-001
– Design Code: S62-3327
– Power Output: 2.5 kW (Approx. 3.4 HP)
– Voltage Range: 460 V / 480 V (Three Phase)
– Frequency: 60 Hz
– Speed (Synchronous): 1800 RPM
– Current Draw: 4.1 A
– Duty Cycle: Continuous (S1)
– Insulation Class: F (Max. winding temp. 155°C)
– Ambient Temperature Rating: Up to 55°C
– Service Factor: 1.0
– Enclosure Type: Totally enclosed (TEFC), heavy-duty industrial vibrator
– Mounting Type: Base mounted (supports side-mount flange or custom frames)
– Frame Material: Cast aluminum or steel (varies by variant)
– Vibration Output: High-frequency rotary vibration via internal eccentric weight
– Balancing Tolerance: ISO vibration balancing compliant

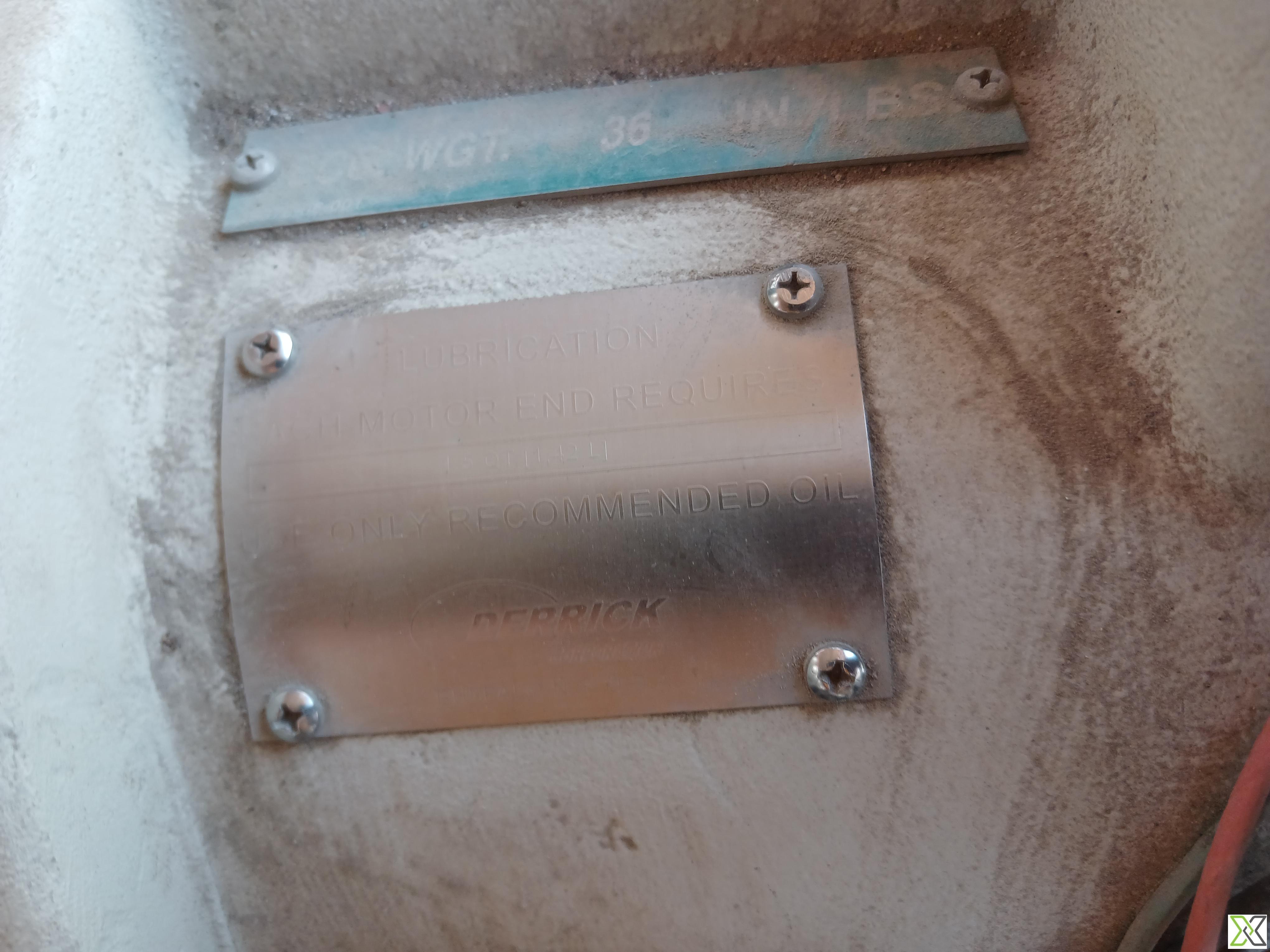

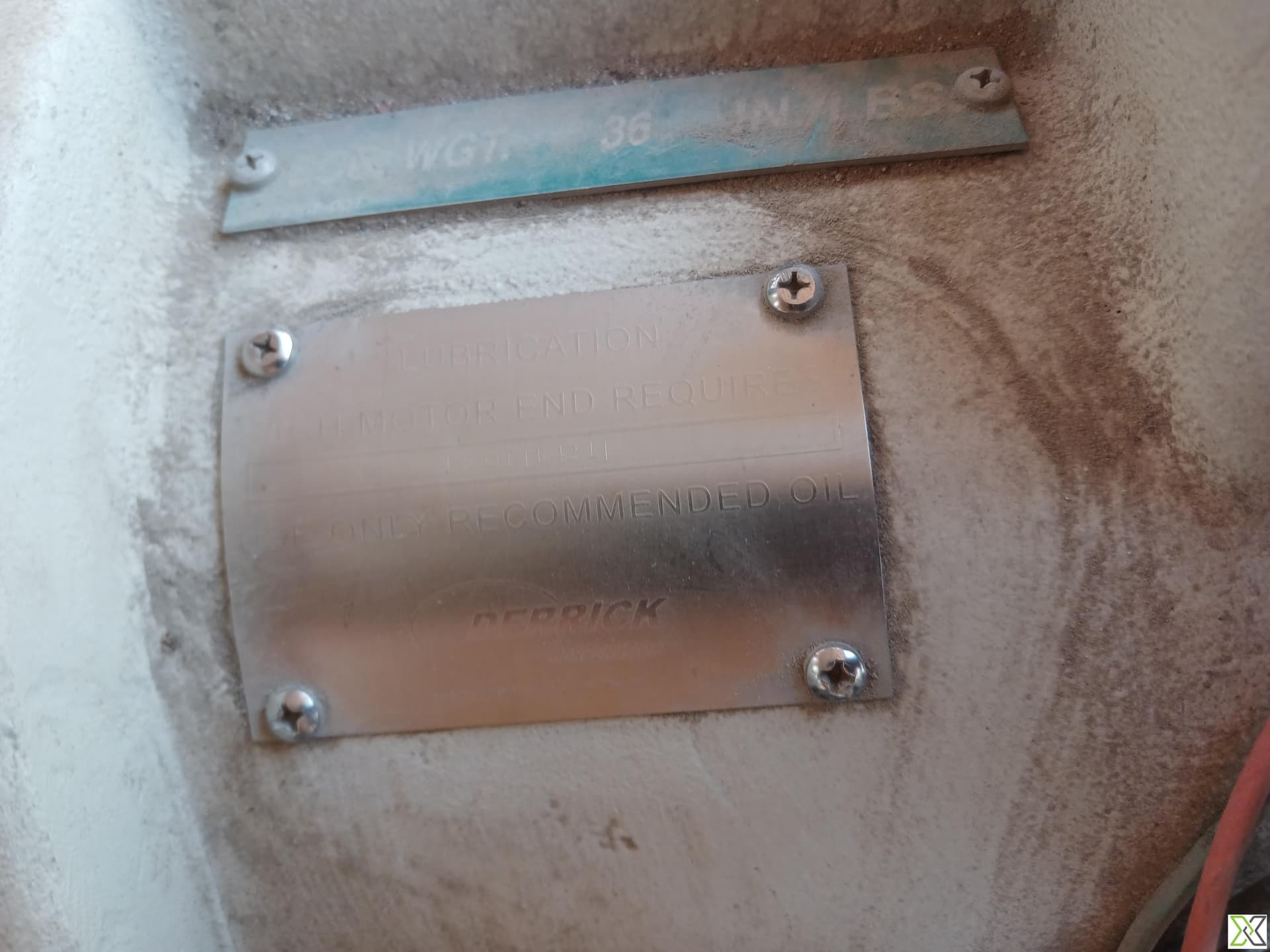

– Lubrication: Permanently lubricated bearings (may include grease injection type)
– Noise Output: Approx. 75–85 dB depending on application
– Expected Lifespan: Long-life design for continuous-duty industrial use
– Weight: ~40–50 kg (typical for this configuration)
– Country of Origin: Not specified
– Availability: Available upon request

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
