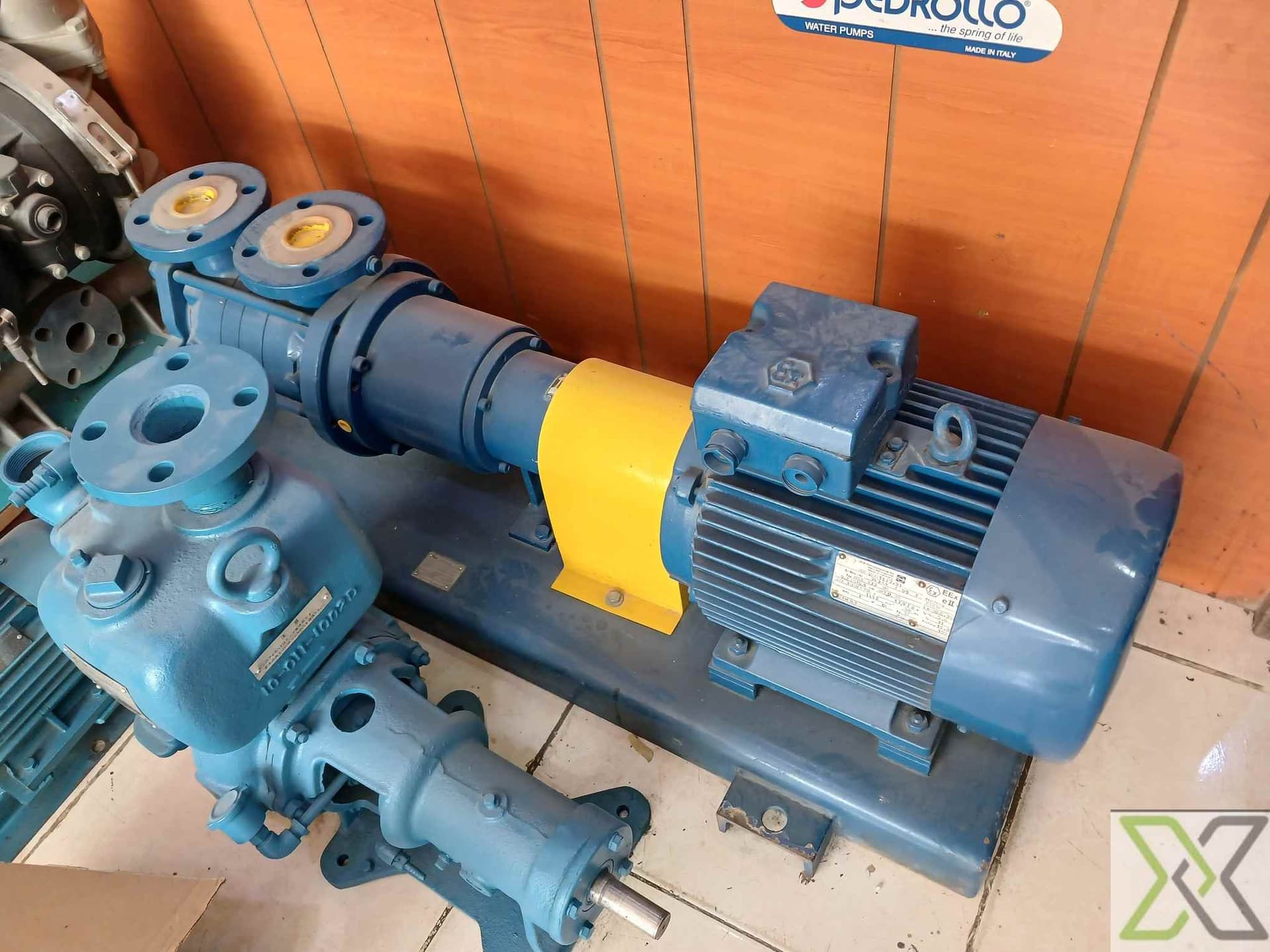

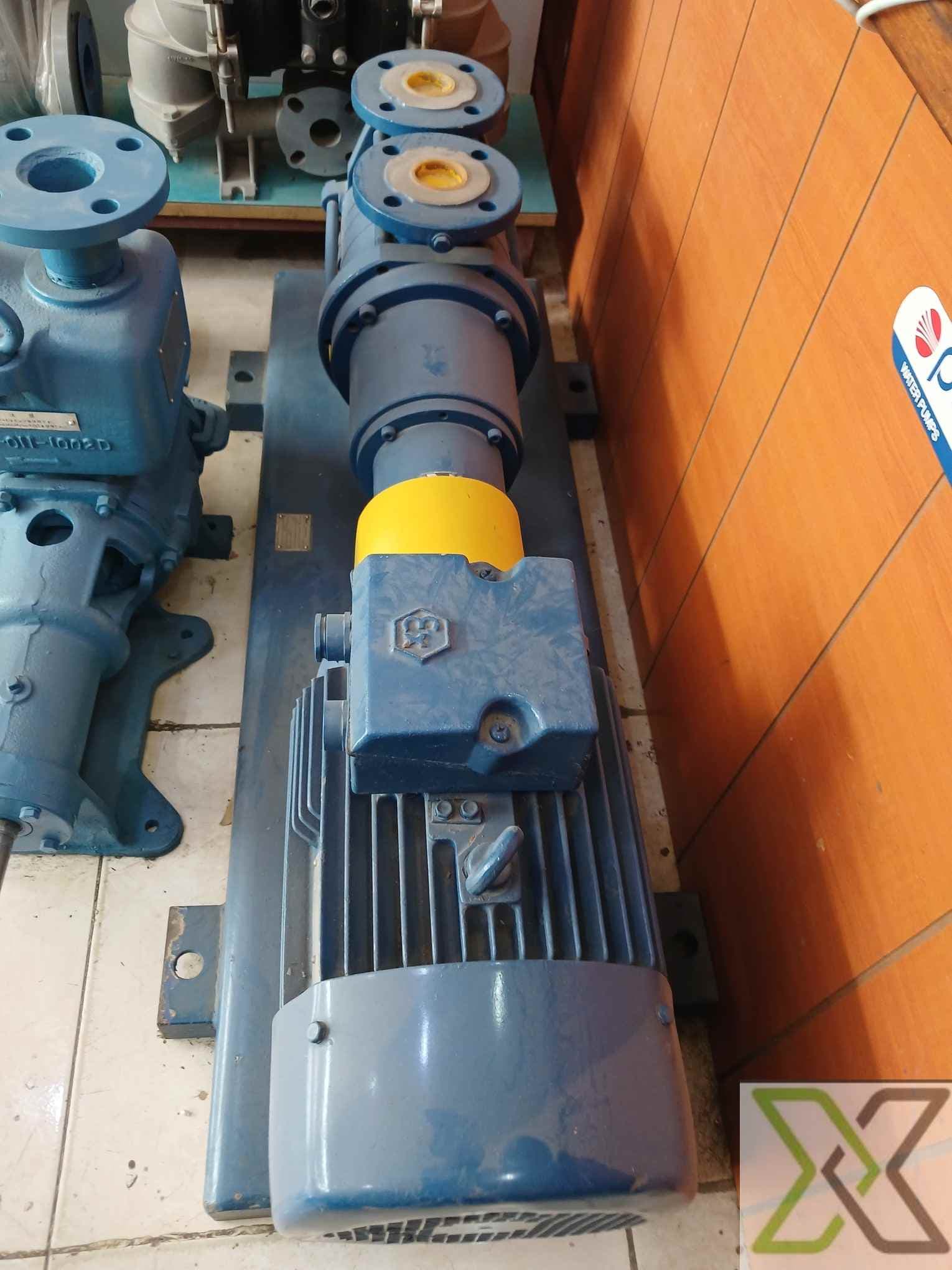

Electric Motor – Specifications

 General Information

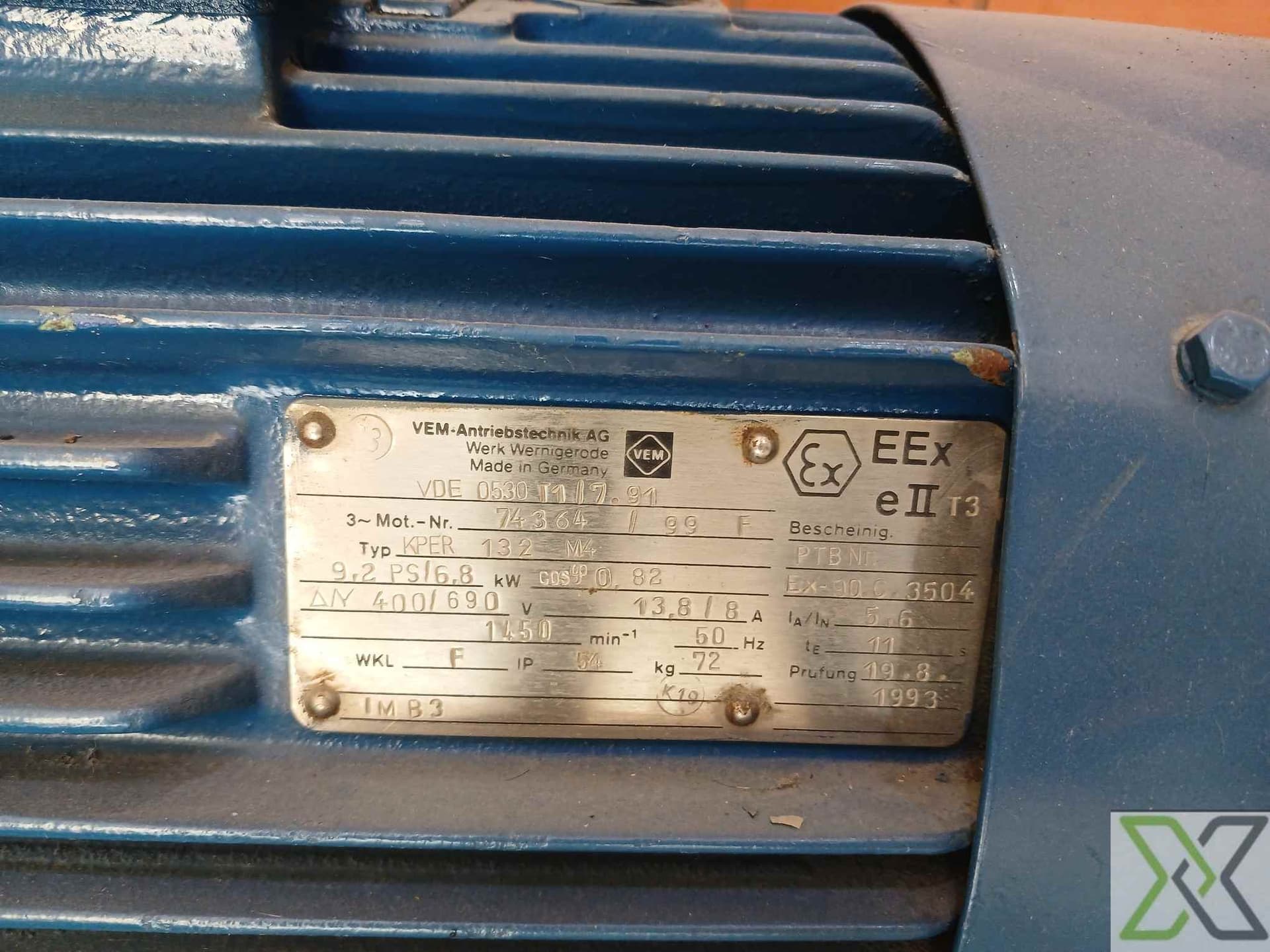

✔ Manufacturer: VEM-Antriebstechnik AG (Werk Wernigerode, Germany)
✔ Model: KPER 132 M4 (Industrial electric motor for various applications)
✔ Country of Origin: Germany

 Performance & Power Output

✔ Power Output: 9.2 kW (Rated) / 6.8 kW (At specific settings)
✔ Speed: 1,500 RPM (4-pole motor, synchronous speed at 50 Hz)
✔ Frequency: 50 Hz (Standard industrial frequency in Europe and many other regions)

 Electrical Specifications

✔ Voltage: Δ/Y 400/690 V (Delta/Star connection for different applications)
✔ Current: 13.8 A (Delta) / 8.0 A (Star) (Amperage requirement based on wiring configuration)
✔ Phase: Three-Phase (Designed for industrial applications)

 Mechanical & Design Features

✔ Mounting Type: IM B3 (Foot-mounted, horizontal shaft alignment)
✔ Weight: 72 kg (Compact and robust design for industrial use)
✔ Ingress Protection (IP Rating): IP55 (Protection against dust and water jets from any direction)
✔ Insulation Class: F (Can withstand higher temperature rise, ensuring durability and efficiency)

Key Features & Benefits

✅ High Efficiency: Optimized power output for industrial applications
✅ Reliable & Durable: IP55-rated for dust and water resistance
✅ Versatile Mounting: IM B3 configuration for easy integration into existing systems
✅ Temperature Resistance: Class F insulation allows operation at higher temperatures
✅ European Quality: Manufactured by VEM-Antriebstechnik AG, Germany

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
