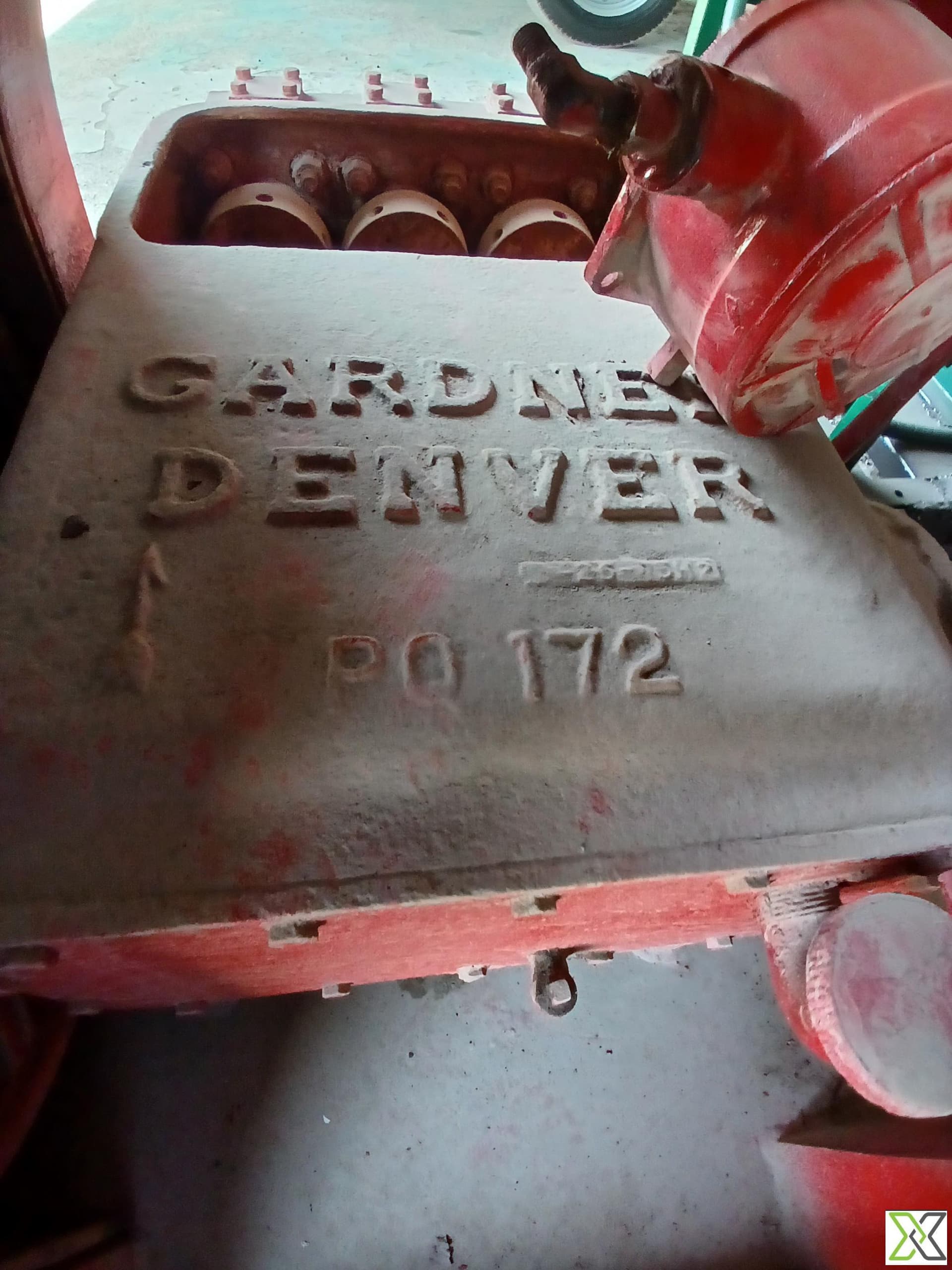

Gardner Denver P0172 Triplex Mud Pump Package – Skid-Mounted with Electric Motor

Description:

The Gardner Denver P0172 Triplex Mud Pump Package is a robust and reliable skid-mounted pumping solution tailored for high-demand industrial and oilfield mud handling applications. Featuring a triplex reciprocating pump configuration, this system is designed to deliver consistent and efficient pressure and flow in abrasive environments.

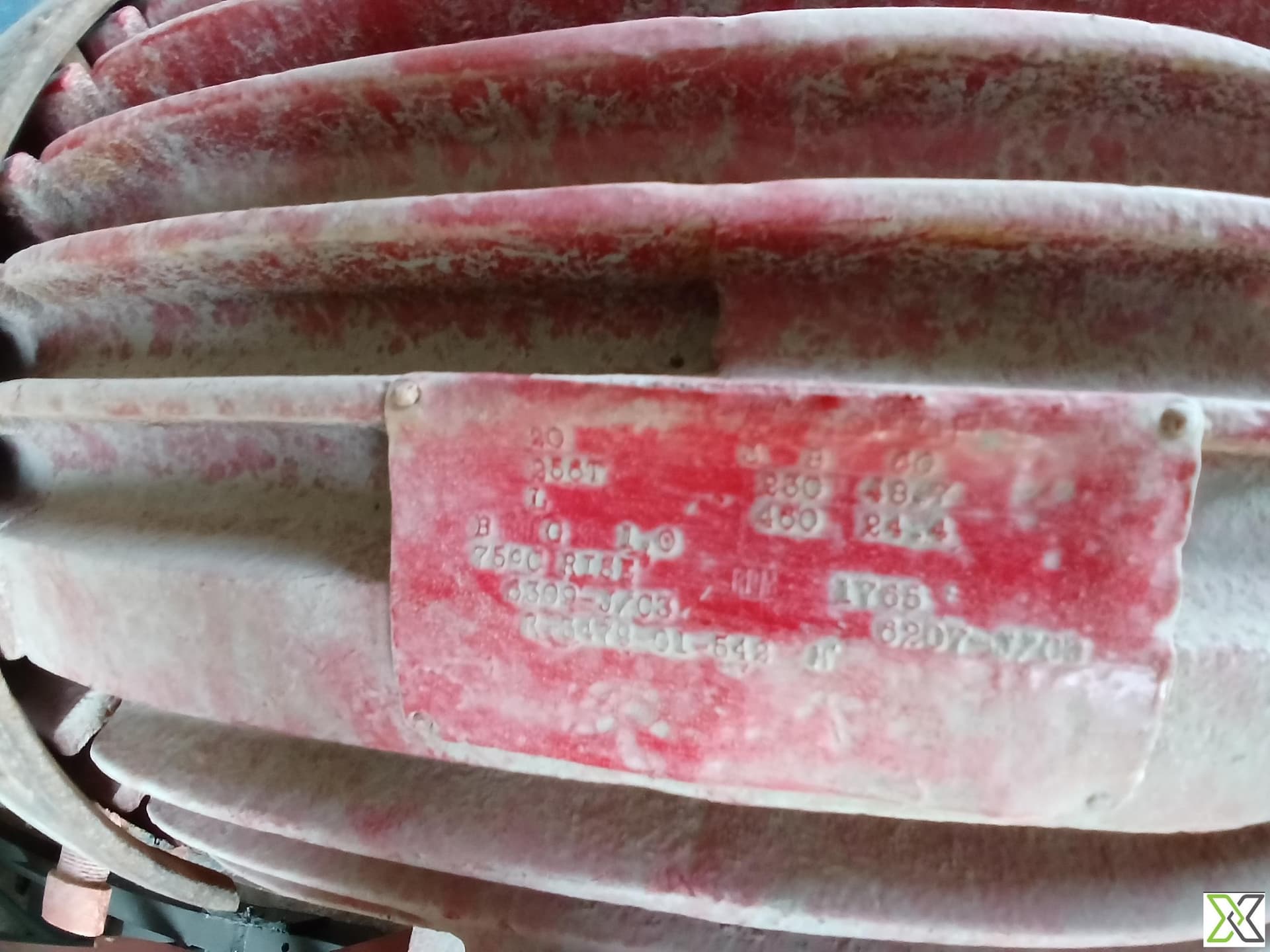

Driven by a 20 HP electric motor operating at 1765 RPM, the system supports dual voltage ratings of 230/460 V or 400/244 V (as indicated on the motor plate), offering installation flexibility in various electrical environments.

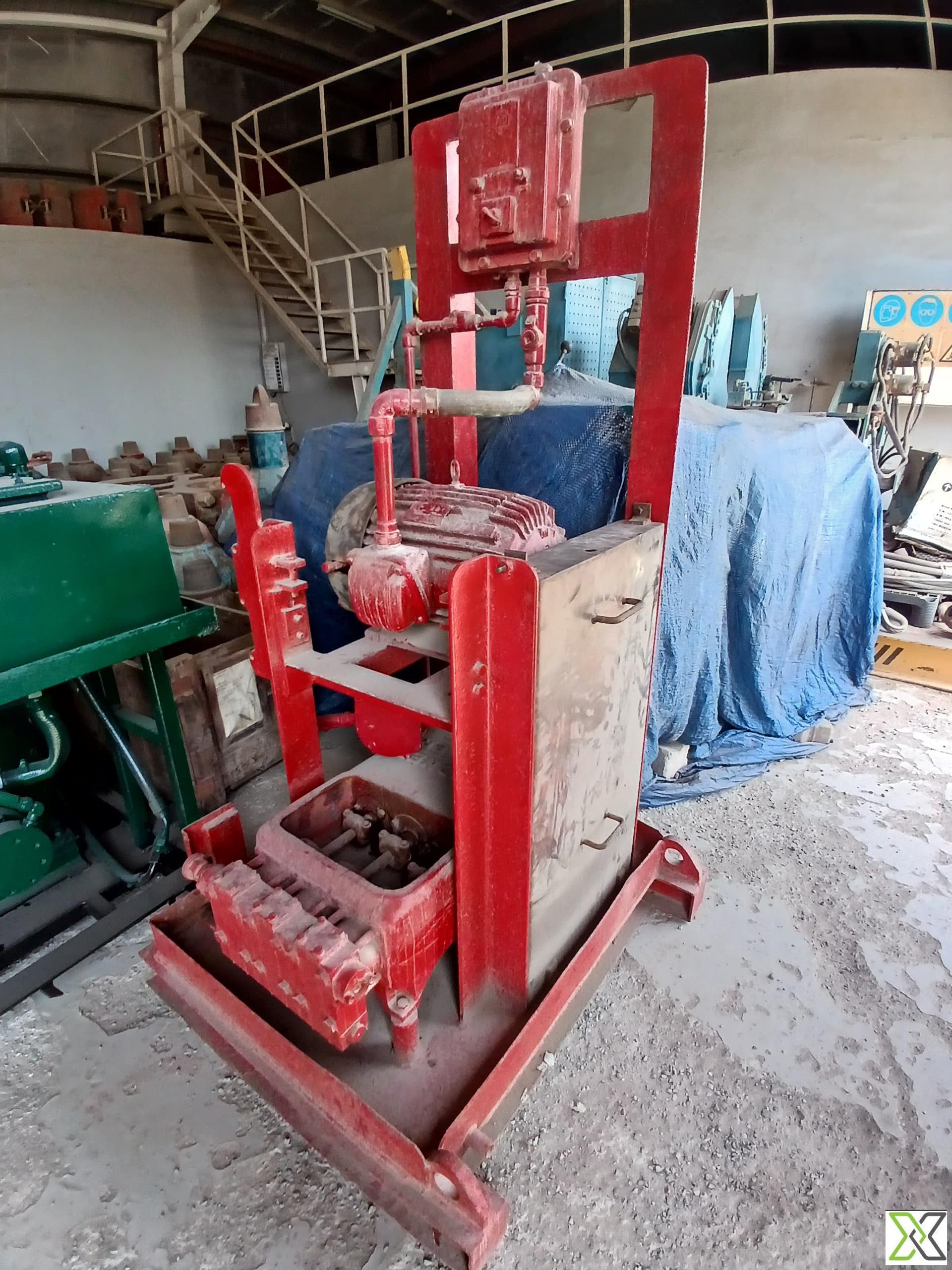

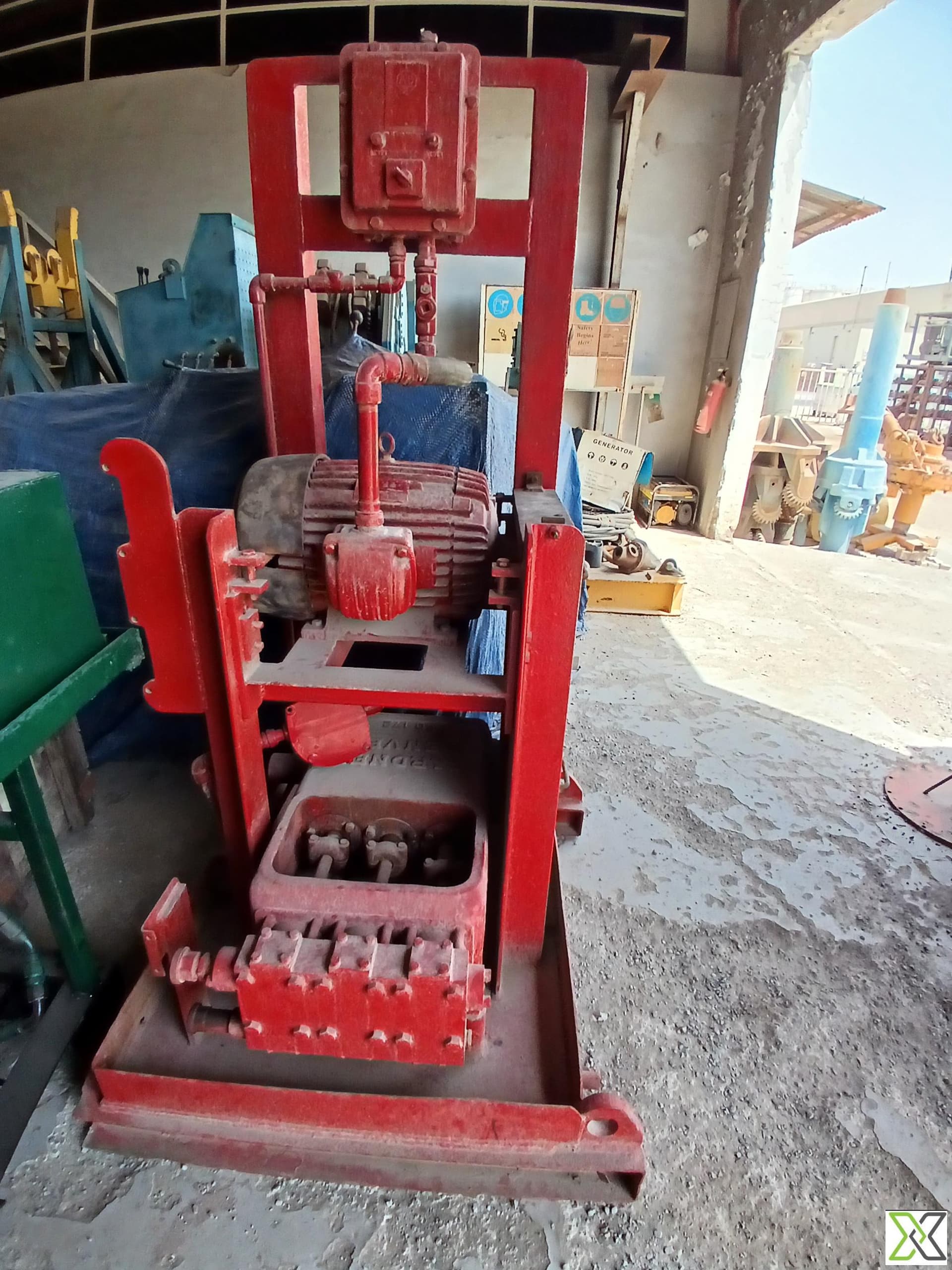

The pump is skid-mounted on a durable steel base frame and comes with an integrated control box and flanged suction/discharge piping, ensuring ease of connection and operation. Ideal for drilling rigs, fluid circulation, or other heavy-duty process applications, this pump package ensures longevity and performance.

Specifications:

– Pump Manufacturer: Gardner Denver
– Pump Model: P0172
– Pump Type: Triplex reciprocating pump
– Mounting: Skid-mounted with structural steel base
– Motor Power: 20 HP
– Motor Speed: 1765 RPM
– Motor Voltage: Dual rating – 230/460 V or 400/244 V
– Pump Drive: Direct-coupled electric motor
– Control Box: Integrated control panel
– Piping: Flanged suction and discharge connections
– Package Configuration: Complete mud pump system – ready to install
– Applications: Mud handling, industrial fluid circulation, oilfield service

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model NumberP0172
Manufacturer NameGardner Denver
Voltage230/460 V
ColorRed
ISO 15926 Pt 47436
PCA RDS CodeRDS416834
CFIHOS IDCFIHOS-30000521
Output Power20 HP
Direction of RotationClockwise
Fluid NameDrilling Mud
Insulation ClassClass F
Density1.0–2.2 g/cm³
ImmersedNo – Pump is not submersible
Normal Operating Inlet Pressure0.5 – 2 bar
Normal Operating Inlet Temperature+10 °C to +50 °C
Normal Operating Outlet PressureUp to 103 bar
OrientationHorizontal
Upper Limit Design Pressure138 bar
