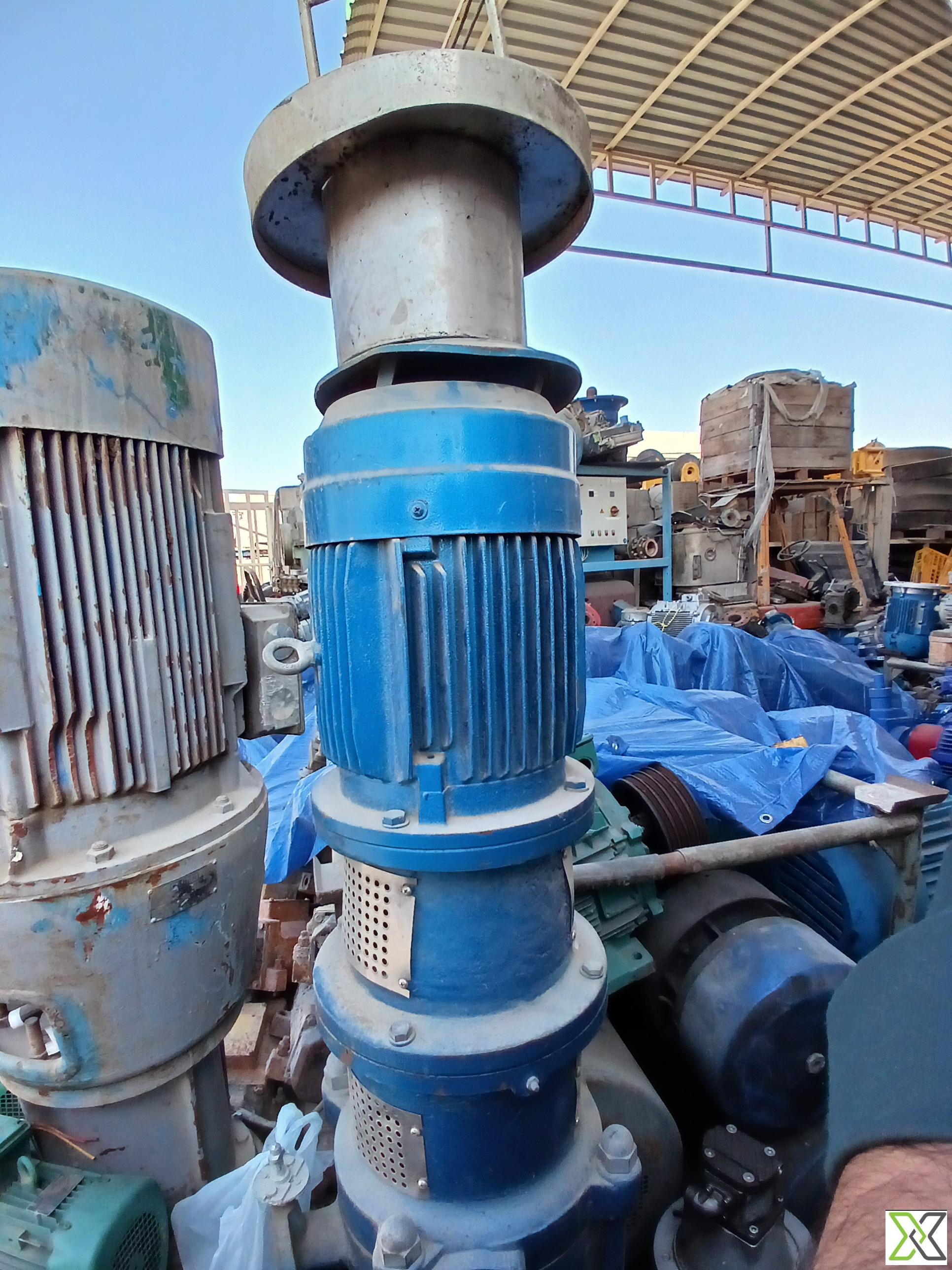

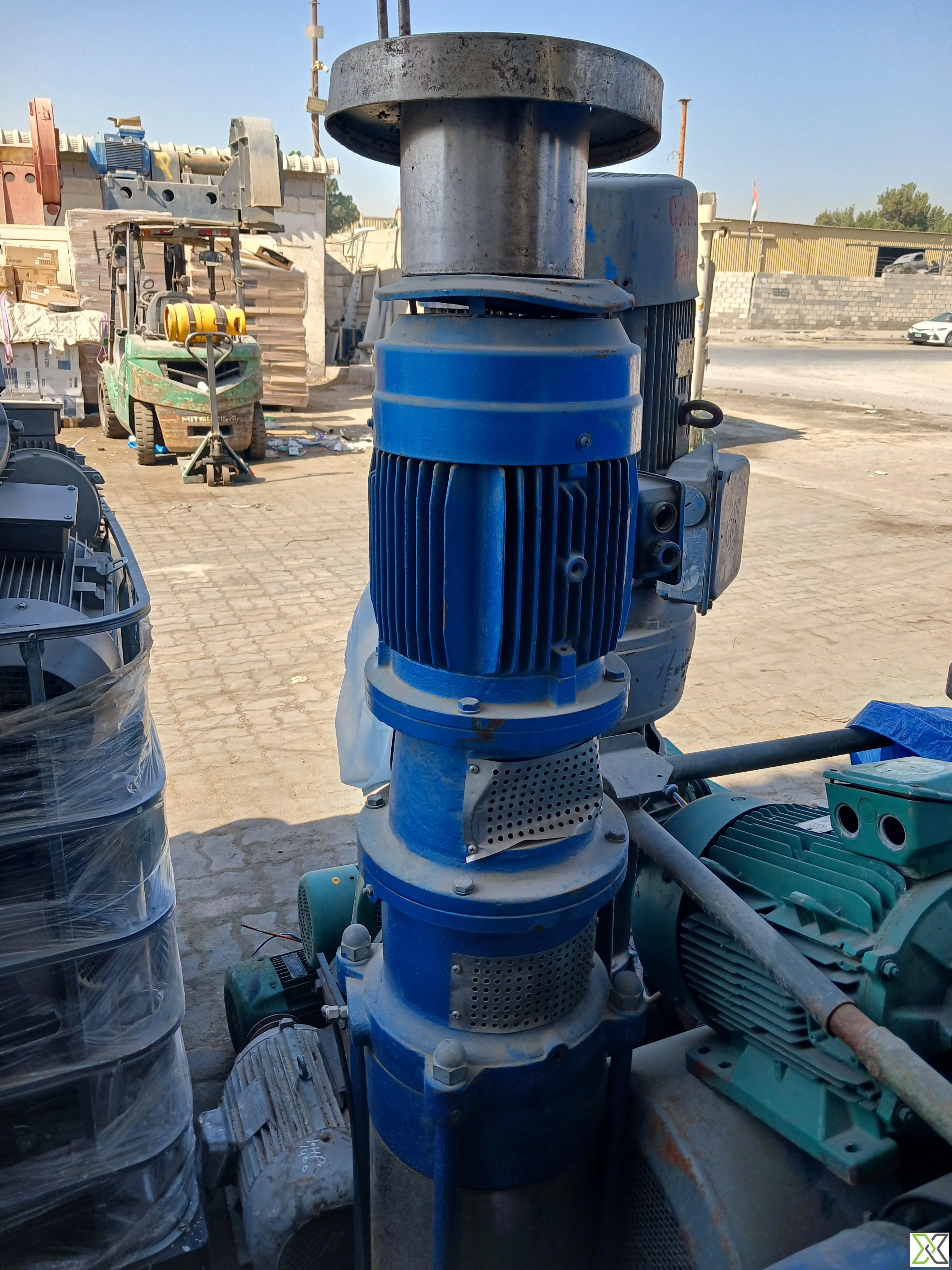

LOHER ST132S4 Motor & SUPO 40AYM8 Pump

ReflowX SKU: REF-5206

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

LOHER
Equipment code

Get Quotation Whatsapp

Short Description

Manufacturer: LOHER Model/Type: ST132S4 Serial No.: ER15291 Power: 5.5 kW Voltage: 380 V (Delta) Current: 11.7 A Frequency: 50 Hz Speed: 1450 RPM Efficiency (cos φ): 0.84 Phases: 3 Insulation Class: F

Description

Full Technical Specification

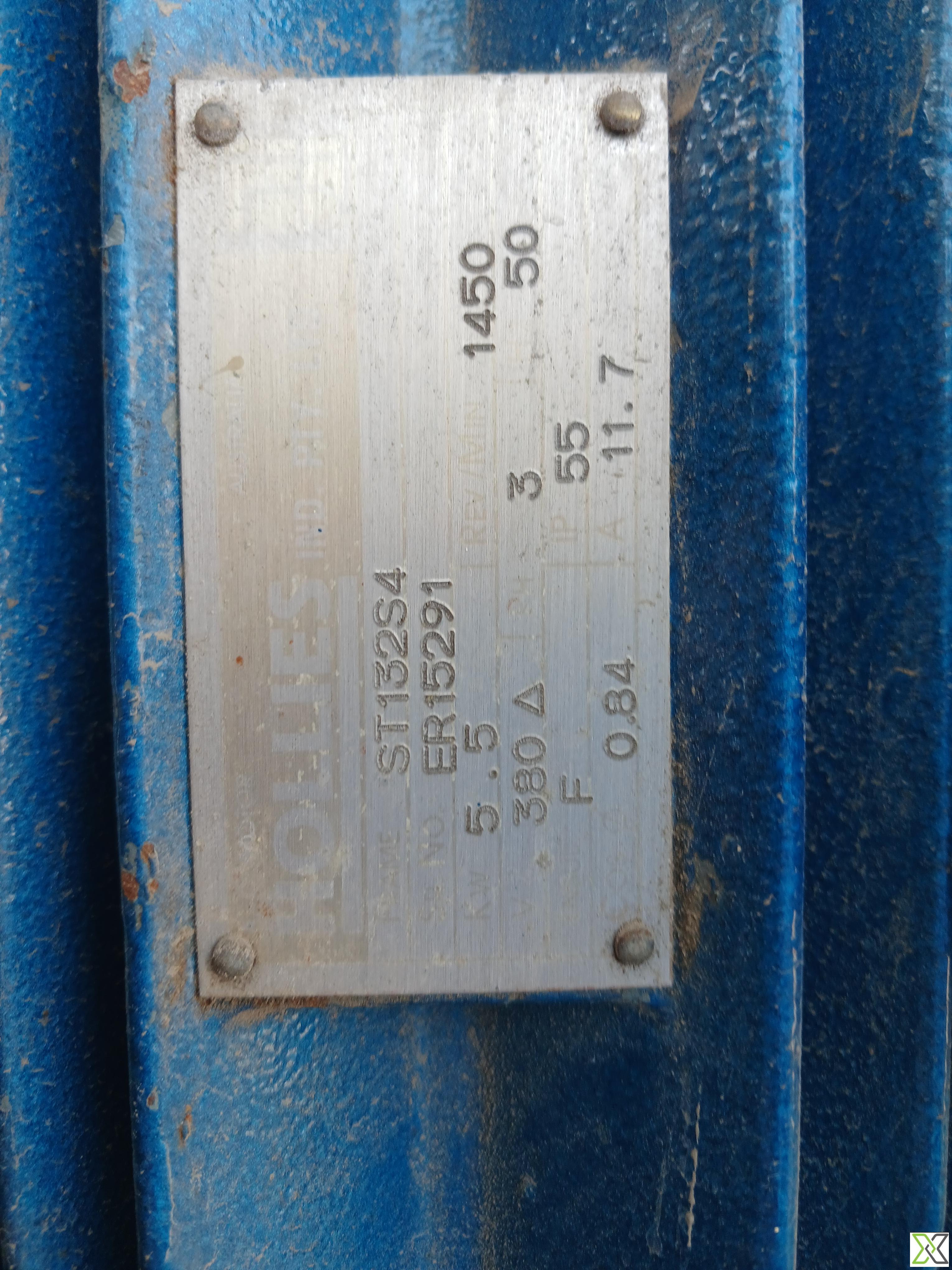

Electric Motor – LOHER ST132S4

Manufacturer: LOHER (Germany)

Model / Type: ST132S4

Serial Number: ER15291

Power Output: 5.5 kW (Efficient motor for industrial pumping applications)

Voltage: 380V (Delta Connection)

Current: 11.7 A (Optimized for continuous operation with stable power consumption)

Frequency: 50 Hz (Standard for industrial motors in Europe & Asia)

Speed: 1450 RPM (Synchronous with pump requirements for smooth operation)

Efficiency (cos φ): 0.84 (High power factor for energy-efficient performance)

Phases: 3-Phase (Ensures balanced power distribution and smooth torque delivery)

Insulation Class: F (Allows operation at higher temperatures for increased durability)

Cooling System: TEFC (Totally Enclosed Fan Cooled)

Mounting Type: IM B3 (Foot-mounted) / IM V1 (Vertical flange-mounted, as likely used in pump configuration)

Protection Class: IP55 (Dust & water jet protection for industrial environments)

Compliance: IEC 60034 / VDE 0530 (Conforms to international motor efficiency and performance standards)

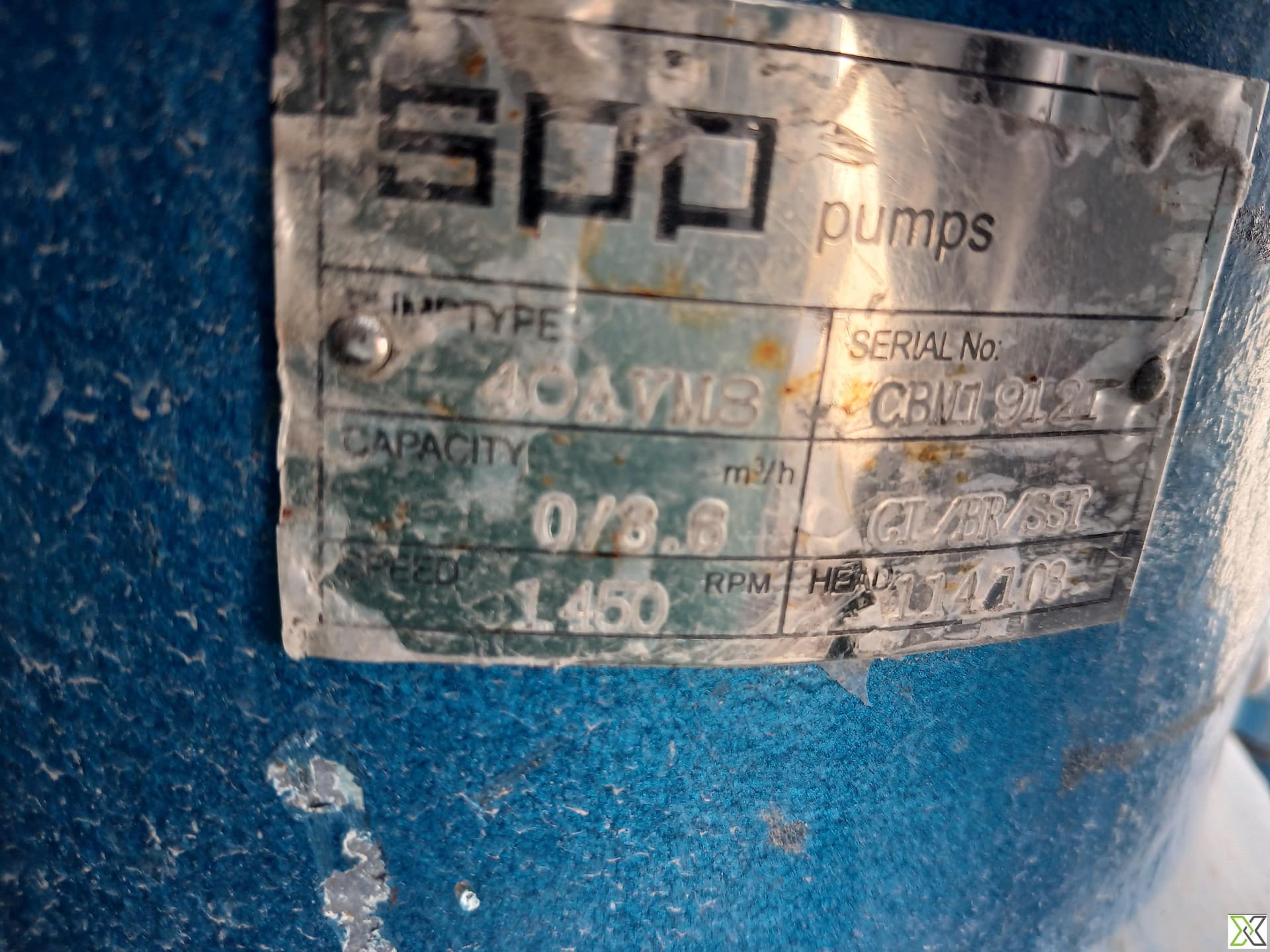

Pump – SUPO 40AYM8

Pump Brand: SUPO Pumps (Industrial-grade centrifugal pump manufacturer)

Type / Model: 40AYM8 (Vertical inline centrifugal pump for industrial fluid movement)

Serial Number: CBN0912F

Capacity (Flow Rate Q): 0.2 – 8.6 m³/h (Wide range to accommodate variable flow needs)

Head (H): 114 m / 103 m (Indicates performance across different operational conditions)

Speed: 1450 RPM (Optimized for stable and efficient operation with the motor)

Pump Configuration: Vertical inline centrifugal pump (Space-saving and high-efficiency design)

Material Code: GL / BR / SST

GL (Cast Iron): Structural strength for housing

BR (Bronze): Corrosion resistance in impeller and internal components

SST (Stainless Steel): Durability and wear resistance for high-pressure operation

Design & Features

Compact Vertical Inline Design (Space-efficient, ideal for high-rise and industrial fluid handling applications)

High-Efficiency Hydraulic Design (Optimized for minimal energy losses and smooth operation)

Corrosion-Resistant Construction (Materials suitable for handling water and mild chemical applications)

Precision-Coupled Motor & Pump (Ensures minimal vibration and noise during operation)

Application-Specific Bearings & Seals (Enhances operational longevity and reduces maintenance needs)

Applications

✅ Water Supply & Distribution (High-rise buildings, industrial plants, and municipal systems)
✅ HVAC & Cooling Systems (Efficient circulation in chillers and air-conditioning units)
✅ Industrial Processing (Pump applications in manufacturing and chemical processing)
✅ Boiler Feed & Pressure Boosting (Maintains steady flow and high pressure in critical systems)
✅ Marine & Offshore Applications (Suitable for corrosion-resistant environments like ship engine rooms)

Environmental & Operational Conditions

Ambient Temperature Range: -10°C to +45°C

Humidity Tolerance: 95% RH (non-condensing)

Noise Level: Low-noise operation (Typically below 75 dB at standard operating conditions)

Service Life Expectancy: 10+ years with proper maintenance

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	ST132S4
Voltage	380V
Color	Blue
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Direction of Rotation	Clockwise
Design Specification	Standard industrial motor design
Explosion Protection Gas Group	IIB or IIC
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 1 or Zone 2
Insulation Class	Class F or H
Density	1000 kg/m³
Normal Operating Inlet Temperature	up to 40°C
