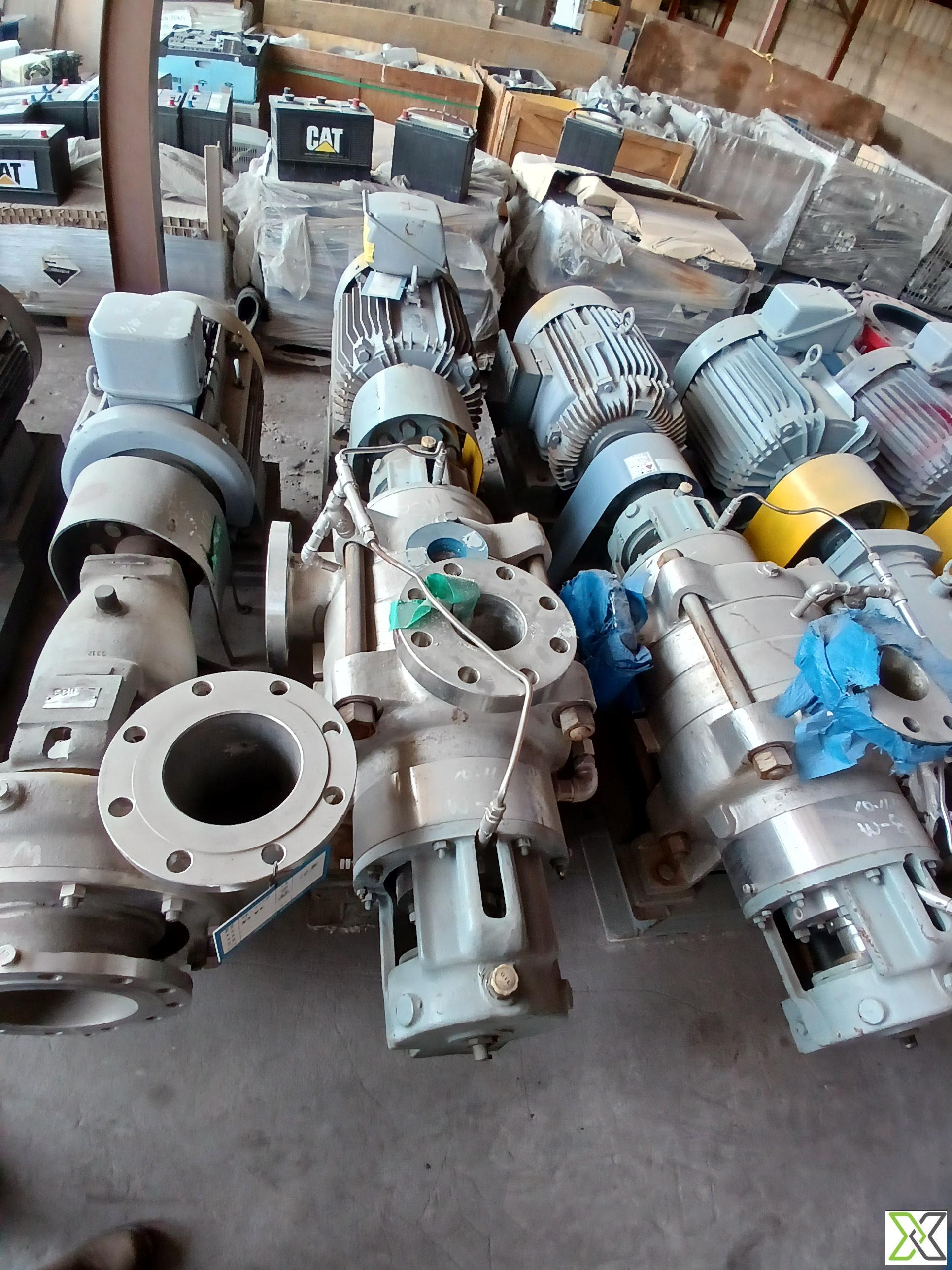

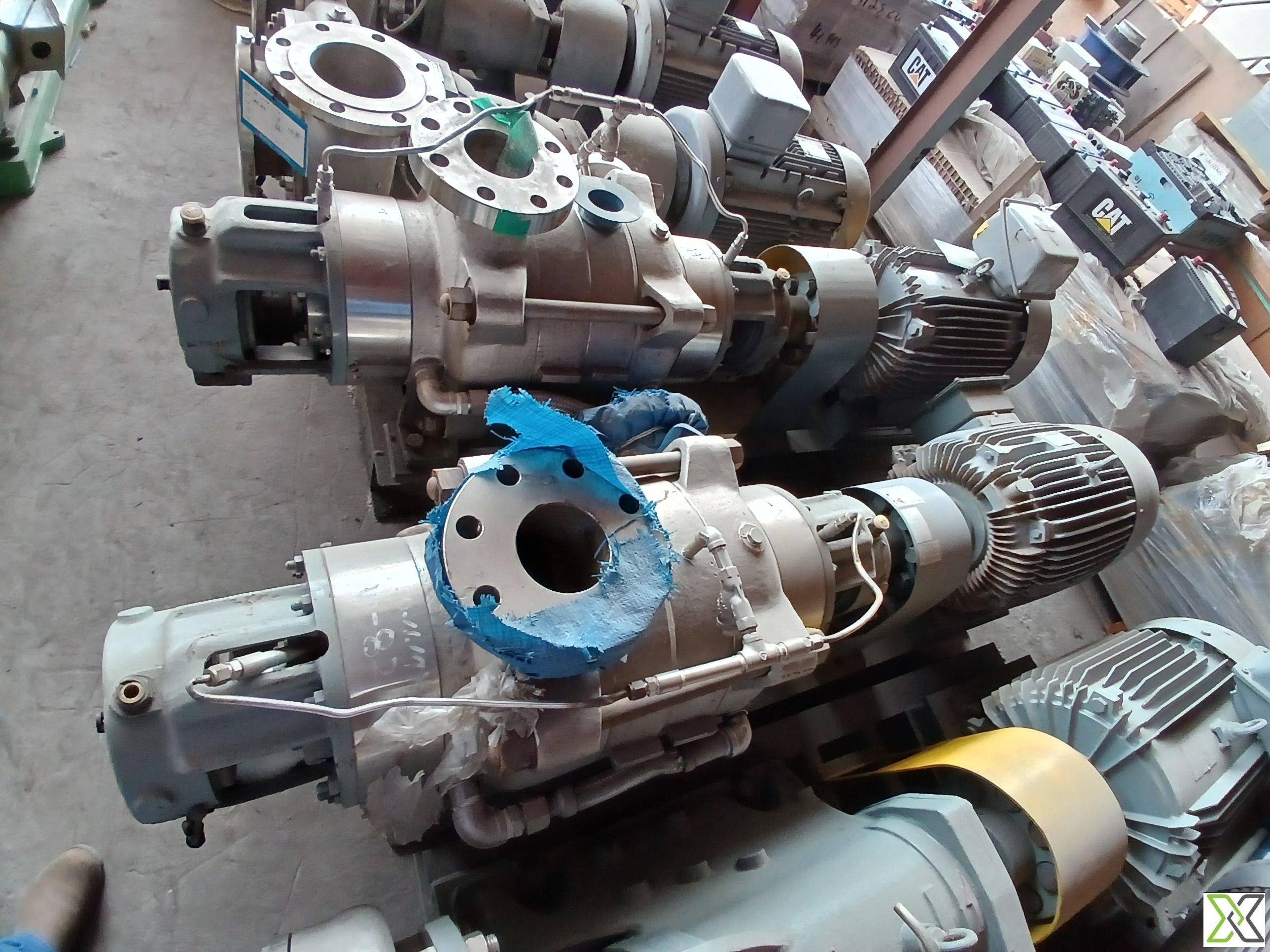

Mitsubishi Super Line SF-JR Motor Pump

ReflowX SKU: REF-4452

Product Details

Get Quotation Whatsapp

Device Name: Three Phase Induction Motor Manufacturer: Mitsubishi Electric Corporation, Japan

Model: SF-JR (Super Line Series)

Type: Three-Phase Induction Motor

Mounting: Horizontal Foot-Mounted

Protection Class: IP55 (Totally Enclosed Fan Cooled)

Insulation Class: Class F

Applicable Standards: IEC 60034-1, JIS C 4210 (Horizontal Type), JEC-2137-2000 (Vertical Type)

Device Name:
Three Phase Induction Motor

Manufacturer:
Mitsubishi Electric Corporation, Japan

Model/Series:
Super Line - SF-JR

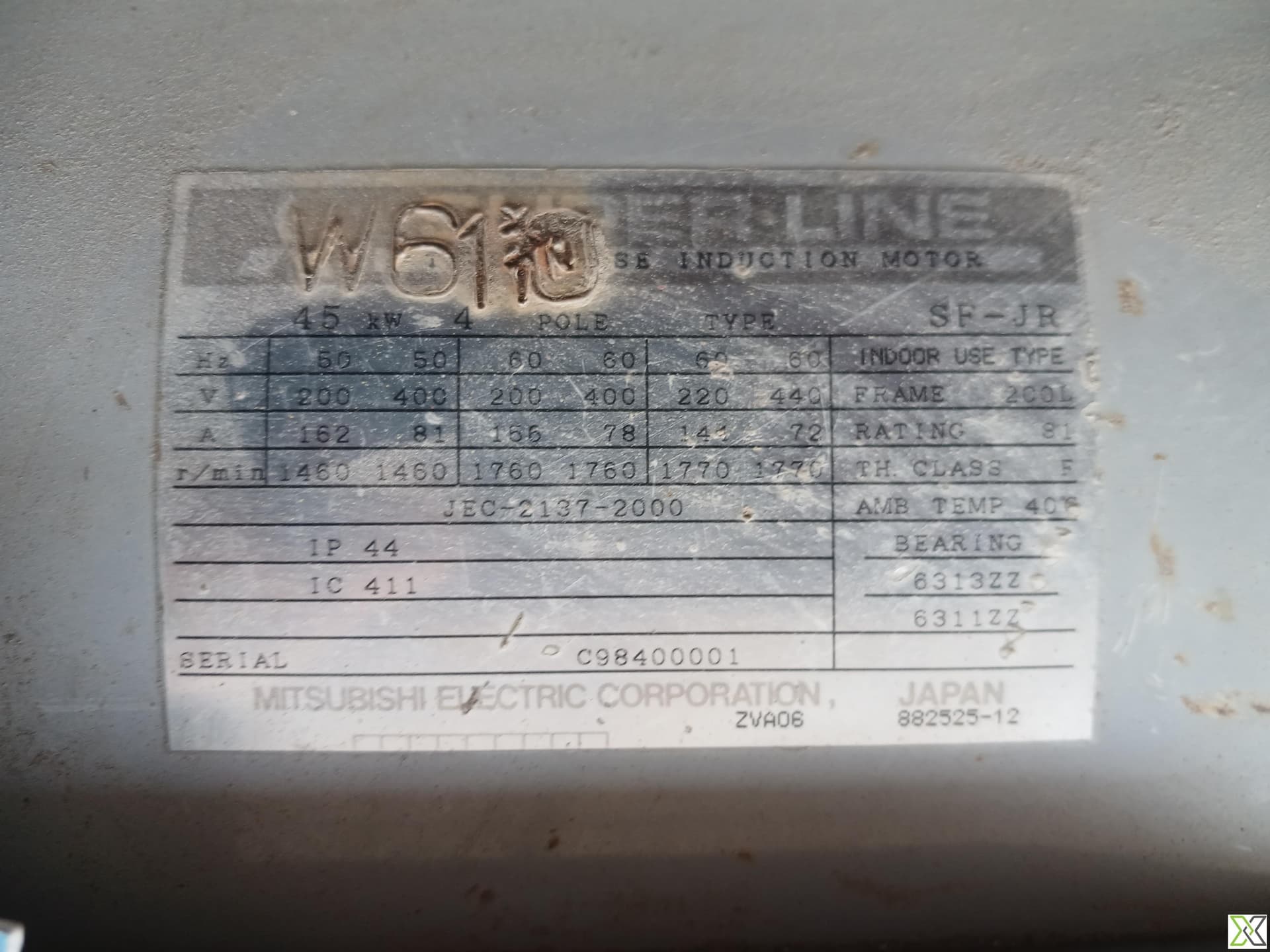

Technical Details:

Rated Output: 45 kW

Poles: 4 Pole

Voltage: 200V / 220V / 400V / 440V

Frequency: 50Hz / 60Hz

Rated Current:

200V/50Hz: 152A

200V/60Hz: 135A

220V/50Hz: 81A

440V/60Hz: 72A

Rated Speed (r/min):

50Hz: 1460 r/min

60Hz: 1760–1770 r/min

Protection: IP44

Cooling Method: IC 411

Ambient Temp: 40°C

Bearing: 6313ZZ (Drive Side) / 6311ZZ (Opposite Side)

Standards: JEC-2137-2000

Serial Number: C98400001

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Model Number	Super Line - SF-JR
Voltage	220V
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Output Power	380–415V
Direction of Rotation	Counter-Clockwise
Fluid Name	Clean Water or Similar Non-Corrosive Fluids
Insulation Class	Class F
Density	1,000 kg/m³ (for water)
Normal Operating Inlet Temperature	Ambient to +40°C
Normal Operating Outlet Pressure	Dependent on pump
Orientation	Horizontal installation recommended
