Description

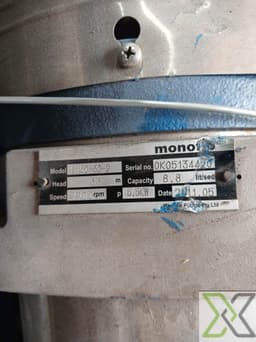

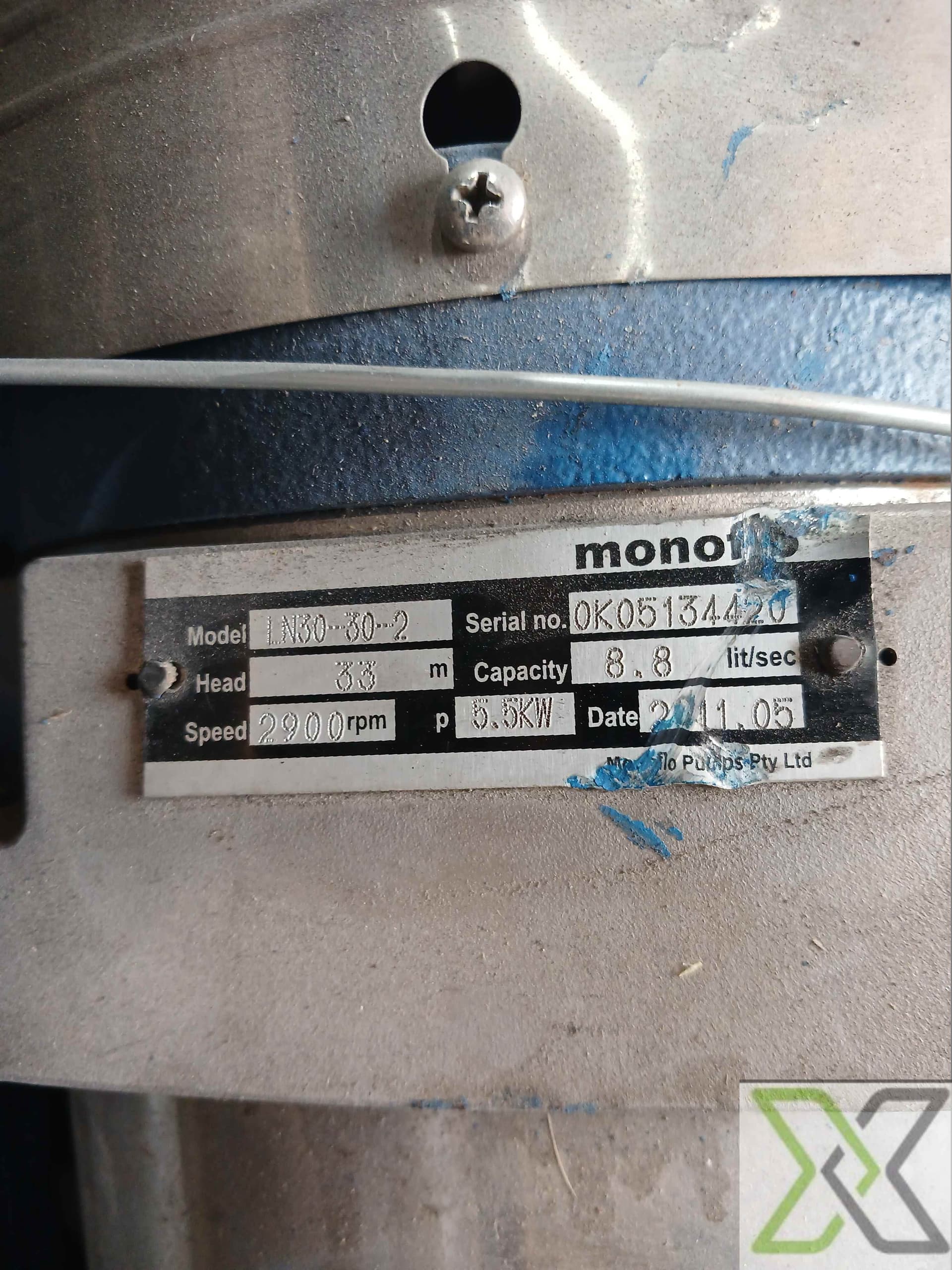

Mono Pumps LNX30-30-2
Progressive Cavity Pump for Industrial Fluid Transfer
GENERAL INFORMATION
Brand: Mono Pumps Pty Ltd
Model: LNX30-30-2
Serial Number: 0K05134420
Date of Manufacture: 2005
Application: Industrial fluid handling, slurry transfer, and wastewater processing
TECHNICAL SPECIFICATIONS
Head: 33 meters
Capacity: 8.8 liters per second (31.68 m³/h)
Speed: 2900 RPM
Power: 6.5 kW
Pump Type: Progressive Cavity Pump
Rotation: Clockwise / Counterclockwise (As per configuration)
MATERIAL & DESIGN
Stator Material: High-resilience elastomer
Rotor Material: Stainless Steel (AISI 316 or higher)
Casing Material: Cast Iron / Stainless Steel (Depending on application)
Sealing Type: Mechanical Seal / Packed Gland (Optional)
OPERATIONAL CONDITIONS
Operating Temperature Range: -10°C to +80°C
Viscosity Handling: Low to high-viscosity fluids
Solids Handling Capability: Suitable for slurry applications

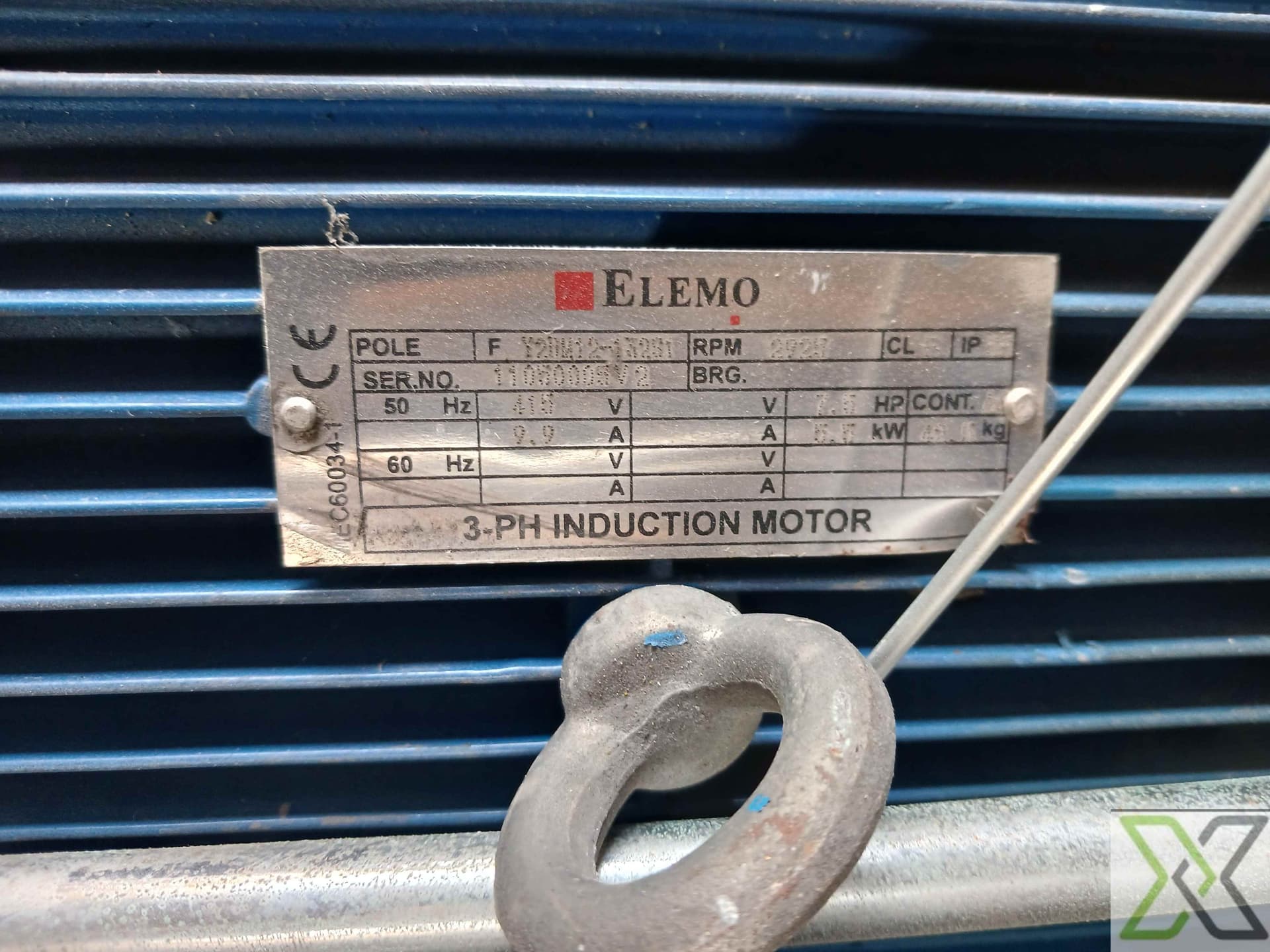

Elemo 3-Phase Induction Motor
Electric Motor for Industrial Applications
GENERAL INFORMATION
Brand: Elemo
Type: 3-Phase Induction Motor
Serial Number: 1103001
Application: Powering industrial pumps, fans, and machinery
TECHNICAL SPECIFICATIONS
Frequency: 50 Hz / 60 Hz
Voltage: (Not clearly visible, standard ranges available)
Bearing Type: 6206 (Deep Groove Ball Bearing)
Cooling Type: TEFC (Totally Enclosed Fan Cooled)
Insulation Class: Likely Class F or H
Mounting Type: Foot-mounted (B3) or Flange-mounted (Optional)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | LNX30-30-2 |
|---|---|
| Year of Manufacturing | 2005 |
| Voltage | 400/690 V AC |
| Color | Blue |
| ISO 15926 Pt 4 | 7436 |
| PCA RDS Code | RDS416834 |
| CFIHOS ID | CFIHOS-30000521 |
| Output Power | 3.0 kW |
| Direction of Rotation | Clockwise |
| Design Specification | IEC 60034 / ISO 9001 |
| Fluid Name | sludge, slurry, wastewater, polymers, viscous fluids |
| Explosion Protection Gas Group | IIB or IIC |
| Explosion Protection Temperature Class | T4 |
| Explosion Protection Zone | Zone 1 or Zone 2 |
| Insulation Class | Class F |
| Density | 1,200–1,500 kg/m³ |
| Immersed | No |
| Normal Operating Inlet Pressure | 0.5 – 3.0 bar |
| Normal Operating Inlet Temperature | 10°C to 50°C |
| Normal Operating Outlet Pressure | 6 – 12 bar |
| Orientation | Horizontal |
| Upper Limit Design Pressure | 16 bar |
General Terms
- ReflowX and the seller retain the right to evaluate and approve offers.
- Buyers should verify quantities and conditions upon delivery.
- After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
- All parties agree to adhere to ReflowX Terms and Conditions in transactions.
- Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
