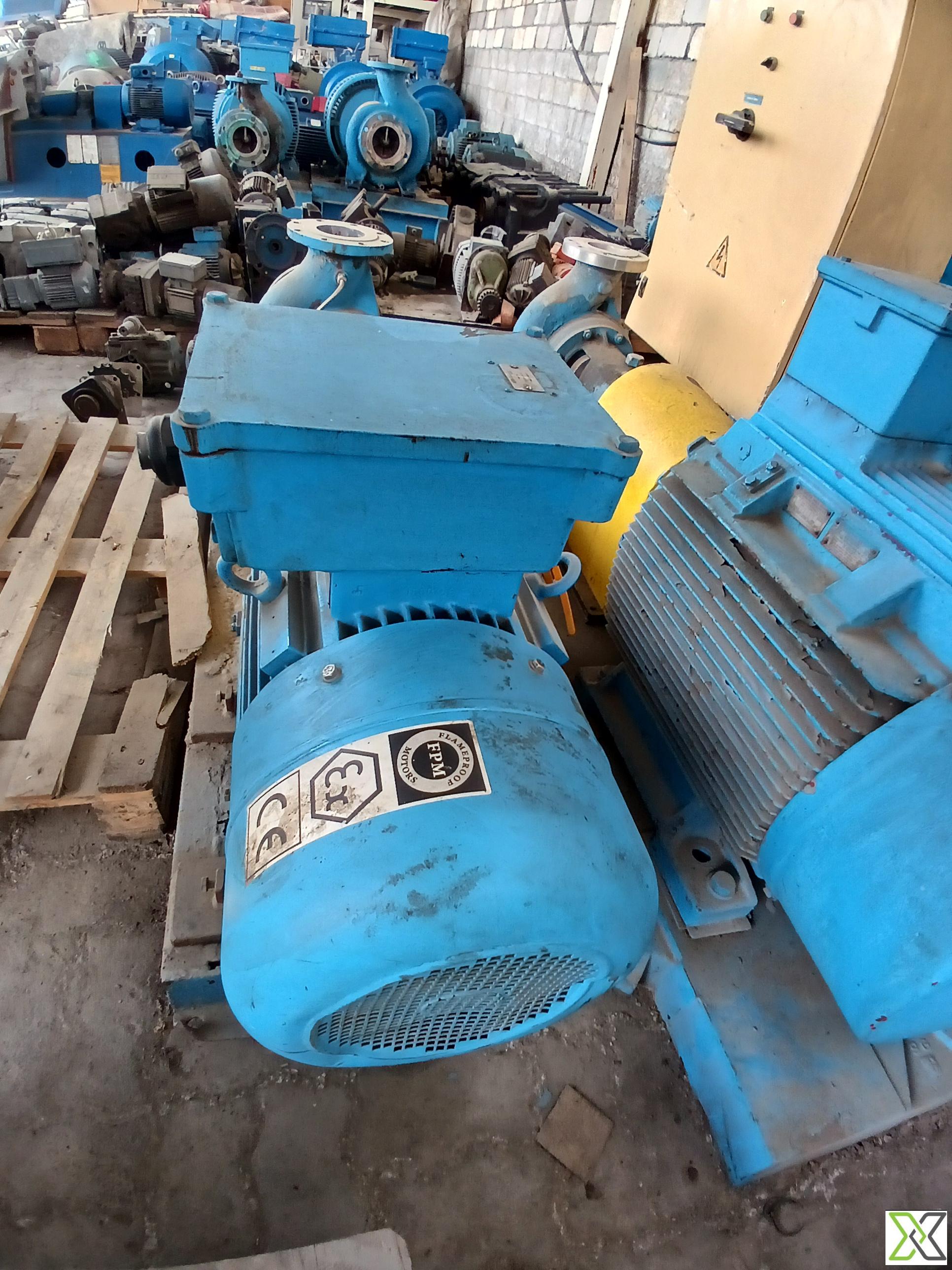

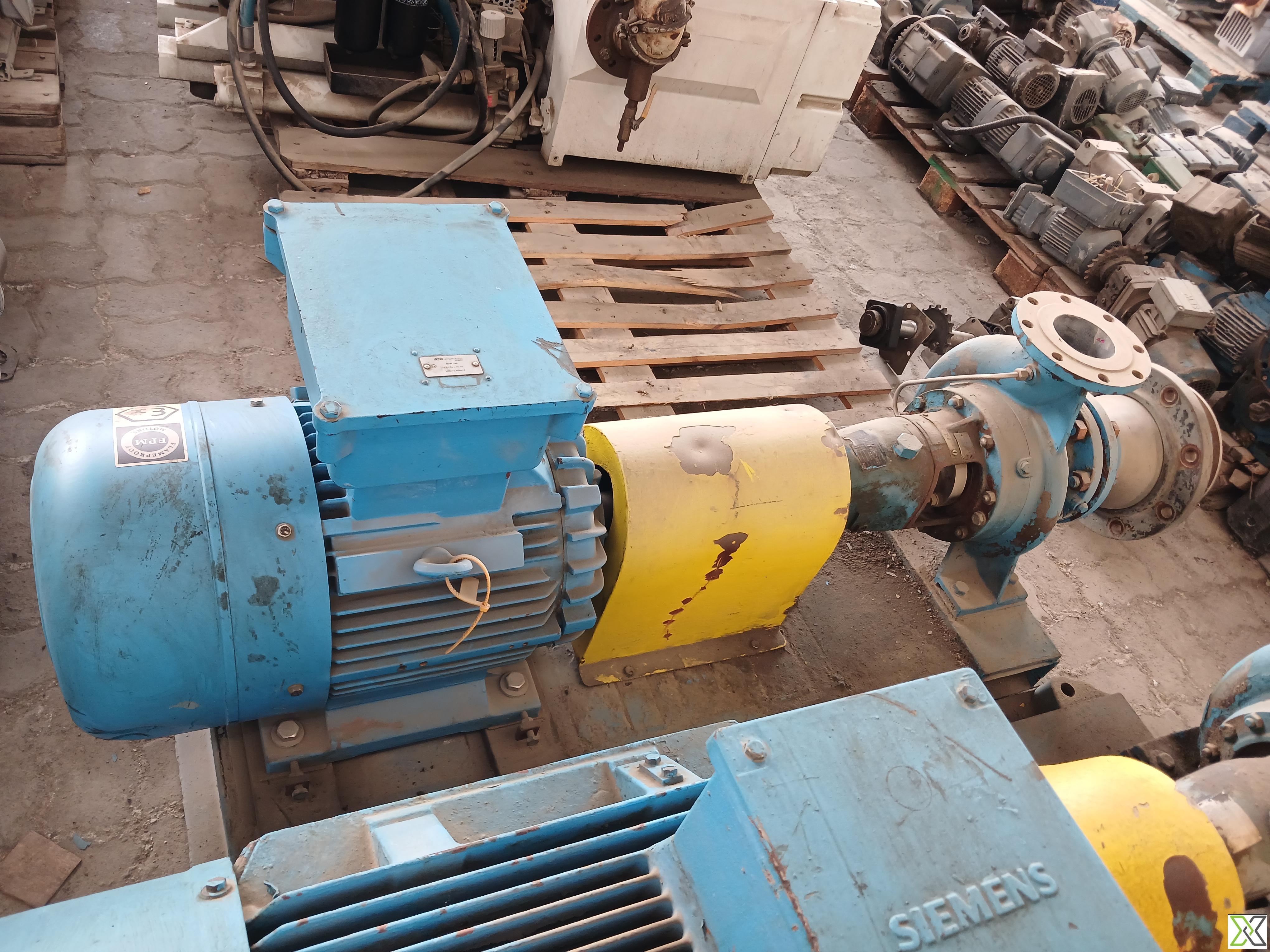

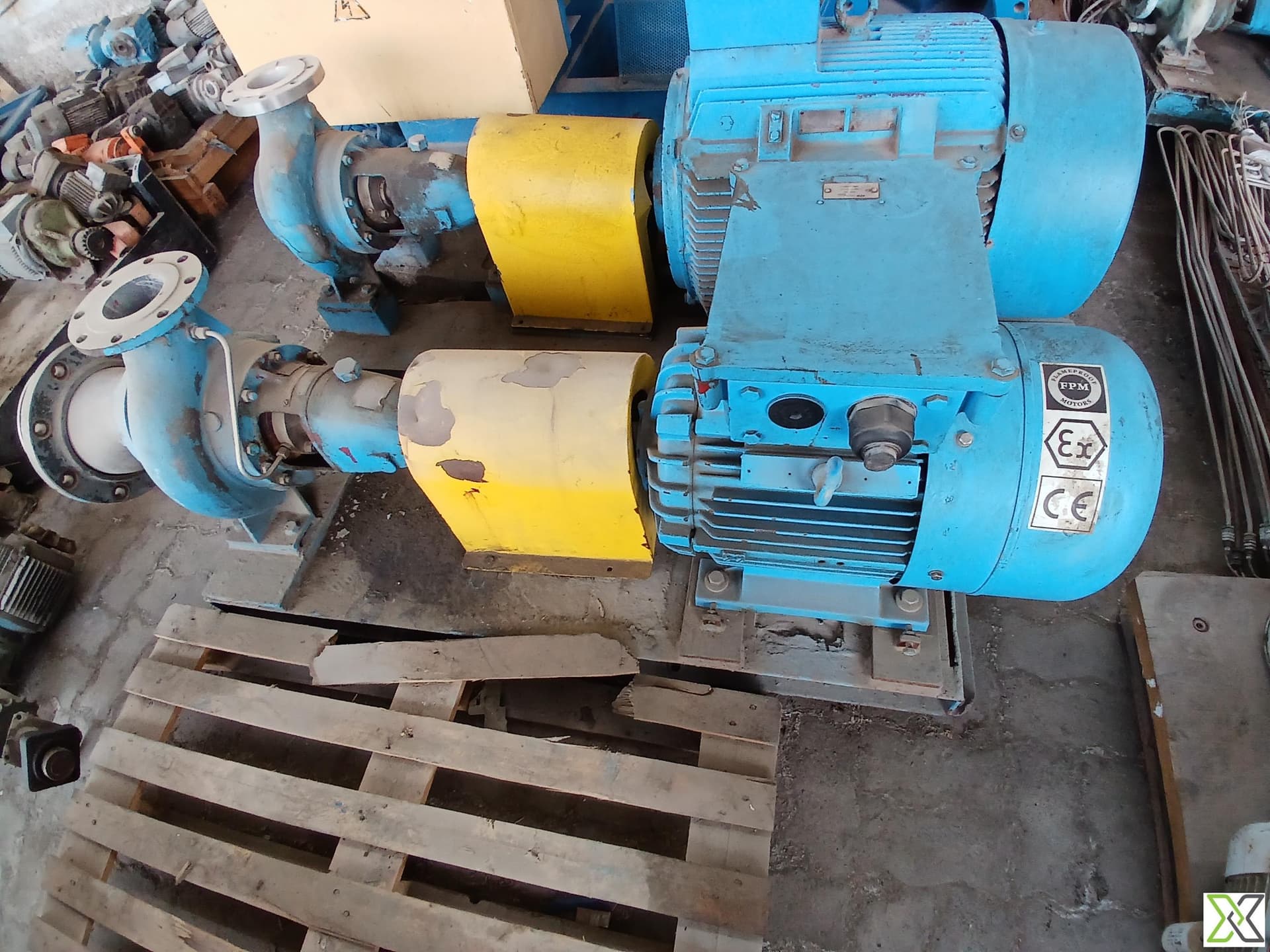

ATB CD 200L2-2 Y3 Motor with Dickow NCL 80/200 Pump

This industrial pump-motor assembly pairs a 37 kW ATB CD 200L2-2 Y3 electric motor with a Dickow NCL 80/200 centrifugal pump, offering reliable fluid transfer in environments requiring explosion protection (Zone 1). The ATB motor, built by ATB Nordenham GmbH, features IE3 efficiency (93.8%), an IP55 enclosure, insulation class F, and is certified to PTB 03 ATEX 1031 X standards for Ex e IIC T3 Gb protection. Operating at 2955 RPM, the motor is thermally protected with PTC sensors (145°C) and suitable for frequency-controlled speed operation between 300–3000 RPM.

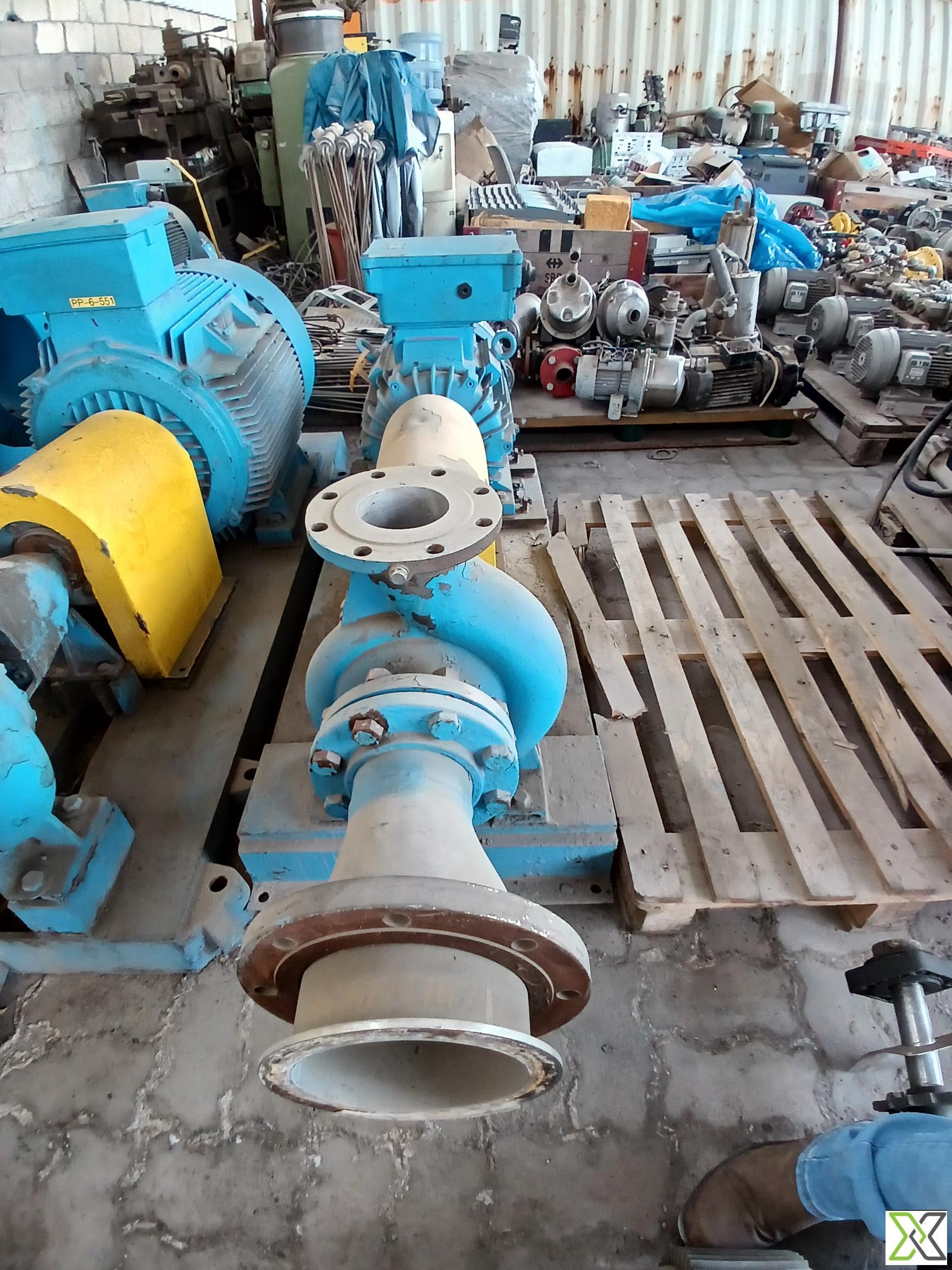

Coupled to this motor is the Dickow NCL 80/200 centrifugal pump, delivering a flow rate of 44.3 m³/h at a head of 17.4 m, driven at 2900 RPM with an efficiency of 47%. The pump’s 18.2 kW power requirement matches seamlessly with the motor’s rated output, ensuring reliable and safe operation in process industries involving flammable fluids or vapors.

Specifications:

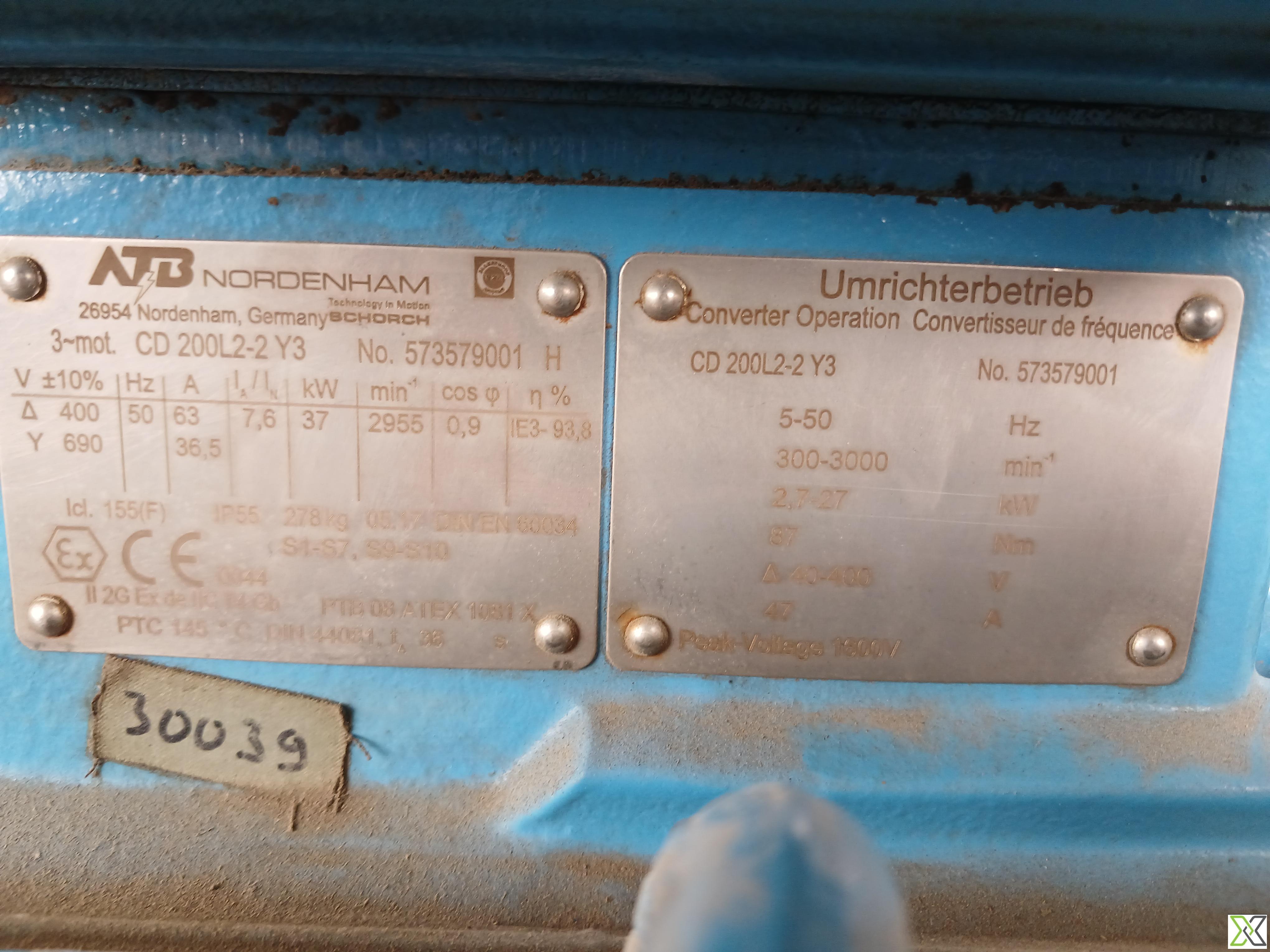

Motor – ATB CD 200L2-2 Y3:
– Manufacturer: ATB Nordenham GmbH (Germany)
– Model/Type: CD 200L2-2 Y3
– Serial Number: 573579001
– Motor Type: 3-phase squirrel cage motor
– Rated Power Output: 37 kW
– Rated Voltage: 400 V Δ / 690 V Y
– Frequency: 50 Hz
– Current Draw: 63 A (Δ) / 36.5 A (Y)
– Speed: 2955 RPM
– Power Factor: 0.9
– Efficiency Class: IE3 – 93.8%
– Insulation Class: F
– Protection Class: IP55
– Weight: 278 kg
– Duty Cycle: S1 (Continuous)
– Explosion Proof Class: II 2G Ex e IIC T3 Gb
– Thermal Protection: PTC, 145 °C
– Cert. Standard / Year: PTB 03 ATEX 1031 X
– Speed Range: 300 – 3000 RPM
– Frequency Range: 5 – 50 Hz
– Variable Power Output Range: 2.7 – 27 kW
– Rated Torque: 87 Nm
– Operating Voltage Range: 400–460 V
– Rated Current: 47 A
– Peak Voltage Tolerance: 1500 V

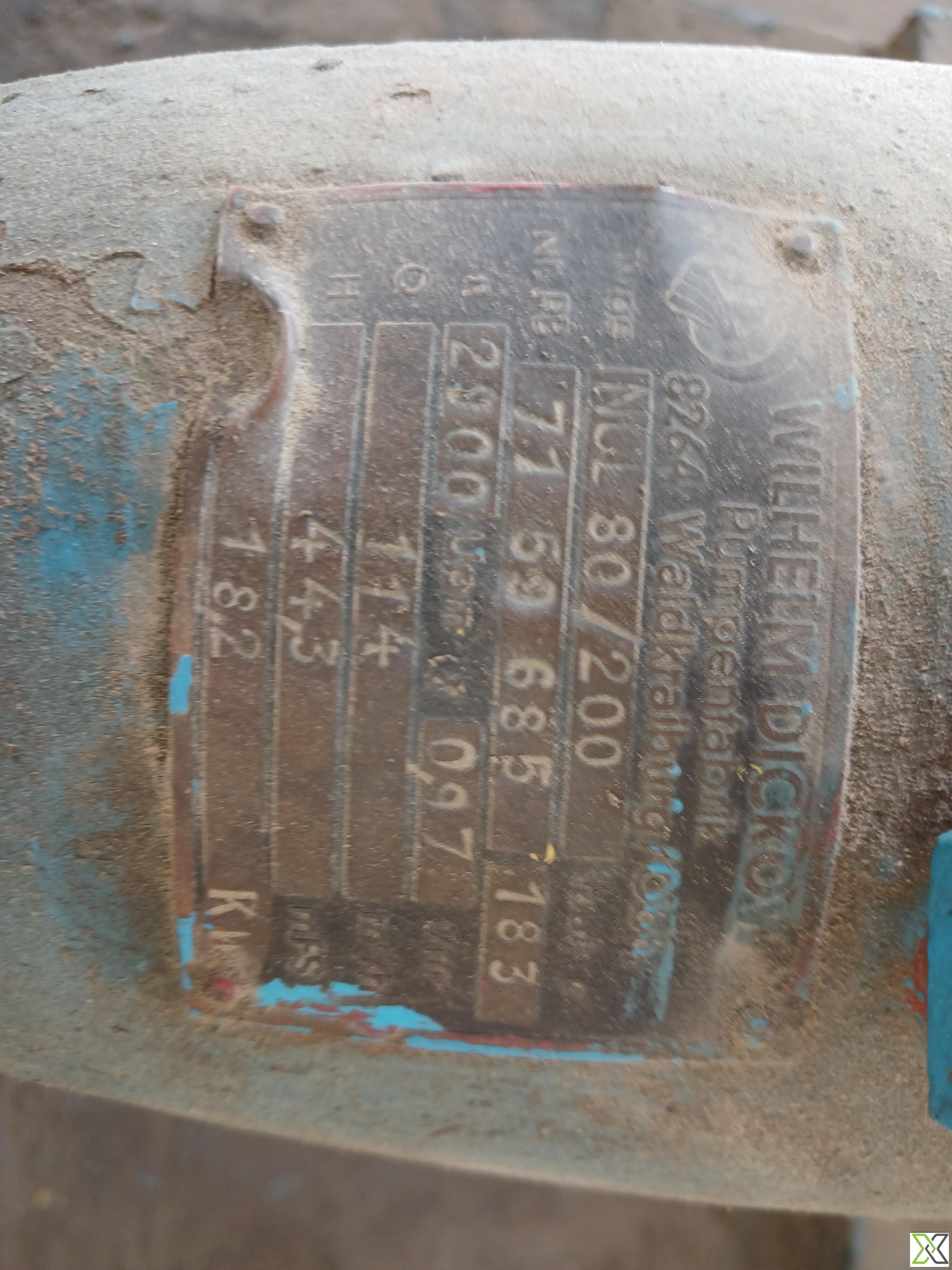

Pump – Dickow NCL 80/200:
– Manufacturer: Wilhelm Dickow Pumpenfabrik
– Model: NCL 80/200
– Serial Number: 7759685
– Speed: 2900 RPM
– Flow Capacity: 44.3 m³/h
– Discharge Head: 17.4 m
– Hydraulic Efficiency: 47%
– Impeller Diameter: D97
– Estimated Year of Manufacture: Possibly 1983
– Power Input Required: 18.2 kW
