Alconza DN 315 L-4 Motor with HIDROTECAR ZMII53001 Pump

ReflowX SKU: REF-2385

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Alconza S.A., Berango (Vizcaya), Spain
Equipment code

Short Description

Heavy-duty Alconza 200 kW induction motor coupled with HIDROTECAR ZMII53001 centrifugal pump, engineered for high-capacity water transfer at 525 m³/h and 82 m head.

Description

Alconza DN 315 L-4 Motor with HIDROTECAR ZMII53001 Pump

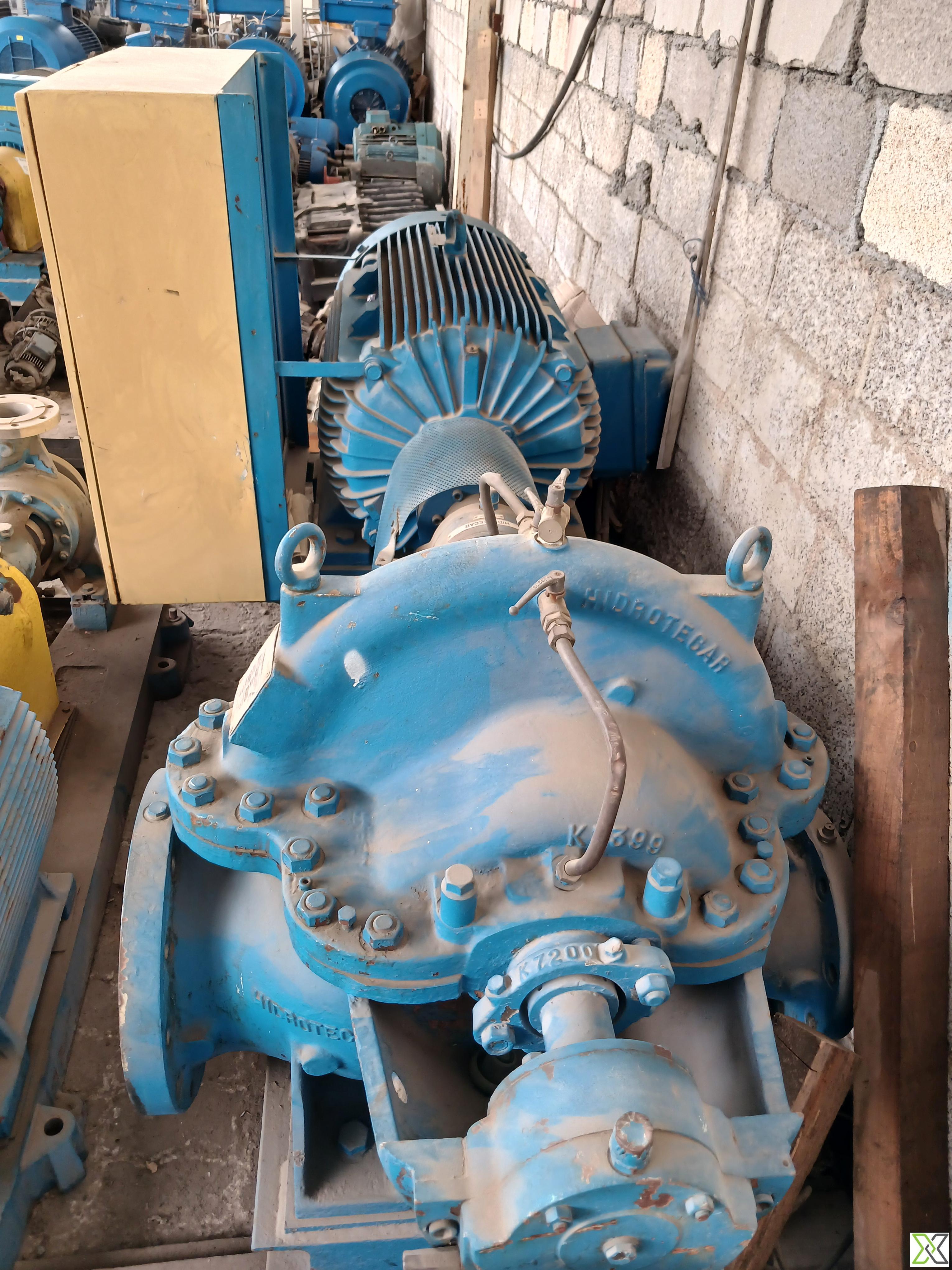

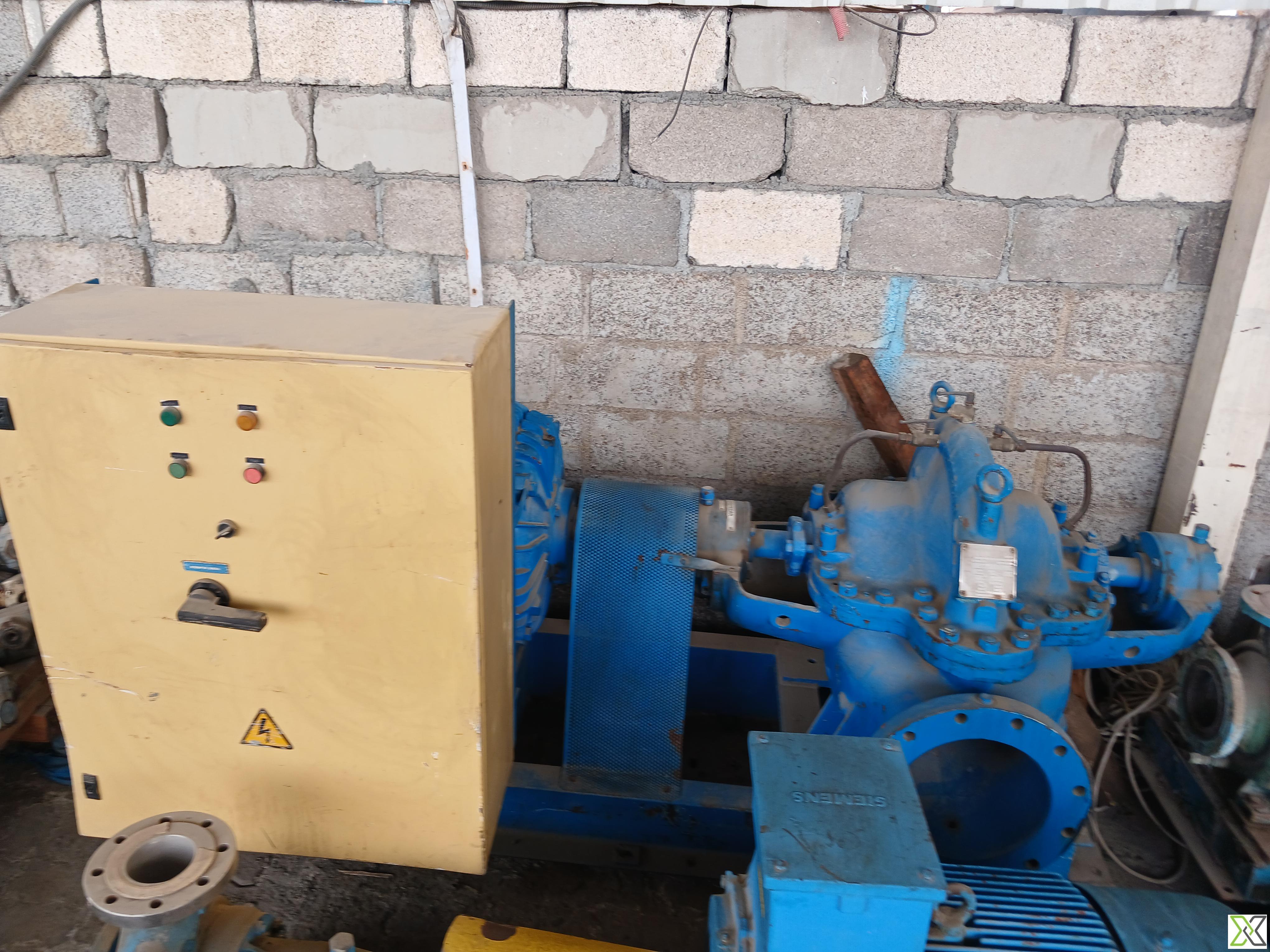

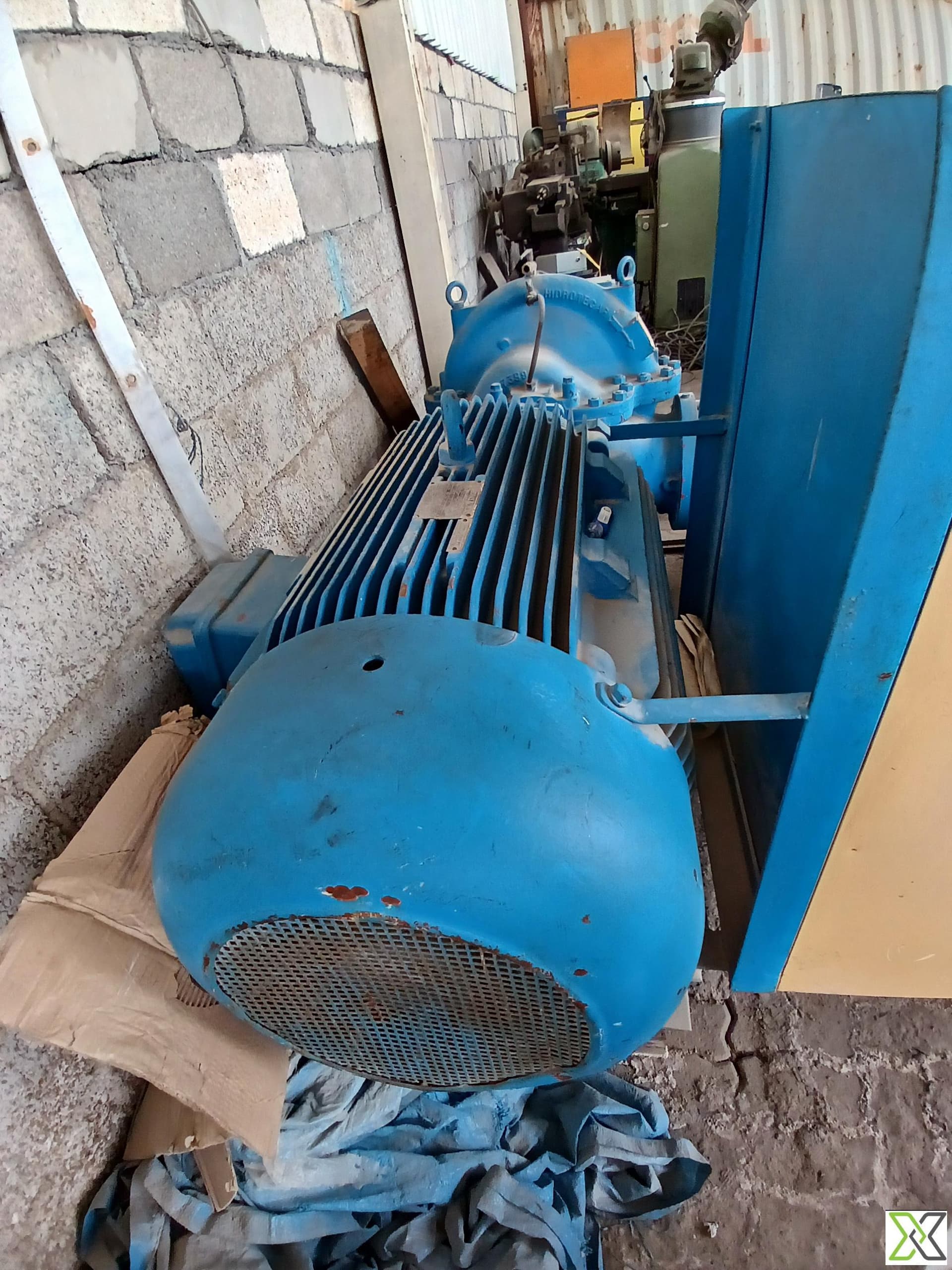

This industrial pump set comprises a 200 kW Alconza DN 315 L-4 squirrel cage induction motor paired with a HIDROTECAR ZMII53001 centrifugal pump, designed for high-volume water transfer applications. The Alconza motor, manufactured in Berango, Spain, delivers 355 A at 380 V (Delta) and operates continuously under S1 duty at 1488 RPM, with a power factor of 0.90. It is optimized for robust performance in continuous process environments with high thermal tolerance (Insulation Class F or H, partially obscured).

The HIDROTECAR ZMII53001 pump, built in 1994 in Burgos, Spain, handles a substantial flow rate of 525 m³/h at a head of 82 meters, driven at 1480 RPM. With a power requirement of 190 CV (≈139.7 kW), this centrifugal pump is matched effectively to the Alconza motor, making it ideal for municipal water systems, industrial cooling circuits, or high-demand circulation processes.

Specifications:

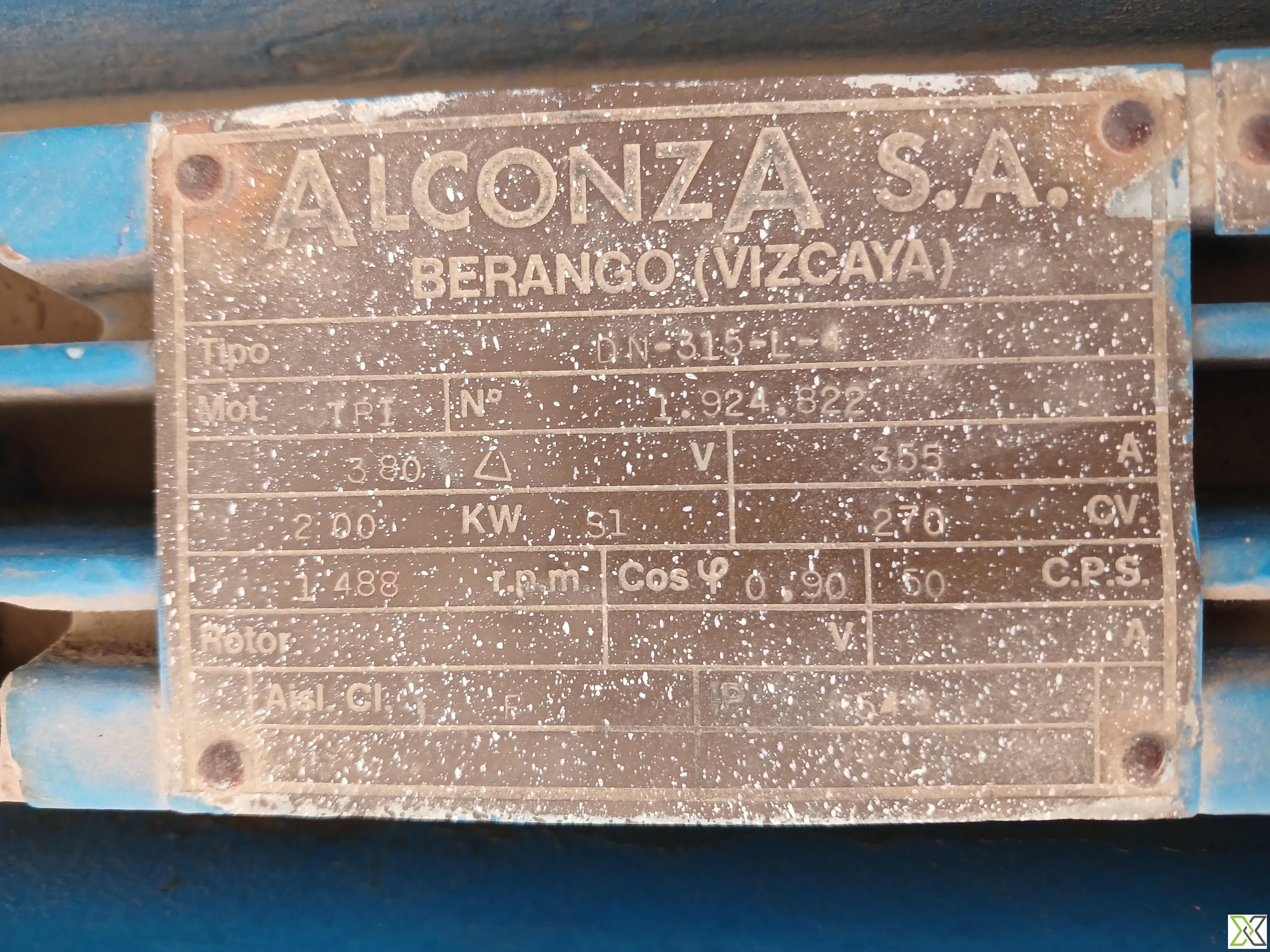

Motor – Alconza DN 315 L-4:
– Manufacturer: Alconza S.A., Berango (Vizcaya), Spain
– Model/Type: DN 315 L-4
– Serial Number: 1924.822
– Voltage: 380 V (Delta)
– Current: 355 A
– Power Output: 200 kW
– Duty Cycle: S1 (Continuous Operation)
– Speed: 1488 RPM
– Power Factor (cos φ): 0.90
– Frequency: 50 Hz
– Insulation Class: F or H (obscured)

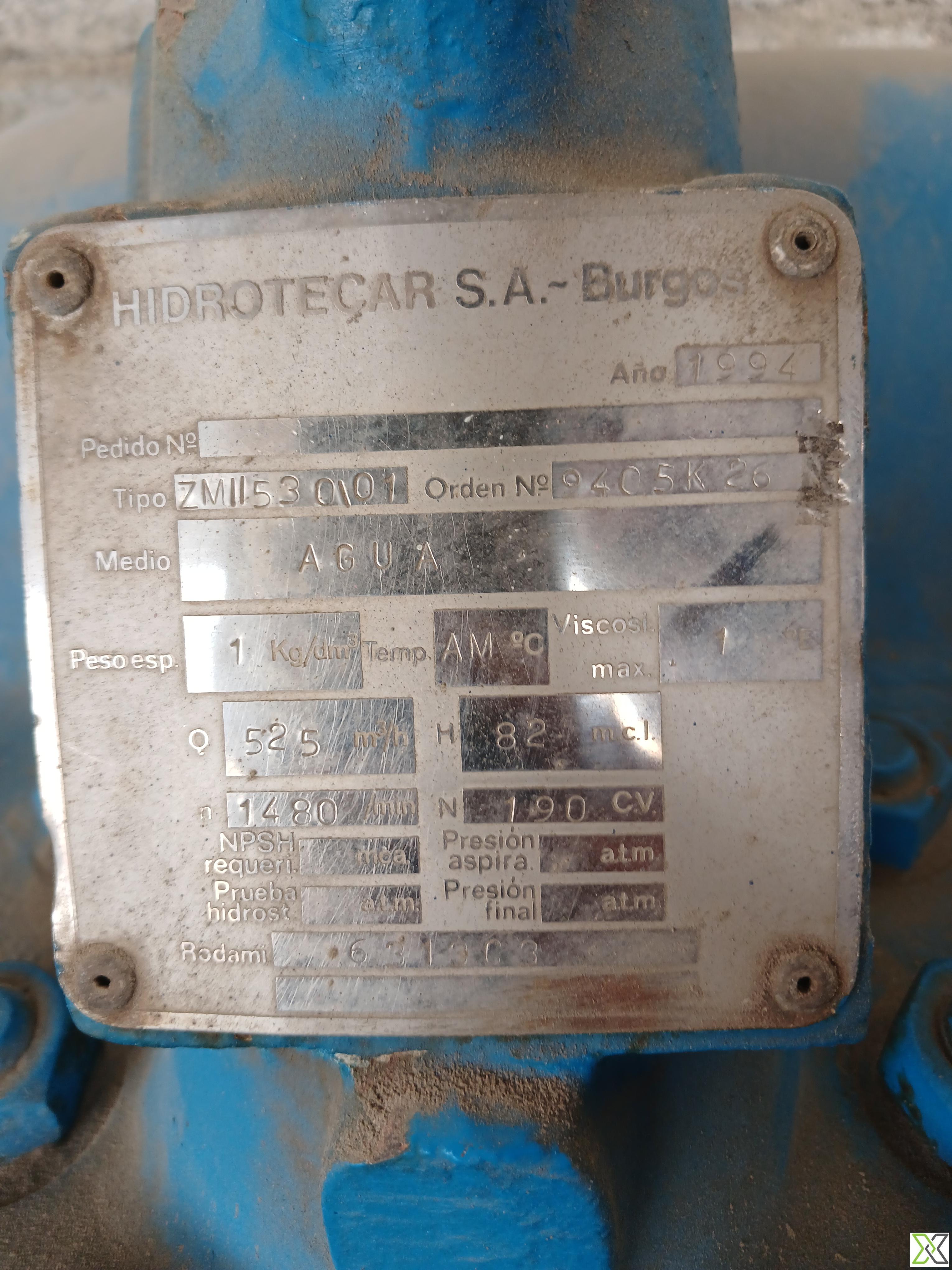

Pump – HIDROTECAR ZMII53001:
– Manufacturer: HIDROTECAR S.A., Burgos, Spain
– Year of Manufacture: 1994
– Model/Type: ZMII53001
– Medium: Water (AGUA)
– Flow Rate (Q): 525 m³/h
– Total Dynamic Head (H): 82 m
– Speed (n): 1480 RPM
– Power Requirement (N): 190 CV ≈ 139.7 kW
– Bearing Type: 6319 C3
– Order Number: 94C5K26
– NPSH Required: Not clearly legible
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	1994
Voltage	380 V
Color	BLUE
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Direction of Rotation	Clockwise
Design Specification	Heavy-duty industrial motor-pump set
Fluid Name	Water
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 1
Insulation Class	Class F
Density	Approximately 1000 kg/m³
Immersed	motor is air-cooled
Normal Operating Inlet Pressure	1.0 bar
Normal Operating Inlet Temperature	40°C
Normal Operating Outlet Pressure	6.0 bar
Orientation	Horizontal
Upper Limit Design Pressure	16 bar (g)
