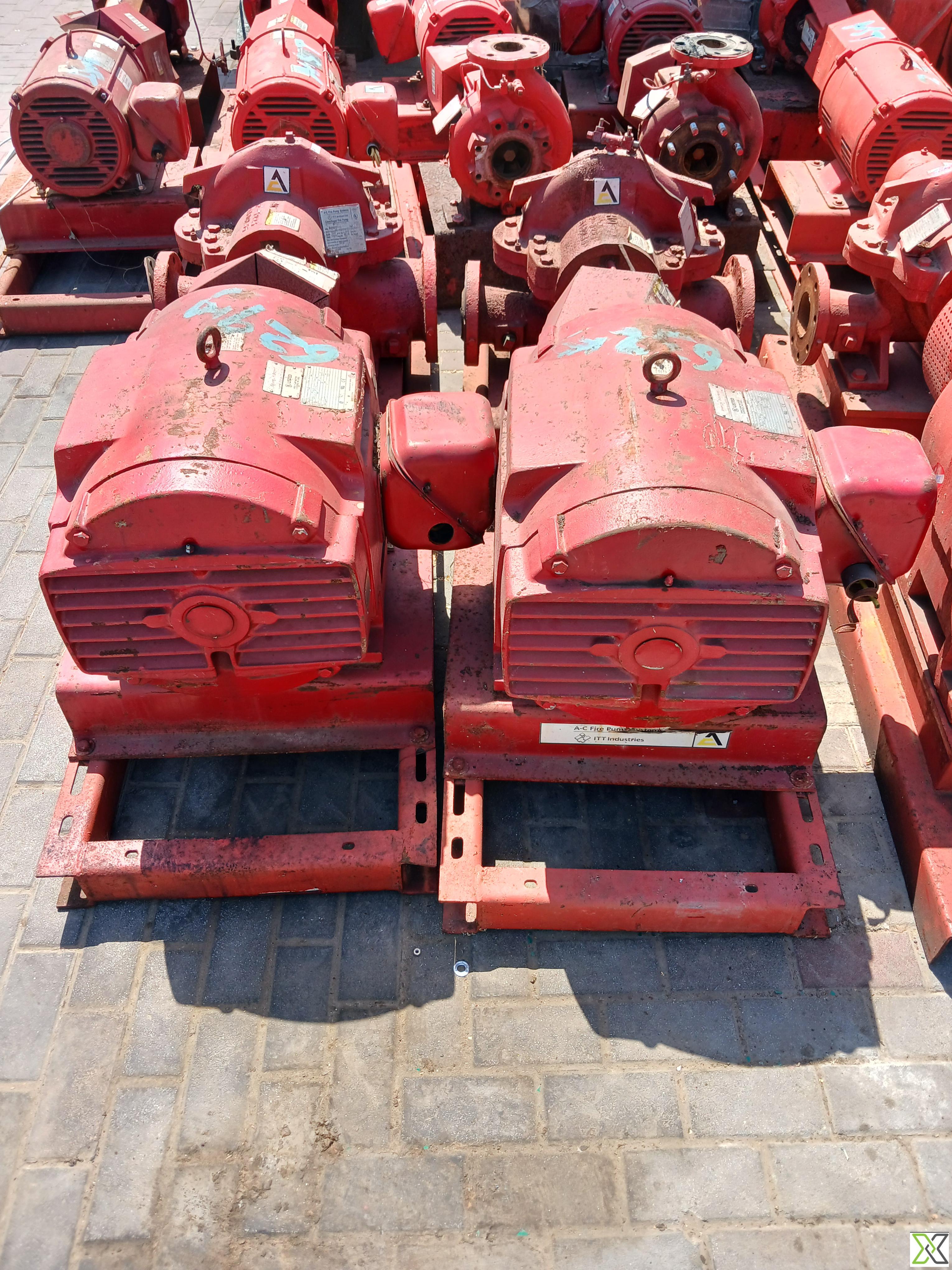

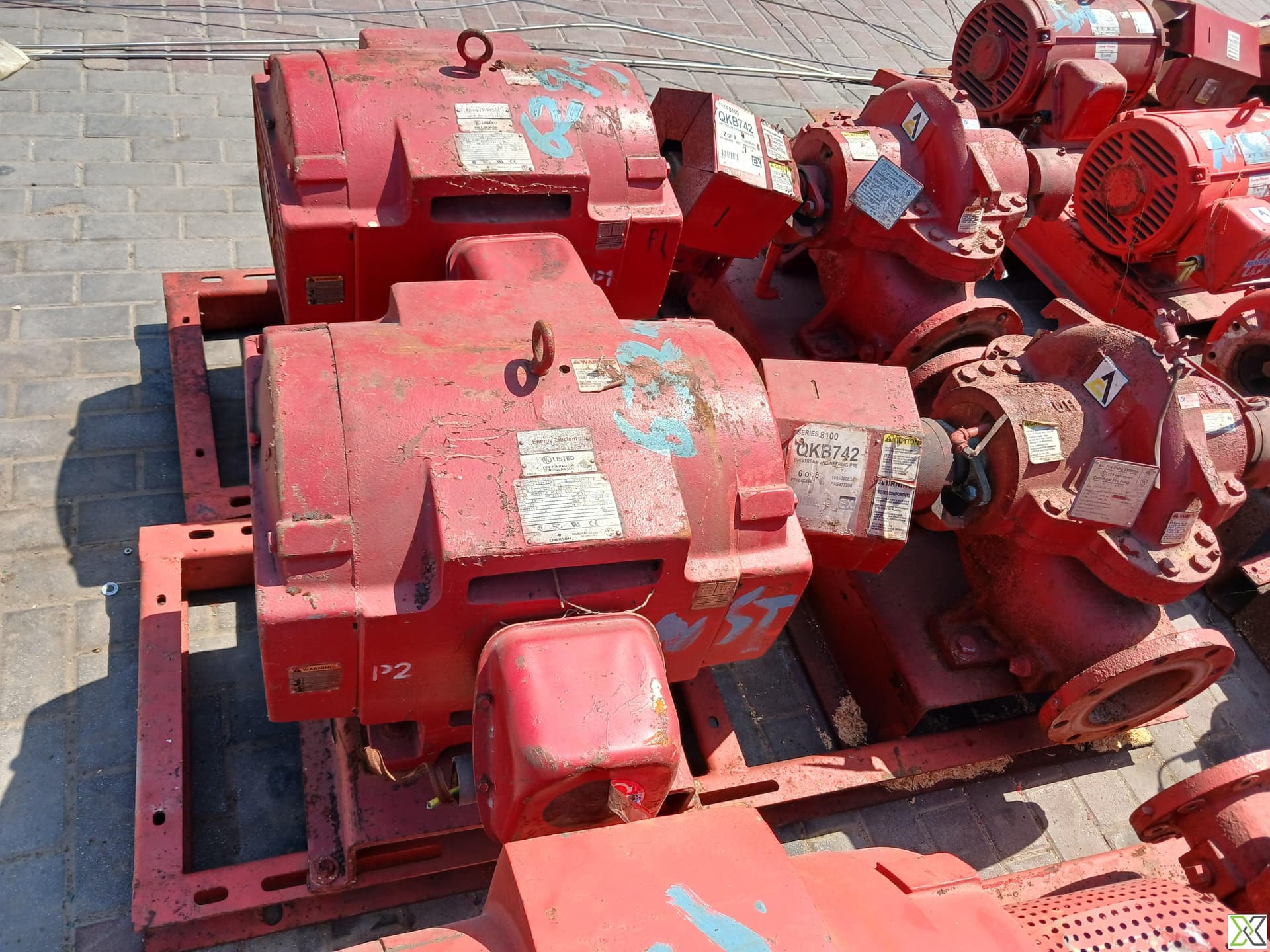

MOTOR PUMP SET – EMERSON 75 HP + ITT A-C FIRE PUMP 8x6x15

ReflowX SKU: REF-8896

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Emerson Electric Co.
Equipment code

Get Quotation Whatsapp

Short Description

Manufacturer: Emerson Electric Co.

Description

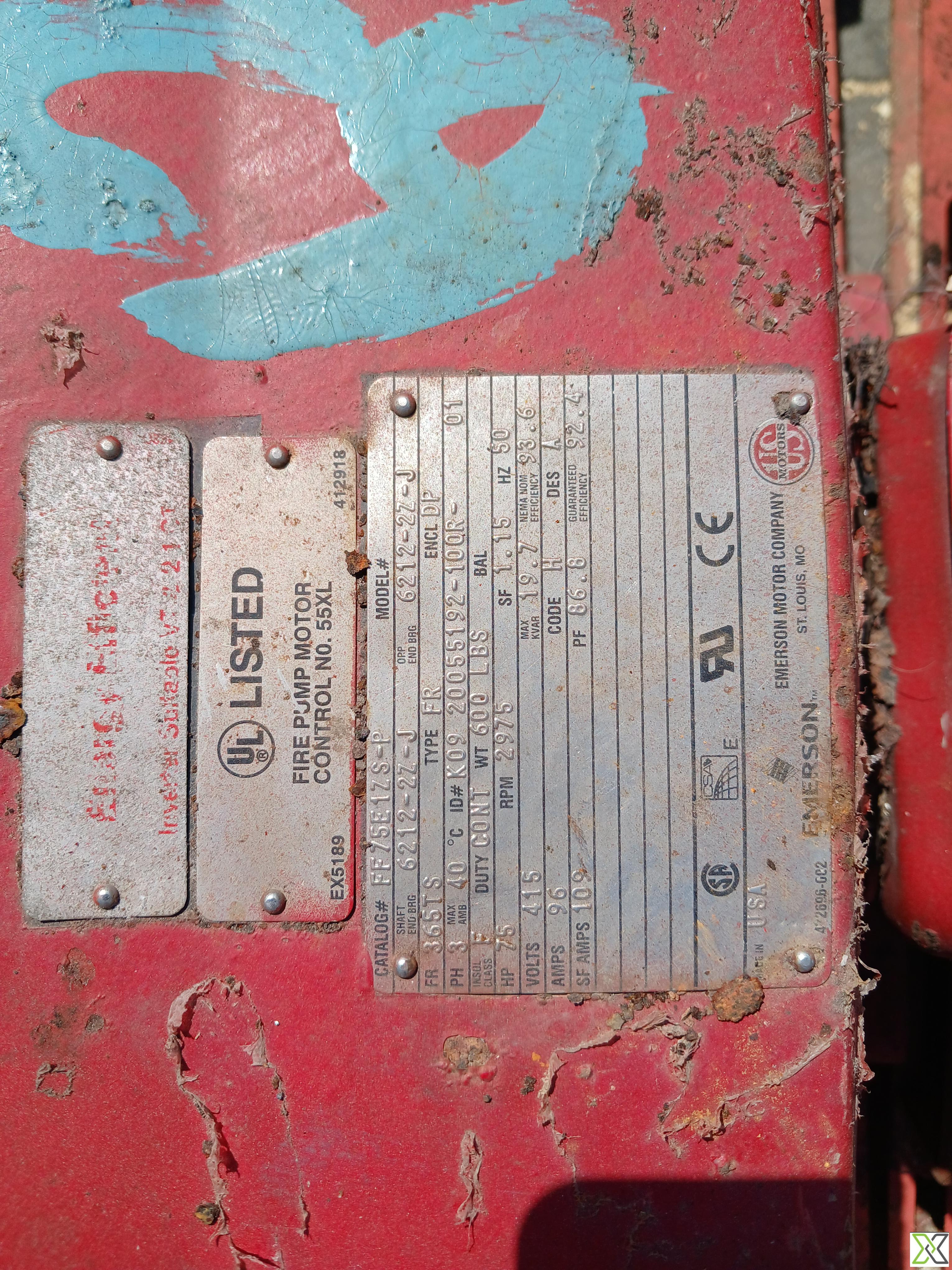

ELECTRIC MOTOR SPECIFICATION

Manufacturer: Emerson Electric Co.
Catalog Number: F18S1E4SCP
Model Number: 6212-2727J
Frame Size: 445TS
Type: P
Horsepower (HP): 75 HP
Rated Speed: 2970 RPM
Voltage: 415 V
Frequency: 50 Hz
Current Draw: 109 A
Phase: 3-Phase
Duty Rating: Continuous (CONT)
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Insulation Class: F
Design Code: B
Service Factor: 1.15
Code Letter: G
Country of Origin: USA

Electrical Design Notes:

Designed for industrial, high-torque load applications.

Class F insulation permits a temperature rise up to 115°C for reliable long-term use.

TEFC enclosure protects against dust, dirt, and water jets – suitable for harsh environments.

445TS frame includes a keyed shaft and C-face design for pump coupling.

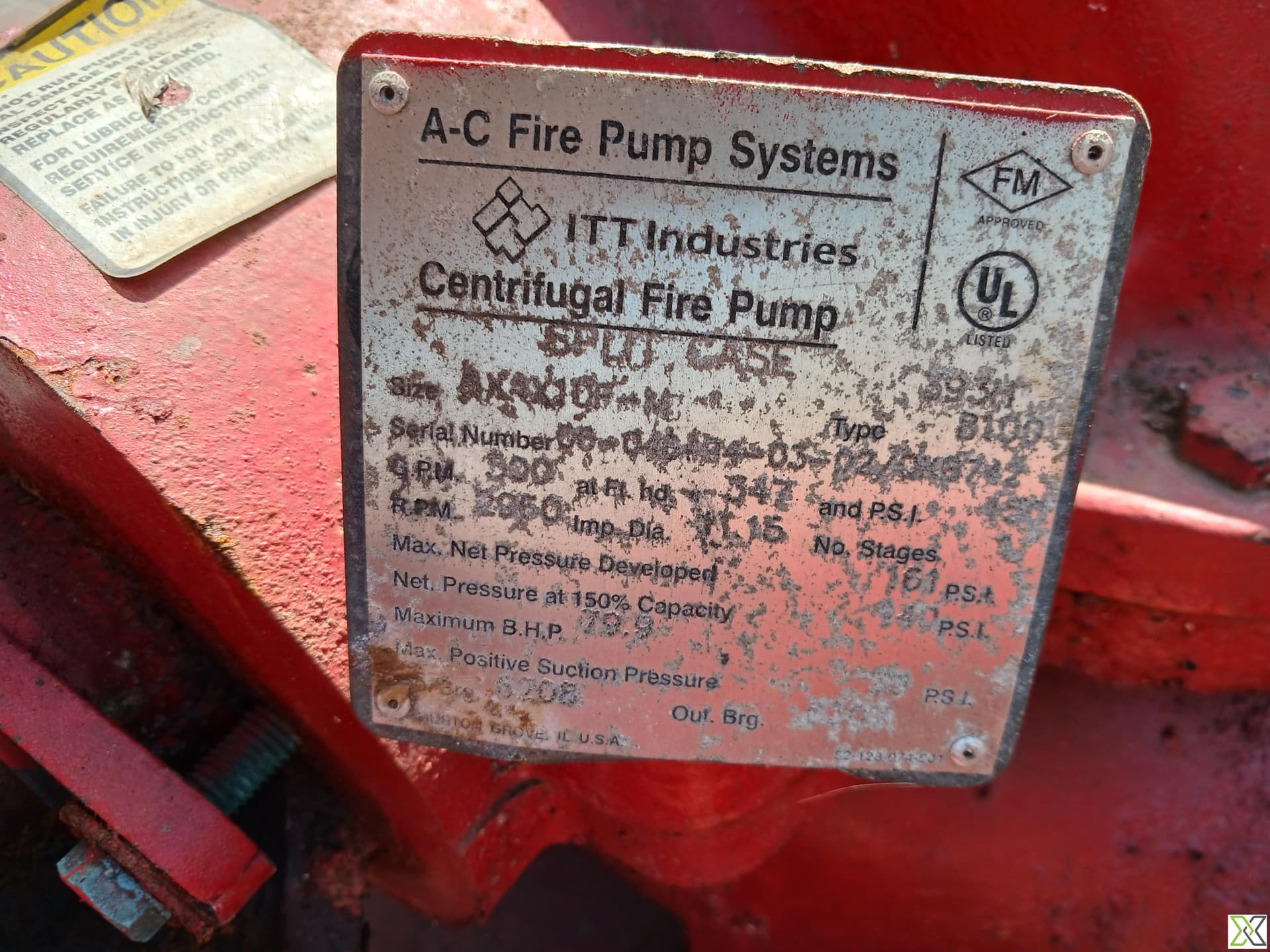

CENTRIFUGAL FIRE PUMP SPECIFICATION

Manufacturer: ITT Industries – A-C Fire Pump Systems
Pump Model: 8x6x15
Pump Type: End Suction Centrifugal Fire Pump
System: A-C Fire Pump Systems
Serial Number: 99-200055
Max. Rated Speed: 2960 RPM
Impeller Diameter: 15 inches
Maximum Net Pressure Developed: 164 PSI
Max. BHP: Not clearly legible (estimated > 65 BHP at rated flow/pressure)
Max. Suction Pressure: Not clearly legible
Certifications:

UL Listed

FM Approved
Country of Origin: USA

Fire Pump Design Highlights:

UL/FM fire pump specifically designed for fire protection systems.

ANSI B73.1 compliant dimensions.

Close-coupled or flexible coupled configuration (typically matched to a 75 HP motor).

Suitable for sprinkler, hydrant, and standpipe systems.

Robust bronze or stainless impeller, depending on configuration.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	6212-2727J , 8x6x15
Voltage	460V / 3-phase / 60 Hz (other voltages optional)
Color	Red
ISO 15926 Pt 4	ClassOfIndividual: MotorDrivenCentrifugalPump
PCA RDS Code	RDS-PP-PUMP-FIRE-MTRSET
CFIHOS ID	CFIHOS-EQP-PUMP-FIRE-MOTORSET
