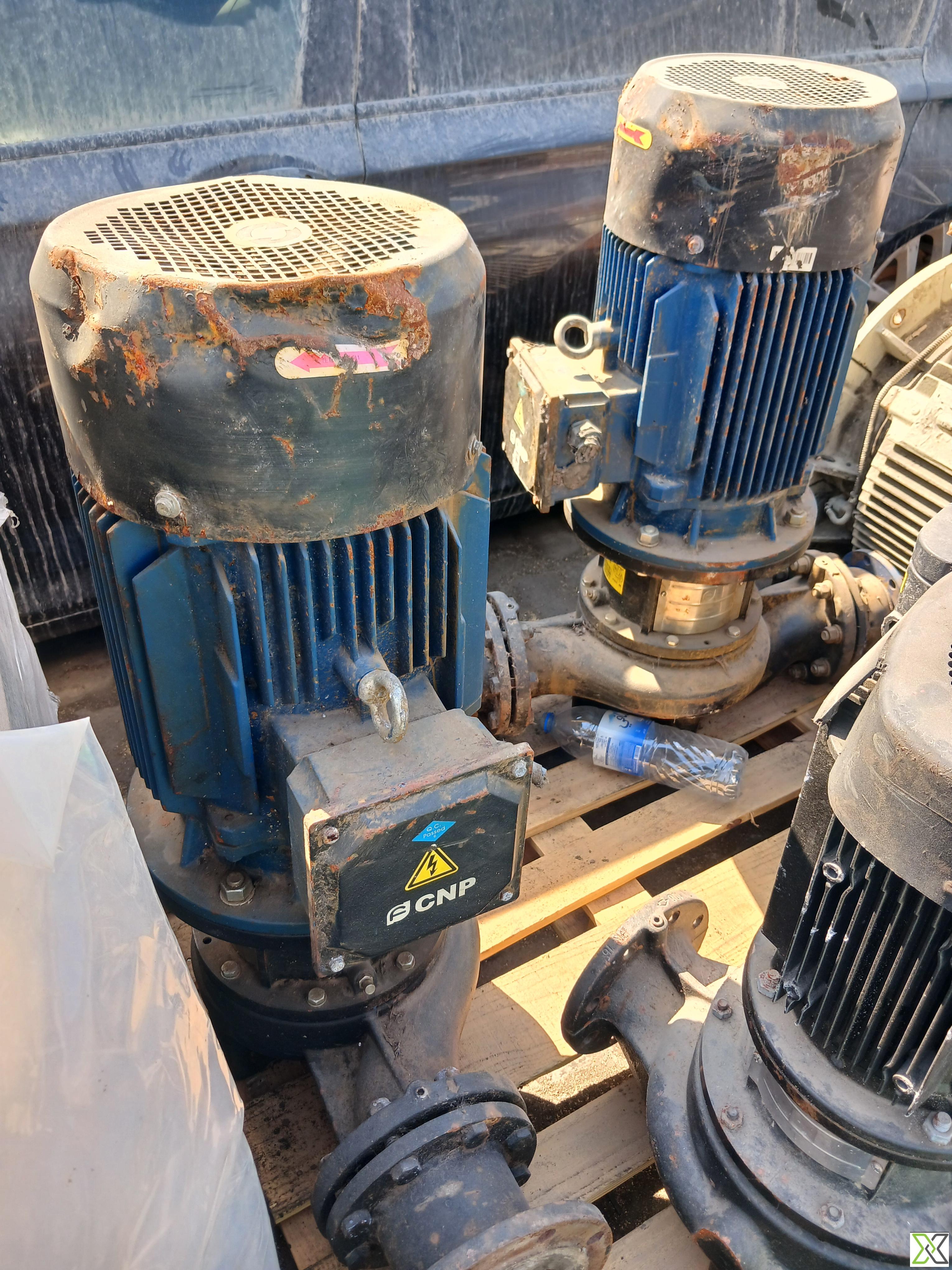

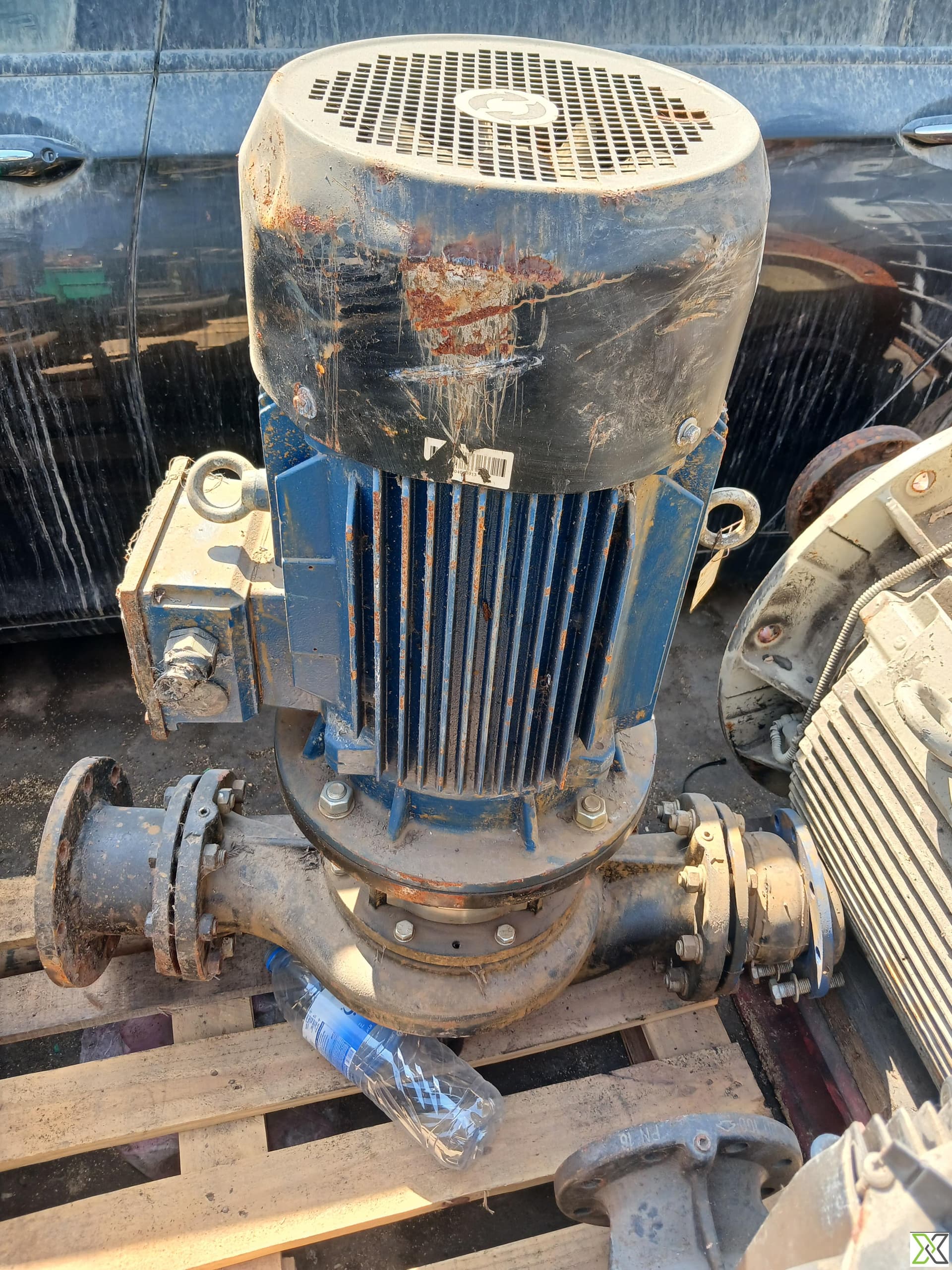

Pipeline Circulating Pump - 18.5 kW Motor

ReflowX SKU: REF-7183

Product Details

Get Quotation Whatsapp

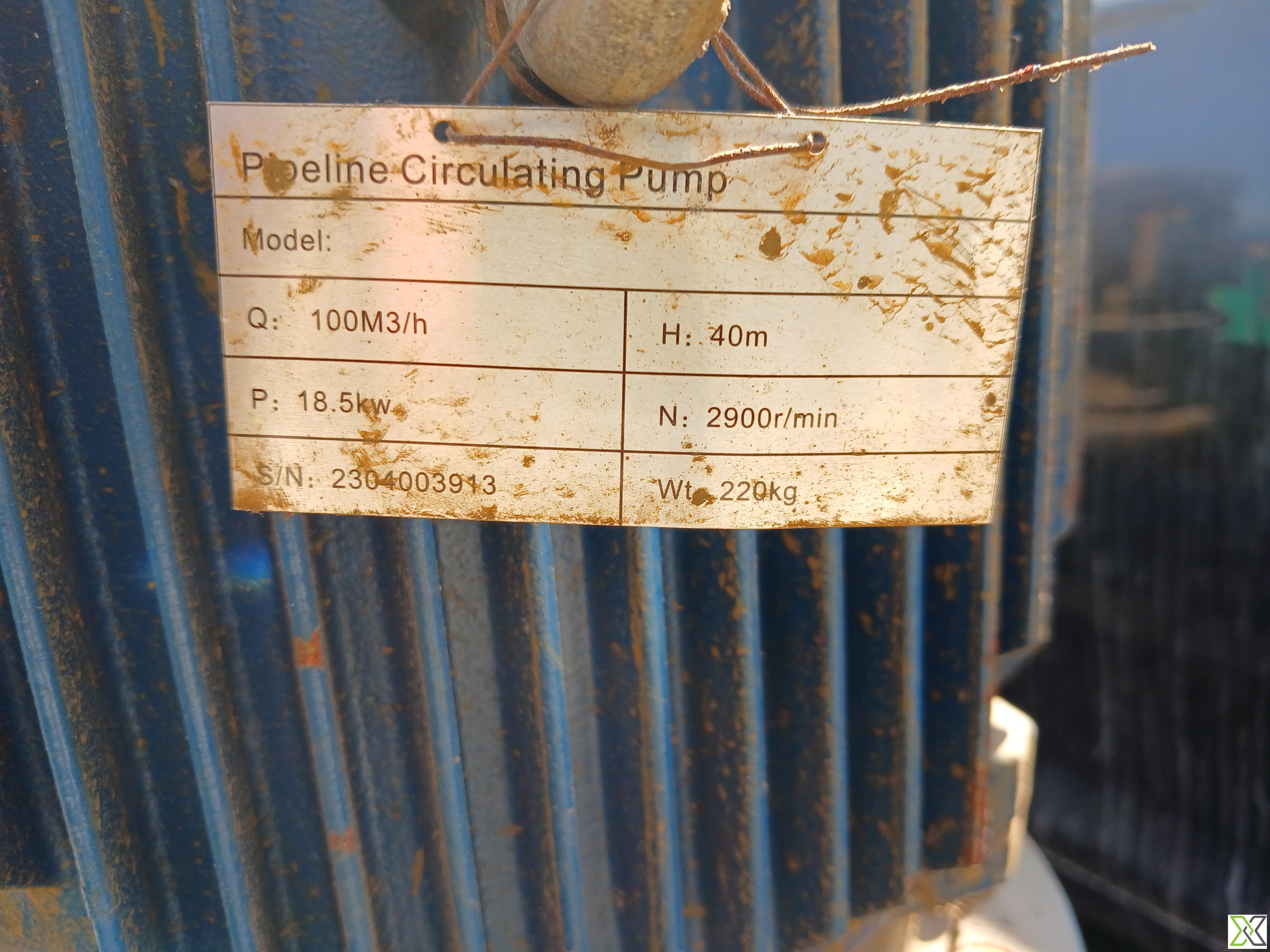

Pump Type: Pipeline Circulating Pump

Serial Number: 2304003913

Application: Industrial Circulation, HVAC, Water Supply Systems

Flow Rate (Q): 100 m³/h (Max fluid volume handled per hour)

Head (H): 40 m (Total pressure generated by the pump)

Pump Efficiency: Typically 75–85% (not specified but estimated based on similar models)

Working Pressure: Likely PN16 (16 bar max)

Pump Casing Material: Cast Iron / Ductile Iron (Standard for industrial pumps)

Impeller Material: Stainless Steel / Bronze (Resistant to corrosion and wear)

Seal Type: Mechanical Seal (Ensures minimal leakage and maintenance-free operation)

Bearings: Heavy-duty ball bearings (Designed for high-speed operation)

Motor Power (P): 18.5 kW (Adequate for required head and flow rate)

Speed (N): 2900 RPM (Standard speed for high-efficiency circulation pumps)

Voltage: 400V / 3-phase (Typical for industrial motors)

Frequency: 50 Hz (Standard industrial power supply)

Protection Class: IP55 (Dust and water jet protection for motor casing)

Insulation Class: F (Handles high operating temperatures, up to 155°C winding temperature rise)

Duty Cycle: S1 (Continuous operation without overheating)

Total Weight (Wt): 220 kg (Heavy-duty construction for stability and durability)

Mounting Type: Inline / Flange Mount (Designed for pipeline installation with minimal footprint)

Flange Standard: EN 1092-2 / ANSI B16.5 (Common industry flange standards)

ISO 2858 / ISO 5199: International standards for centrifugal pumps

IEC 60034-1: Standard for electric motor performance and safety

ISO 9001: Manufacturing quality certification

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Model Number	2304003913
Voltage	400V
Color	Blue
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Output Power	18.5 kW
Direction of Rotation	Clockwise
Design Specification	Three-phase induction motor, Centrifugal, horizontal pump
Fluid Name	Water
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 1
Insulation Class	Class F
Density	Approx. 850–1100 kg/m³
Immersed	No
Normal Operating Inlet Pressure	2.0 bar (g)
Normal Operating Inlet Temperature	Up to 50°C
Normal Operating Outlet Pressure	Up to 10.0 bar (g)
Orientation	Horizontal
Upper Limit Design Pressure	25 bar (g)
