Toshiba Motor Ebara Pump

ReflowX SKU: REF-2644

Product Details

Quantity

3
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Toshiba Industrial Products Manufacturing Corporation
Equipment code

Get Quotation Whatsapp

Short Description

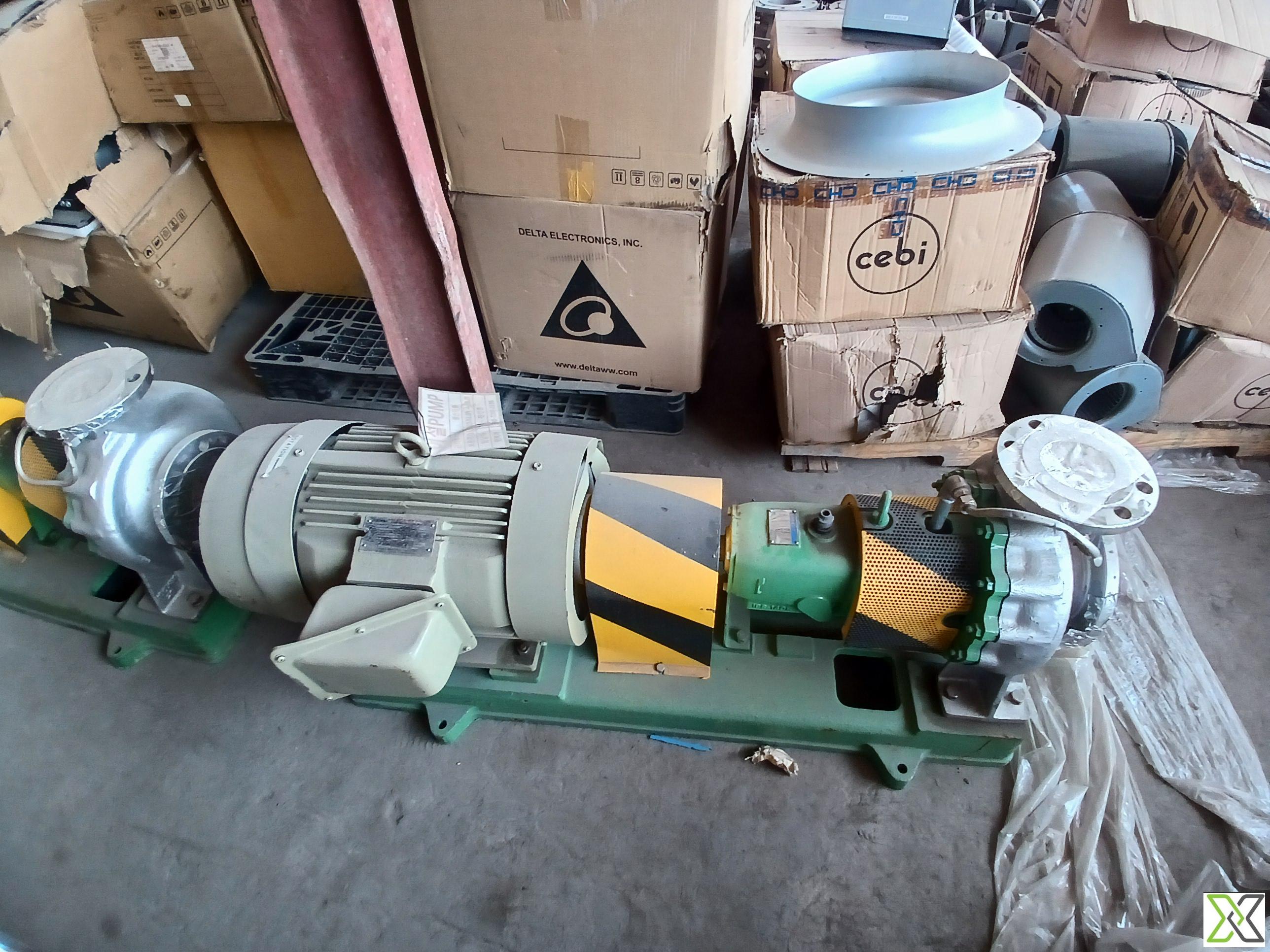

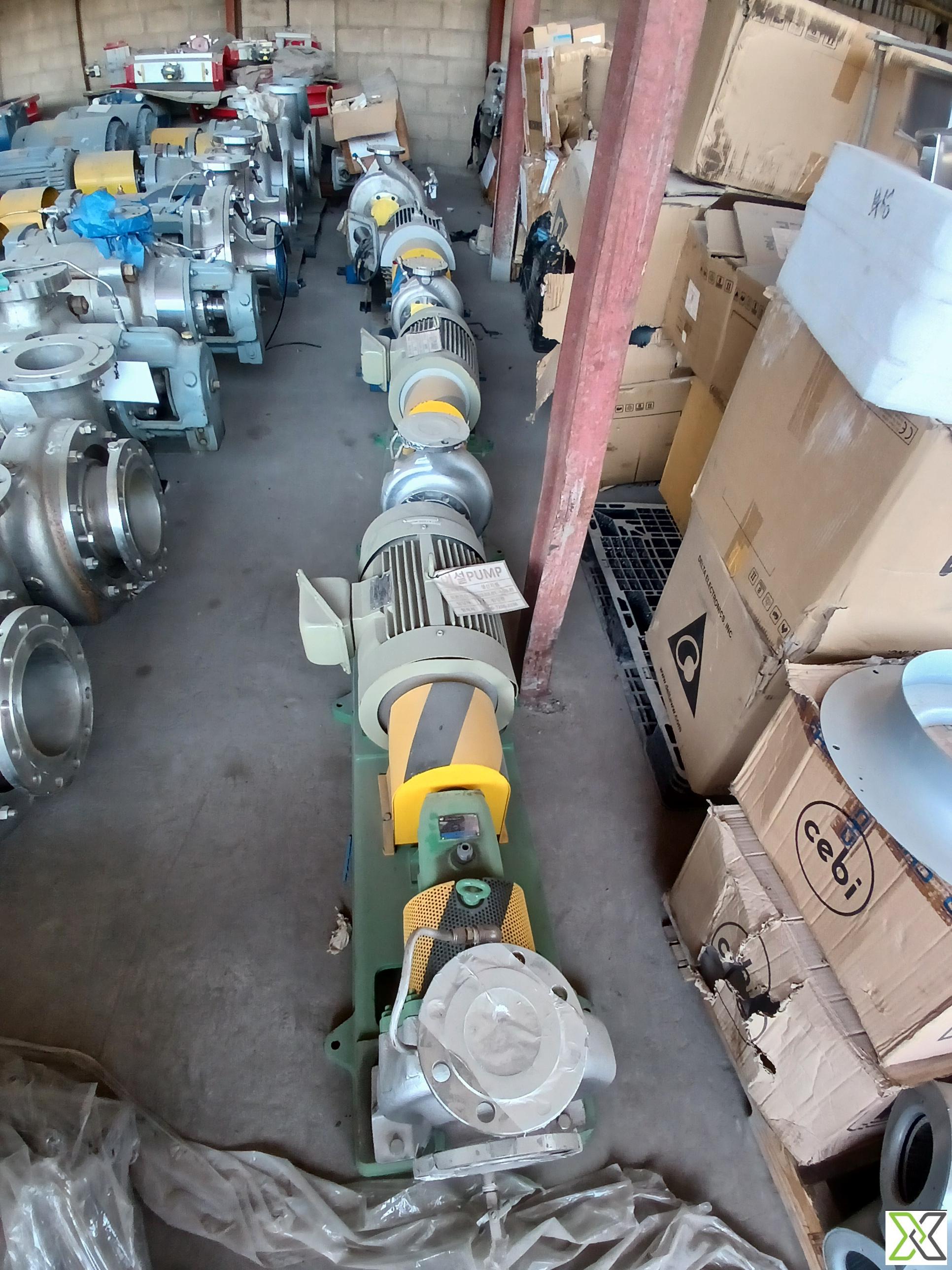

Toshiba Gold High-Efficiency Motor and an Ebara Stainless Steel End-Suction Pump

Description

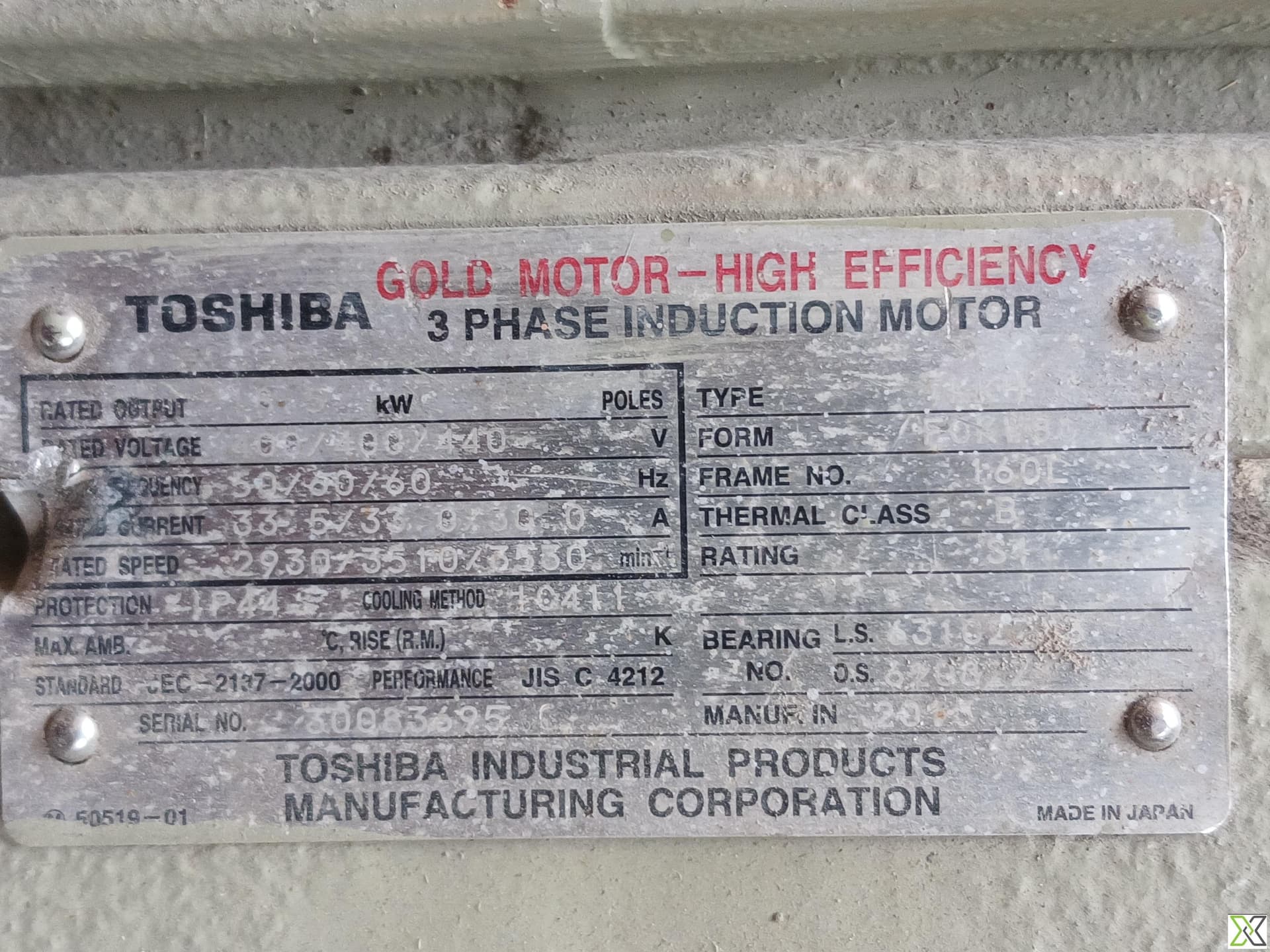

Unit 1: Toshiba Motor

Device Name:
Three Phase Induction Motor

Manufacturer:
Toshiba Industrial Products Manufacturing Corporation

Model Series:
Gold Motor – High Efficiency

Technical Details:

Rated Output: (Value partially unclear, likely around 15–22kW based on current and voltage)

Rated Voltage: 220/380/440V

Frequency: 50/60 Hz

Rated Current: 33.5/19.3/16.5 A

Rated Speed: 2930/3510/3510 RPM

Protection: IP44

Cooling Method: IC411

Frame No.: 160L

Thermal Class: B

Poles: 2

Standard: IEC 21377-2000 / JIS C 4212

Serial Number: 30083695

Made in: Japan

Unit 2: Ebara Pump

Device Name:
Centrifugal Pump

Manufacturer:
Ebara Corporation (Japan)

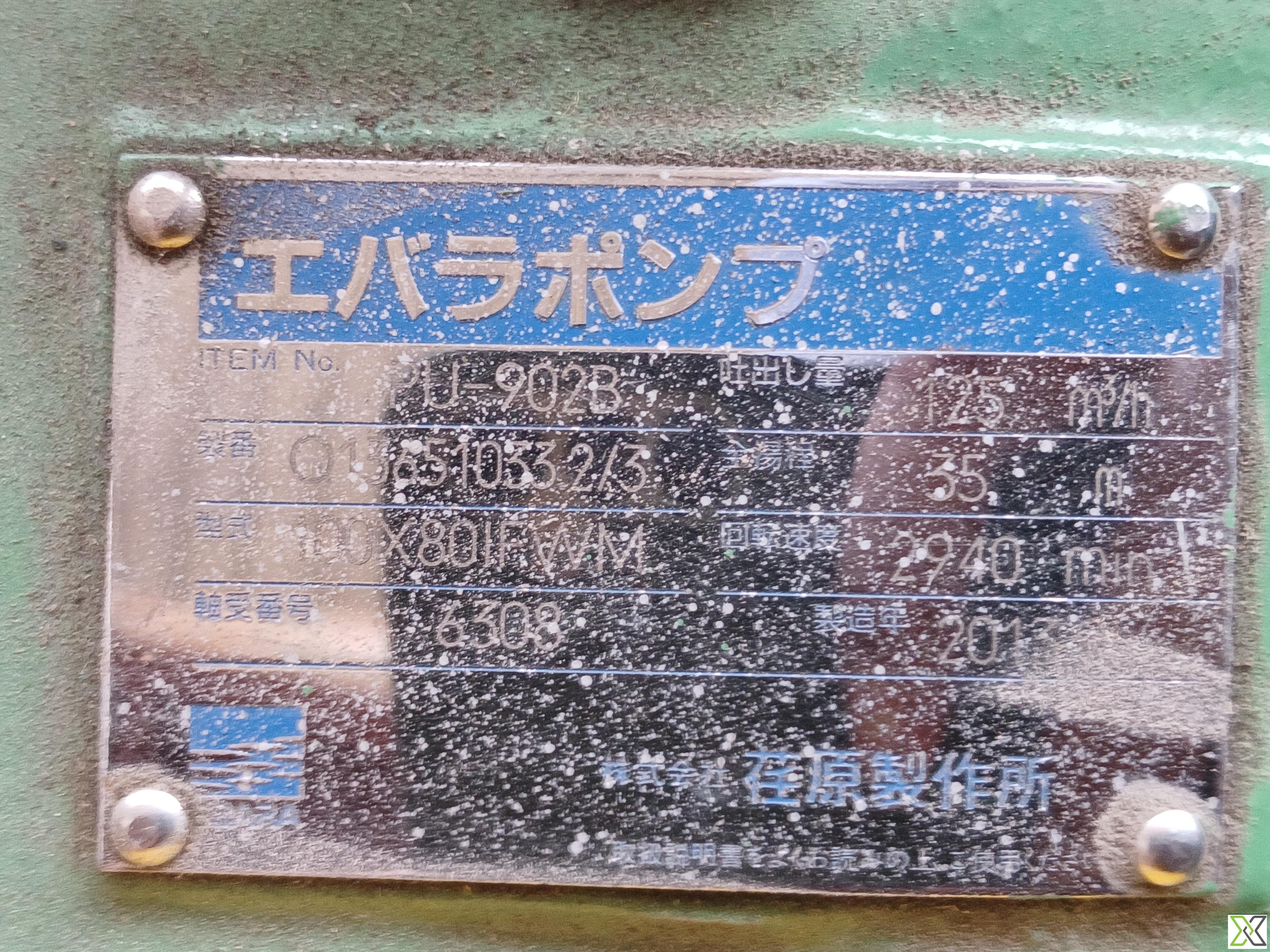

Nameplate Translation (from Japanese):

ITEM No: JU-902B

Model: 80X80IIE4MA

Flow Rate : 125 m³/h

Head : 35 meters

Rotation Speed : 2940 min⁻¹ (RPM)

Material : Stainless Steel (likely 201 grade)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Gold Motor – High Efficiency
Voltage	220/380/440V
ISO 15926 Pt 4	7436
PCA RDS Code	RDS416834
CFIHOS ID	CFIHOS-30000521
Output Power	37 kW (50 HP)
Direction of Rotation	Clockwise
Design Specification	Compliant with ISO 9906 Annex A
Fluid Name	Clean water or similar non-corrosive fluids
Insulation Class	Class F (155°C)
Density	Approximately 1,000 kg/m³
Immersed	No
Normal Operating Inlet Pressure	Atmospheric pressure
Normal Operating Inlet Temperature	14°F to 212°F (-10°C to 100°C)
Normal Operating Outlet Pressure	Up to 200 psi
Orientation	Horizontal
Upper Limit Design Pressure	200 psi
