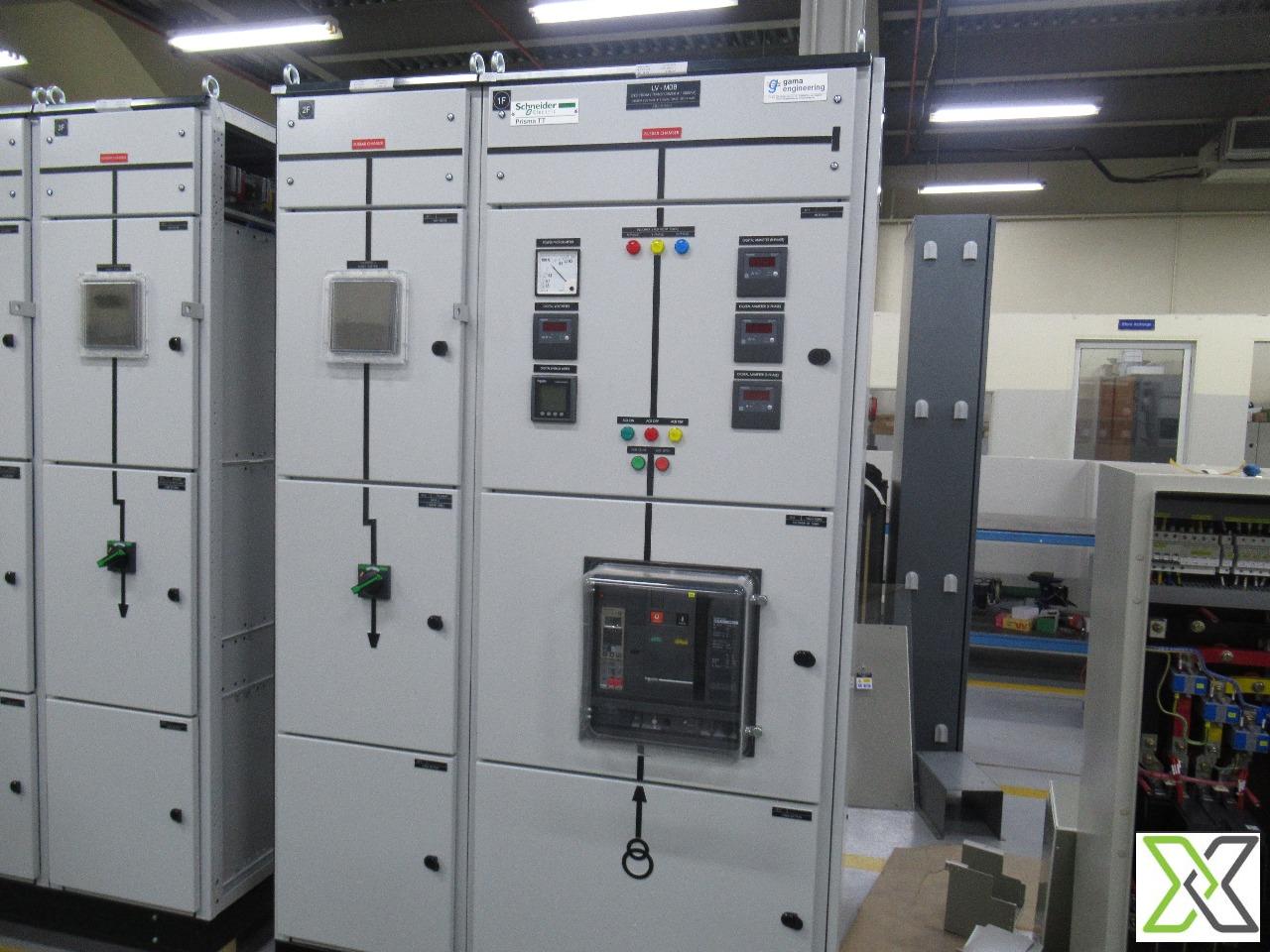

Modular Low Voltage Electrical Power Panels – Up to 6300A

This modular LV electrical panel system is designed to support a wide range of power applications including main and sub-main distribution, automatic power factor correction (APFC), active harmonic filtering (AHF), motor control, synchronization, and transfer switching.

With system voltages ranging from 400V to 415V AC, these panels support both 50 Hz and 60 Hz frequency systems. The protection rating is configurable from IP42 to IP65, suitable for indoor or outdoor installation. Panels are manufactured in modular steel enclosures, powder-coated in RAL7035, with optional floor-standing or wall-mounted formats.

All panels comply with international standards including IEC 61439-1/2, IEC 60204-1, IEC 60831, IEEE 519, and ISO 8528, ensuring global reliability and operational safety.

 Specifications:

– System Voltage: 400V / 415V AC
– Frequency: 50 / 60 Hz
– Rated Current: Up to 6300A
– Short Circuit Withstand: Up to 100kA for 1 sec
– Busbar Material: High-conductivity Copper / Aluminum
– Mounting: Indoor / Outdoor with canopy
– Enclosure Type: Modular, steel, powder-coated (RAL7035)
– Protection Class: IP42 to IP65
– Form of Separation: Form 2, Form 3, Form 4 / 4b
– Standards: IEC 61439-1/2, IEC 60204-1, IEC 60831, IEC 60947-6-1, IEEE 519, ISO 8528
– Color: RAL7035, textured finish

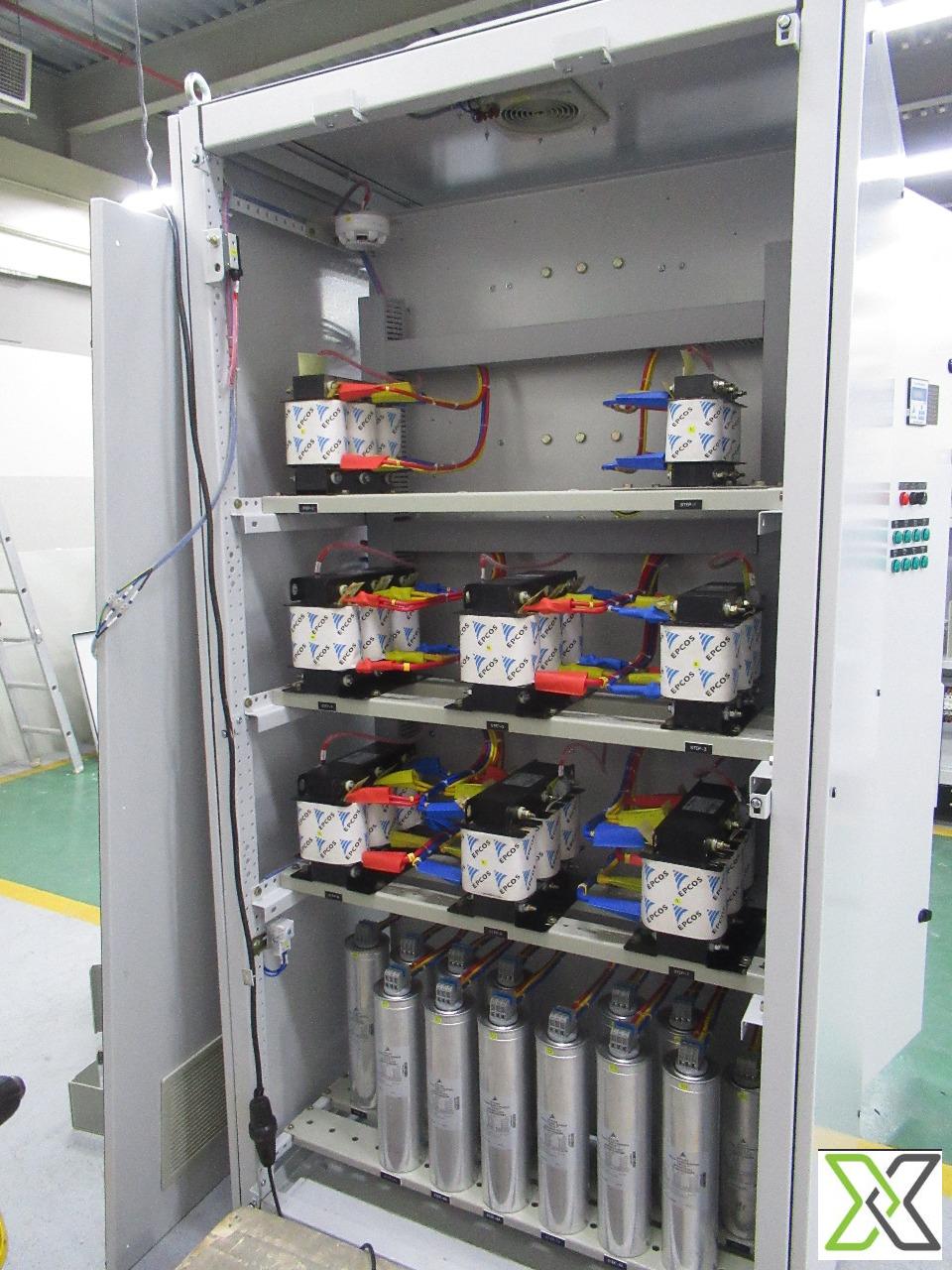

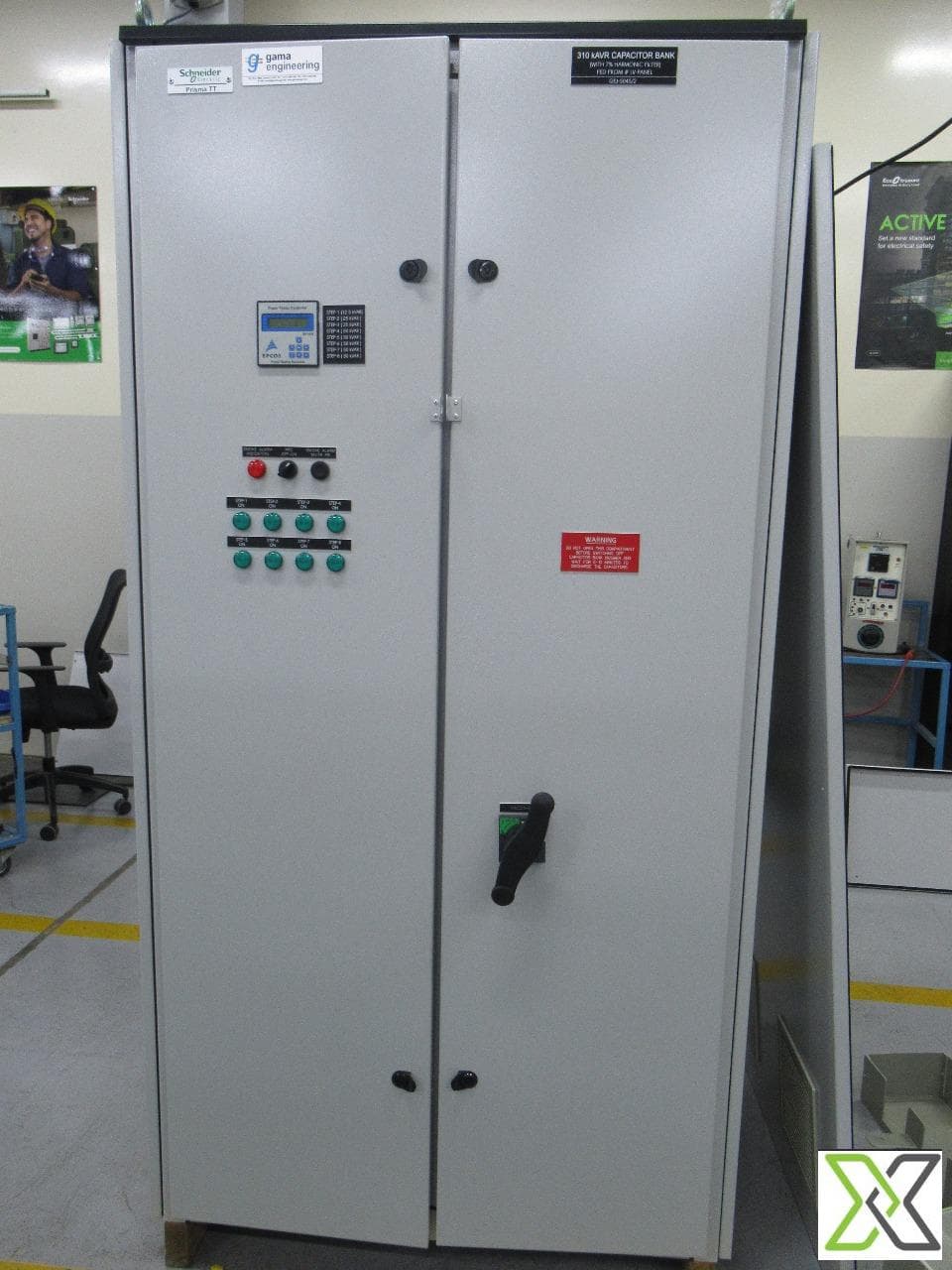

Power Factor Correction (APFC) Panel:
– Power Rating: 25 to 1000 kVAR
– Control Type: Automatic / Manual via APFC relay
– Detuned Reactor: 7% / 5.67% for harmonic filtration
– Capacitor Type: Heavy-duty cylindrical / box-type
– Cooling: Natural / Forced air
– Protection: MCCB / MCB, fuses, thermal trip

Automation & Control Panel:
– Supported Brands: Siemens, Schneider, Omron, Allen-Bradley
– Power Supply: 24VDC / 230VAC
– I/O Type: Digital / Analog, expandable
– Communication Protocols: Modbus RTU, Modbus TCP, Ethernet/IP, Profinet, Profibus
– Display Interface: HMI touchscreen / SCADA-ready
– Wiring & Layout Standard: IEC 60204-1

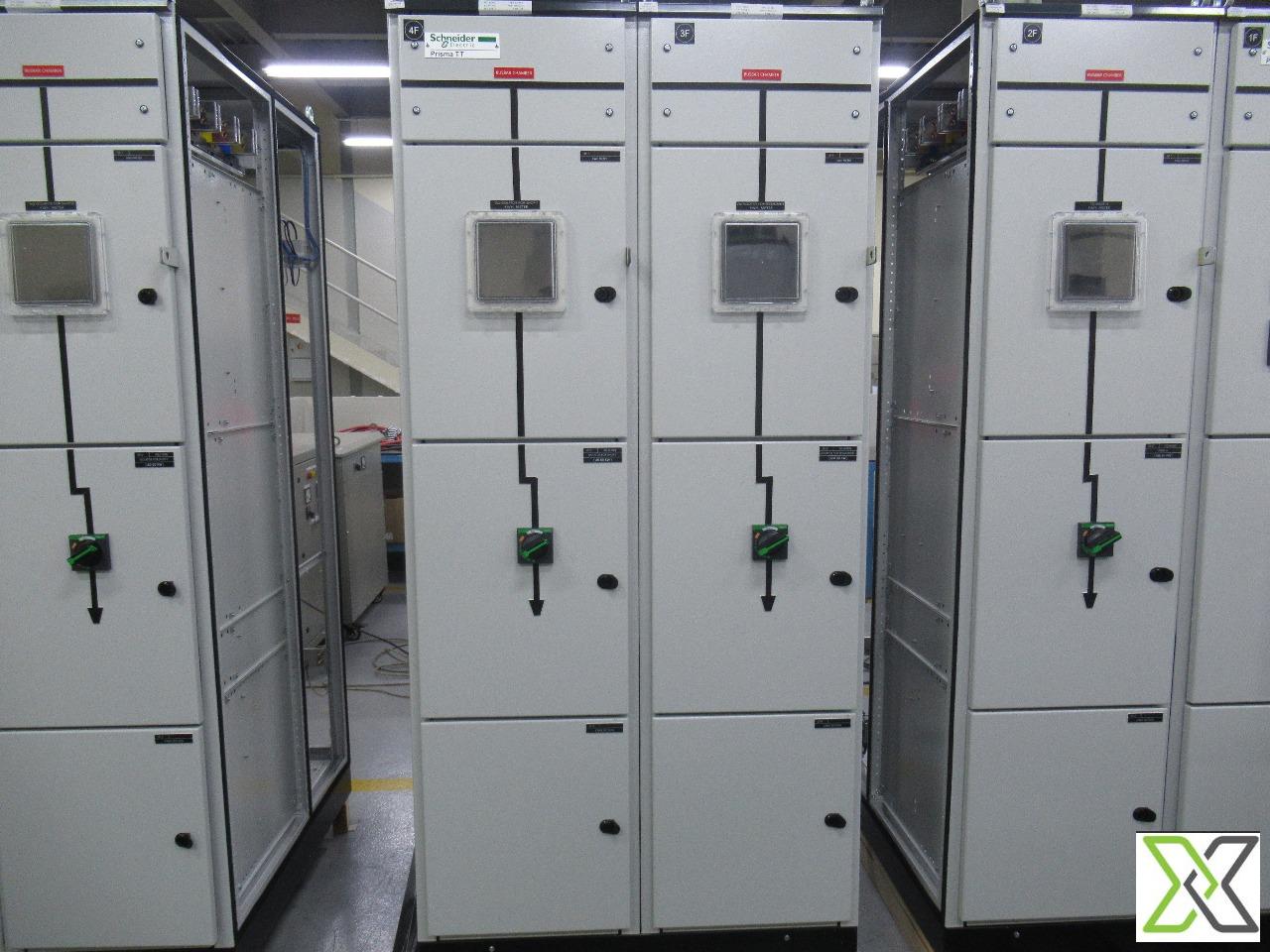

Motor Control Center (MCC):
– Feeder Capacity: Up to 6300A
– Starter Types: DOL, Star-Delta, VFD, Soft Starter
– Compartment Type: Fixed / Draw-out / Plug-in
– Busbar Rating: Up to 100kA
– Separation Form: Form 2, 3, 4b
– Panel Type: Modular vertical tiers

Active Harmonic Filter (AHF):
– Filter Rating: 25A to 600A
– Harmonic Compensation: Up to 50th harmonic
– Technology: DSP-based real-time harmonic control
– Response Time: <300 microseconds
– Connection Type: 3-phase 3-wire / 4-wire
– Compliance: IEEE 519, IEC 61000-4-7

Synchronization Panel:
– Genset Support: Up to 4000 kVA per generator
– Synchronization Type: Automatic / Manual
– Load Sharing: Active (kW) / Reactive (kVAR)
– Controllers: ComAp, DEIF, Deep Sea, Woodward
– Breaker Control: MCCB / ACB with bus tie
– Display: HMI with event/alarm logs

Automatic Transfer Switch (ATS):
– Transfer Rating: Up to 4000A
– Transfer Time: <500 ms (open / closed transition)
– Control Logic: PLC or microprocessor-based
– Switch Type: Contactor / MCCB / ACB based
– Status Indications: Source availability, switch status, fault indicator
– Mounting: Indoor / Outdoor with protective enclosure
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
