Annular Blowout Preventer – Versatile Well Control BOP for Drilling Safety - QOF

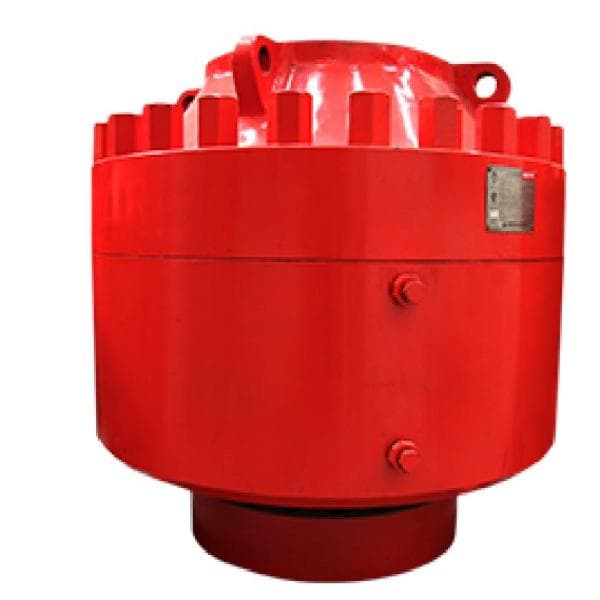

The Annular Blowout Preventer (BOP) from QOF is a critical well control device used during drilling operations to ensure safety by providing a reliable seal around drill pipes, casing, or even irregularly shaped tools within the wellbore. Unlike ram-type BOPs, the annular BOP uses a doughnut-shaped elastomeric sealing element capable of conforming to a wide range of pipe sizes and shapes, delivering a secure, leak-proof seal in dynamic drilling environments.

With its versatile sealing capability, the annular BOP is suitable for use in combination with ram BOPs as part of a complete well control stack. Engineered with robust materials and a simple, maintenance-friendly design, the unit ensures long service life and ease of operation. It plays a vital role in sealing open holes or around tubulars during well control events, tripping, and pressure testing.

Compliant with API 16A and other international standards, this annular BOP ensures maximum operational safety and performance for both onshore and offshore rigs.

Specifications:

– Type: Annular Blowout Preventer (Hydraulic-operated)
– Size Range: 7-1/16" to 21-1/4"
– Working Pressure: 2,000 psi to 10,000 psi (standard), 15,000 psi (optional)
– Sealing Element Material: High-performance nitrile or HNBR elastomer with reinforcing inserts
– Body Material: Forged or cast alloy steel with anti-corrosion coating
– Control System Compatibility: Hydraulic control via API 16D control system
– Temperature Rating: Standard and high-temperature models available per API 16A
– Design Standard: API 16A (latest edition)
– Testing Standard: API 16A, API 16C where applicable
– End Connections: Flanged or studded; available with API 6A or API 16A connections

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
