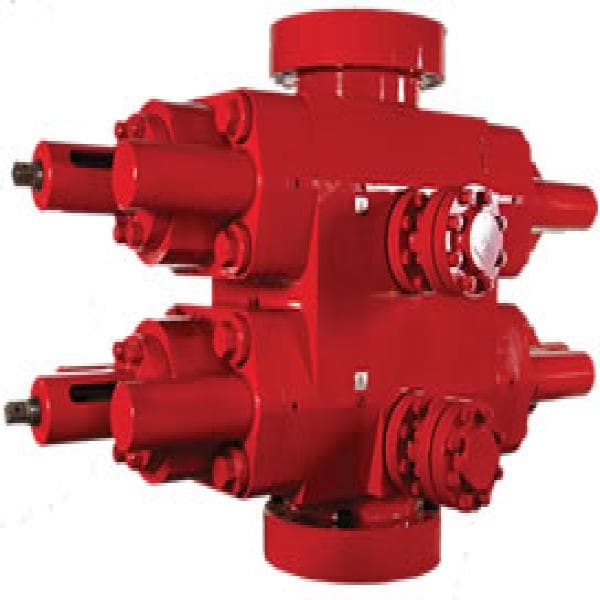

Shaffer and Cameron Ram BOP – High-Pressure Blowout Preventer

The Shaffer and Cameron Ram Blowout Preventers (BOPs), provided by QOF, are engineered to deliver robust and dependable well control in critical oil and gas drilling and production environments. These ram BOPs utilize advanced sealing systems and heavy-duty structural components to ensure fail-safe operation under extreme pressure conditions.

Constructed from high-grade materials and conforming to international standards, these BOPs are designed for compatibility with a wide range of drilling systems and ram types—pipe ram, blind ram, shear ram, and variable bore rams. Their modular and service-friendly construction facilitates easy maintenance, minimizing downtime while ensuring rapid access to key components. These units are ideal for both onshore and offshore drilling operations, ensuring maximum safety and operational reliability.

With a focus on safety, durability, and field flexibility, Shaffer and Cameron BOPs remain an industry standard for high-integrity blowout prevention systems.

Specifications:

– Type: Ram-Type Blowout Preventer (BOP)
– Manufacturers Supported: Shaffer, Cameron
– Size Range: 7-1/16" to 21-1/4"
– Working Pressure: 2,000 psi to 15,000 psi
– Body Material: Forged alloy steel, corrosion-resistant treatment
– Ram Types:
 • Pipe Rams (fixed & variable)
 • Blind Rams
 • Shear Rams
– Operating Mechanism: Manual or hydraulic (hydraulic preferred for shear/pipe)
– Seal Design: High-integrity elastomeric sealing with metal reinforcement
– Temperature Rating: Standard to High Temperature (as per API 16A)
– Control System: Compatible with API 16D BOP control systems
– End Connections: Flanged or studded (as per API 6A/16A)
– Design Standard: API 16A (latest edition)
– Testing Standard: API 16A & API 16C (where applicable)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
