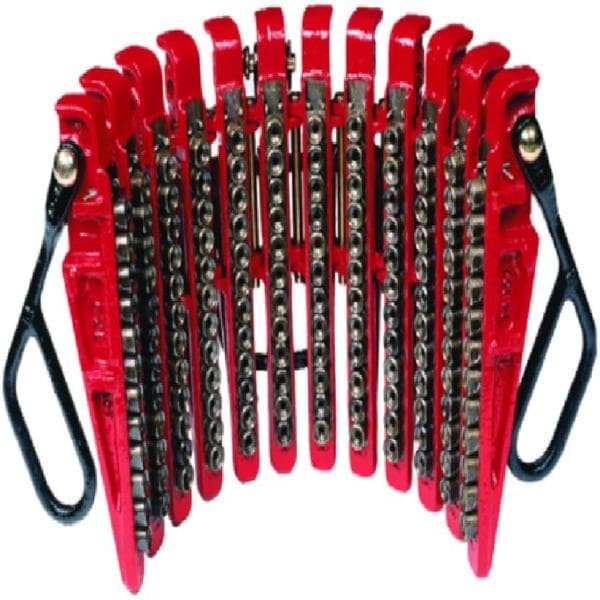

Casing Slip CMS-XL & CP-S, UC-3 Series – Reinforced Cast Steel, API Taper | QOF

The QOF CMS-XL & CP-S, UC-3 Series Casing Slips are engineered for high-performance casing support in harsh oilfield environments. Constructed from reinforced cast steel, these slips are built to endure demanding drilling conditions while ensuring maximum casing protection and slip integrity.

With a self-centering, full wraparound gripping design, the slips ensure uniform load distribution around the casing, effectively minimizing deformation or damage during operations. The API-standard 4” per foot taper ensures secure engagement within master bushings or rotary tables.

The CMS-XL series supports larger casing sizes, while the CP-S and UC-3 series cover standard ranges. Easily adaptable with replaceable inserts and modular segments, these slips provide enhanced flexibility across casing sizes from 6 5/8” to 30” OD, making them a universal choice for drilling rigs operating in varied field conditions.

Specifications:

– Model: CMS-XL & CP-S, UC-3 Series
– Slip Type: Casing Slip
– Casing Size Range: 6 5/8” to 30” OD
– Taper: 4” per foot (API standard)
– Construction: High-strength reinforced cast steel body
– Segment Type: Modular segment design for adaptable sizing
– Gripping Mechanism: Full wraparound self-centering slip grip
– Insert Type: Replaceable slip inserts
– Compatibility: Standard API master bushings and rotary tables
– Applications:
 • Land and offshore drilling rigs
 • Oil and gas casing operations
 • High-load and severe-service environments

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
