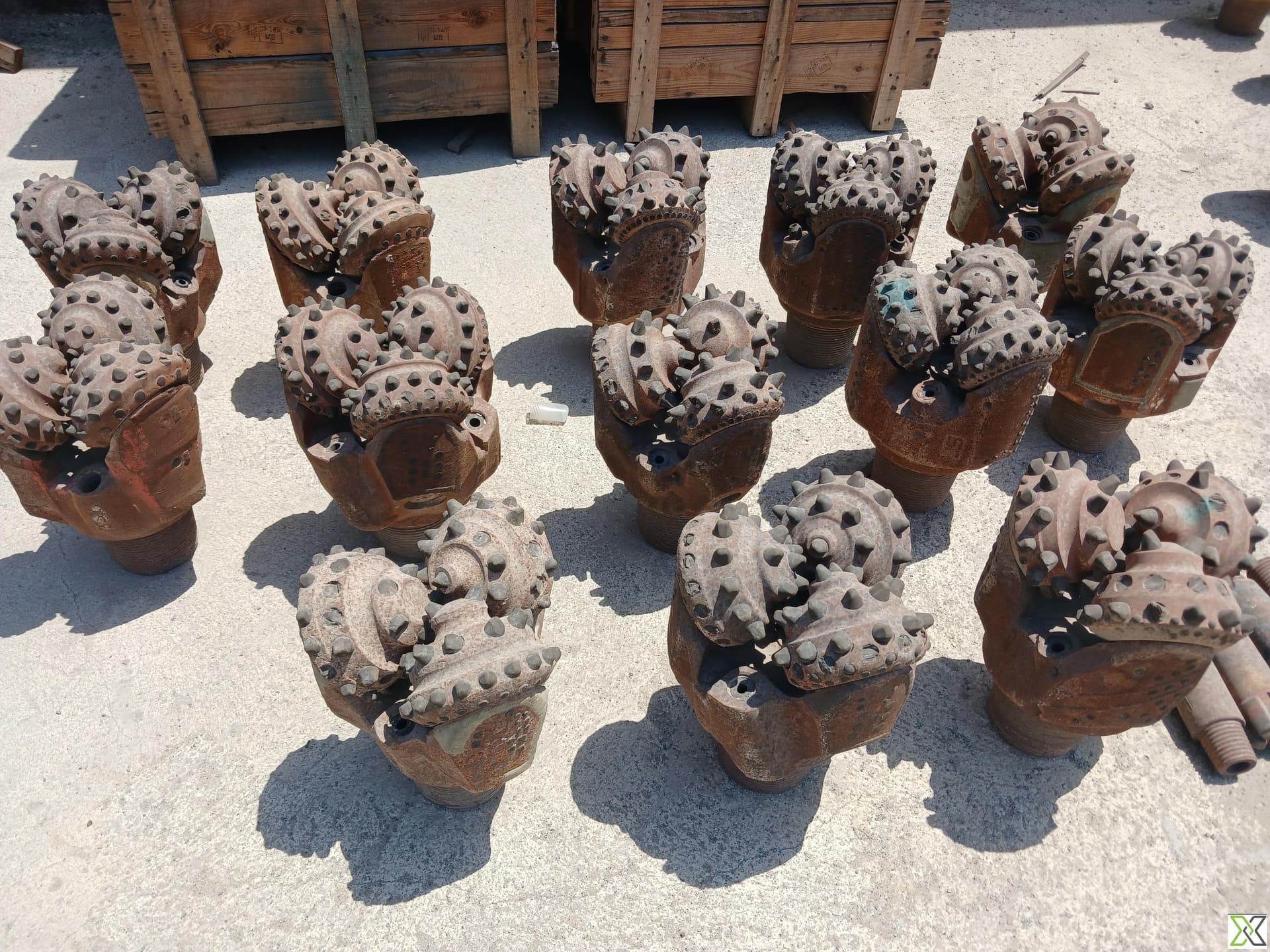

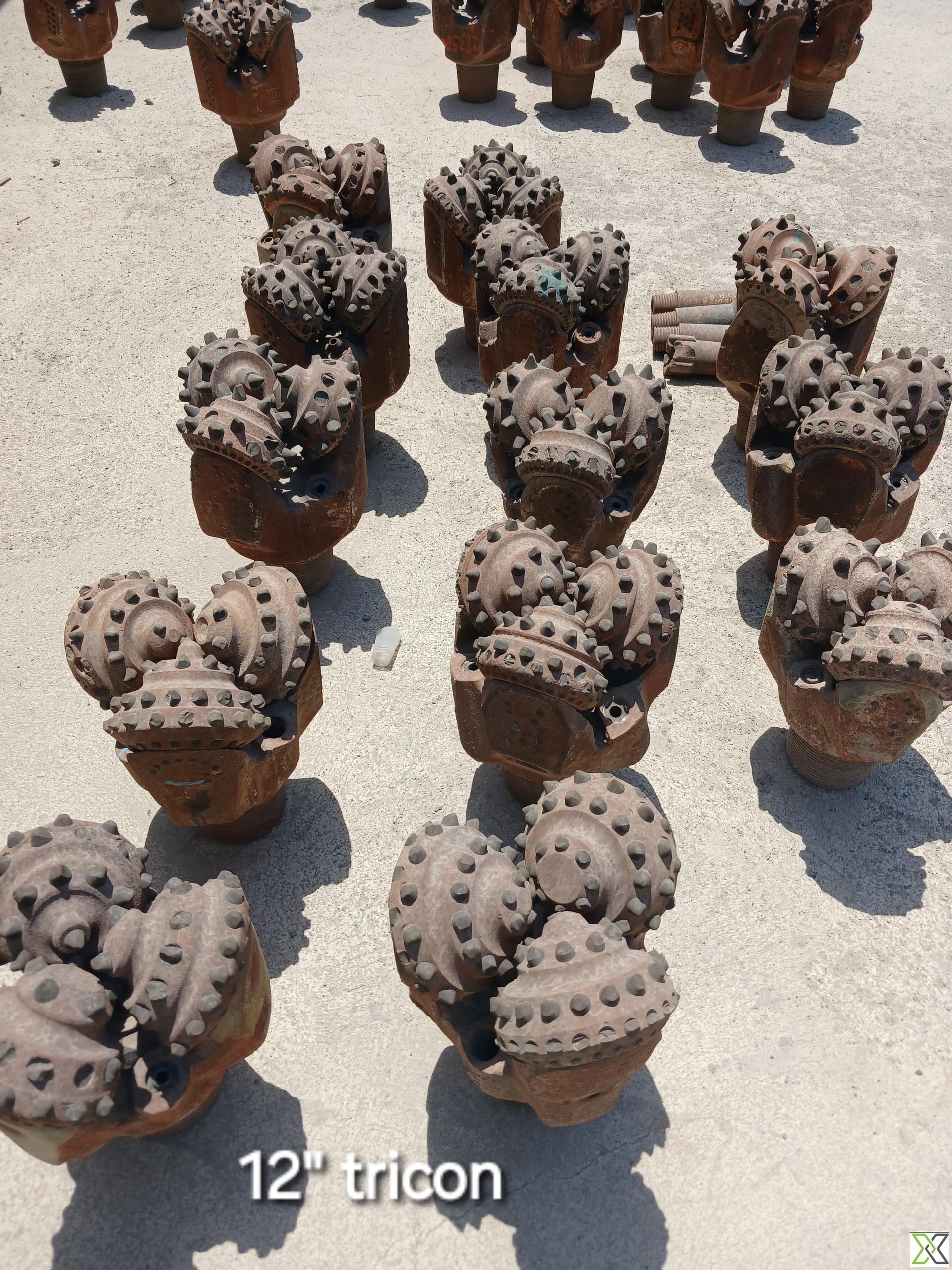

12-Inch Tricone Drill Bit – Milled Tooth & Tungsten Carbide Insert Options

The 12-inch Tricone Drill Bit is a versatile and robust rotary tool used in various drilling applications including oil and gas exploration, geothermal wells, water well drilling, and foundation construction. Featuring a tricone design with three conical cutters and configurable cutting structures, this bit is suitable for a wide range of formations — from soft to ultra-hard. Options include Milled Steel Teeth (MT) for soft formations and Tungsten Carbide Inserts (TCI) for more abrasive and harder formations. With bearing options including open roller, sealed roller, and sealed journal bearings, this bit is engineered to withstand various loads and depths. It features precision-fit cutting elements, durable gauge protection, and customizable nozzles for efficient mud circulation and cooling.

Specifications:

– Type: Tricone Drill Bit (Roller Cone Bit)
– Size: 12 inches (304.8 mm)
– Application: Oil & gas drilling, geothermal, water wells, mining, and foundations
– Number of Cones: 3 (Tricone configuration)
– Cutting Structure Options:
 • Milled Steel Teeth (MT) – For soft to medium formations
 • Tungsten Carbide Inserts (TCI) – For medium to ultra-hard formations
– Bearing Types:
 • Open Roller Bearing
 • Sealed Roller Bearing
 • Sealed Journal Bearing
– Gauge Protection: Hardfacing or Tungsten Carbide inserts on gauge and shirttail areas
– Nozzle Quantity: 3 replaceable jet nozzles
– Nozzle Sizes: Configurable based on mud flow and system pressure
– Connection Type: API Regular (Reg) Thread
– Connection Size (Pin): Typically 6 5/8” Reg
– Recommended Rotary Speed (RPM):
 • TCI Bits: 90–160 RPM
 • MT Bits: 100–180 RPM
– Recommended Weight on Bit (WOB):
 • TCI Bits: 10,000–60,000 lbs
 • MT Bits: 8,000–50,000 lbs
– Mud Circulation: Jet circulation through replaceable nozzles for cooling and cuttings removal
– Body Material: High-strength, heat-treated alloy steel
– Cutting Elements:
 • Milled Steel Teeth – Hardfaced with abrasion-resistant overlays
 • TCI – High-grade tungsten carbide inserts, precision press-fit
– Seal Type:
 • Metal Face Seals (for sealed journal bearings)
 • Elastomeric Seals (for sealed roller bearings)
– Surface Treatment: Anti-corrosion, hardfacing on critical areas and shirttail

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
