MA 25 Agitator Assembly (20107101) – For Oil Base Mud Tank 1 – Tag No. V4022-CJ500

The MA 25 Agitator Assembly (Model: 20107101) is engineered for mixing and maintaining uniformity in oil-based drilling fluids. Specifically built for Oil Base Mud Tank 1, this unit carries Tag No. V4022-CJ500 and is offered as surplus stock, sold strictly "as is" with no warranties or guarantees.

This agitator ensures optimal fluid dynamics in the tank by continuously suspending solids and preventing settling. Designed for heavy-duty operation in harsh environments such as oil and gas drilling rigs, it offers reliability and performance in mud conditioning systems. The unit is compliant with applicable industrial and safety standards and is ideal for both onshore and offshore drilling operations.

Specifications:

– Model: MA 25

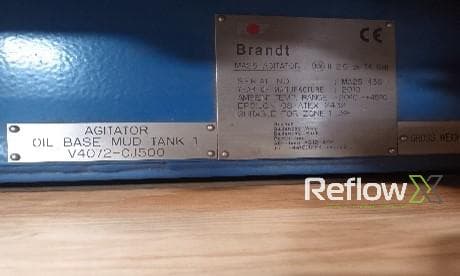

– Tag Number: V4022-CJ500
– Part Number: 20107101
– Application: Oil Base Mud Tank 1
– Type: Horizontal Shaft Agitator Assembly
– Motor Power: Typically 5.5 – 11 kW (to be confirmed)
– Voltage: Typically 400 V / 50 Hz (to be confirmed)
– Mounting Configuration: Top-mounted with bolted flange
– Agitation Mechanism: Single or dual impeller system (flat or canted blades)
– Rotation Speed: Approx. 60–72 RPM via gearbox
– Construction Material: High-strength steel with anti-corrosion coating
– Tank Type Compatibility: Oil-based drilling fluid systems
– Standards Compliance: API / ISO applicable standards (as specified)

Applications:
– Oil-based mud agitation
– Solids suspension in mud tanks
– Drilling fluid homogenization
– Onshore and offshore rig support systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
