Canrig DDTD750V2 Direct Drive™ Top Drive – 750 Ton - 2013

Offered for sale is a used Canrig DDTD750V2 Direct Drive™ Top Drive, manufactured in 2013 and built to API SPEC 8C, PSL1 standards. This heavy-duty top drive system is engineered for demanding drilling operations with a 750-ton hoisting and drilling capacity. Featuring high torque output and integrated auxiliary motors, it’s suited for deep and extended-reach drilling programs.

The unit is currently available for inspection at Hamriyah Free Zone, UAE and includes:

– 5" S-PIPE, FIG 1002, 7500 PSI
– Counterbalance assembly for 750V2
– Electric AC drive motor with 1575 HP output

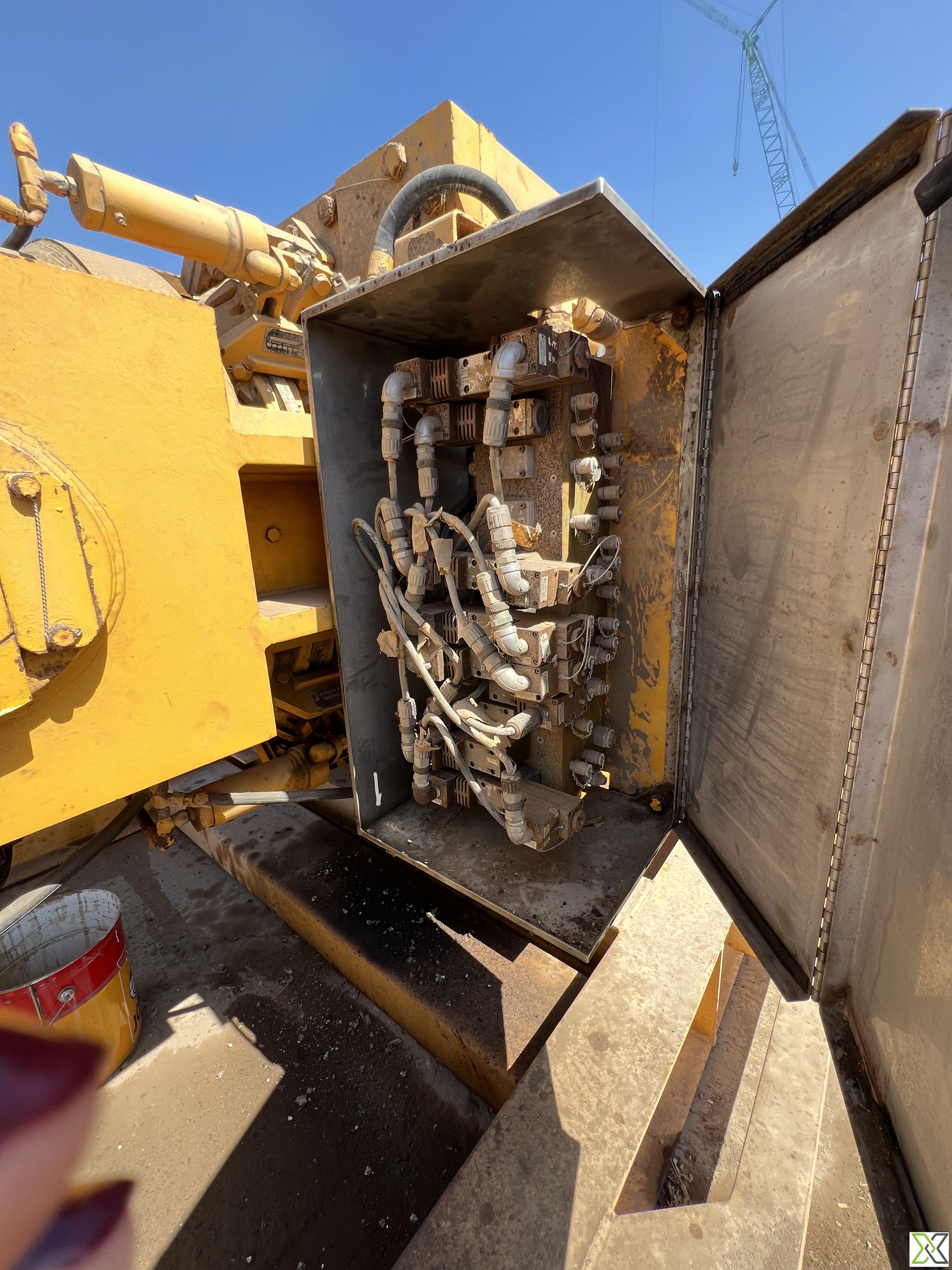

– Integrated auxiliary blower and lubrication pump motors
– Fully enclosed structural housing

Specifications:

– Manufacturer: Canrig
– Model: DDTD750V2 Direct Drive™
– Serial Number: DDTD750V2-142
– Year of Manufacture: 2013
– Design Standard: API SPEC 8C, PSL1
– Hoisting Capacity: 750 Short Tons
– Drilling Capacity: 750 Short Tons
– Intermittent Torque Rating: 100,000 ft-lb
– Continuous Torque Rating: 72,000 ft-lb @ 0–116 RPM
– Hook Load (Approx.): 65,000 lb
– Pipe Size: 5" S-PIPE, FIG 1002
– Working Pressure: 7500 PSI
– Counterbalance Assembly: Included (CT for 750V2)
– Main Drive Motor Output: 1575 HP / 1174.95 kW
– Main Drive Electricals: 550 VAC, 12 Hz, 3-Phase
– Auxiliary Motor Electricals: 460–480 VAC, 60 Hz
– Condition: Used
– Mounting: Skid-Mounted
– Location: Hamriyah Free Zone, UAE
– Availability: Immediate (0–2 Weeks)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
