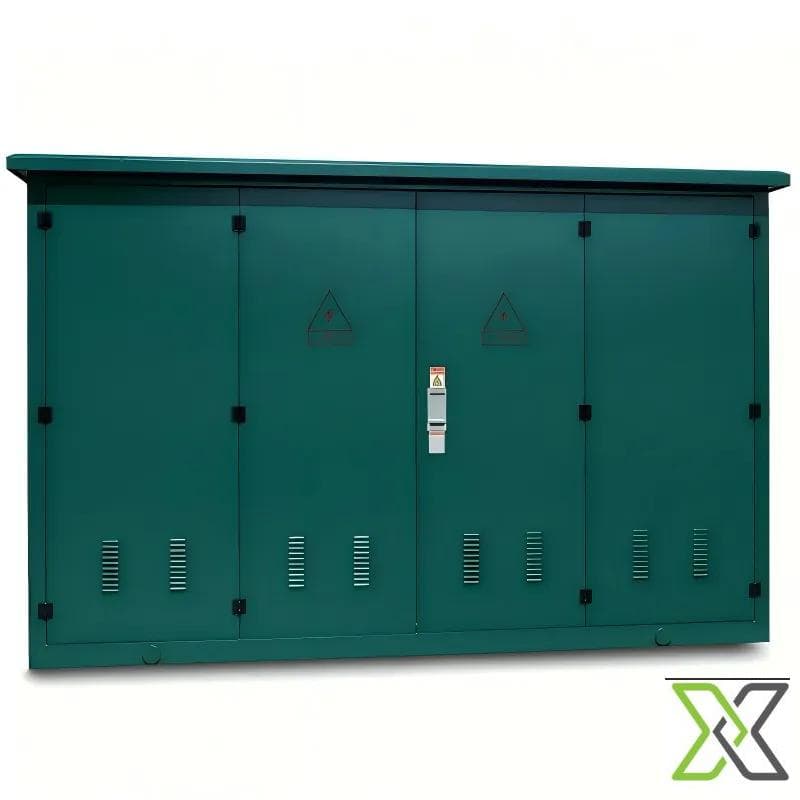

10kV Distribution Solution

Short Description

High-performance 10 kV distribution solution featuring SF₆ gas-insulated switchgear and modular design for reliable medium-voltage power distribution.

Description

The 10 kV distribution solution integrates a centralized medium-voltage switching system designed to control and distribute electrical power across modern smart-grid infrastructures. Utilizing a fully gas-insulated switchgear (GIS) module, it minimizes footprint while maximizing dielectric performance and operator safety.

This system employs SF₆ gas-insulated vacuum circuit breakers and busbars housed in a sealed enclosure, ensuring arc‭free switching and robust protection. The modular architecture supports various outgoing feeders and allows customization for specific network configurations.

Installation typically involves outdoor mounting in substations, industrial plants, or renewable energy facilities where compact footprint and high reliability are essential. Its IP55/IP65 protection rating safeguards components against dust, moisture, and harsh environmental conditions.

Key design features include touch‭safe busbars, plug‑in cable termination assemblies for 10 kV cables, and high‑current busbar systems rated up to 1250 A. Optional smart monitoring modules provide real-time status, enabling predictive maintenance and enhanced operational safety.

Specifications

| Parameter | Details |
|-----------|--------|
| Rated System Voltage | 10 kV / 12 kV |
| Rated Frequency | 50 Hz / 60 Hz |
| Insulation Medium | SF₆ gas-insulated switchgear (GIS) |
| Main Busbar Current | 630 A – 1250 A |
| Customization | Available |
| Environmental Protection | IP55 / IP65 Rated |
| Termination Type | 10 kV cable branch board |

If you require any further information on this listing please contact info@reflowx.com
