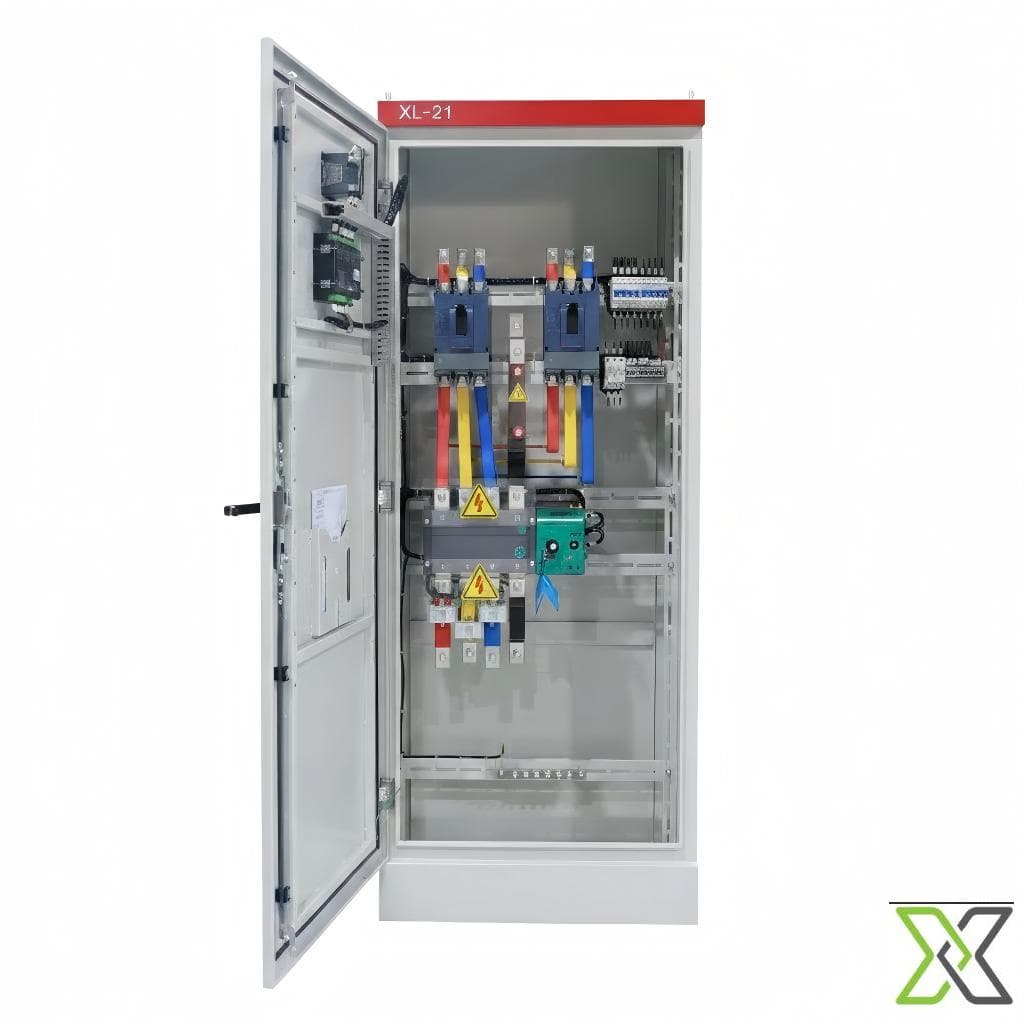

Power Transfer Management Solution 630A XL-21

Short Description

Dual-power automatic transfer switch panel delivering reliable 630 A power transfer control for industrial and commercial facilities.

Description

The power transfer management solution is engineered to ensure seamless switching between primary and backup power supplies, maintaining continuous energy for critical loads. It integrates a dual power automatic transfer switch mechanism that monitors incoming supply lines and automatically transfers to standby power during outages, preventing equipment shutdown.

The system is built around a robust XL-21 frame with high-capacity components and advanced switching technology. It combines motor-driven mechanical interlocks with solid-state control logic to achieve swift, safe transfer operations while protecting downstream circuits. The compact cabinet design optimizes space without sacrificing accessibility for maintenance.

Designed for floor-mounted installation in control rooms or industrial environments, this unit accommodates three-phase power networks at 380–415 V with a rated current of 630 A. It features an IP55 enclosure rating for dust and water ingress protection, making it suitable for harsh industrial conditions.

Typical applications include manufacturing plants, data centers, hospitals, and logistics facilities where uninterrupted power is critical. The dual power automatic transfer switch ensures reliable operation of motors, servers, medical devices, and automated equipment during power transitions.

Specifications

| Parameter | Details |
|-----------|--------|
| Switching Type | Dual Power Automatic Transfer |
| Rated Current | 630 A |
| Phase Configuration | 3 Phase |
| Frame Type | XL-21 |
| Voltage Rating | 380–415 V |
| Protection Rating | IP55 Standard |
| Frequency | 50/60 Hz |
