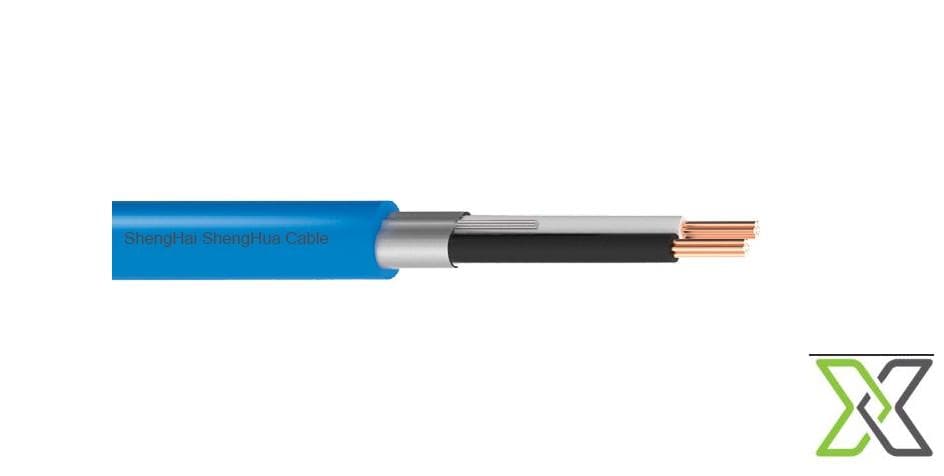

2X(St)Y cables are manufactured with copper conductors and XLPE insulation, incorporating a collective aluminium/polyester tape screen with a tinned copper drain wire. The cable is finished with a UV resistant PVC outer sheath.
The construction is designed for instrumentation and communication circuits and is produced in accordance with EN standards.
Specifications
Parameter
Details
Cable Type
2X(St)Y
Conductor
Copper
Conductor Size (0.5–0.75 mm²)
Class 5 flexible copper
Conductor Size (1 mm² and above)
Class 2 stranded copper
Insulation Material
XLPE (Cross-Linked Polyethylene)
Screening
Collective Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Sheath Material
PVC (UV Resistant)
Voltage Rating
300 / 500 V
Temperature Rating (Fixed)
-40°C to +80°C
Temperature Rating (Flexed)
0°C to +50°C
Minimum Bending Radius
6 × overall diameter
Standards
Standard Type
Details
Standards
EN 50288-7, EN 50288-1, EN 60228
Flame Retardant Standard
IEC/EN 60332-1-2, IEC/EN 60332-3-24
Additional Feature
UV Resistant
