Description
Description

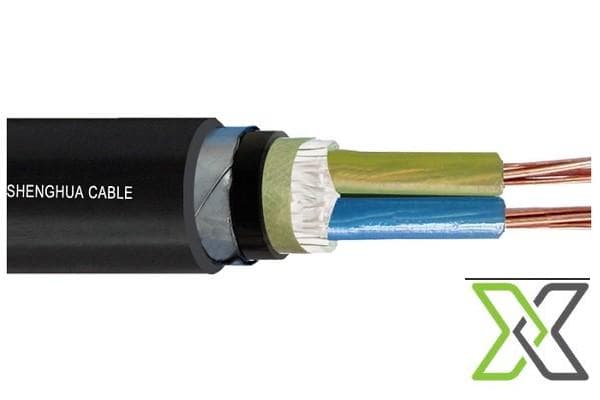

STA armoured cables are manufactured with compact stranded copper conductors and XLPE insulation, incorporating a stainless steel tape armour layer for mechanical protection. The construction includes a PVC inner covering and a PVC outer sheath in accordance with IEC standards.
The cable is designed for fixed installation and is produced to meet international and regional electrical standards.
Specifications
| Parameter | Details |
|---|---|
| Cable Type | STA Armoured Cable |
| Conductor | Compact stranded copper conductor, Class 2 |
| Conductor Standard | IEC 60228 |
| Insulation Material | XLPE (Cross-Linked Polyethylene), 90°C |
| Inner Covering | PVC |
| Armour | Stainless steel tape |
| Sheath Material | PVC Type ST2, Black |
| Sheath Standard | IEC 60502 |
| Voltage Rating | 0.6 / 1 kV |
| Maximum Conductor Temperature | 90°C (normal) / 130°C (emergency) / 250°C (short circuit ≤ 5 sec) |
| Minimum Ambient Temperature | 0°C (fixed installation) |
| Minimum Bending Radius | 12 × cable outer diameter |
Standards
| Standard Type | Details |
|---|---|
| International Standards | IEC 60502, IEC 60228, IEC 60332 |
| China Standards | GB/T 12706.1-2008 |
| Additional Standards | BS, DIN, ICEA (upon request) |
Certifications
| Certification | Details |
|---|---|
| Certifications | CE, RoHS, CCC, KEMA |
If you require any further information on this listing please contact info@reflowx.com
