Description

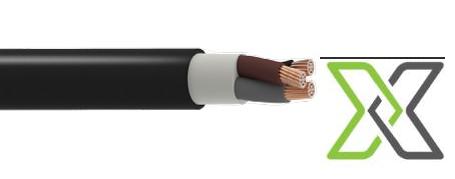

U-1000 R2V / XV / RV CE cables are designed for low voltage power distribution systems. The cable construction includes copper conductors with XLPE insulation, PVC bedding, and a PVC outer sheath.

The conductor configuration varies depending on size, with smaller cross-sections supplied as solid conductors and larger sizes as stranded conductors.

Specifications

– Cable Type: U-1000 R2V / XV / RV CE
– Conductor Size Range: 1.5 mm² to 4 mm² (Class 1 solid copper)
– Conductor Size (6 mm² and above): Class 2 stranded copper
– Insulation Material: XLPE (Cross-Linked Polyethylene)
– Bedding Material: PVC (Polyvinyl Chloride)
– Sheath Material: PVC (Polyvinyl Chloride)
– Voltage Rating: 0.6/1 kV
– Installation Temperature Range: -10°C to +50°C
– Operating Temperature (Fixed): -25°C to +90°C
– Minimum Bending Radius: 6 × overall diameter

Standards

– NF C 32-321
– IEC 60502-1
– NF C 32-070 C2
– Flame Retardant: IEC 60332-1-2
