ABB M2BA 355SMA 6 B3 Electric Motor – 200 kW, 6-Pole, 400/690V, IP55, 50/60 Hz
Description:

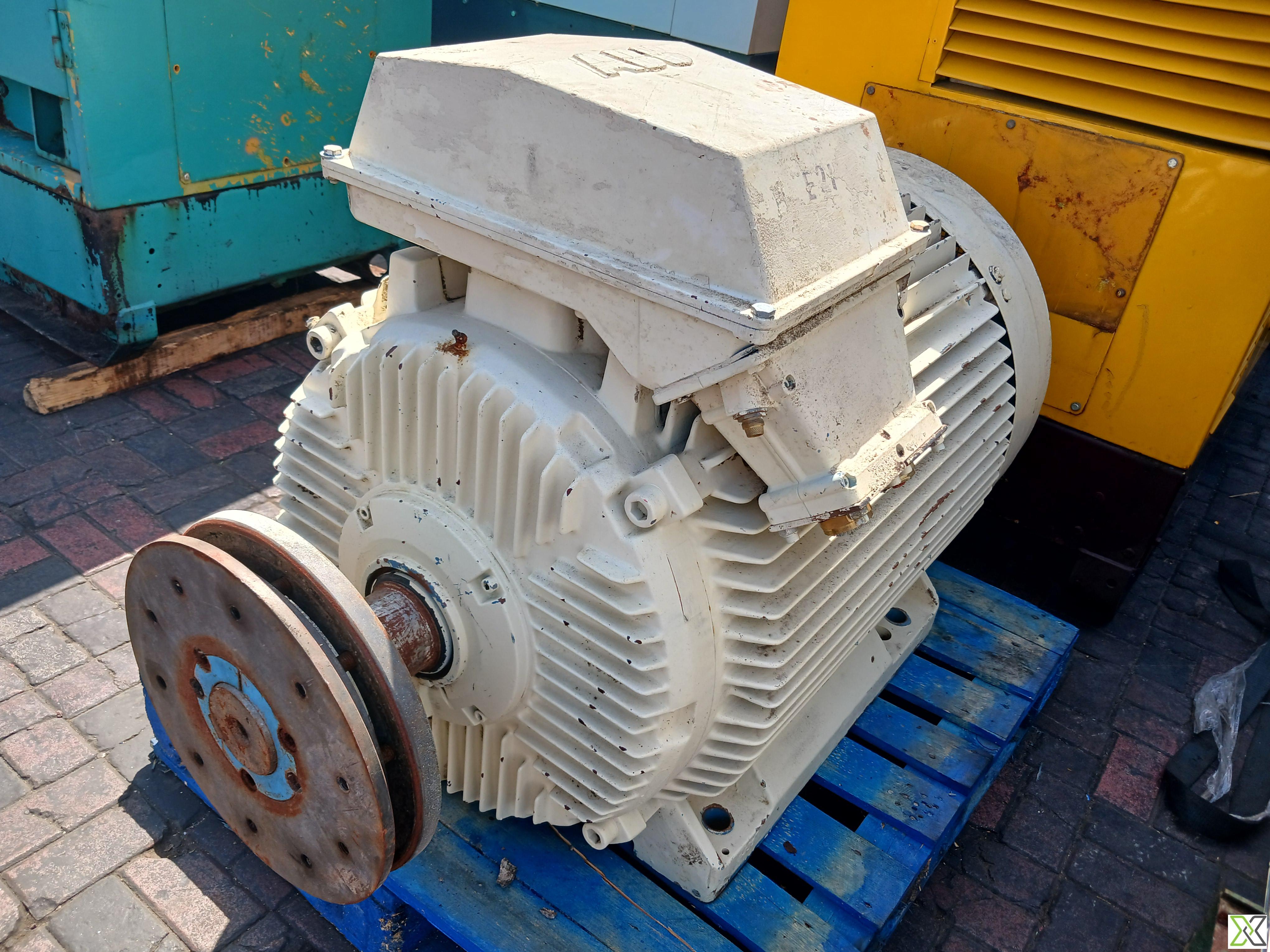

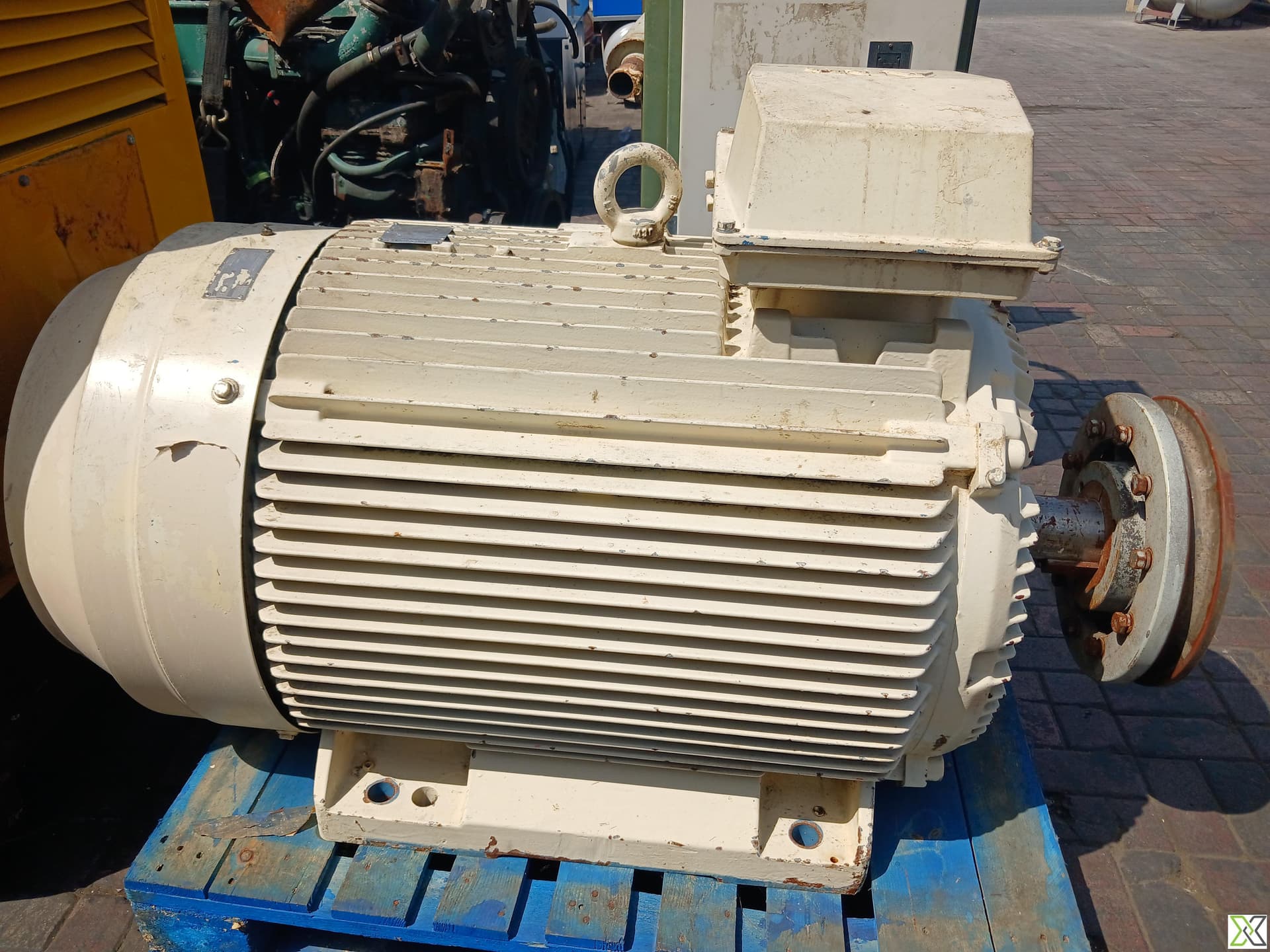

The ABB M2BA 355SMA 6 B3 is a robust and reliable 6-pole squirrel cage induction motor engineered for high-performance industrial applications. Designed and manufactured by ABB Motors, this model delivers a substantial 200 kW output and supports dual-frequency operation at 50 Hz and 60 Hz, making it suitable for global deployment. Operating at 400/690V (Δ/Y) at 50 Hz and 460V at 60 Hz, the motor achieves speeds between 981 to 993 RPM (50 Hz) and 1171 to 1181 RPM (60 Hz), with a power factor of 0.86. Housed in an IP55-rated enclosure and equipped with F-class insulation, the motor is protected against dust and water ingress. Precision-fitted bearings—6222/C3 on the drive end and 6319/C3 on the non-drive end—ensure operational durability. With a rugged B3 foot mounting and a total weight of 1800 kg, this motor is ideal for long-term service in harsh industrial environments.

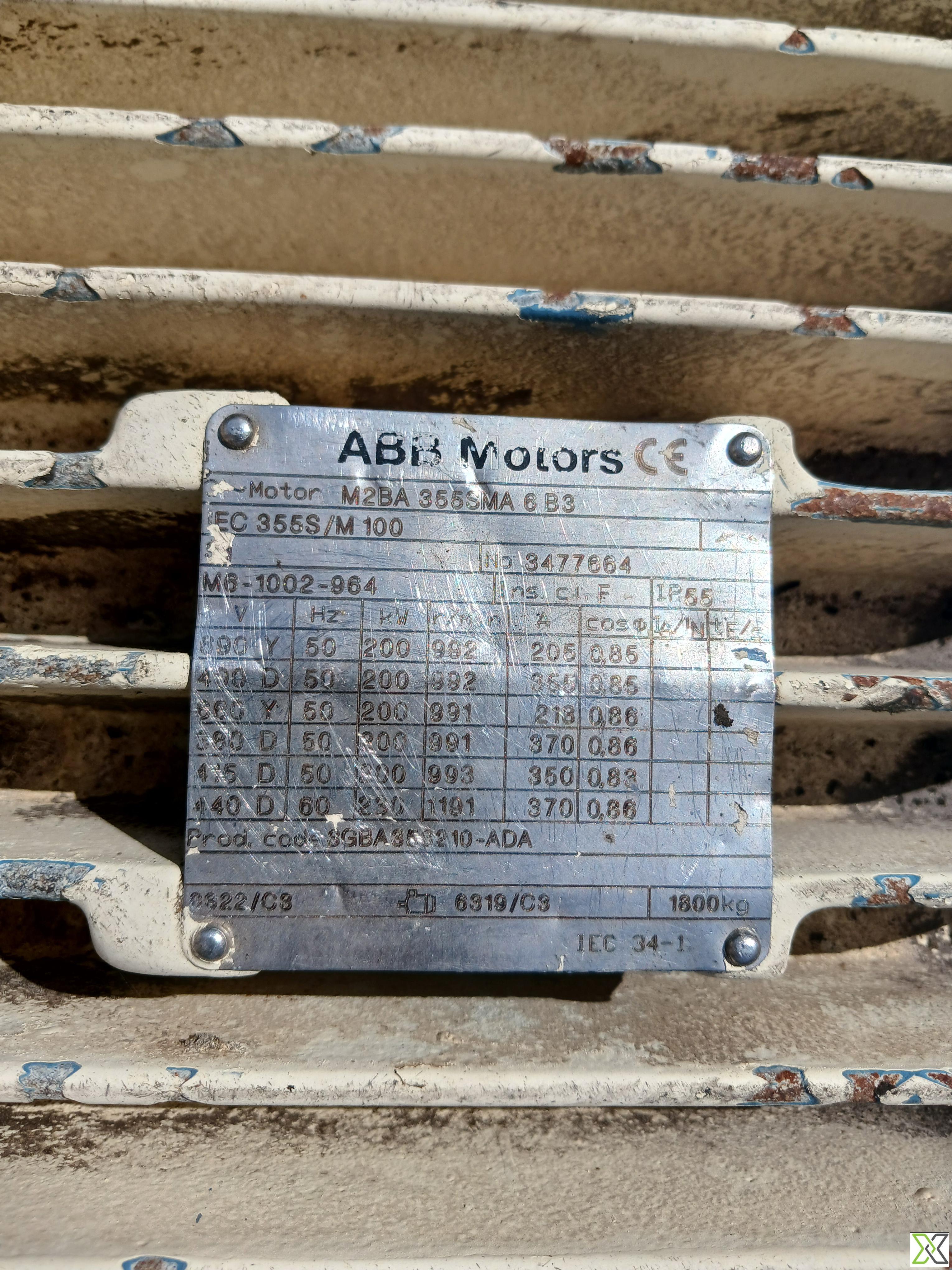

Specifications:

– Manufacturer: ABB Motors
– Model: M2BA 355SMA 6 B3
– Type Code: EC 355S/M 100
– Product Code: 3GBA355SMA10-ADA
– Power Output: 200 kW
– Voltage (Δ/Y): 400/690 V @ 50 Hz, 460 V @ 60 Hz
– Frequency: 50 / 60 Hz
– Current Draw: 370 A @ 400V (Δ), 213 A @ 690V (Y)
– Speed (RPM): 981 / 991 / 993 @ 50 Hz, 1171 / 1181 @ 60 Hz
– Power Factor (Cos φ): 0.86
– Mounting Type: B3 (Foot Mounted)
– Protection Class: IP55
– Insulation Class: F
– Bearing (Drive End): 6222/C3
– Bearing (Non-Drive End): 6319/C3
– Motor Weight: 1800 kg
– Serial Number: 3477664

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
