ABB QU 400 L8 EK Electric Motor – 355 kW, 745 RPM, IP51

ReflowX SKU: REF-5680

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ABB Motors
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Heavy-duty ABB 355 kW low-speed electric motor with IP51 protection and dual voltage configuration, built to IEC 34-1 standards for demanding industrial applications.

Description

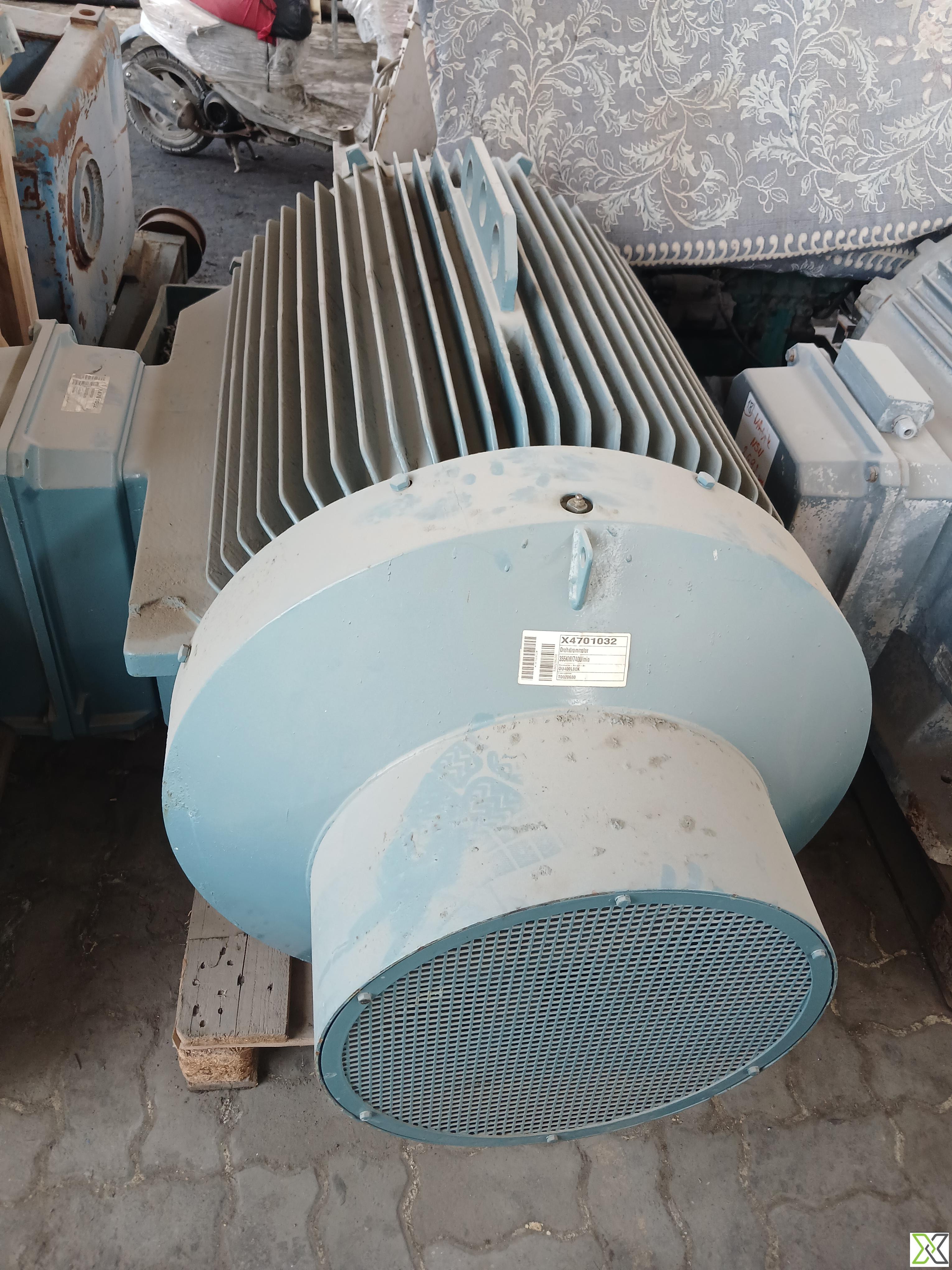

ABB QU 400 L8 EK Electric Motor – 355 kW, 745 RPM, IP51

The ABB QU 400 L8 EK Electric Motor is a powerful low-speed three-phase induction motor designed for heavy-duty industrial applications requiring high torque and thermal resilience. With a rated output of 355 kW at 745 RPM and operating frequency of 50 Hz, it supports voltage configurations of 380V/660V or 720V/416V, making it adaptable to varied electrical systems. This motor features a power factor of 0.78, insulation class F for high thermal endurance, and complies with IEC 34-1 standards. The protection rating of IP51 ensures resistance to limited dust ingress and vertically dripping water, making it suitable for semi-sheltered installations. Weighing approximately 2,700 kg, this motor offers a rugged, reliable solution for large mechanical drives in industries such as mining, cement, or heavy processing.

Specifications:

– Manufacturer: ABB Motors
– Model / Type: QU 400 L8 EK
– Model/Order No.: 4725612 Z01
– Rated Power: 355 kW
– Rated Frequency: 50 Hz
– Speed: 745 RPM
– Voltage Options:
– 380V / 660V
– 720V / 416V
– Power Factor (Cos φ): 0.78
– Protection Class: IP51
– Insulation Class: F
– Standard Compliance: IEC 34-1
– Estimated Weight: 2,700 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	QU 400 L8 EK
Model Number	QU 400 L8 EK
Weight	2,700 kg
Voltage	380V / 660V
CFIHOS ID	CFIHOS-30000340
Color	Blue
ISO 15926 Pt 4	2752
PCA RDS Code	RDS415124
CFIHOS ID	CFIHOS-30000340
Speed	745 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricMotor
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T3 (Maximum surface temperature ≤ 200°C)
Explosion Protection Zone	Zone 1
Normal Output Power	Up to 15 kW
UNSPSC Code	26101600
