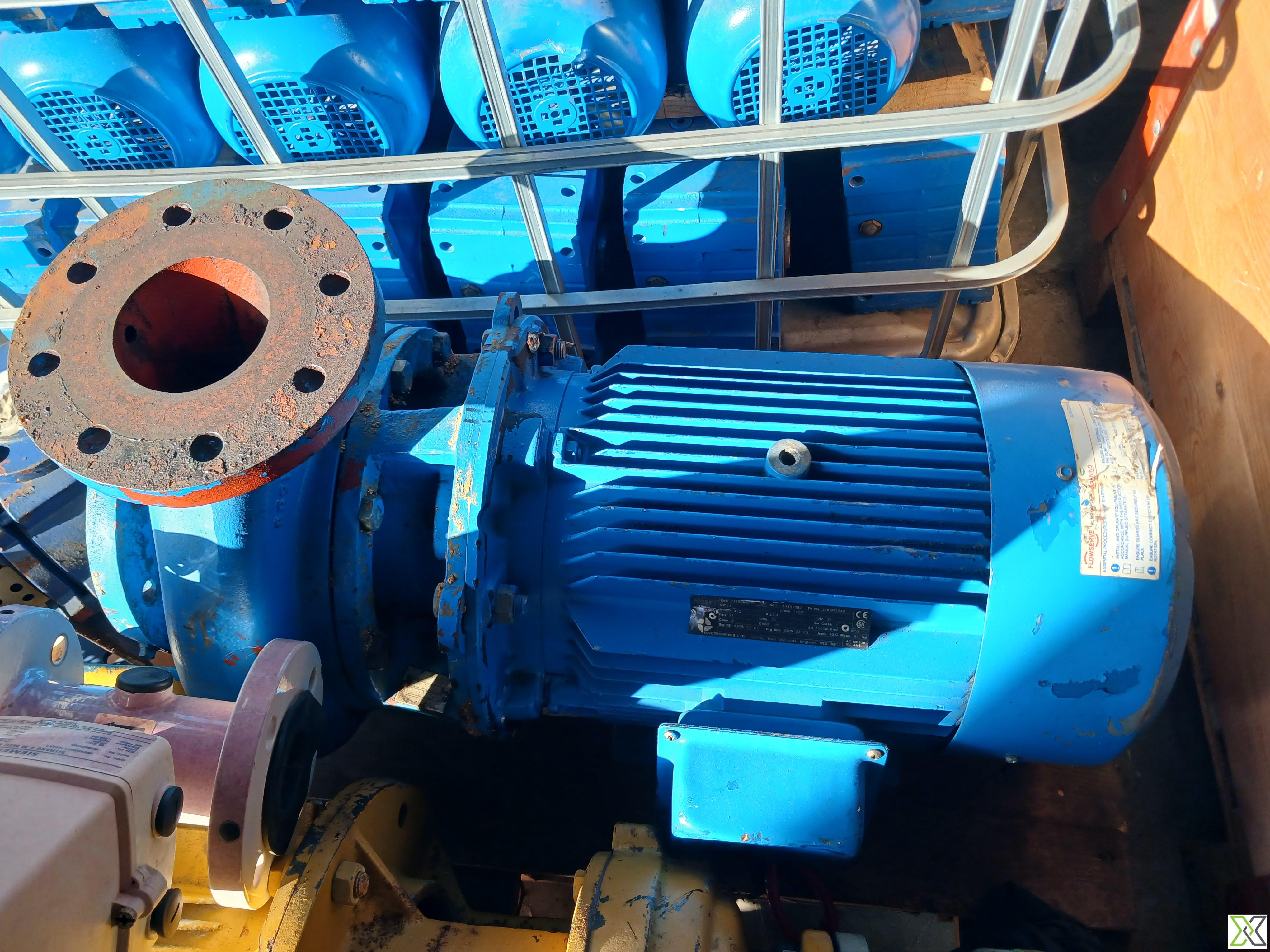

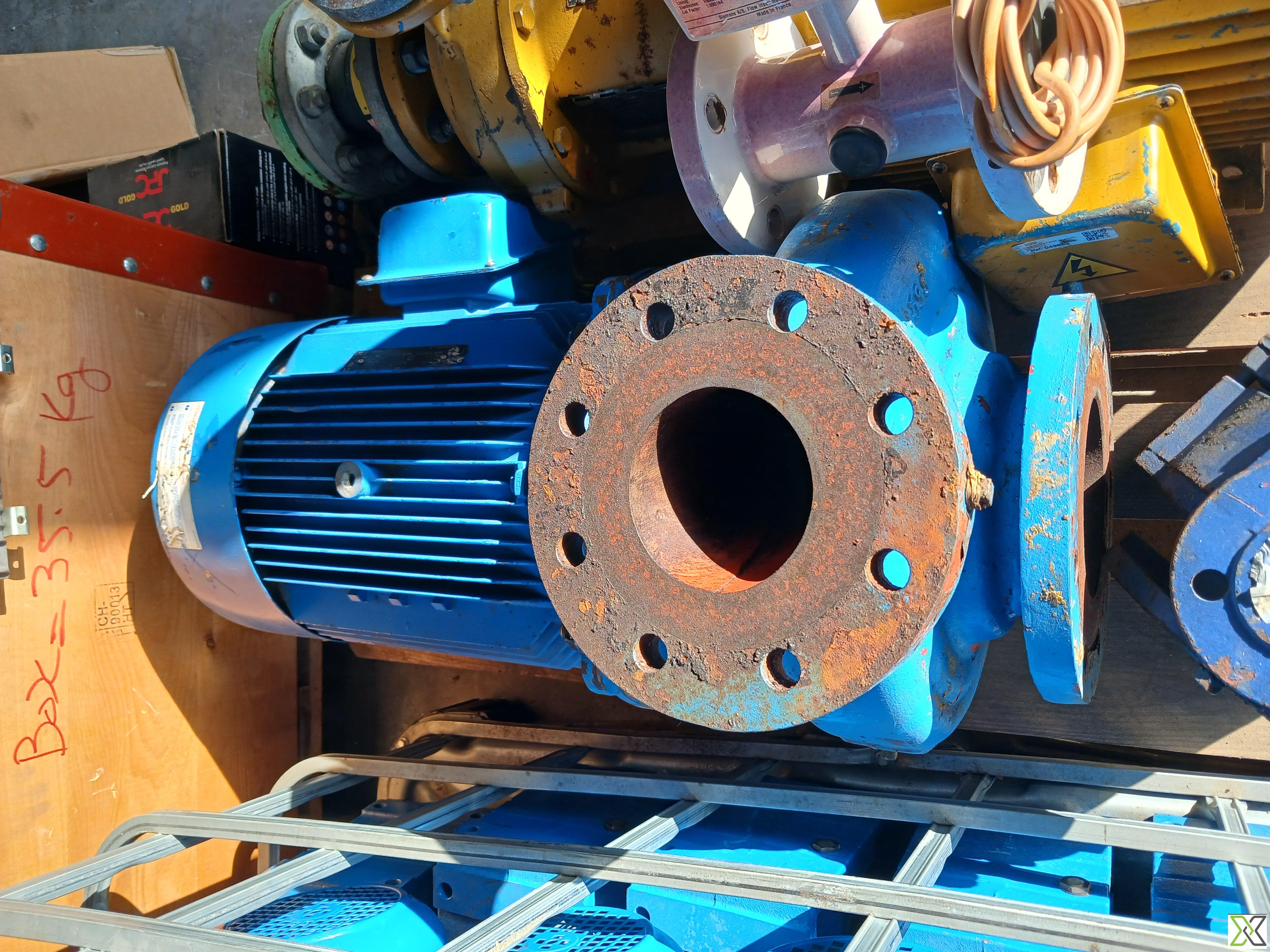

Electrodrives Alpak II 11 kW 3-Phase Induction Motor – Model DA160MA-H

The Alpak II motor by Electrodrives Ltd, manufactured in Worley, West Midlands, England, is a reliable 11 kW-rated 3-phase induction motor designed for continuous industrial service under IEC 34-1 standards. With a rated speed of 1450 RPM, it delivers consistent torque performance across a voltage range of 380–415 V and draws 22.4 A at 50 Hz operation.

Housed in a DA160MA-H frame, the motor features an IP55 enclosure with Totally Enclosed Fan Cooled (TEFC) design, ensuring dust and water jet protection suitable for tough environments. Its Class F insulation and S1 continuous duty rating provide dependable thermal and operational endurance up to 40°C ambient temperature and 1000 meters altitude.

The electrical connection is Delta (Δ), with a power factor (Cos φ) of 0.81. The motor utilizes deep groove ball bearings, specifically 6309.2Z C3 on the drive end (DE) and 6209.2Z C3 on the non-drive end (NDE), both rated for high reliability under vibration and thermal variation. At a weight of 84 kg, this motor is a durable and serviceable option for a wide range of fixed-speed or VFD-controlled machinery.

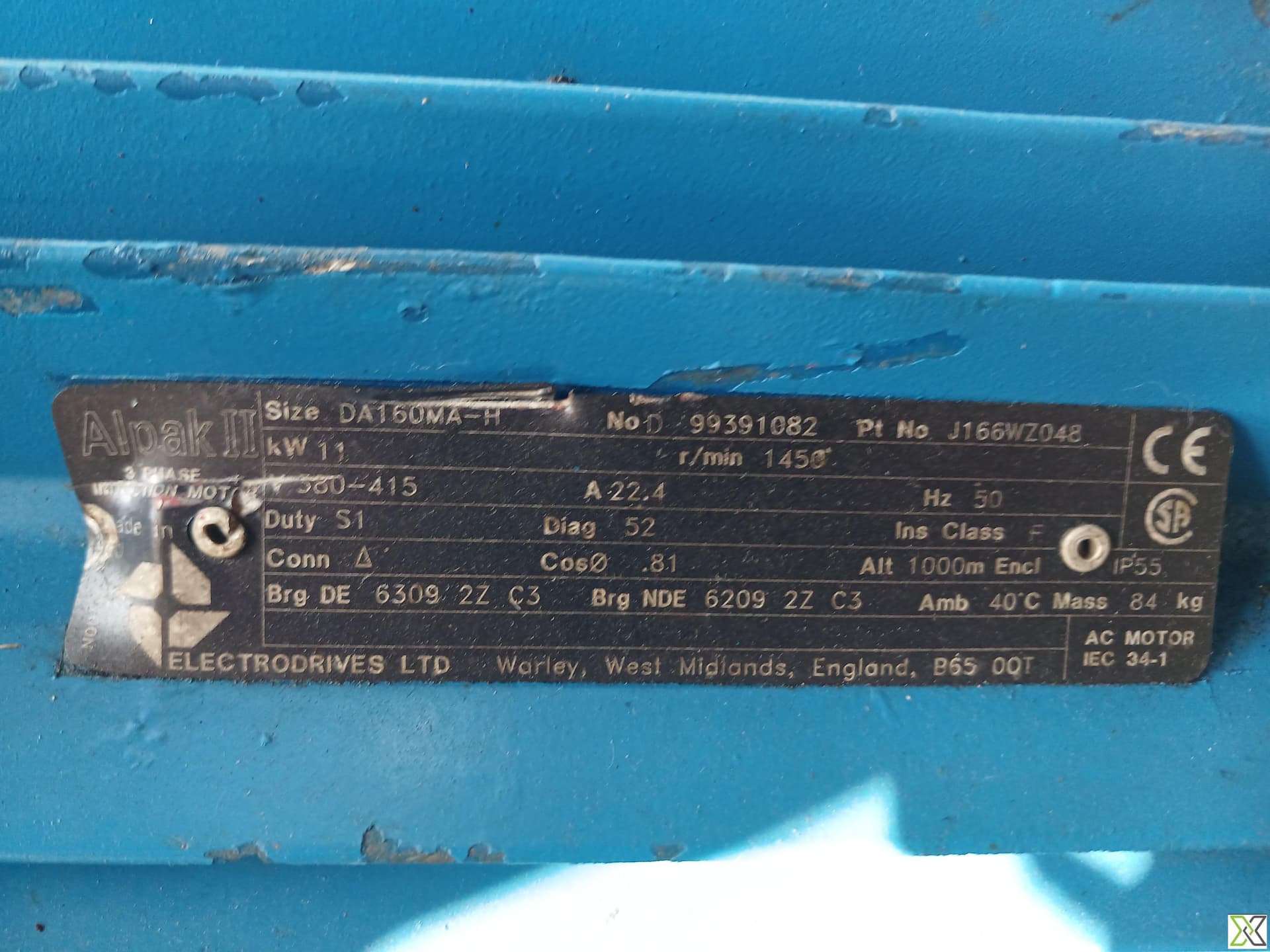

Specifications:

– Brand / Model: Alpak II
– Manufacturer: Electrodrives Ltd
– Manufacturing Location: Worley, West Midlands, England, B65 0QT
– Motor Type: 3-Phase Induction Motor
– Standard Compliance: IEC 34-1
– Serial Number: 99391082
– Part Number: J166WZ048
– Rated Power Output: 11 kW
– Voltage Range: 380–415 V
– Rated Current: 22.4 A
– Frequency: 50 Hz
– Rated Speed: 1450 RPM
– Power Factor (Cos φ): 0.81
– Connection Type: Delta (Δ)
– Frame Size: DA160MA-H
– Enclosure Type: IP55 (TEFC – Totally Enclosed Fan Cooled)
– Insulation Class: F
– Duty Cycle: S1 (Continuous)
– Ambient Temperature Limit: 40°C
– Altitude Rating: Up to 1000 m above sea level
– Mass / Weight: 84 kg
– Mounting Configuration: Not explicitly stated (based on DA160MA-H frame)
– Wiring Diagram Reference: Diagram 52
– Drive End Bearing (DE): 6309.2Z C3
– Non-Drive End Bearing (NDE): 6209.2Z C3
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
