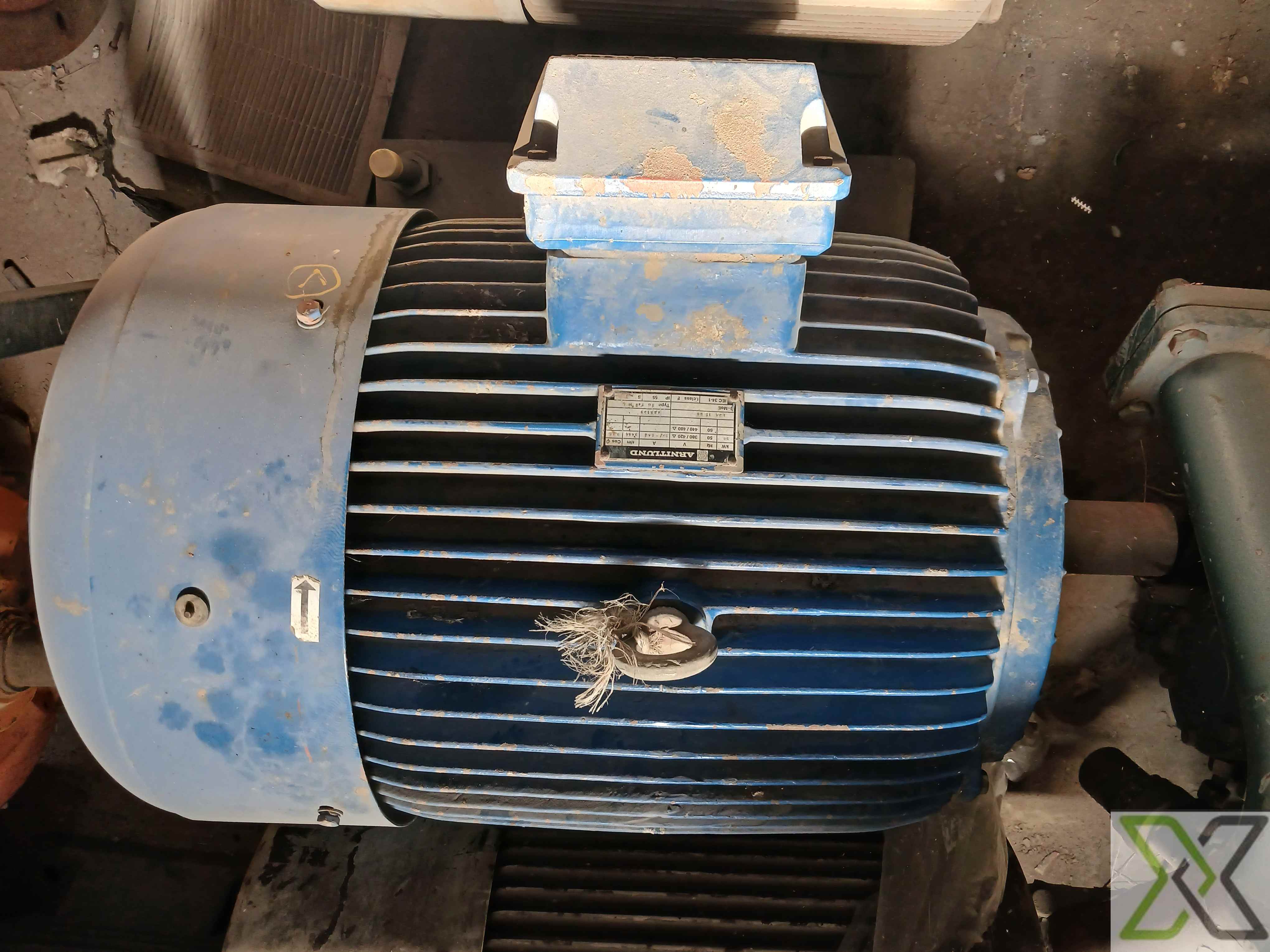

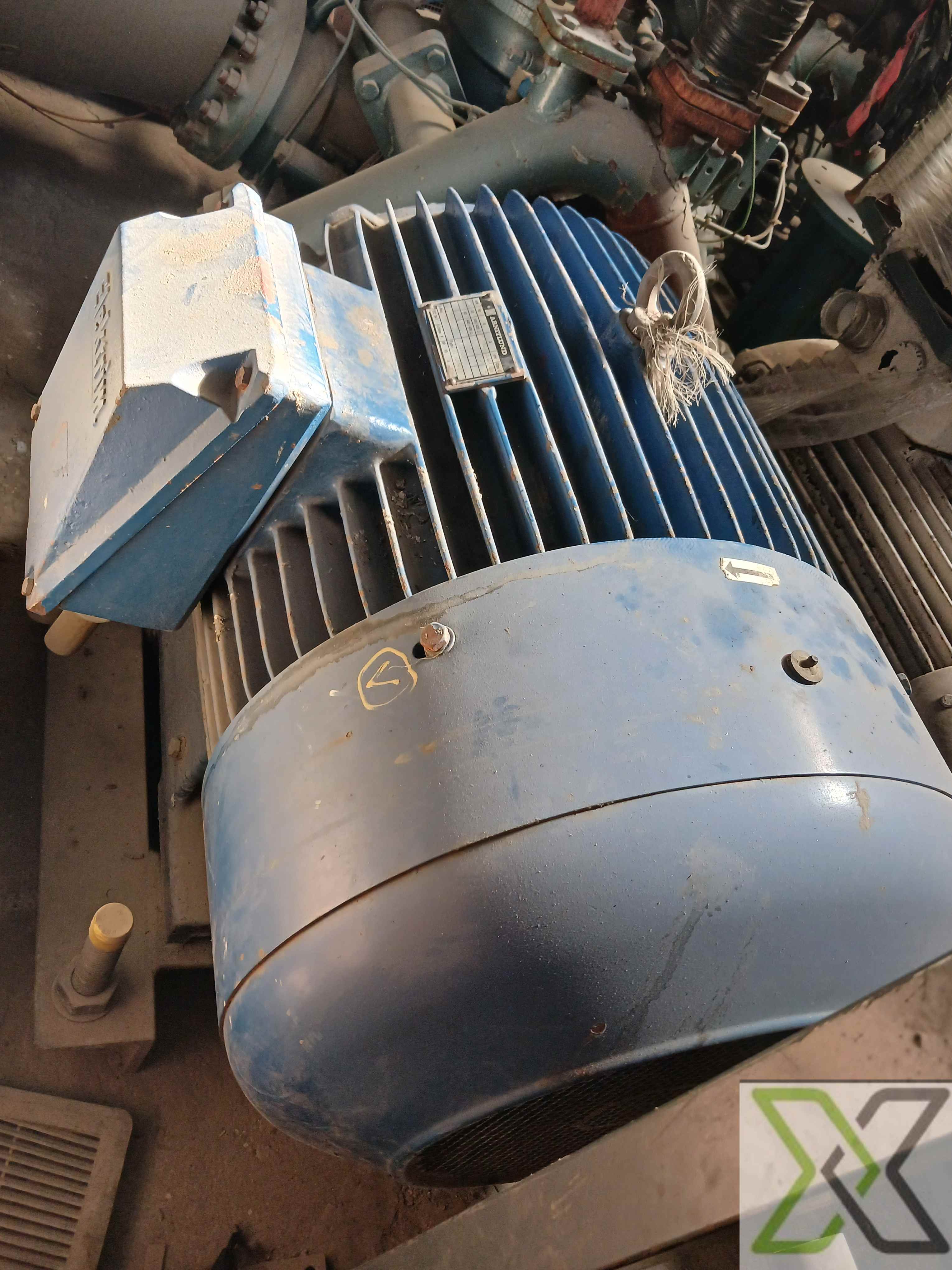

IEC 34-1 Standard Industrial Motor

High-Efficiency Three-Phase Motor for Heavy-Duty Applications

GENERAL INFORMATION

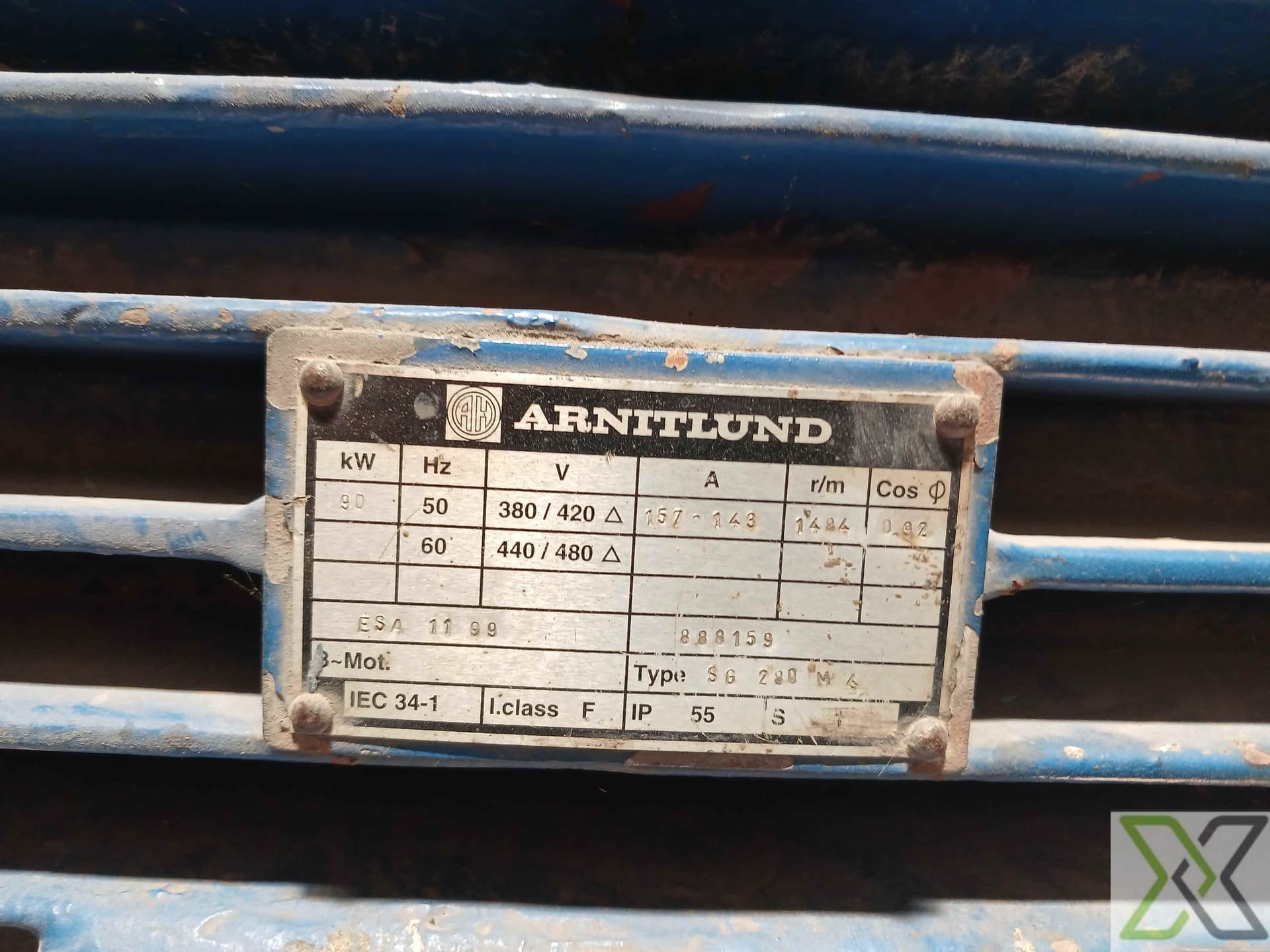

Standard Compliance: IEC 34-1

Insulation Class: F

Application: Industrial Machinery, Manufacturing, Power Transmission

TECHNICAL SPECIFICATIONS

Power Rating: (Not fully readable, can be determined via further analysis)

Voltage: 380V / 420V, 440V / 480V (Different Configurations)

Frequency: 50Hz

Phase: Three-Phase

Efficiency Class: Likely IE3 or higher (Industry Standard)

Cooling System: TEFC (Totally Enclosed Fan Cooled)

Duty Cycle: S1 (Continuous Duty)

MECHANICAL FEATURES

Frame Material: Cast Iron or Aluminum (Depending on Configuration)

Mounting Type: Horizontal / Foot-Mounted (B3) or Optional Configurations

Protection Class: IP55 (Dust Protected, Water Jet Resistant)

Bearings: High-Durability Roller Bearings

OPERATIONAL CONDITIONS

Operating Temperature Range: -20°C to +55°C

Altitude Rating: ≤1000 m above sea level

Lubrication: Long-Life Grease for Low Maintenance

CERTIFICATIONS & COMPLIANCE

CE Certified: Yes

ISO 9001 Compliance: Yes

IEC 60034-1 Standard Compliance: Yes

DIMENSIONS & WEIGHT

Weight: (Varies based on configuration)

Shaft Diameter: As per IEC Standard Frame Sizes

Mounting Hole Spacing: IEC-Compliant

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
