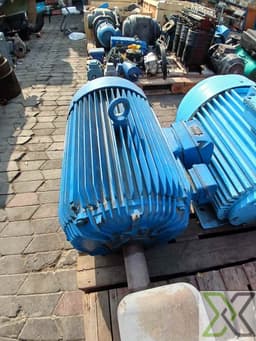

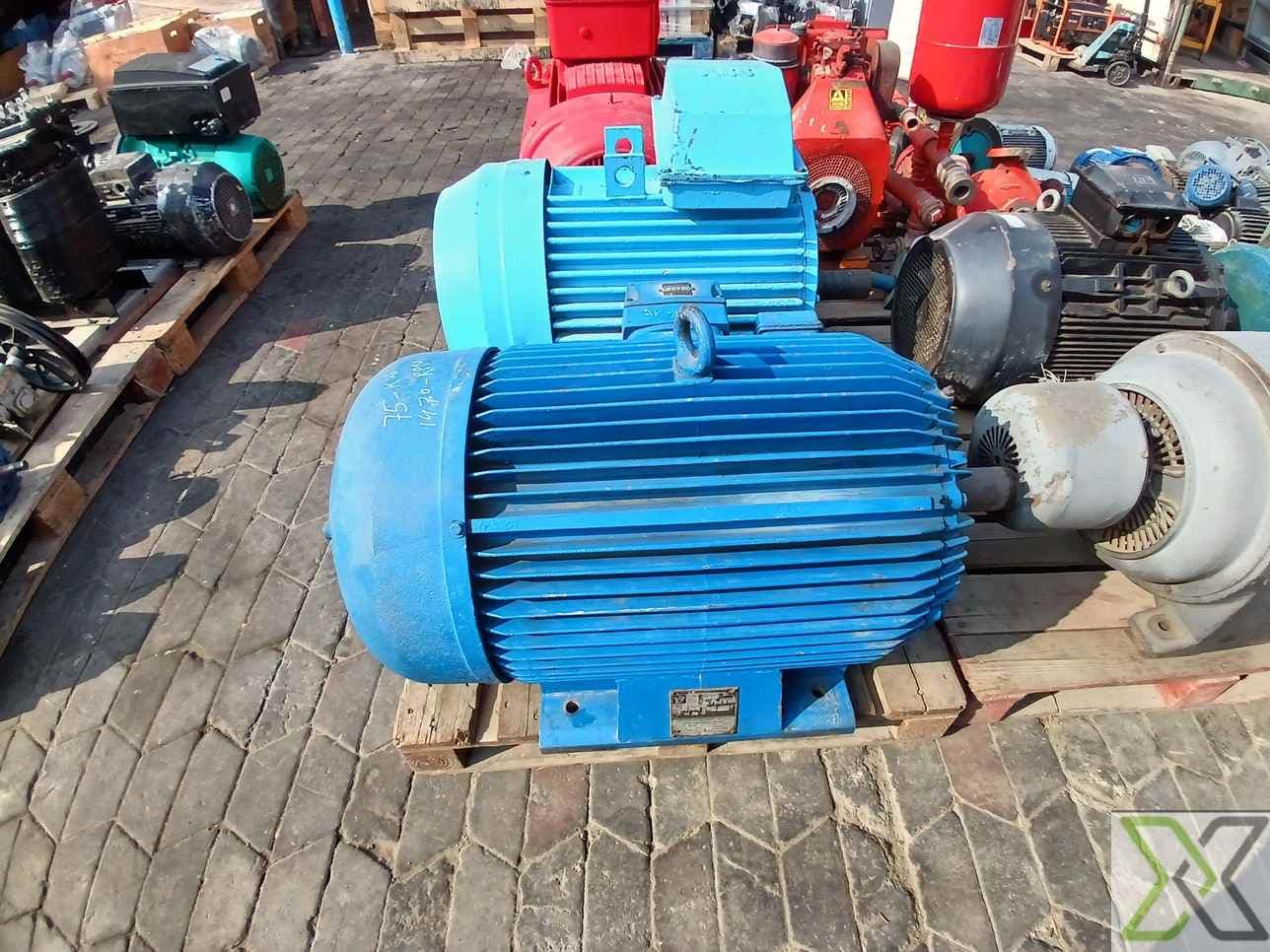

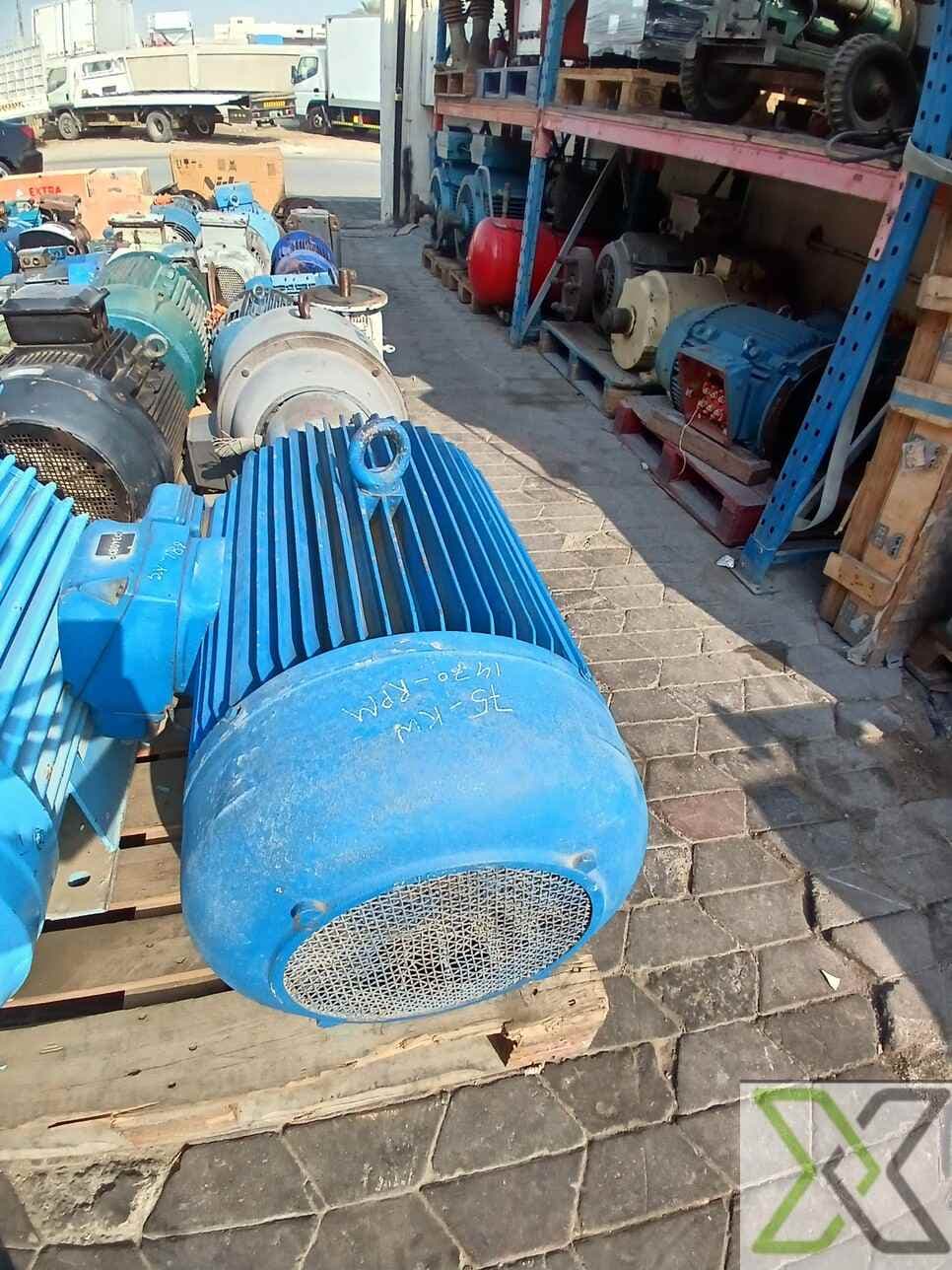

- Asynchronous ACEC Charleroi Industrial Motor
Description
ACEC Charleroi Industrial Motor – Technical Data Sheet

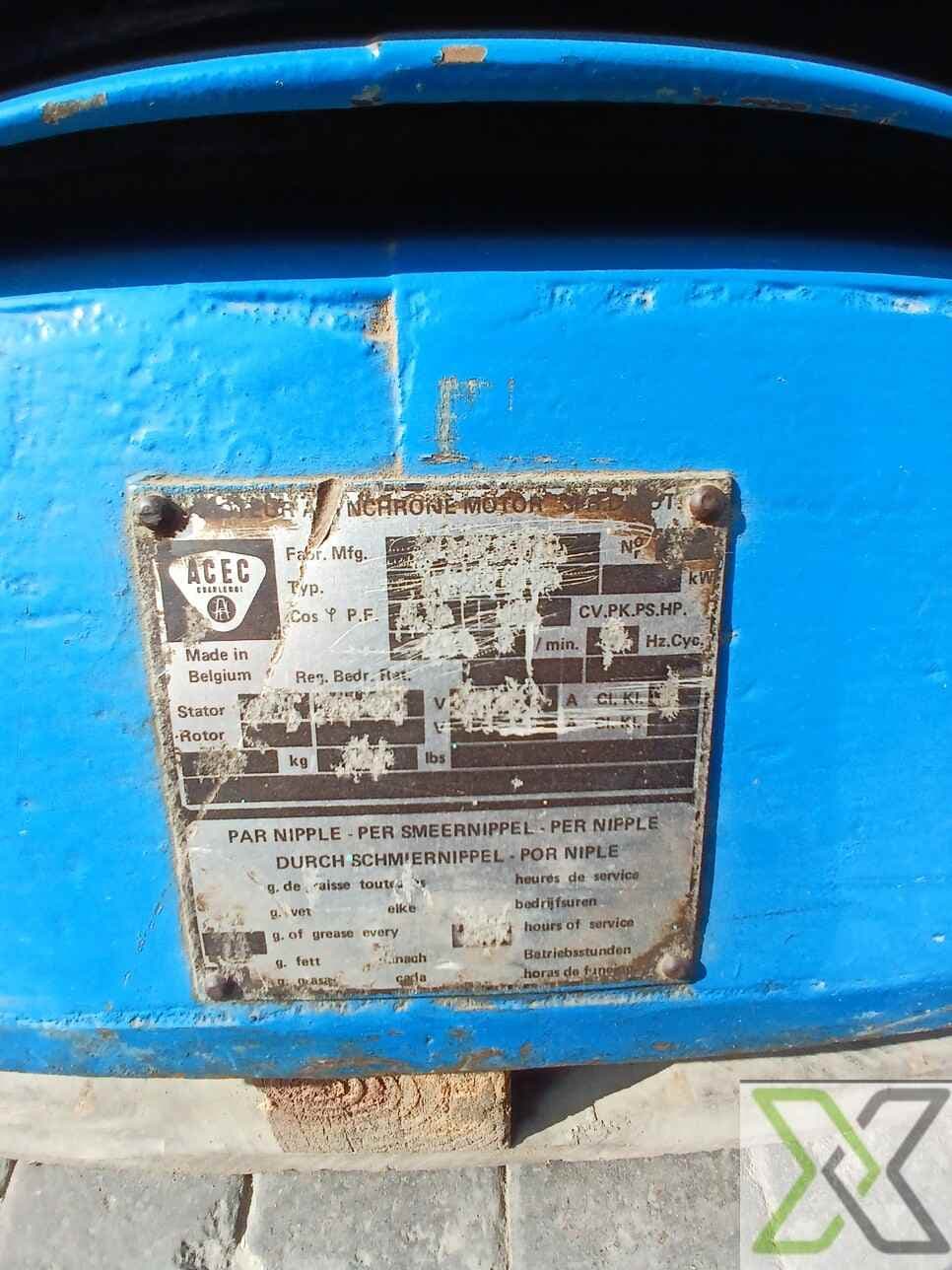

Manufacturer Details
- Brand: ACEC Charleroi
- Country of Origin: Belgium
- Motor Type: Asynchronous (Induction) Motor
- Application: Heavy-duty industrial use
Electrical Specifications
- Power Output: 75 – 100 kW (Estimated)
- Voltage: 400V / 690V (Three-phase)
- Frequency: 50 Hz
- Speed (RPM): ~1480 RPM (4-pole motor)
- Starting Method: Direct-On-Line (DOL) / Star-Delta
- Efficiency Class: Likely IE2 or IE3 for energy efficiency
Mechanical & Protection Features
- Cooling Type: IC411 (Totally Enclosed Fan Cooled – TEFC)
- Insulation Class: F (Max winding temperature: 155°C)
- Ingress Protection (IP Rating): IP55 (Protection against dust & water jets)
- Mounting Type: IM B3 / IM B35 (Foot-mounted / Flange-mounted)
- Weight: Approx. 900 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| 900 kg | |
| Voltage | 400V / 690V |
| CFIHOS ID | CFIHOS-30000340 |
| Color | Blue |
| ISO 15926 Pt 4 | 2752 |
| PCA RDS Code | 2752 |
| CFIHOS ID | CFIHOS-30000340 |
| Speed | ~1480 RPM |
| Direction of Rotation | Clockwise |
| IFC Class | IfcElectricMotor |
| Normal Output Power | 75 – 100 kW |
| UNSPSC Code | 26101600 |
