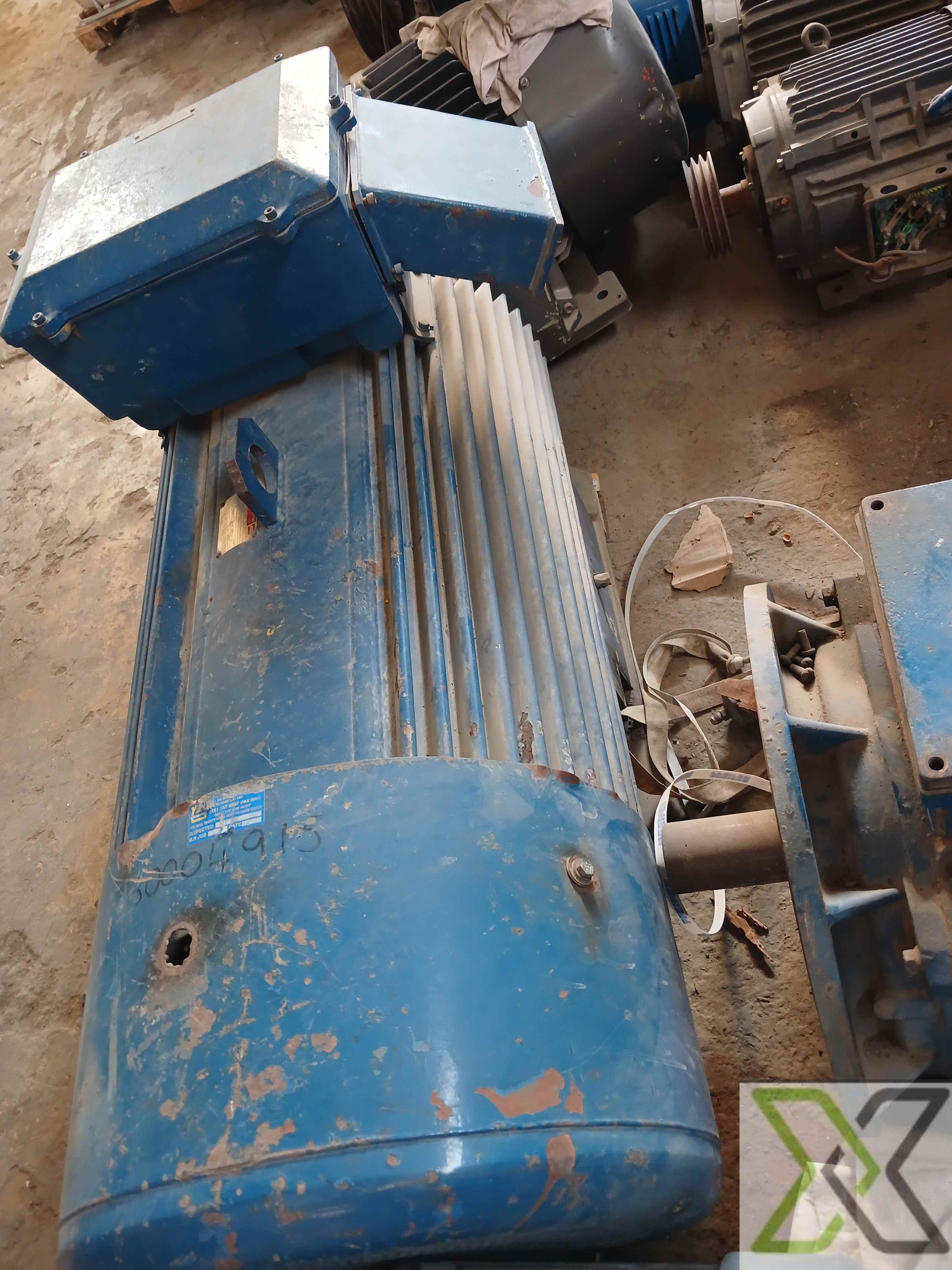

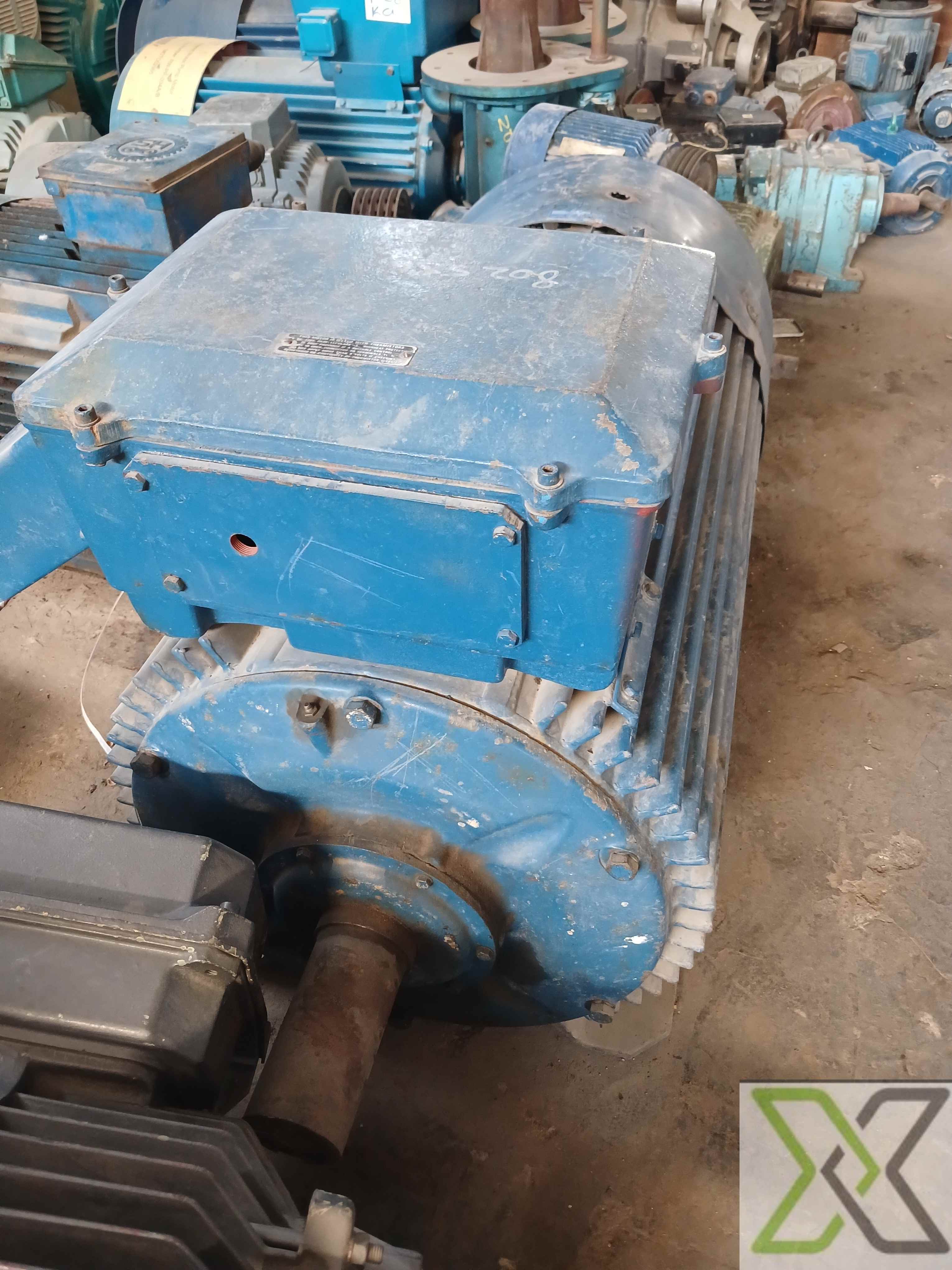

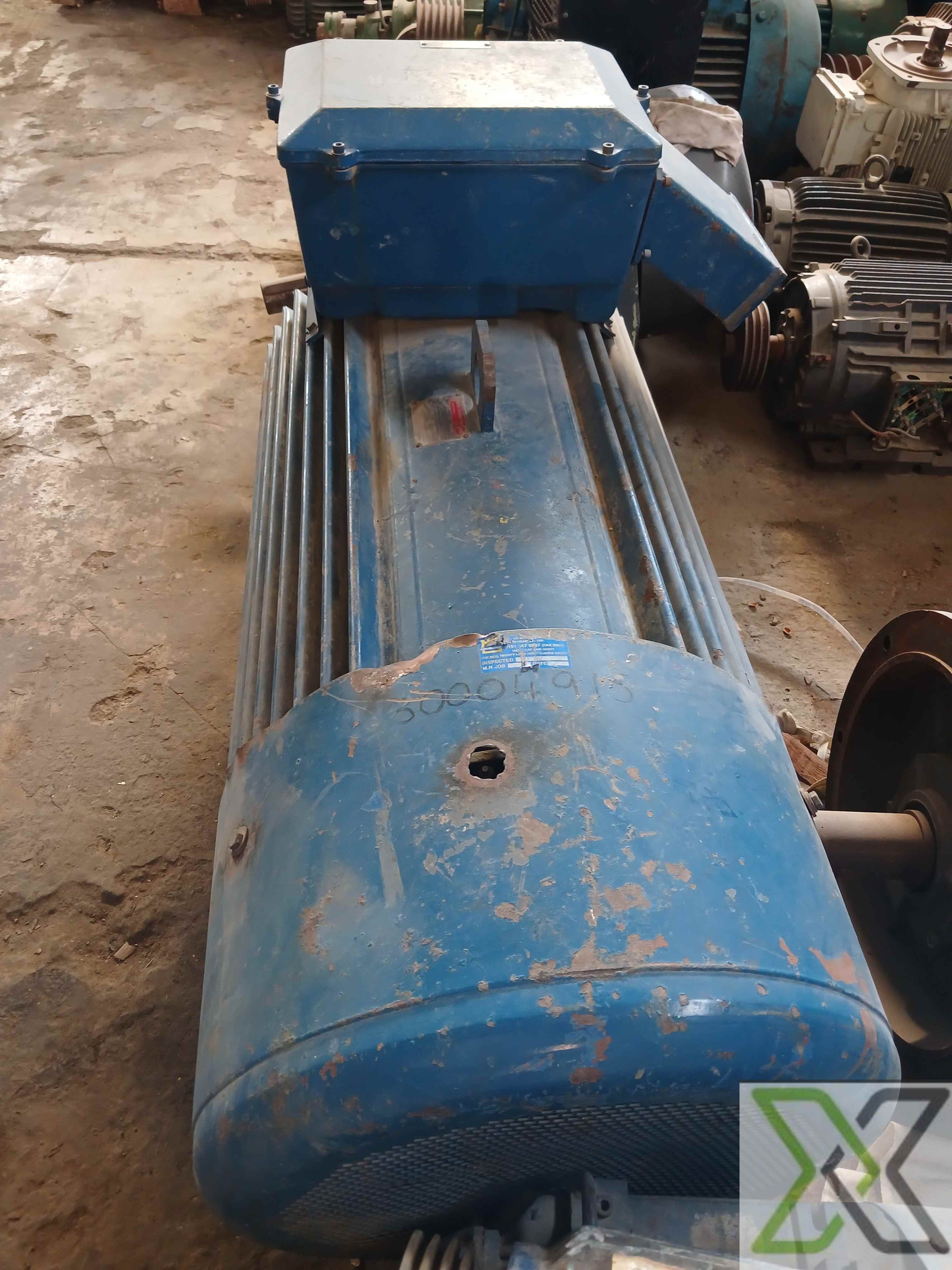

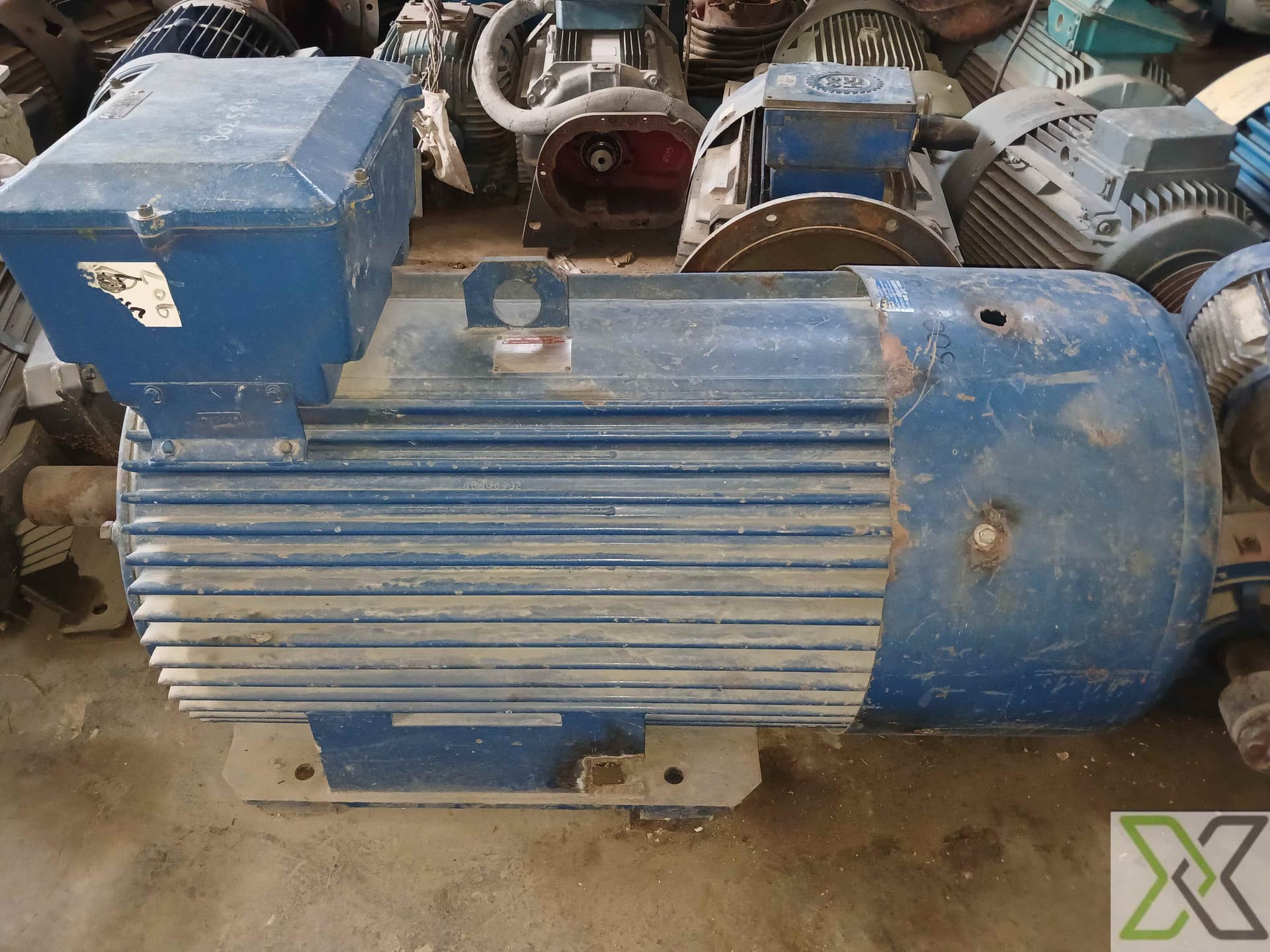

Brook Crompton Electric Motor – MCR Duty Type - 1994

The Brook Crompton Electric Motor, manufactured in 1994 in Guiseley, England, is a high-power industrial motor designed for MCR duty applications. Delivering a rated power output of 110 kW at 1495 RPM, this motor operates at 415V and 50 Hz, with a substantial current draw of 193 A.

The motor is built with Class B insulation, providing a temperature rise tolerance of 80°C, suitable for continuous operation in demanding environments. While the cooling method is not explicitly mentioned, it is assumed to be TEFC (Totally Enclosed Fan-Cooled)—standard for motors of this size and era.

Bearings include a 6319-C3 at the drive end and 6314-C3 at the non-drive end, ensuring mechanical stability and extended service life. The frame size is 7-AD, and the mounting type is likely foot-mounted, though this detail is unconfirmed. The ingress protection rating is assumed to be IP55, in line with typical industrial motor standards of that time.

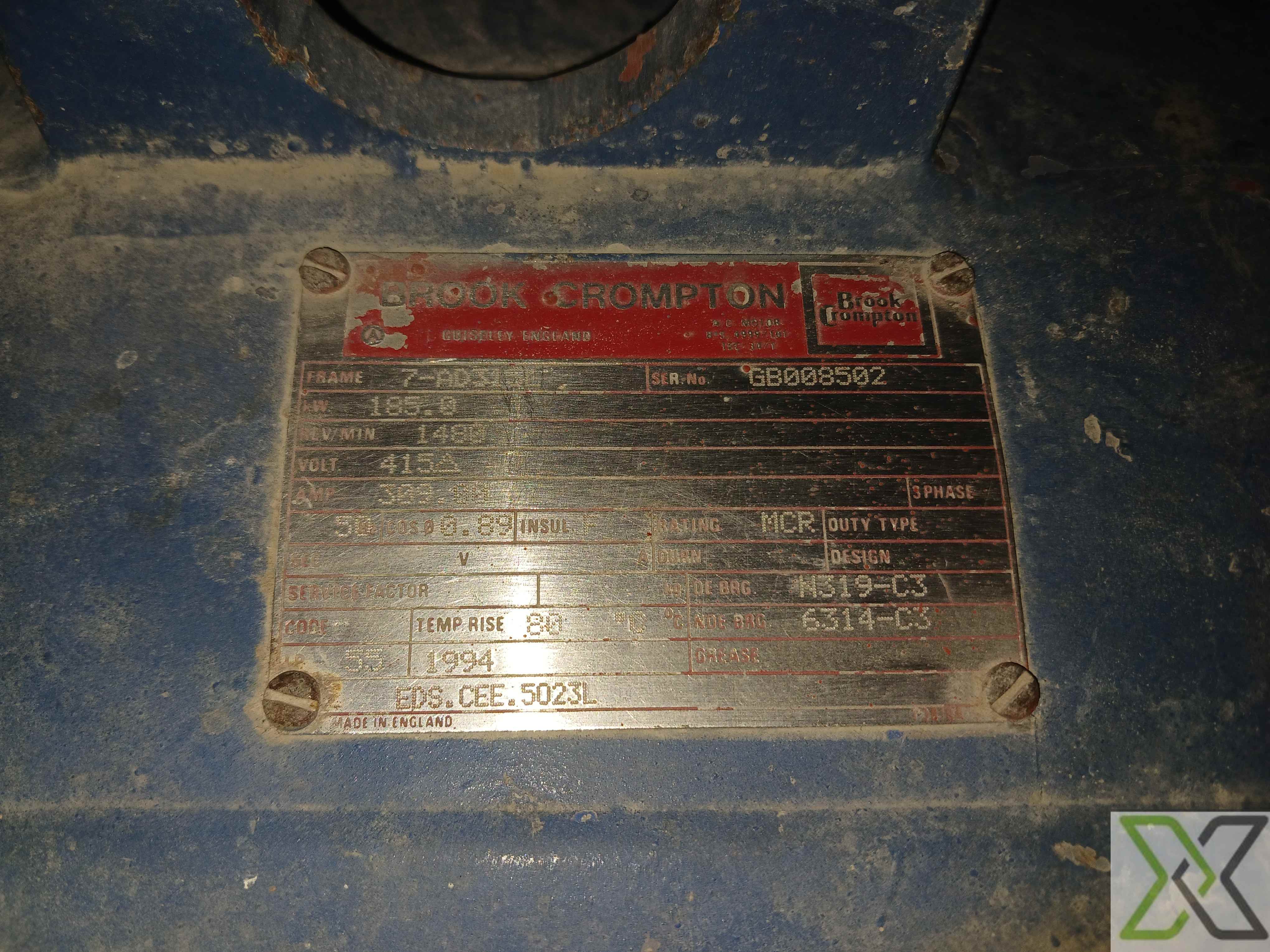

Specifications:

– Brand: Brook Crompton
– Manufactured In: Guiseley, England
– Model/Serial Number: GB008502
– Frame Size: 7-AD
– Year of Manufacture: 1994
– Design Type: MCR Duty Type
– Power Output: 110 kW
– Speed: 1495 RPM
– Voltage: 415V
– Current Rating: 193 A
– Frequency: 50 Hz
– Insulation Class: B
– Temperature Rise: 80°C
– Bearing – Drive End (DE): 6319-C3
– Bearing – Non-Drive End (NDE): 6314-C3
– Mounting Type: Likely Foot-Mounted
– Cooling Method: Assumed TEFC
– Ingress Protection: Assumed IP55
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
