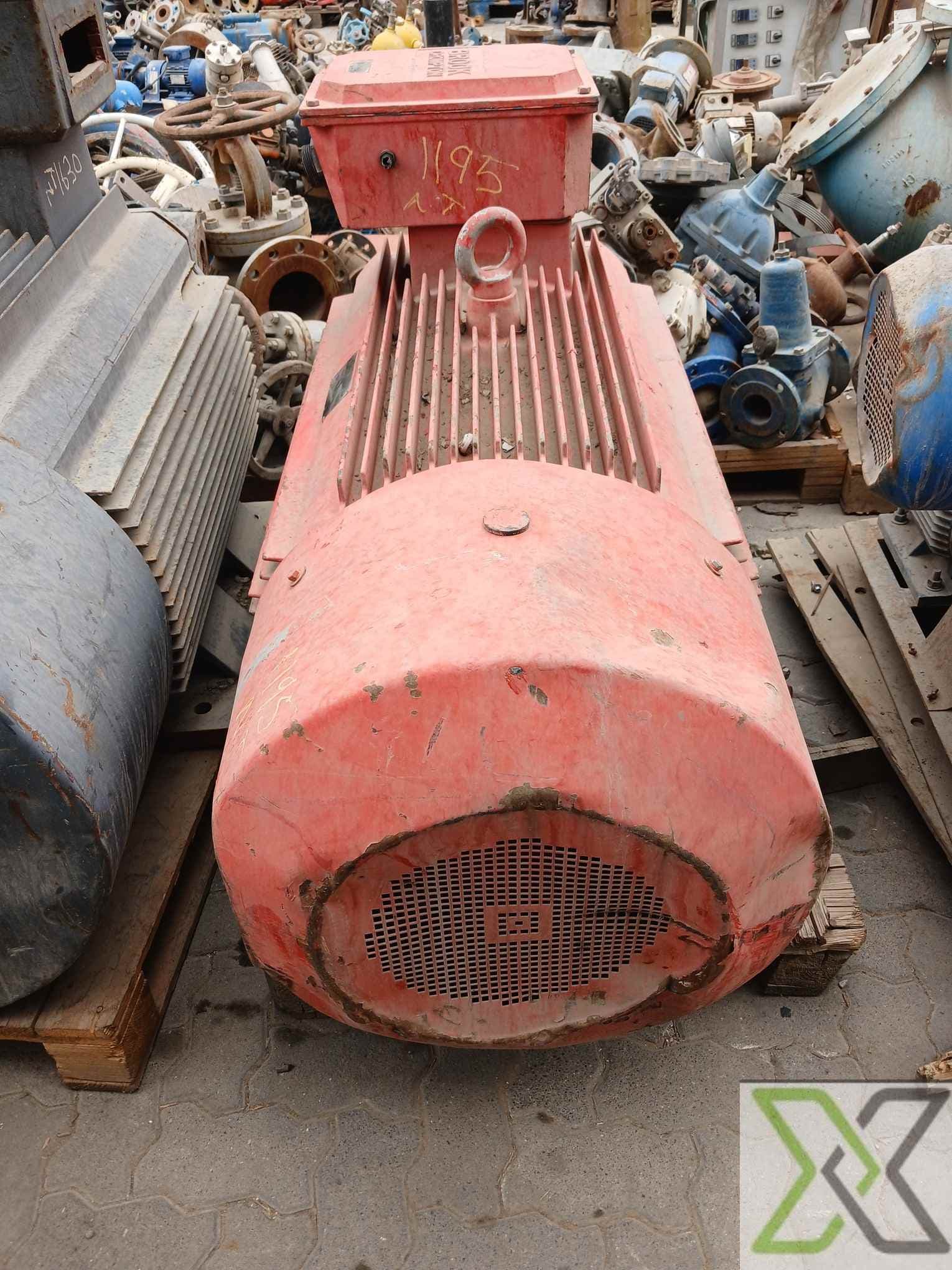

Brook Crompton PU-DP315LB 2 3-Phase AC Motor | 200-230 kW

Description

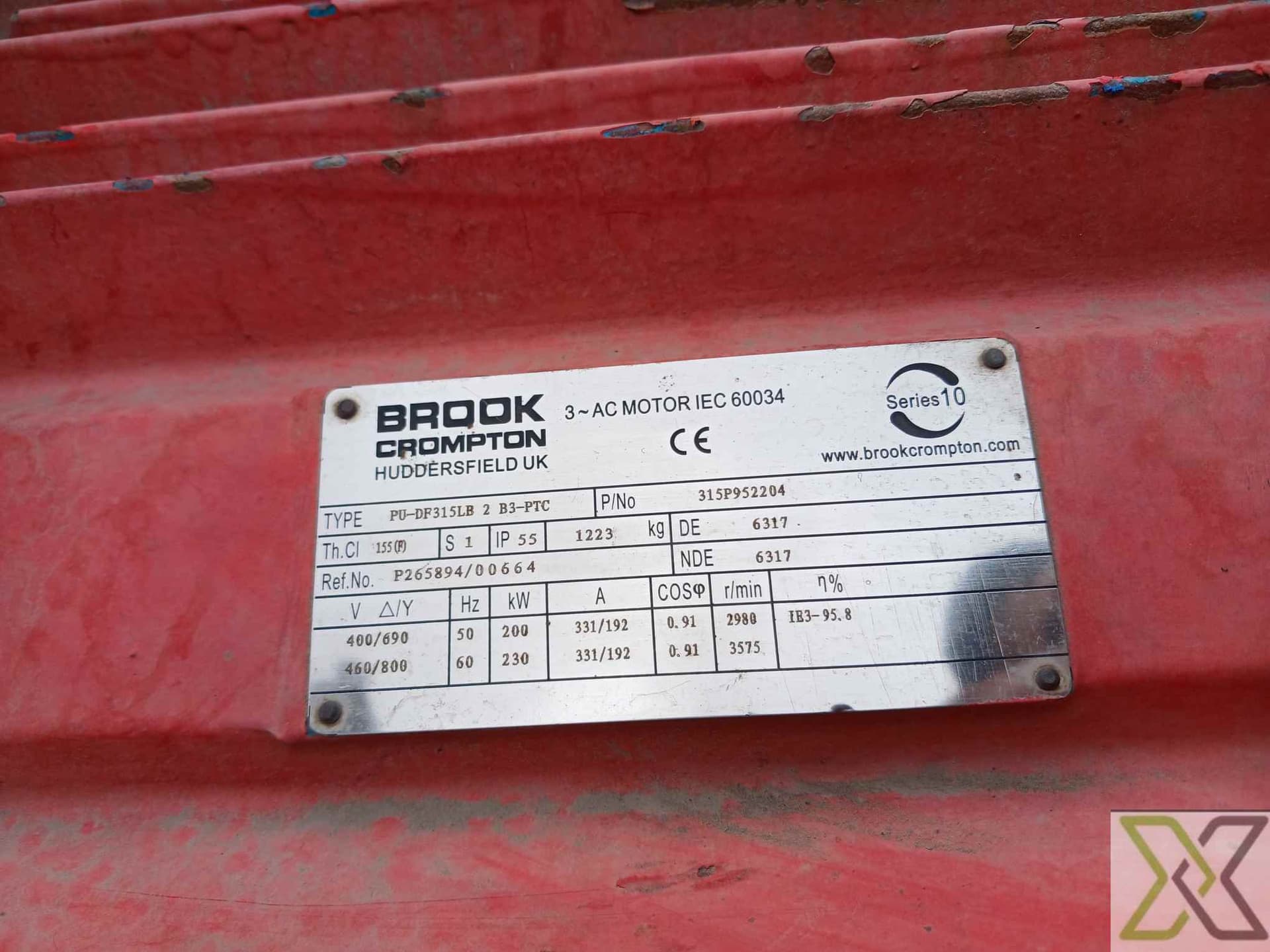

Brook Crompton PU-DP315LB 2 B3-PTC Motor Specifications

Brand & Model:

Brand: Brook Crompton (Huddersfield, UK)
Model: PU-DP315LB 2 B3-PTC
Part Number (P/No): 315P952204
Motor Type: 3-Phase AC Motor
Thermal Class: 155(F)
Duty Rating: S1 (Continuous duty, 100% rated power)

Protection & Bearings:

Ingress Protection (IP Rating): IP 55 (Protected against dust and water jets)
Reference Number: P265894/00664
Bearings:
- Drive End (DE): 6317
- Non-Drive End (NDE): 6317

Electrical Specifications:

Voltage & Frequency:
- 400V/690V, 50Hz → 200 kW
- 460V/800V, 60Hz → 230 kW
Current Ratings:
- 400V, 50Hz: 331A
- 690V, 50Hz: 192A
Power Factor (Cosφ): 0.91

Speed & Efficiency:

Speed (RPM):
- 50Hz: 2980 RPM
- 60Hz: 3575 RPM
Efficiency Class: IE3 - 95.8%

For further specifications or to inquire about this product, please contact ReflowX at info@reflowx.com

Model Number	PU-DP315LB 2 B3-PTC
Model Number	PU-DP315LB 2 B3-PTC
Voltage	200 kW
CFIHOS ID	CFIHOS-30000340
Color	Red
ISO 15926 Pt 4	2752
PCA RDS Code	RDS415124
CFIHOS ID	CFIHOS-30000340
Speed	2980 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricMotor
UNSPSC Code	26101600

Model Number

PU-DP315LB 2 B3-PTC

Model Number

PU-DP315LB 2 B3-PTC

Voltage

200 kW

CFIHOS ID

CFIHOS-30000340

Color

Red

ISO 15926 Pt 4

2752

PCA RDS Code

RDS415124

CFIHOS ID

CFIHOS-30000340

Speed

2980 RPM

Direction of Rotation

Clockwise

IFC Class

IfcElectricMotor

UNSPSC Code

26101600
