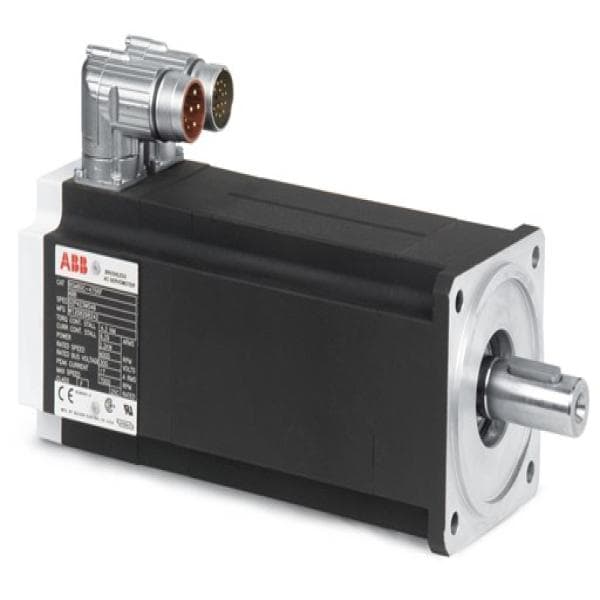

BSM N-Series AC Brushless Servo Motor – Low Inertia, High Torque

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

BSM N-Series servo motor with low-inertia permanent magnet rotor, high acceleration torque, wide voltage compatibility, and rugged industrial construction. Certified to UL, CSA, and CE standards.

Description

BSM N-Series AC Brushless Servo Motor – Low Inertia, High Torque

The BSM N-Series AC Brushless Servo Motor is designed for high-performance applications requiring fast acceleration, precise control, and long-lasting durability. Featuring a low-inertia permanent magnet rotor, the motor delivers rapid response and efficient dynamic motion, making it ideal for automation, robotics, and high-speed industrial machinery.

This series is available in five standard frame sizes and delivers a wide torque range—from acceleration torque of 16 lb/in (1.8 Nm) up to 1,400 lb/in (160 Nm), and sustained torque at low speeds ranging from 4 lb/in (0.4 Nm) to 354 lb/in (40 Nm). It supports standard bus voltages of 160V, 300V, and 650V, with additional custom winding options available.

Built to last, the BSM N-Series features a 155°C high-temperature design and utilizes 200°C-rated moisture-resistant multi-coated wire. The stator incorporates extra-high insulation for superior resistance to voltage spikes. Bearings are lubricated with Mobil Polyrex™ EM grease, extending service life significantly. The robust industrial housing ensures reliable operation in demanding environments, while full compliance with IEC/NEMA standards ensures installation versatility.

Certified to UL, CSA, and CE standards, the BSM N-Series provides a globally approved solution for advanced motion control systems.

Specifications:

– Motor Type: AC Brushless Servo Motor
– Series: BSM N-Series
– Rotor Type: Low-inertia permanent magnet
– Frame Sizes: 5 standard sizes
– Acceleration Torque: 16 to 1,400 lb/in (1.8 to 160 Nm)
– Continuous Torque at Low Speed: 4 to 354 lb/in (0.4 to 40 Nm)
– Inertia Range: 0.00006 to 0.034 lb/in² (0.067 to 38 kg/cm²)
– Voltage Options: 160V, 300V, 650V bus (custom windings available)
– Temperature Rating: 155°C thermal design with 200°C wire
– Stator Insulation: Extra-high for spike resistance
– Bearings: Mobil Polyrex™ EM grease (4× longer life)
– Construction: Industrial-grade, IEC/NEMA compatible

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
