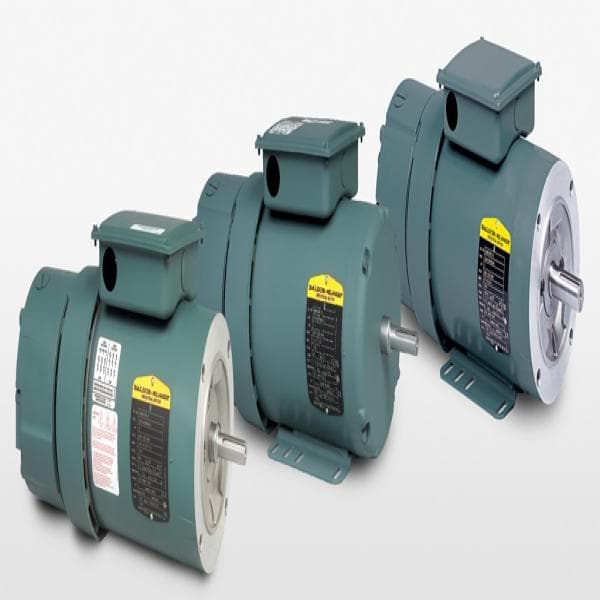

D-Series Brake Motor – 1/2 to 10 HP, TEFC/TENV, Inverter Duty, IP54

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Versatile Baldor•Reliance D-Series brake motors with spring-set, power-off brakes and inverter-duty design, available in TEFC or TENV enclosures. Rated from 1/2 to 10 HP for industrial duty.

Description

D-Series Brake Motor – 1/2 to 10 HP, TEFC/TENV, Inverter Duty, IP54

The Baldor•Reliance D-Series Brake Motors are purpose-built for demanding industrial applications requiring quick stops and reliable braking performance. Designed for versatility, these motors are offered in both single-phase and three-phase configurations, with horsepower options ranging from 1/2 to 10 HP. Available in multiple NEMA frame sizes and mounting configurations—including foot mounted, C-face footed, and footless—they are well-suited for a wide range of installations.

Each D-Series motor features a spring-set, magnetically released power-off brake and a fast-acting DC brake with an integral rectifier, enabling dependable stopping performance and safe emergency braking. The inclusion of a manual release lever adds another layer of flexibility and safety. With enclosure options of Totally Enclosed Fan Cooled (TEFC) and Totally Enclosed Non-Ventilated (TENV), these motors offer protection across various operating environments.

Built with an IP54 rating and a low-profile F-3 conduit box in most models, D-Series motors also support inverter duty applications, making them compatible with variable frequency drives for speed control. These motors are designed for horizontal or vertical mounting in any configuration.

Specifications:

– Motor Type: Industrial brake motor
– Horsepower Range: 1/2 to 10 Hp
– Voltage Ratings: 208-230/460V, 230/460V, 575V
– Phase: Single-phase and three-phase models
– NEMA Frame Sizes: 56 to 215TC
– Mounting Configurations: Foot mounted, C-face foot mounted, C-face footless
– Enclosure Types: TEFC (Totally Enclosed Fan Cooled), TENV (Totally Enclosed Non-Vent)
– Protection Rating: IP54
– Brake Type: Spring-set, magnetically released, power-off brake
– Brake System: Fast-acting DC brake with integral rectifier
– Manual Override: Included manual release lever
– Conduit Box: Low-profile F-3 design (most models)
– Inverter Duty: Yes, NEMA MG1 Part 31 compliant
– Installation: Mountable in any configuration

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
