Direct Drive Motor – Synchronous PM, Laminated Finned Frame, Flange or Foot Mounted

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition

New
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

High-efficiency Baldor-Reliance Direct Drive Motor with permanent magnet technology and laminated finned frame. Designed for cooling towers and air-cooled systems with flange or foot-mounted options.

Description

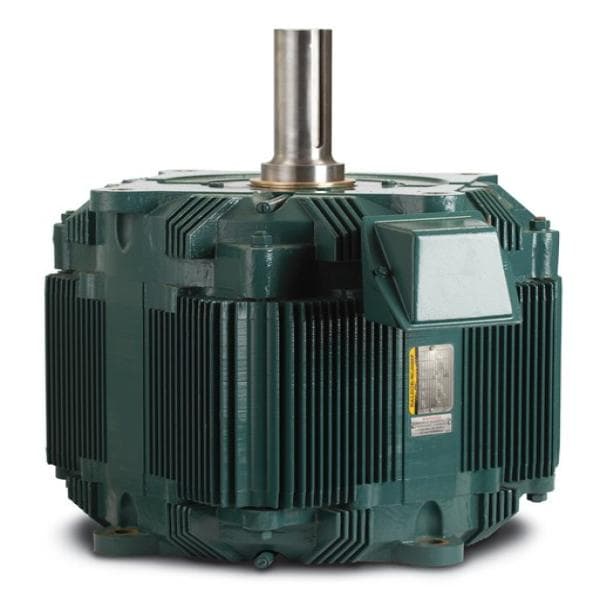

Direct Drive Motor – Synchronous PM, Laminated Finned Frame, Flange or Foot Mounted

The Baldor-Reliance Direct Drive Motor is engineered for maximum efficiency and compact performance, utilizing synchronous permanent magnet (PM) technology and an advanced laminated finned frame design. Developed as a direct replacement for conventional right-angle gearboxes and jackshaft systems, this motor simplifies integration and improves operational efficiency in cooling tower applications.

Its innovative finned frame enhances thermal dissipation while reducing overall size, resulting in a power-dense design that performs reliably in high-temperature, high-humidity environments. Available in both flange-mounted versions for direct drop-in replacements and foot-mounted configurations for vertical applications where belts and sheaves are traditionally used, this motor offers unmatched flexibility and ease of installation.

Designed specifically for cooling towers, air-cooled condensers, and air-cooled heat exchangers, the Baldor-Reliance Direct Drive Motor delivers dependable operation in the most demanding industrial settings. Derived from one of the industry’s most proven motor platforms, it ensures superior durability and long service life even under constant exposure to harsh conditions.

Specifications:

– Motor Type: Synchronous Permanent Magnet (PM)
– Frame Construction: Laminated finned frame for enhanced cooling and compact design
– Mounting Options: Flange-mounted (for direct gearbox/jackshaft replacement) or foot-mounted (for vertical/belt-driven systems)
– Application Suitability: Cooling towers, air-cooled condensers, air-cooled heat exchangers
– Environment Compatibility: High temperature, high humidity, and corrosive atmospheres
– Cooling Design: Natural convection with optimized heat dissipation via finned construction
– Efficiency Class: Above NEMA Premium (IE4/IE5 depending on size and configuration)
– Drive Compatibility: Designed for use with variable frequency drives (VFDs)
– Integration: Designed to match flange mounting dimensions for seamless upgrades
– Platform: Based on proven industrial-grade motor technology for high reliability

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
