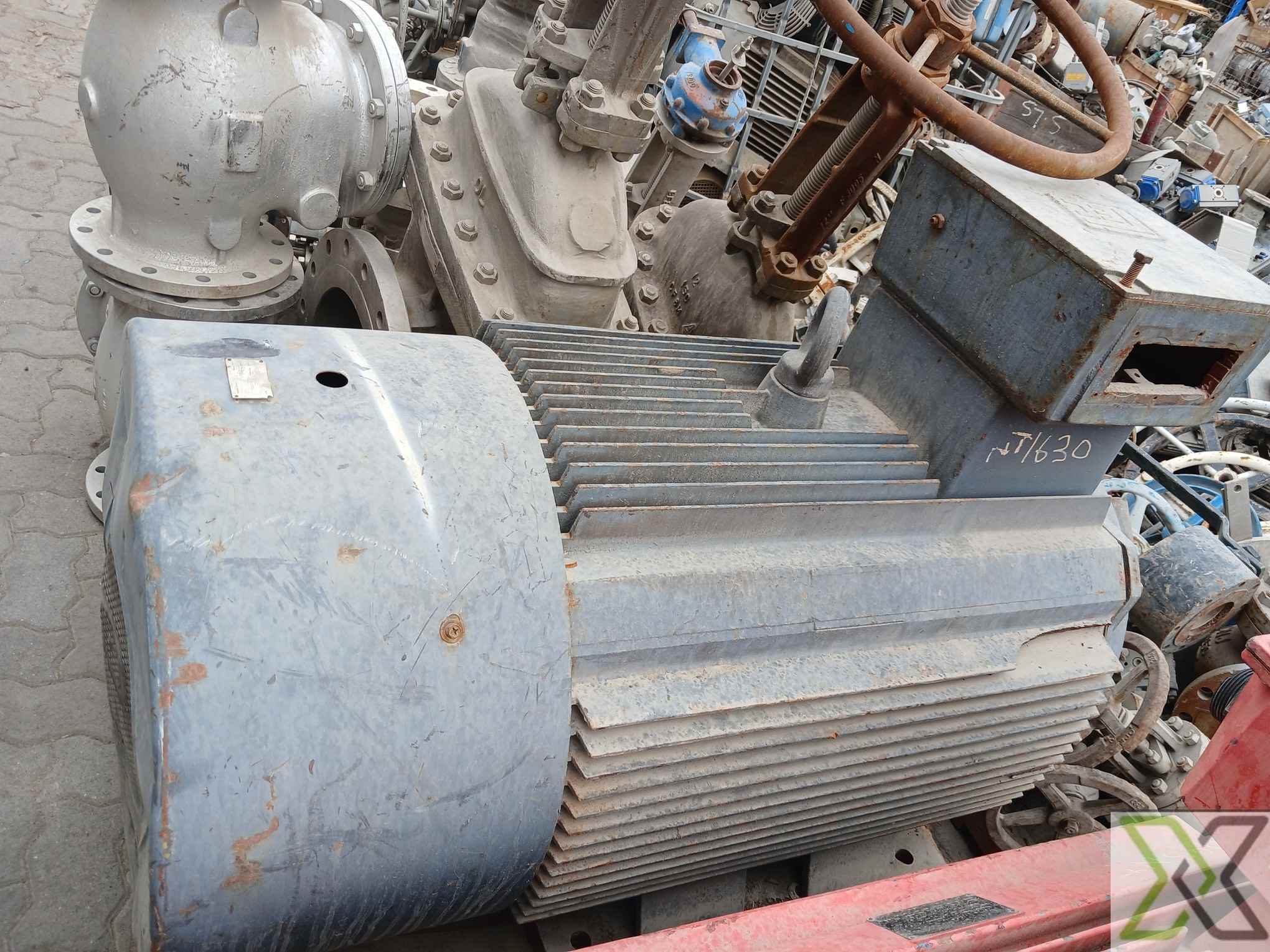

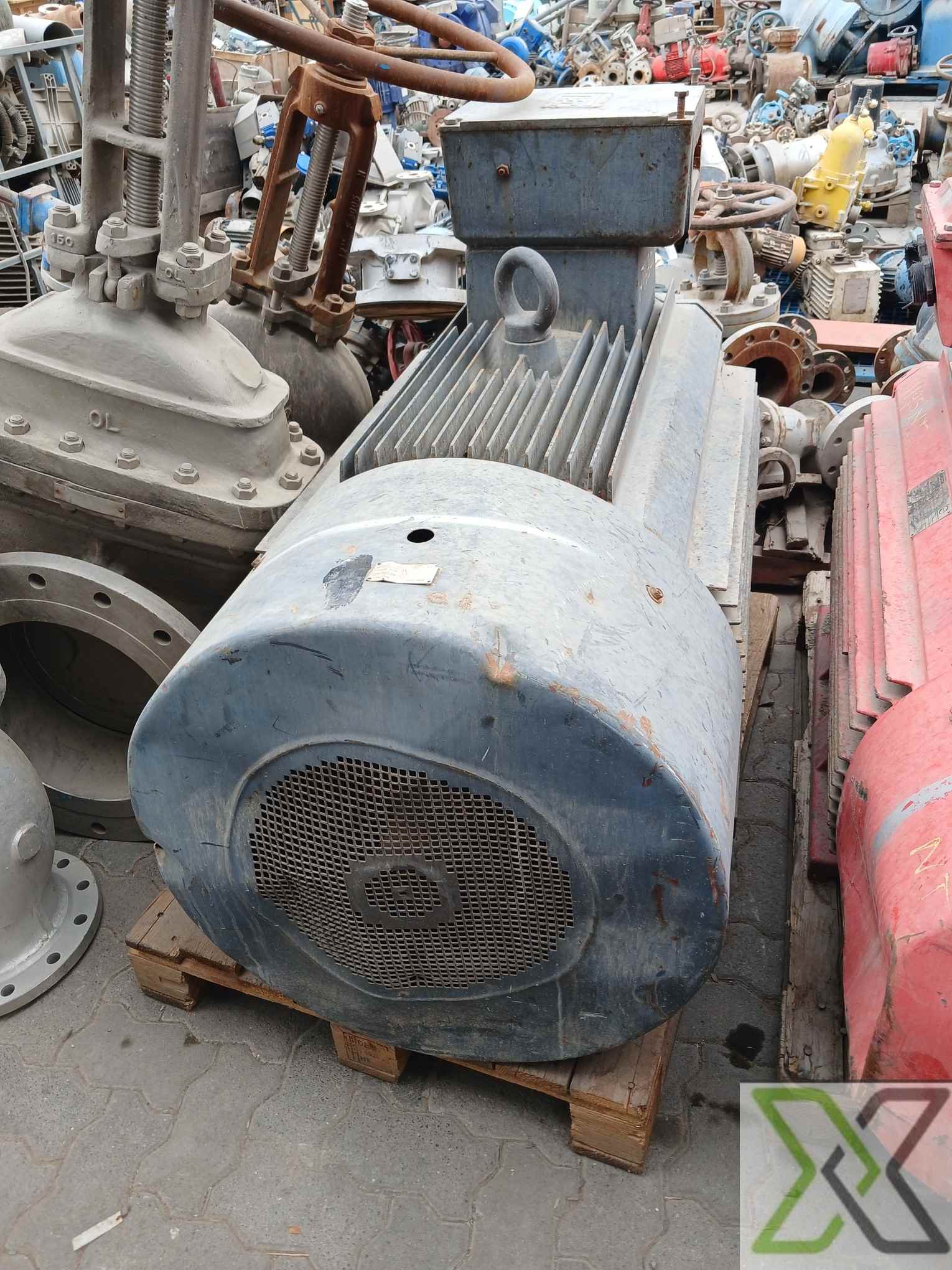

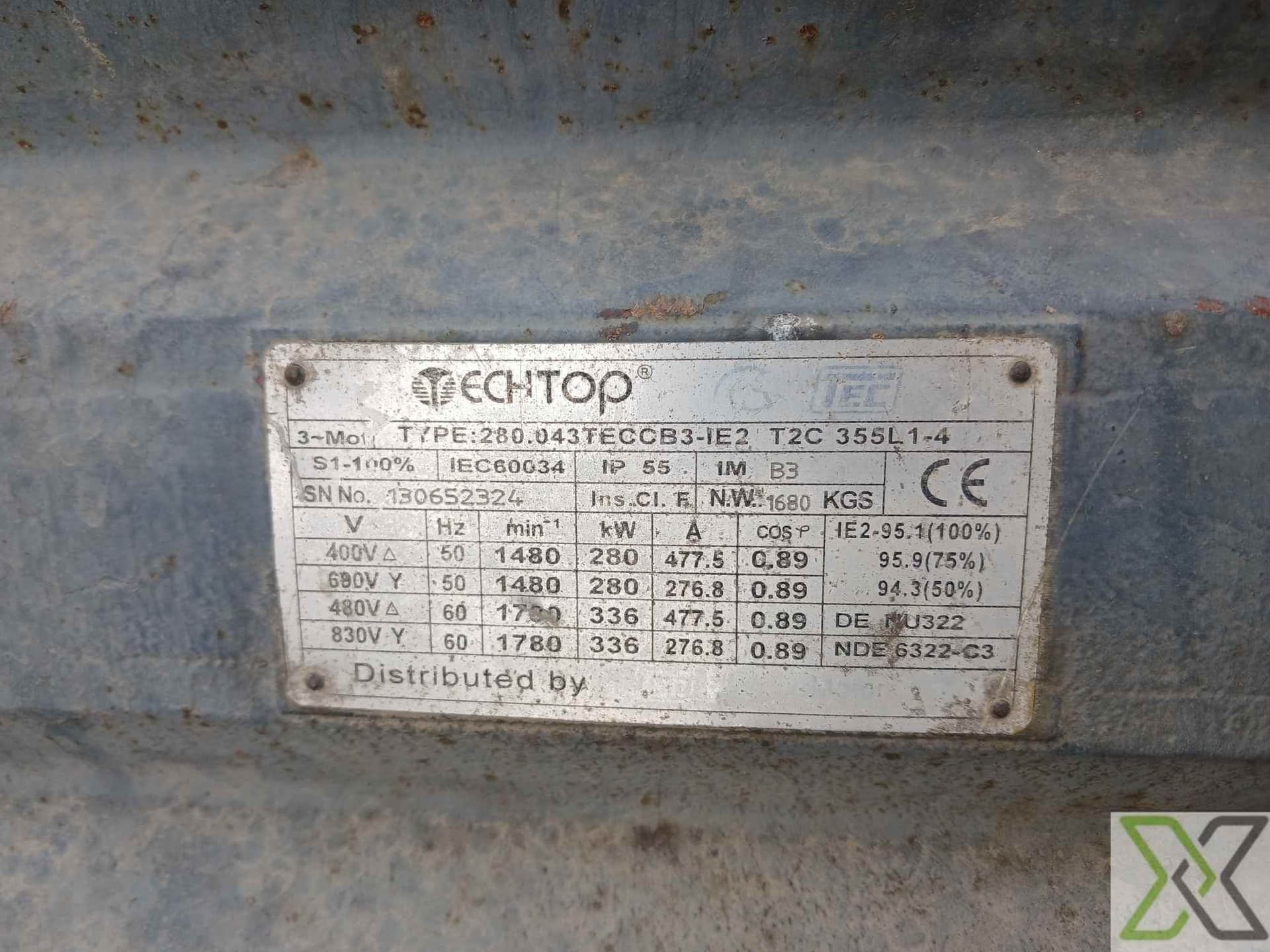

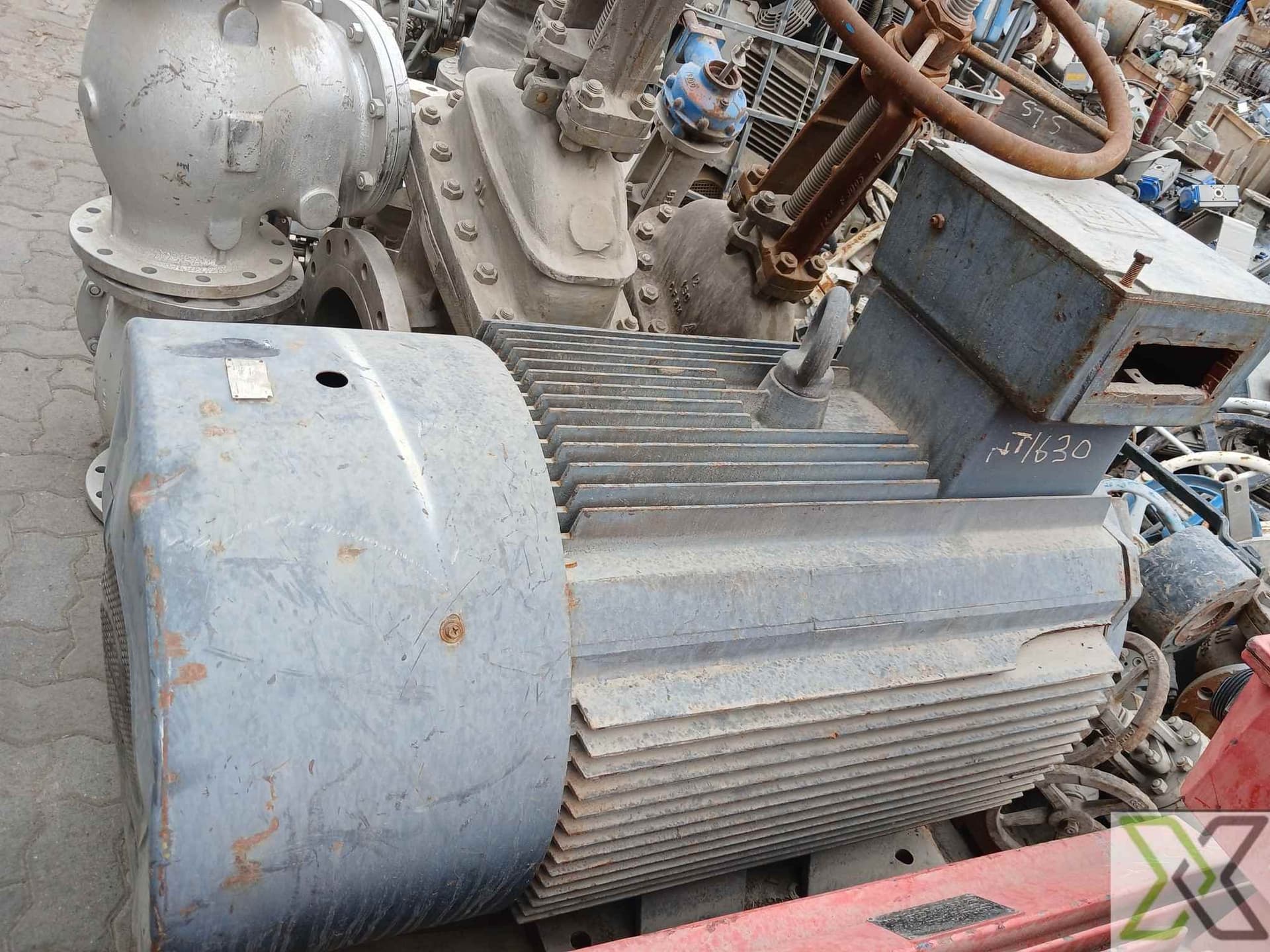

TECHTOP PE-280.043TECB3-1E2 T2C 355L1-4 Motor Specifications

Brand & Model:

• Brand: TECHTOP
• Model: PE-280.043TECB3-1E2 T2C 355L1-4
• Motor Type: 3-Phase Motor
• Duty Rating: S1 (Continuous duty, 100% rated power)
• Standard Compliance: IEC 60034

Protection & Mounting:

• Ingress Protection (IP Rating): IP 55 (Protected against dust and water jets)
• Mounting Type: B3 (Foot-mounted motor)

Identification & Insulation:

• Serial Number: 130652324
• Insulation Class: F
• Net Weight: 1680 KGS (1.68 tons)

Electrical Specifications:

Voltage & Frequency:

• 400V, 50Hz → 1480 RPM, 280 kW
• 690V, 50Hz → 1480 RPM, 280 kW
• 480V, 60Hz → 1780 RPM, 336 kW
• 830V, 60Hz → 1780 RPM, 336 kW

Current Ratings:

• 400V, 50Hz: 477.5A
• 480V, 60Hz: 276.8A

Power Factor (Cosφ): 0.89

Efficiency Levels:

• 95.1% at 100% load
• 95.9% at 75% load
• 94.3% at 50% load

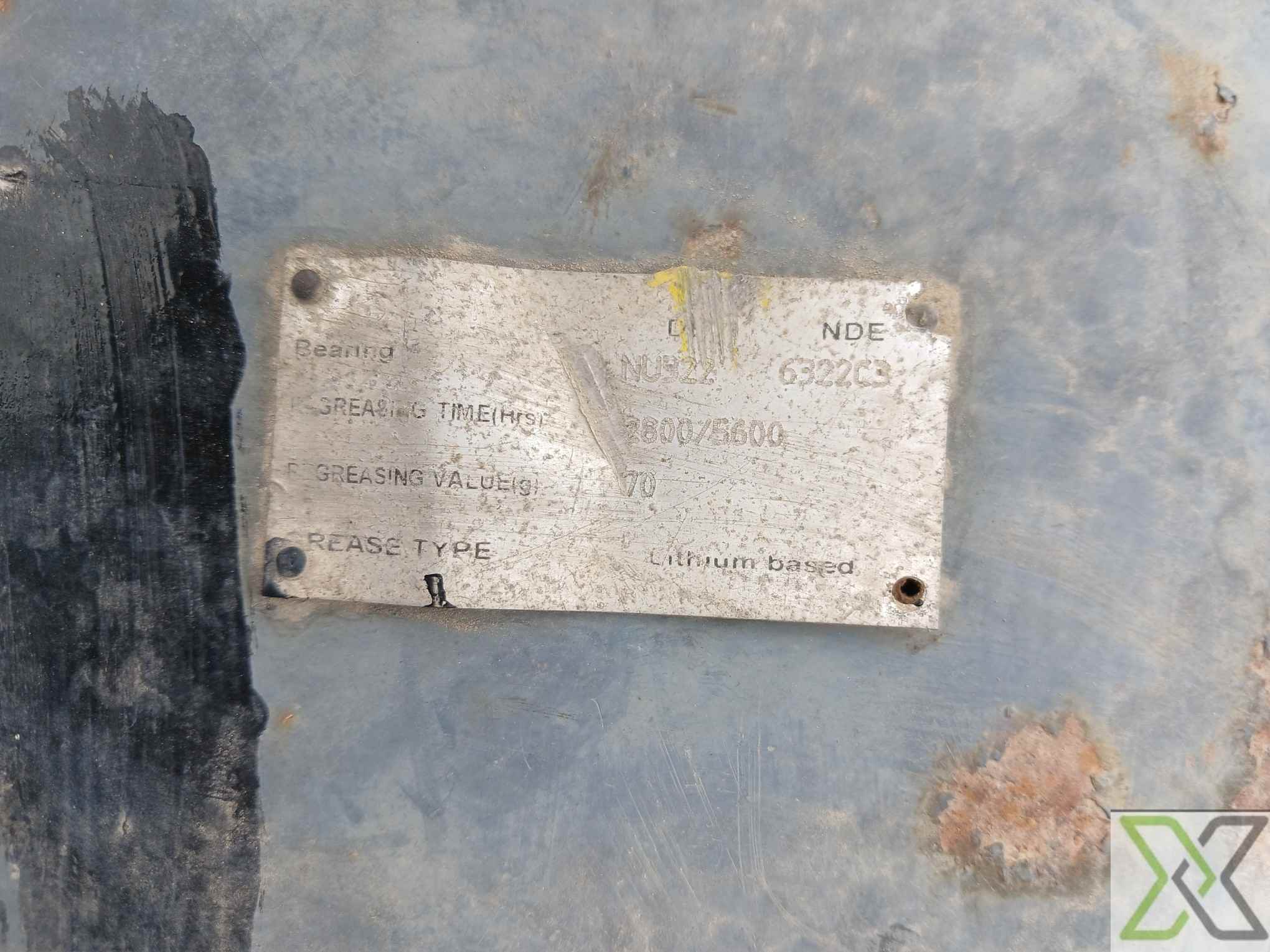

Bearing Details:

• Drive End (DE): 6322
• Non-Drive End (NDE): 6322-C3

For further specifications or to inquire about this product, please contact ReflowX at info@reflowx.com
