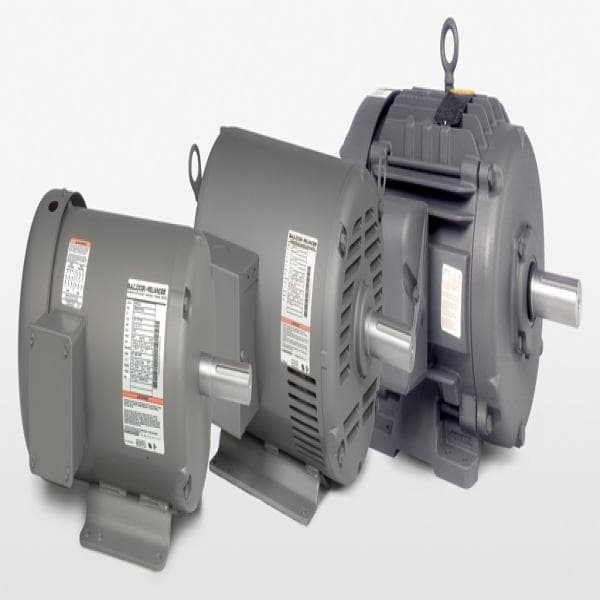

General Purpose HVAC Motor – NEMA Premium®, ODP & TEFC, Inverter-Ready, 1–100 Hp

General Purpose HVAC Motor – 1 to 100 Hp, NEMA Premium®, ODP & TEFC

Product Details

  • Quantity
    100
  • Availability (Lead Time)
    4-6 Weeks
  • Product Location
    United States
  • Condition
    New
  • Equipment code
    CFIHOS-30000340
Get Quotation Whatsapp

Short Description

General-purpose HVAC motor for industrial air handling and ventilation applications. Available in ODP and TEFC designs with NEMA Premium® efficiency and inverter-ready performance for energy-optimized systems.

Description

General Purpose HVAC Motor – 1 to 100 Hp, NEMA Premium®, ODP & TEFC

The General Purpose HVAC Motor is purpose-built to support a wide array of industrial and commercial heating, ventilation, and air conditioning (HVAC) systems. Offered in both Open Drip Proof (ODP) configurations from 1 to 100 Hp, and Totally Enclosed Fan Cooled (TEFC) options from 1 to 50 Hp, these motors deliver reliable performance under demanding operational conditions.

Constructed from heavy gauge steel, these foot-mounted three-phase motors feature NEMA frame sizes ranging from 143T to 326T, providing compatibility with diverse system requirements. The robust frame ensures long service life and resistance to mechanical stress in HVAC installations.

All models meet NEMA Premium® efficiency standards, supporting energy-saving initiatives and are fully inverter-compatible, meeting NEMA MG1 Part 31.4.4.2 for use with variable frequency drives (VFDs). Internally, these motors are equipped with ball bearings with plugged grease passages for extended maintenance intervals and consistent reliability.

Featuring Class F insulation and a 1.15 service factor with a Class B temperature rise, the HVAC motor ensures thermal protection and resilience across a variety of load profiles. Designed for multi-position mounting, these motors also include external provisions for shaft grounding rings, enhancing bearing protection in inverter-driven systems.

Additional elements such as a bar-coded spec number label streamline inventory tracking and product identification, making this HVAC motor series ideal for commercial buildings, industrial ventilation, and institutional environments requiring energy-efficient, high-performance motor solutions.

Specifications:

– Motor Type: General Purpose HVAC Motor
– Power Range: 1 – 100 Hp (ODP), 1 – 50 Hp (TEFC)
– NEMA Frame Sizes: 143T – 326T
– Voltage: Three-phase standard voltages
– Enclosure: ODP and TEFC
– Mounting: Foot-mounted, suitable for all mounting positions
– Construction: Heavy gauge steel frame
– Bearings: Ball bearings with plugged grease passages
– Insulation: Class F with Class B temperature rise
– Service Factor: 1.15
– Efficiency: Meets NEMA Premium®
– Inverter Duty: Compliant with NEMA MG1 Part 31.4.4.2
– Special Features: Shaft grounding ring provisions, bar-coded spec number label
– Applications: HVAC blowers, air handlers, chillers, rooftop units, and other ventilation systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
