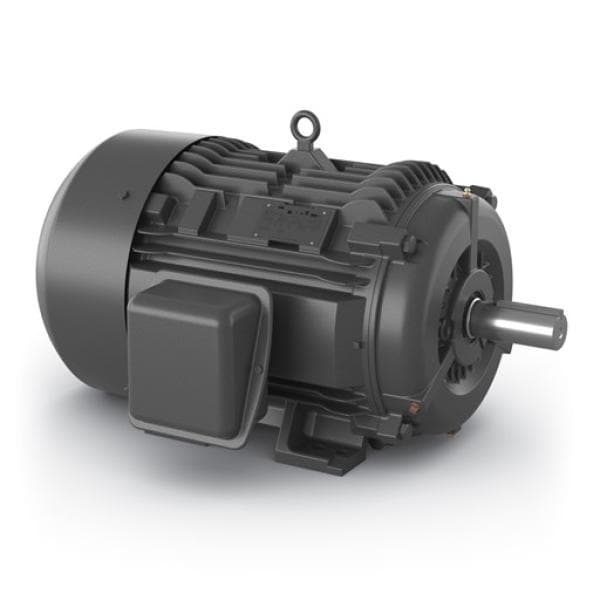

GP100 Motor – ABB NEMA Cast Iron, 1–200 hp, Inverter Duty, Severe-Duty Rated

The GP100 Motor from ABB is the next-generation solution in NEMA cast-iron motors, purpose-built for severe-duty industrial environments. Developed with advanced finite element analysis, the GP100 series optimizes material distribution within the motor frame to withstand vibration, mechanical stress, and thermal expansion—ensuring reliable, long-term operation.

Available in power ratings from 1 to 200 hp (0.75 to 150 kW) and NEMA frame sizes 143 to 449, the GP100 series offers a broad spectrum of applications across industries. The motor supports multiple pole configurations (2, 4, 6, 8 poles) and voltage options of 230/460V, 460V, and 575V, accommodating varied power system requirements.

Each motor is housed in a robust cast iron frame with IP54 or IP55 protection, ensuring durability against dust, moisture, and physical impacts. Terminal boxes are constructed to match frame size and duty: aluminum for 140–250 frames, stamped steel for 280–400 frames, and cast iron for 440 frames. Zinc-plated hardware and epoxy-based paint finish provide high corrosion resistance.

The GP100 is inverter-duty rated per NEMA MG1 Part 31, capable of operating under 20:1 VT (variable torque) and 4:1 CT (constant torque) conditions. Class F insulation with Class B temperature rise ensures thermal stability, while motors in frames 143T–256T come with sealed, maintenance-free bearings.

Ideal for use in harsh environments such as processing plants, manufacturing lines, and water treatment facilities, the GP100 motor guarantees reliability, longevity, and superior efficiency.

Specifications:

– Motor Type: General Purpose Severe-Duty Cast Iron Motor
– Power Range: 1 to 200 hp (0.75 to 150 kW)
– NEMA Frame Sizes: 143T to 449T
– Pole Configurations: 2, 4, 6, 8 poles
– Voltage Options: 230/460V, 460V, 575V
– Enclosure Protection:

IP54 (frames 280–449)

IP55 for added protection
– Terminal Box Materials:

Aluminum (140–250 frame)

Stamped steel (280–400 frame)

Cast iron (440 frame)
– Insulation: Class F insulation, Class B temperature rise
– Bearings:

Maintenance-free, life-lubricated (frames 143T–256T)
– Hardware Finish: Zinc-plated fasteners
– Surface Coating: Epoxy paint for corrosion resistance
– Inverter Duty:

Compliant with NEMA MG1 Part 31

VT (20:1), CT (4:1) ratings
– Mounting: Rigid base (standard), options available
– Applications: Pumps, compressors, conveyors, fans, general industry
