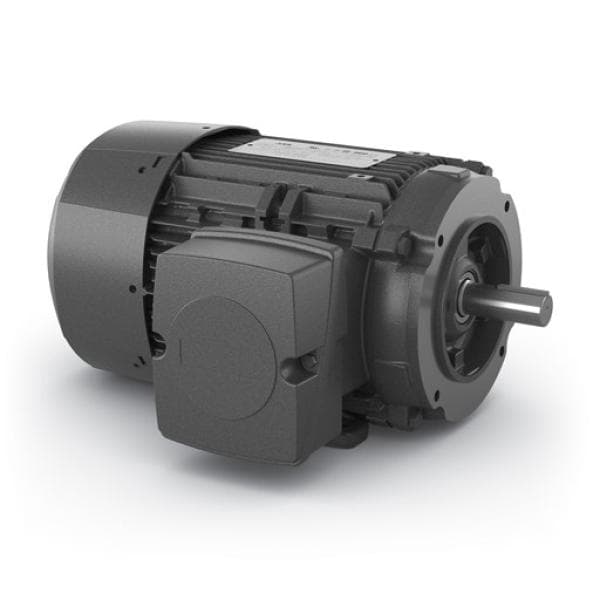

ABB NEMA Aluminum Frame - GP100A Motor, 1–20 hp, Inverter Duty

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition

New
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

ABB GP100A aluminum housing motor, 1–20 hp, designed for lightweight durability in general-purpose industrial use. NEMA Premium efficiency, inverter duty rated, with Class F insulation and corrosion-resistant construction.

Description

ABB NEMA Aluminum Frame - GP100A Motor, 1–20 hp, Inverter Duty

The GP100A Motor from ABB is a versatile, lightweight, and efficient solution for general-purpose industrial applications. Constructed with a robust aluminum frame and end-shields, the GP100A series provides a strong, corrosion-resistant alternative to traditional rolled-steel motors—without sacrificing mechanical strength or durability. This makes it especially suitable for installations where weight and handling are critical.

Available in power ratings from 1 to 20 hp (0.75 to 15 kW) and NEMA frame sizes 143T to 256T, the GP100A is designed for flexibility across a variety of applications. Offered in 2, 4, and 6 pole configurations, and voltage options of 230/460V and 575V, this motor series meets a wide range of operational requirements.

The aluminum diagonally split terminal box simplifies wiring, while zinc-plated hardware and epoxy paint deliver enhanced resistance to harsh environments. With Class F insulation, a 1.15 service factor, and a NEMA Class B temperature rise at SF 1.0, the GP100A ensures thermal reliability and consistent performance.

These motors are inverter duty rated per NEMA MG1 Part 31, supporting 20:1 VT and 4:1 CT applications. Fully compliant with NEMA Premium® efficiency standards, the GP100A is ideal for use with both direct-on-line (DOL) systems and variable speed drives (VSDs).

Specifications:

– Motor Type: General Purpose Aluminum Frame Motor
– Power Range: 1 to 20 hp (0.75 to 15 kW)
– NEMA Frame Sizes: 143T to 256T
– Pole Configurations: 2, 4, 6 poles
– Voltage Options: 230/460V, 575V
– Enclosure: TEFC standard
– Frame & End Shields: Aluminum construction
– Terminal Box: Oversized, diagonally split aluminum box
– Insulation: Class F
– Temperature Rise: Class B at SF 1.0
– Service Factor: 1.15
– Efficiency: NEMA Premium® compliant
– Surface Coating: Epoxy paint
– Hardware: Zinc-plated for corrosion resistance
– Inverter Duty:

Compliant with NEMA MG1 Part 31

VT 20:1, CT 4:1 capable

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
