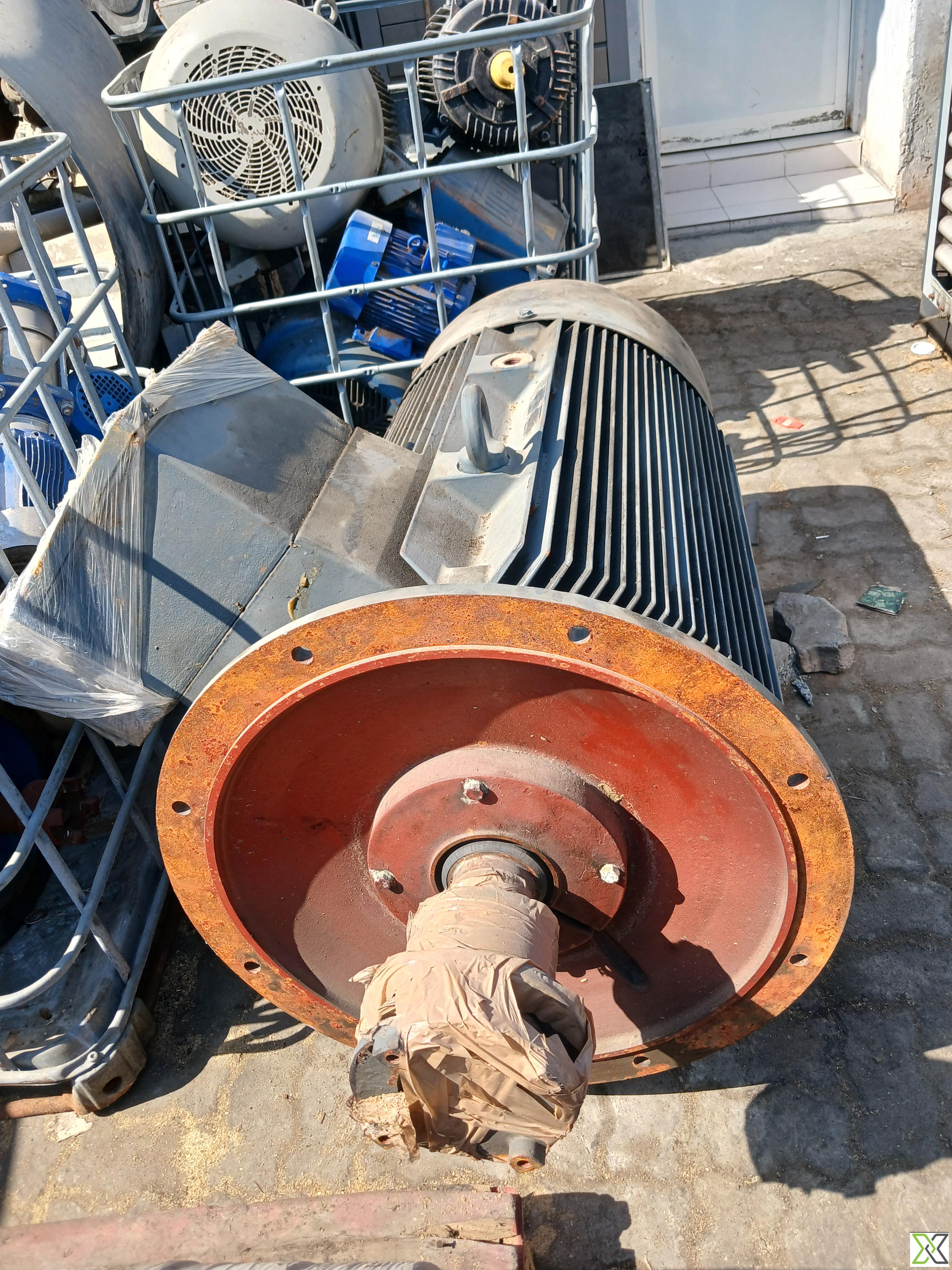

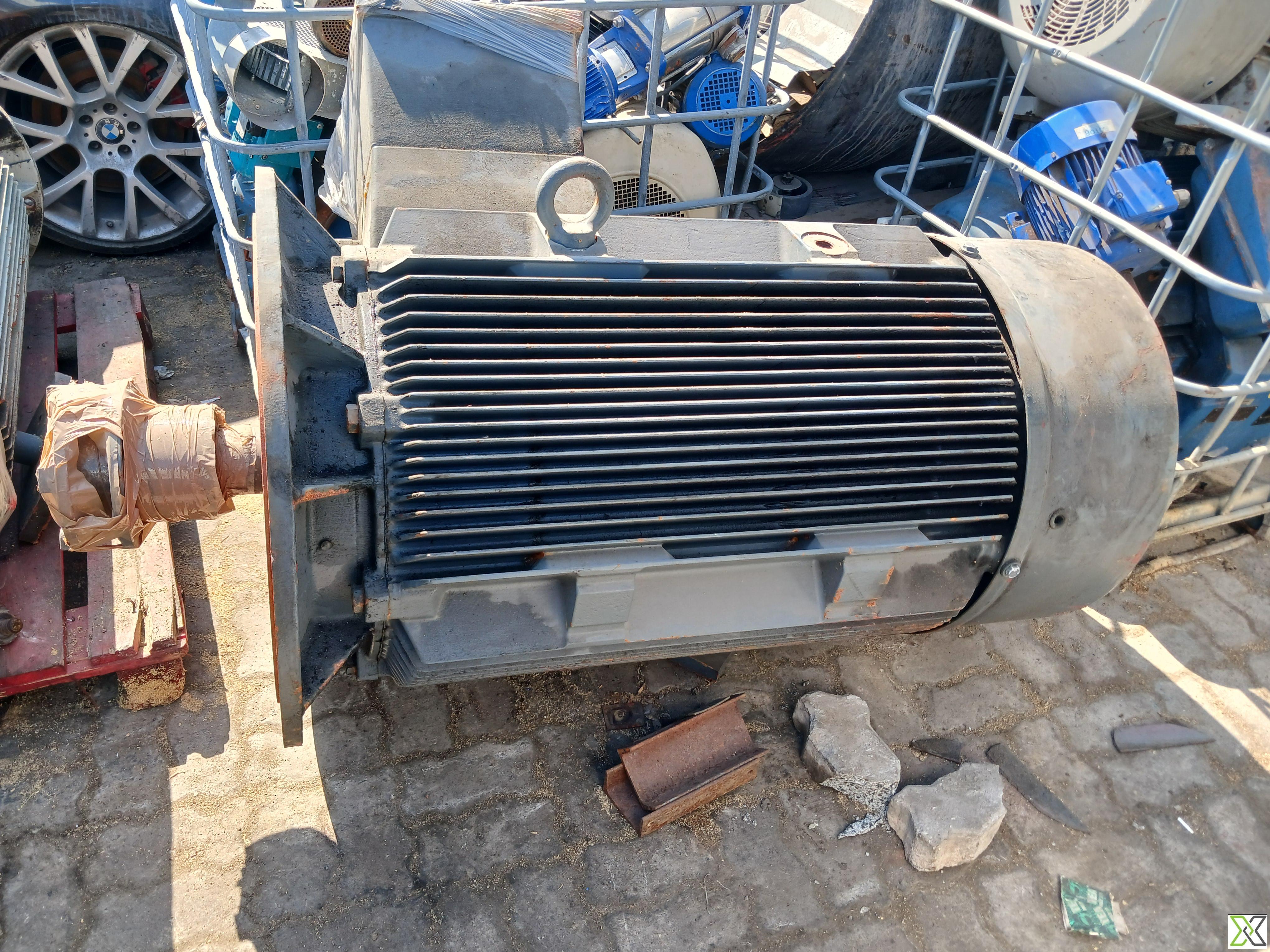

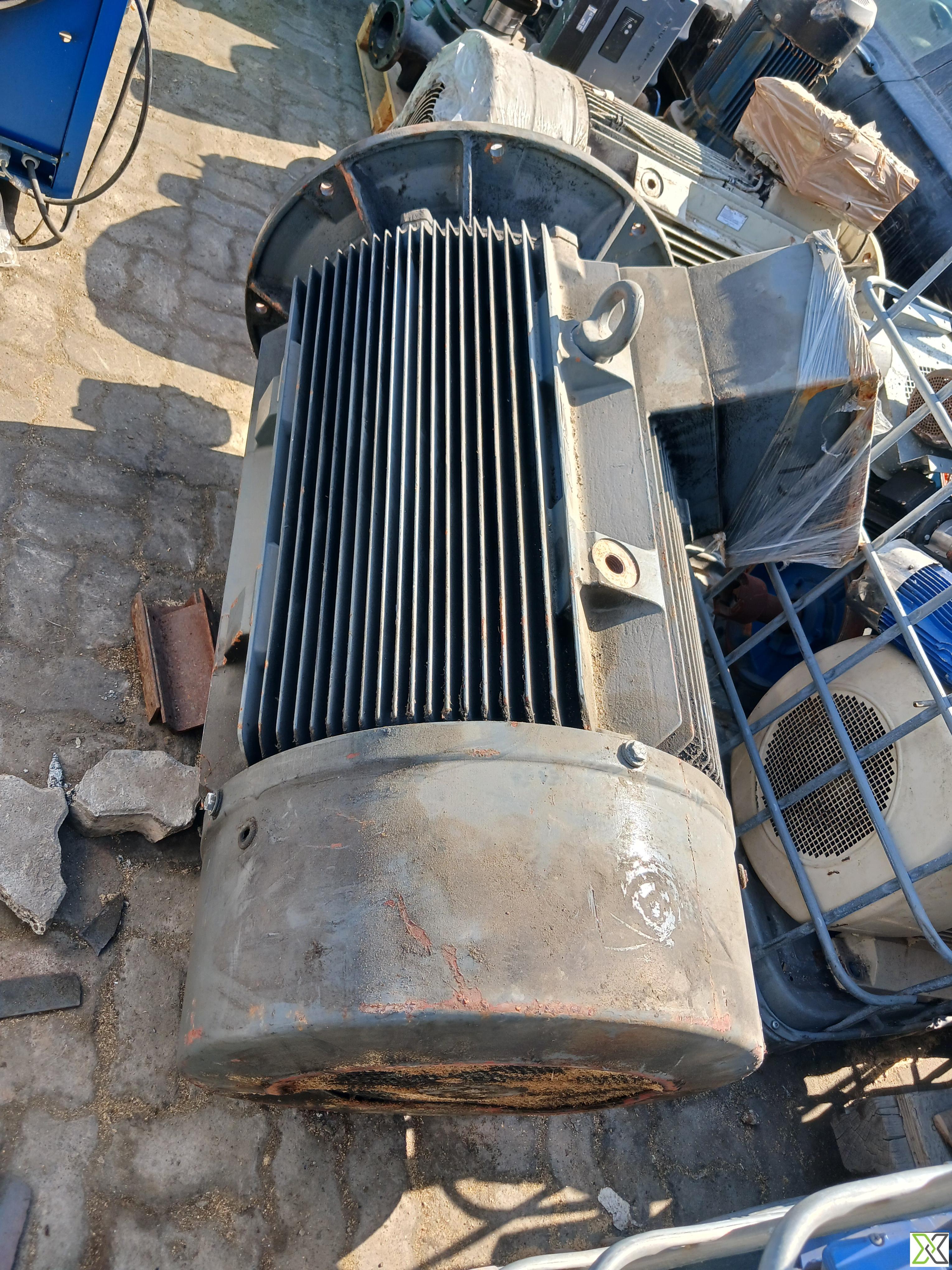

Groschopp Electric Motor AG: KMR 315 M 4

ReflowX SKU: REF-203

Product Details

Get Quotation Whatsapp Chat With Seller

Manufacturer: Groschopp AG (Germany)

Manufacturer: Groschopp AG (Germany)

Model: KMR 315 M 4

Motor Type: 3-Phase Asynchronous Motor

Application: Industrial drive systems, pumps, compressors, conveyors

Power Output: 132 kW (Heavy-duty industrial power output)

Voltage: 400V Δ / 690V Y (Dual voltage for flexible operation)

Frequency: 50 Hz (Standard industrial power supply frequency)

Current: ~230 A (At 400V in delta connection)

Power Factor (cos φ): Typically 0.85 – 0.88 (Not specified but estimated based on motor class)

Efficiency Class: Likely IE2 or IE3 (High-efficiency rating per IEC standards)

Speed: 1485 RPM (Near-synchronous speed for 4-pole motor at 50 Hz)

Frame Size: 315M (Indicates motor's physical size and mounting dimensions)

Mounting Type: IM B3 (Foot-mounted standard configuration)

Cooling Type: IC411 (Totally Enclosed Fan Cooled – TEFC)

Enclosure Material: Cast Iron (Durable housing for industrial environments)

Bearings: Heavy-duty ball or roller bearings (Designed for high-load applications)

Insulation Class: F (Withstands temperatures up to 155°C)

Duty Cycle: S1 (Continuous operation without overheating)

Protection Class: IP55 (Dust and water jet resistant, suitable for harsh environments)

Thermal Protection: Likely PTC / PT100 (Standard for industrial motors)

Vibration Level: A (Standard) / B (Precision) (Vibration control for reliability)

Weight: ~900 – 1100 kg (Estimated based on similar motors in the 315M frame size)

Shaft Diameter: ~80 mm (Standard for motors in this power range)

Flange Option: FF or FT (Flange-mounting options available)

IEC 60034-1: Electrical and mechanical performance standard

DIN VDE 0530: German motor design and safety standard

ISO 9001: Manufacturing quality certification

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
