Product Description

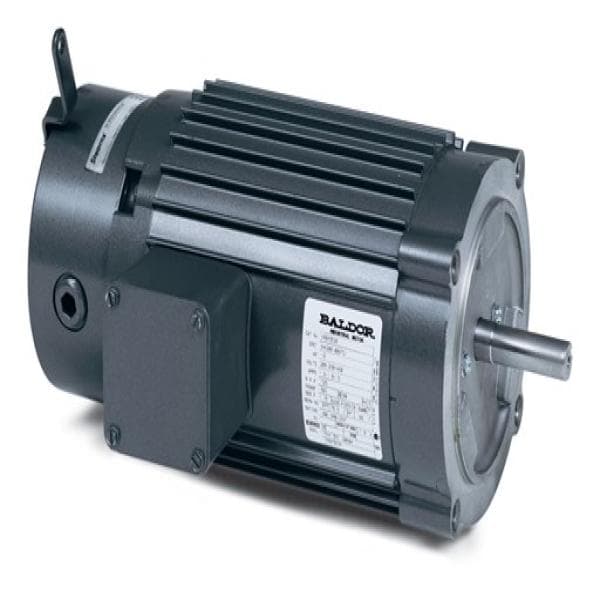

Baldor-Reliance High Cycle Brake Motor is engineered for dynamic performance in frequent start-stop applications. It features a DC brake with an integral rectifier for faster response compared to conventional spring-set brakes.

Key Specifications:

• Power range from 1/2 to 3 Hp, catering to a variety of operational scales.
• Available in NEMA frame sizes 56C to 145TC, ensuring compatibility with standard installations.
• Cast aluminum, footless frame design significantly enhances thermal dissipation, making it ideal for high-duty cycles.
• Voltage options include 208-230/460 and 230/460 volts to accommodate different power supplies.
• The motor's construction is either totally enclosed fan cooled or totally enclosed non-vent, providing flexibility based on environmental needs.
• IP54 rated for protection against dust and moisture ingress.
• Features a low inertia, high-efficiency motor design to enhance performance and reduce energy consumption.
• The fast-acting DC brake with integral rectifier ensures rapid and reliable braking action, crucial for applications requiring precise motion control.
