Full Specifications of Alkoriox Y3-132M-4 Electric Motor

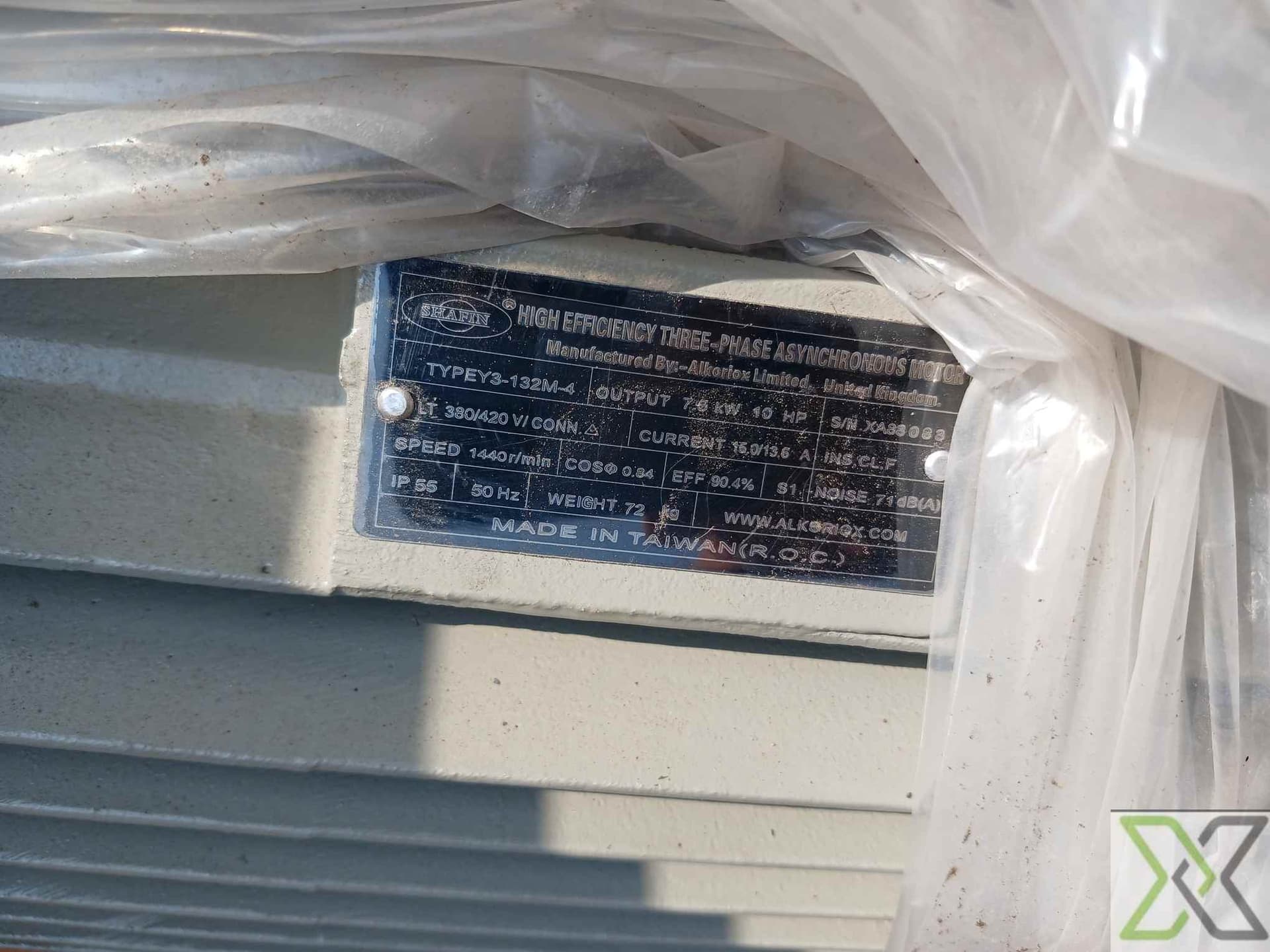

General Information:

Manufacturer: Alkoriox Limited (UK)

Model: Y3-132M-4

Type: High-Efficiency Three-Phase Induction Motor

Country of Manufacture: Taiwan (R.O.C.)

Electrical Specifications:

Power Output: 7.5 kW (10 HP)

Voltage: 380V / 420V

Frequency: 50 Hz

Current Rating: 16.0A / 15.6A

Power Factor (Cosφ): 0.91

Efficiency: 90.4%

Performance & Mechanical Details:

Speed: 1440 RPM

Noise Level: 79 dB(A)

Protection Rating: IP55 (Dust & Water Resistant)

Insulation Class: F (Withstands up to 155°C)

Mounting Type: B3 (Foot-mounted)

Bearing Type: High-quality ball bearings for smooth operation

Physical & Environmental Data:

Weight: 72 kg

Cooling Method: TEFC (Totally Enclosed Fan Cooled)

Operating Temperature Range: -20°C to +40°C

Duty Cycle: S1 (Continuous Duty)
