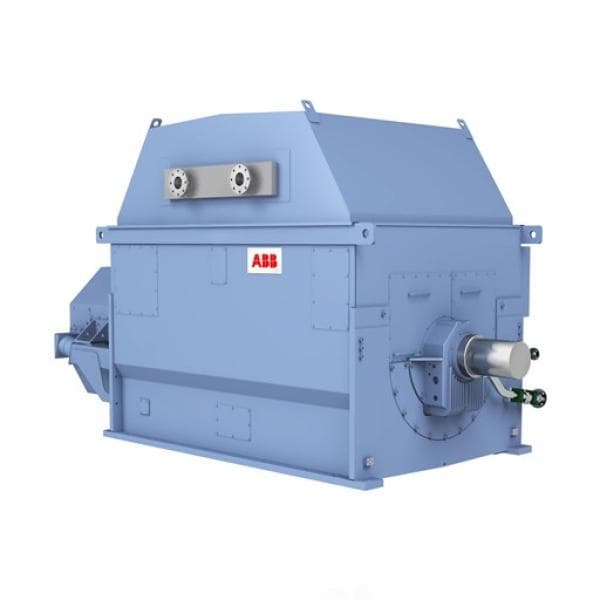

High-Speed (4 & 6 Pole) Motors Description

These high-speed motors are built with a robust, modular frame featuring welded steel construction, available in both horizontal and vertical configurations to accommodate a variety of installation requirements.

Key Features:

• Frame Size and Construction: Available in frame sizes ranging from 710-1400mm shaft height, accommodating large-scale industrial applications.
• Rotor Design: Utilizes rotors wound with rectangular copper wire and solid salient pole construction for efficient performance.
• Starting Methods: Supports multiple starting options for fixed speed motors, including Direct on line, reactor, autotransformer, capacitor, and Load Commutated Inverter (LCI).
• Variable Speed Options: Compatible with LCI, Cycloconverter, and Voltage Source Inverter for dynamic speed adjustments.
• Excitation Systems: Offers flexible excitation options, operable as AC or DC, and available in brushless or brushed configurations with a slip ring unit.
• Insulation System: Equipped with the Micadur Compact Industry insulation system, known for its high dielectric strength and superior heat dissipation properties.

These motors are designed to meet the demanding requirements of various industrial applications, ensuring reliable and efficient operation at high speeds.
