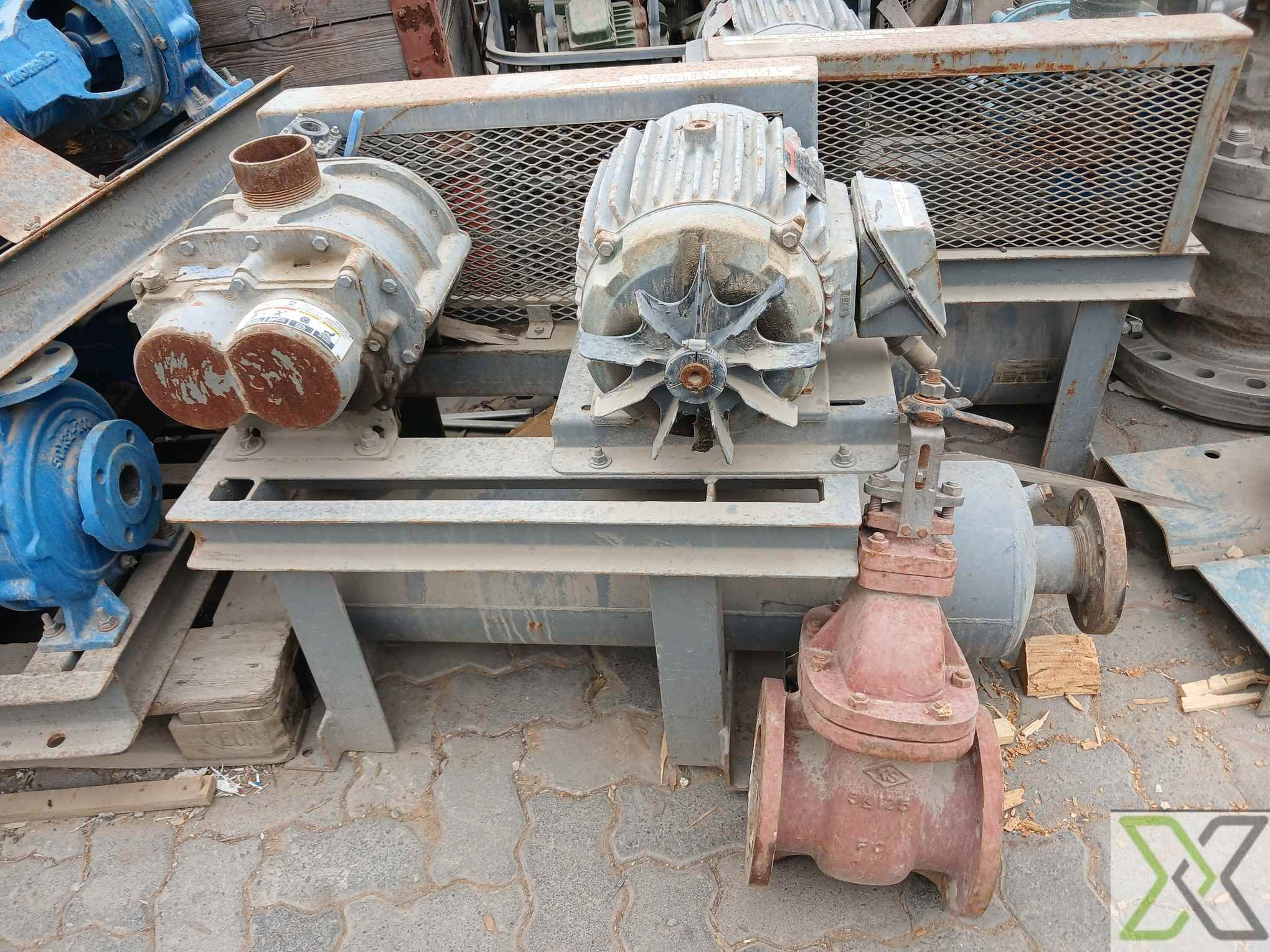

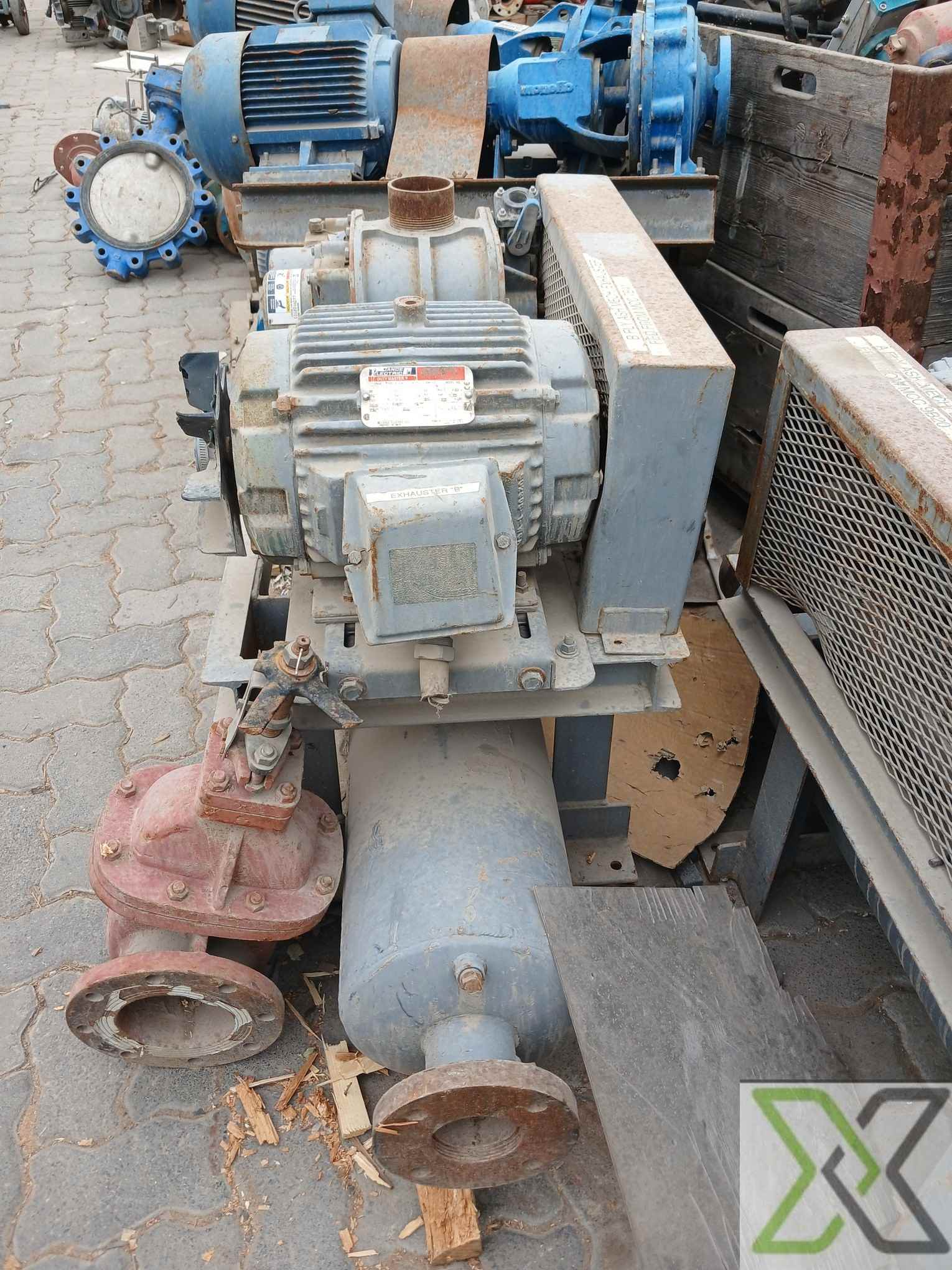

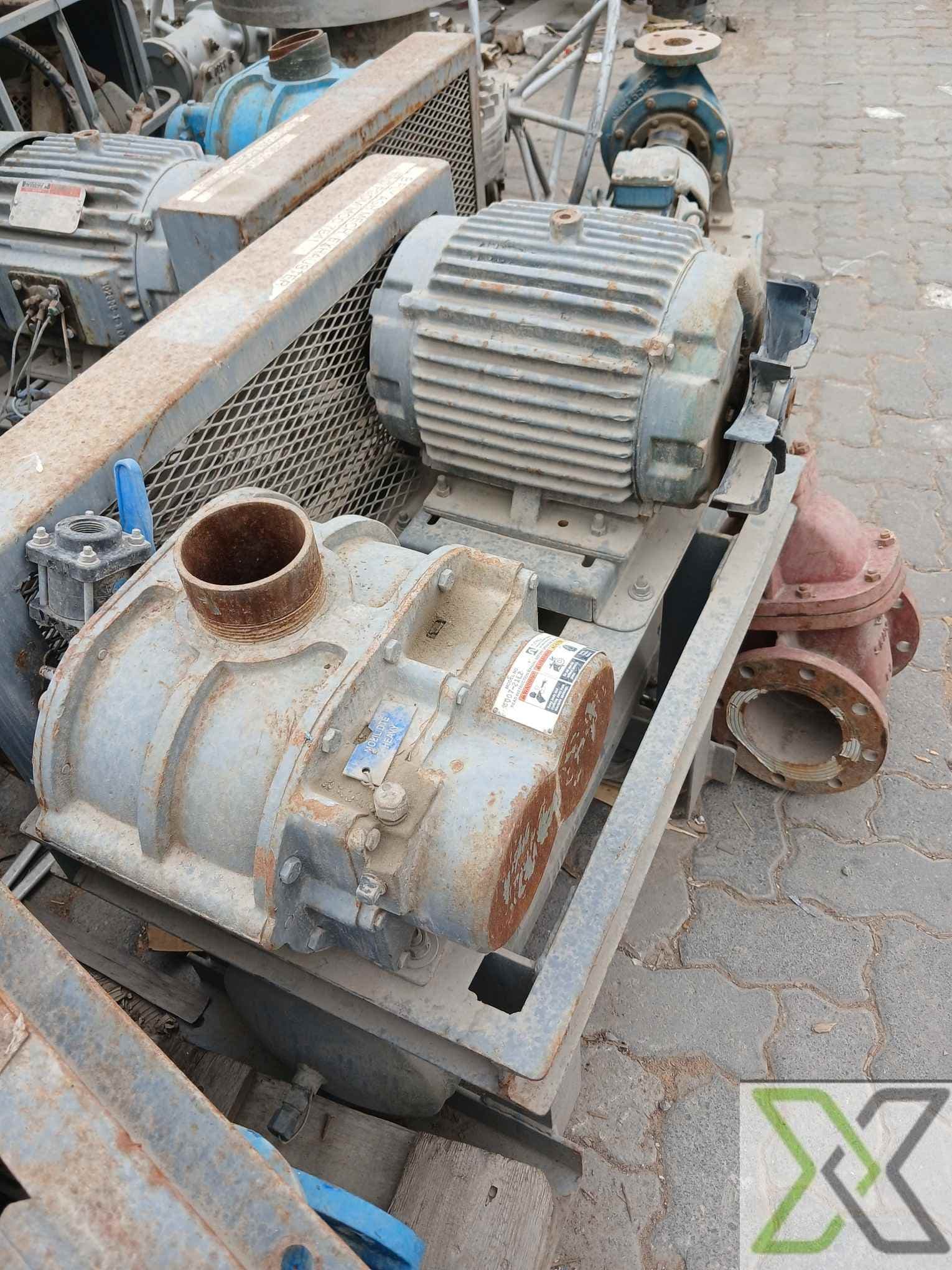

Reliance Electric Duty Master A-C Motor (Baldor 34HXL Series) – Full Specifications

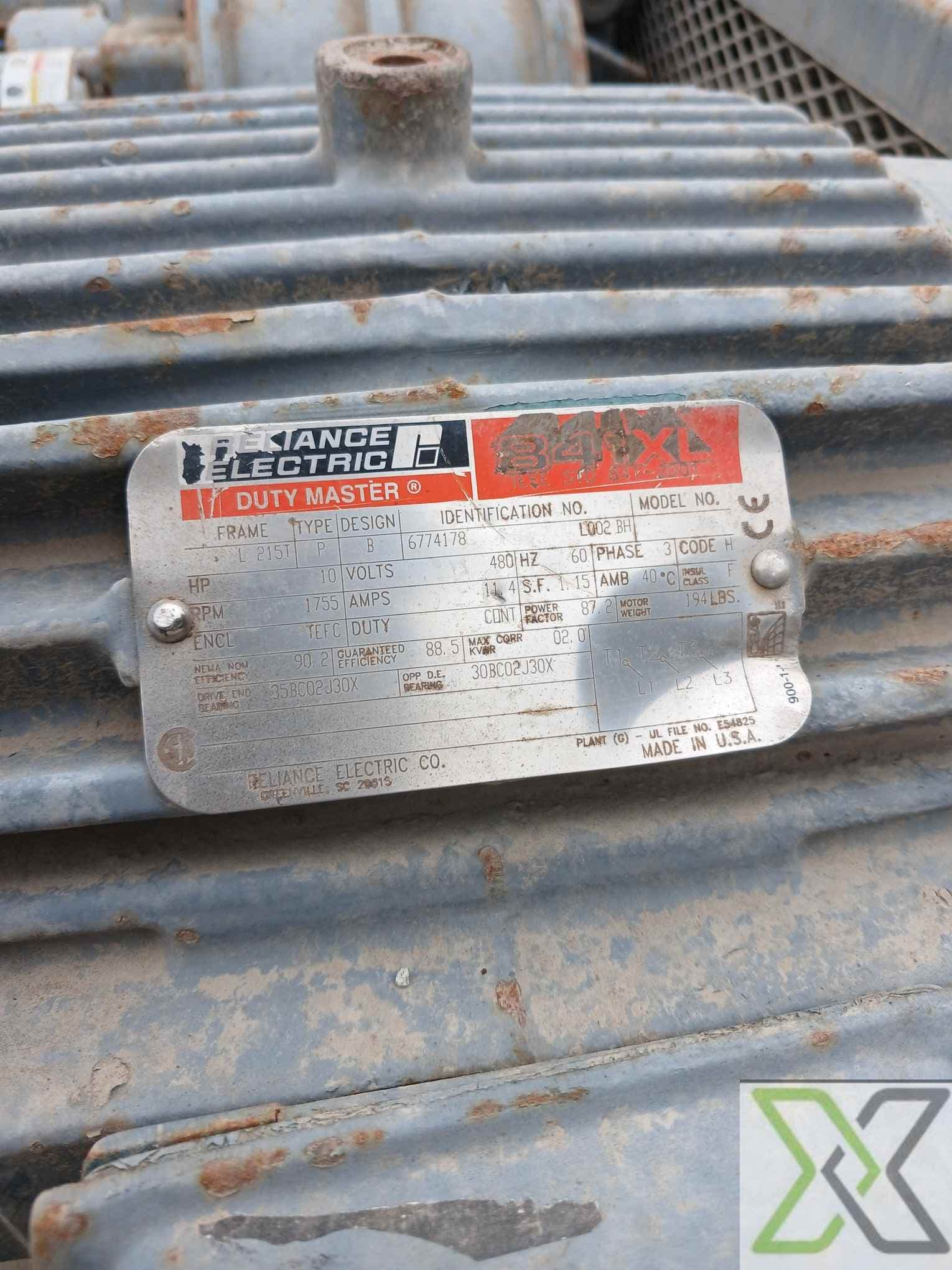

General Information:

• Manufacturer: Reliance Electric Co.
• Series: Baldor 34HXL Series
• Model: Duty Master A-C Motor
• Frame Size: 215T
• Type: P
• Design: B
• Identification No.: 6774178
• Model No.: L002BH

Electrical Specifications:

• Horsepower (HP): 10 HP
• Voltage: 480V
• Frequency: 60 Hz
• Phase: 3-Phase
• Speed (RPM): 1755 RPM
• Full Load Amperage: 15.4A
• Power Factor: 87%
• Efficiency:
  • Nominal: 90.1%
  • Guaranteed: 88.5%
• Service Factor (SF): 1.15

Environmental & Operational Ratings:

• Ambient Temperature Rating: 40°C
• Duty Rating: Continuous Duty

Physical & Mechanical Details:

• Motor Weight: 194 lbs (Approx. 88 kg)

  For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
