Baldorreliance 84Z05167 Inverter Drive Motor 20 Hp 690V 2930 Rpm

Description

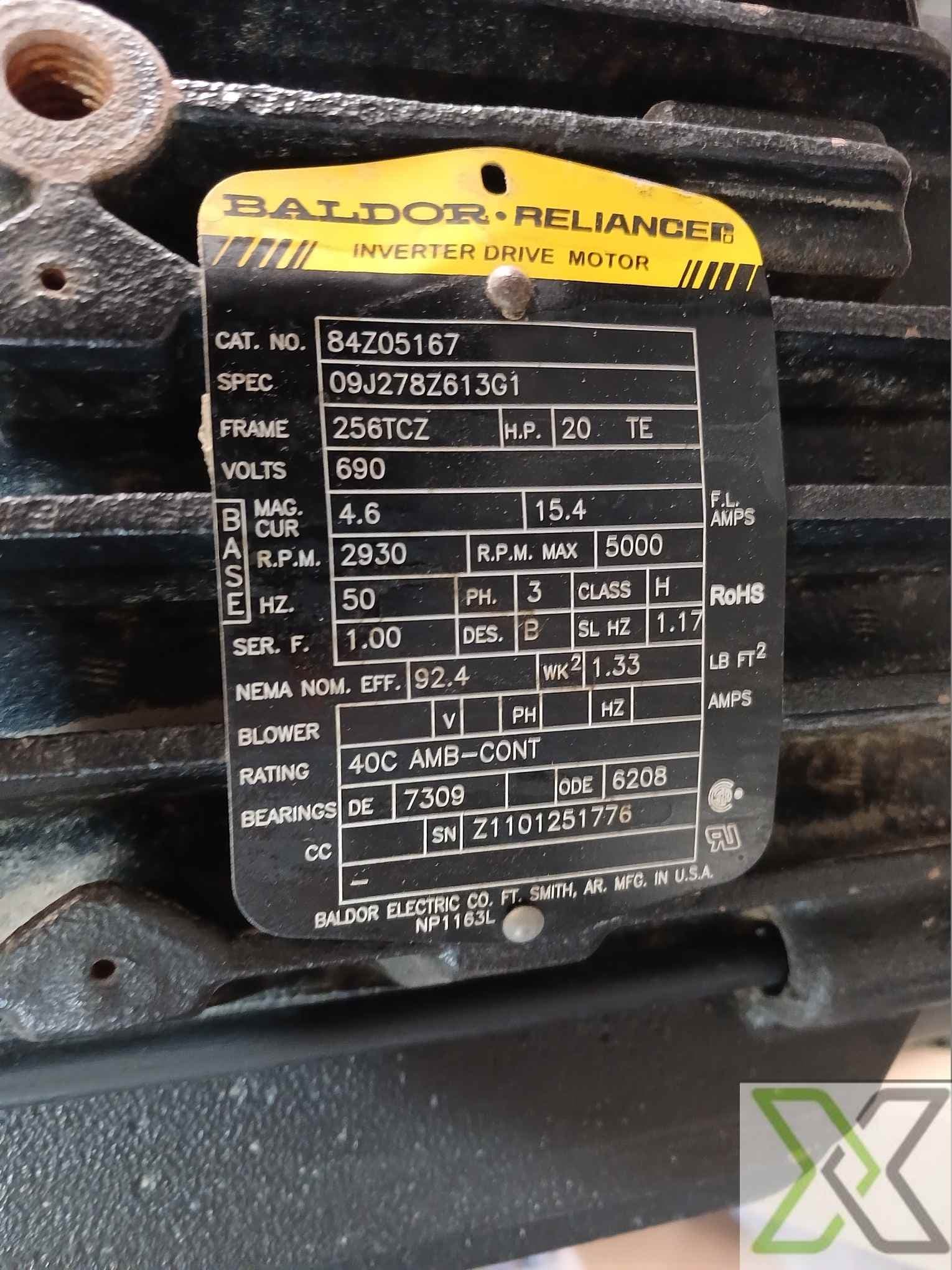

Manufacturer: Baldor-Reliance
Type: Inverter Drive Motor
Model/Category Number: 84Z05167
Specification Number: 09U278Z613G1
Horsepower (HP): 20 HP
Voltage: 690V
Current: 15.4A
RPM: 2930 RPM (Max: 5000 RPM)
Phase: 3-Phase
Frequency: 50Hz
Efficiency: 92.4%
Insulation Class: Likely Class F (High-temperature endurance)
Duty Rating: Continuous Duty (40°C Ambient)
Bearing Details:
- Drive End (DE): 7309
- Opposite Drive End (ODE): 6208
Ingress Protection (IP Rating): Likely IP55 (Dustproof & Water Jet Resistant)
Cooling Type: TEFC (Totally Enclosed Fan Cooled)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Model Number

84Z05167

Model Number

84Z05167

Voltage

690V

CFIHOS ID

CFIHOS-30000340

Color

Grey

ISO 15926 Pt 4

2752

PCA RDS Code

RDS415124

CFIHOS ID

CFIHOS-30000340

Speed

2930 RPM

Direction of Rotation

Clockwise

IFC Class

IfcElectricMotor

Normal Output Power

20 HP

UNSPSC Code

26101600
