Description

Full Specifications

General Information:

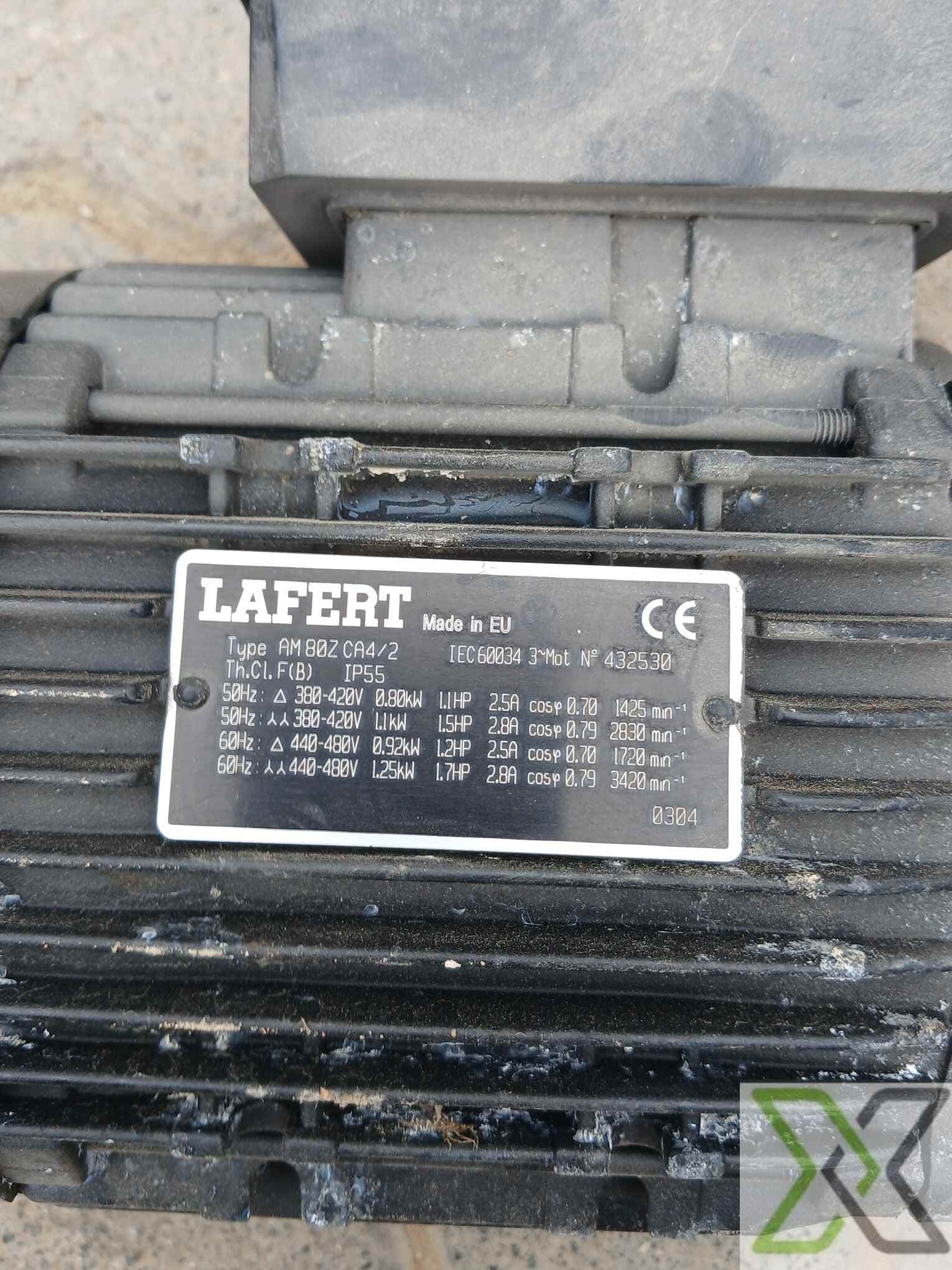

  • Manufacturer: Lafert
  • Model: AM 80Z CA4/2
  • Standard Compliance: IEC 60034
  • Thermal Class: F(B)
  • Ingress Protection (IP Rating): IP55 (Protected against dust and water jets)
  • Serial Number: 432530

Electrical Specifications:

50Hz Operation:

  • Voltage: 3~ 380-420V
  • Power Output:
    • 0.80 kW (1.1 HP) – 2.5A, Cosφ 0.70, 1425 RPM
    • 1.1 kW (1.5 HP) – 2.8A, Cosφ 0.79, 2880 RPM

60Hz Operation:

  • Voltage: 3~ 440-480V
  • Power Output:
    • 0.92 kW (1.24 HP) – 2.5A, Cosφ 0.79, 1720 RPM
    • 1.25 kW (1.7 HP) – 2.9A, Cosφ 0.79, 3420 RPM

Application & Use Cases:

  • Industrial Machinery
  • HVAC Systems
  • Conveyor Systems
  • Water Pumps & Compressors
  • Manufacturing & Automation Equipment

    For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model NumberAM 80Z CA4/2
Model NumberAM 80Z CA4/2
Voltage3~ 380-420V
CFIHOS IDCFIHOS-30000340
ColorGrey
ISO 15926 Pt 42752
PCA RDS CodeRDS415124
CFIHOS IDCFIHOS-30000340
Direction of RotationClockwise
IFC ClassIfcElectricMotor
UNSPSC Code26101600
