LAMMERS 17Z90011C A034AB4-Z Electric Motor

ReflowX SKU: REF-2969

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

LAMMERS Elektromaschinenfabrik
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Robust IEC-standard electric motor from LAMMERS Elektromaschinenfabrik, model 17Z90011C A034AB4-Z, featuring a 132S frame, foot-mounted (IM B3) configuration, IP55 protection, and Class F insulation. Built for reliable industrial performance.

Description

LAMMERS 17Z90011C A034AB4-Z Electric Motor

The LAMMERS 17Z90011C A034AB4-Z electric motor is engineered to deliver high reliability and durability in industrial environments. Manufactured in the Czech Republic by LAMMERS Elektromaschinenfabrik (headquartered in Rheine, Germany), this motor is constructed in accordance with IEC/EN 60034 standards.

It features a standard frame size of 132S with a foot-mounted (IM B3) horizontal configuration. The motor offers IP55 enclosure protection, ensuring resistance to dust ingress and water jets, making it suitable for demanding installation conditions. The cooling method is likely IC411 (self-ventilated) per standard construction norms.

Internally, the motor is equipped with high-quality 6308-2ZC3 bearings on both the drive and non-drive ends for smooth and efficient operation. With insulation Class F (thermal tolerance up to 155°C), the motor is capable of operating in ambient temperatures ranging from –20°C to +40°C.

Weighing 39 kg, this motor is ideal for general-purpose industrial applications that require a dependable and standards-compliant electric drive system.

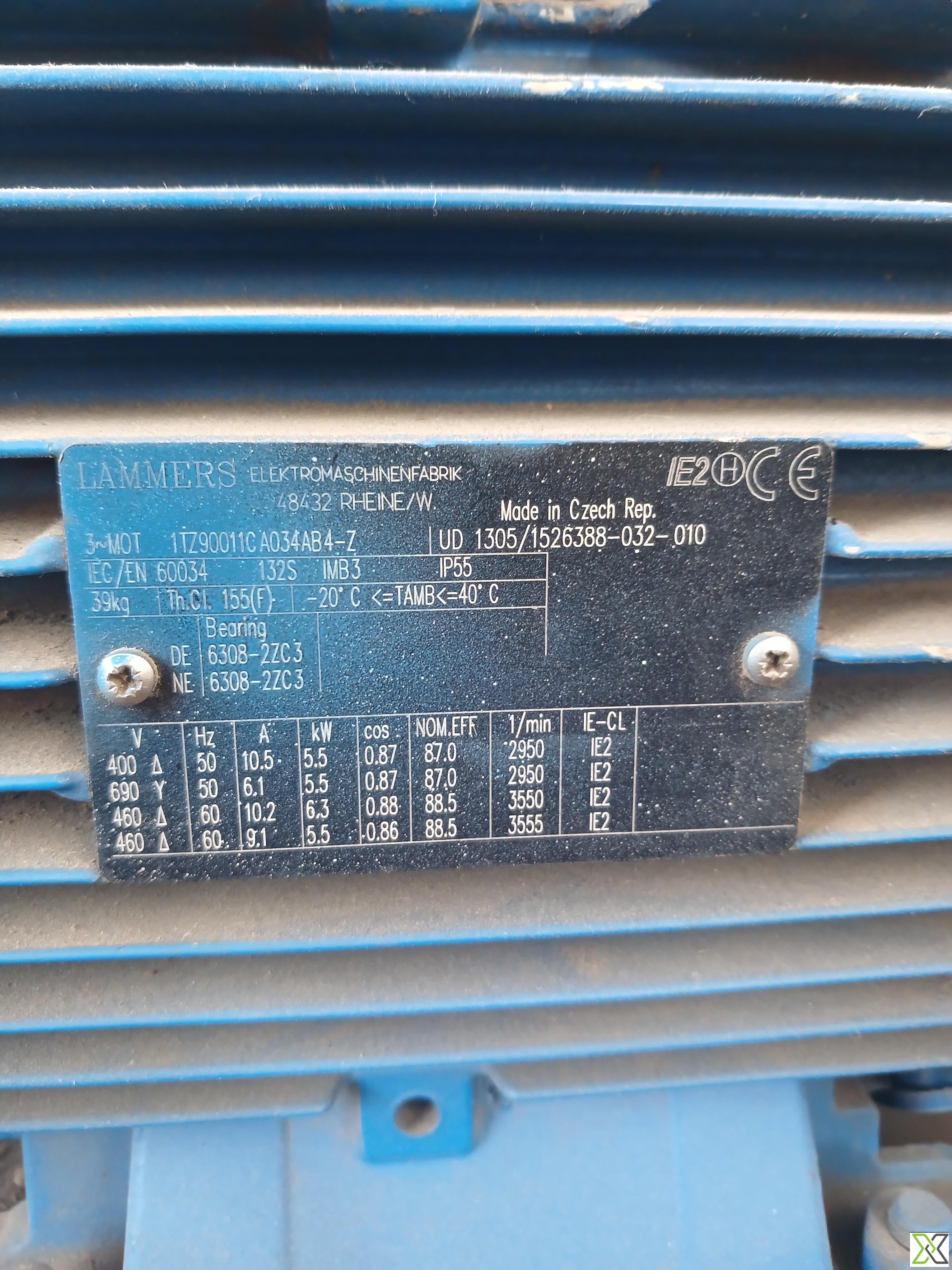

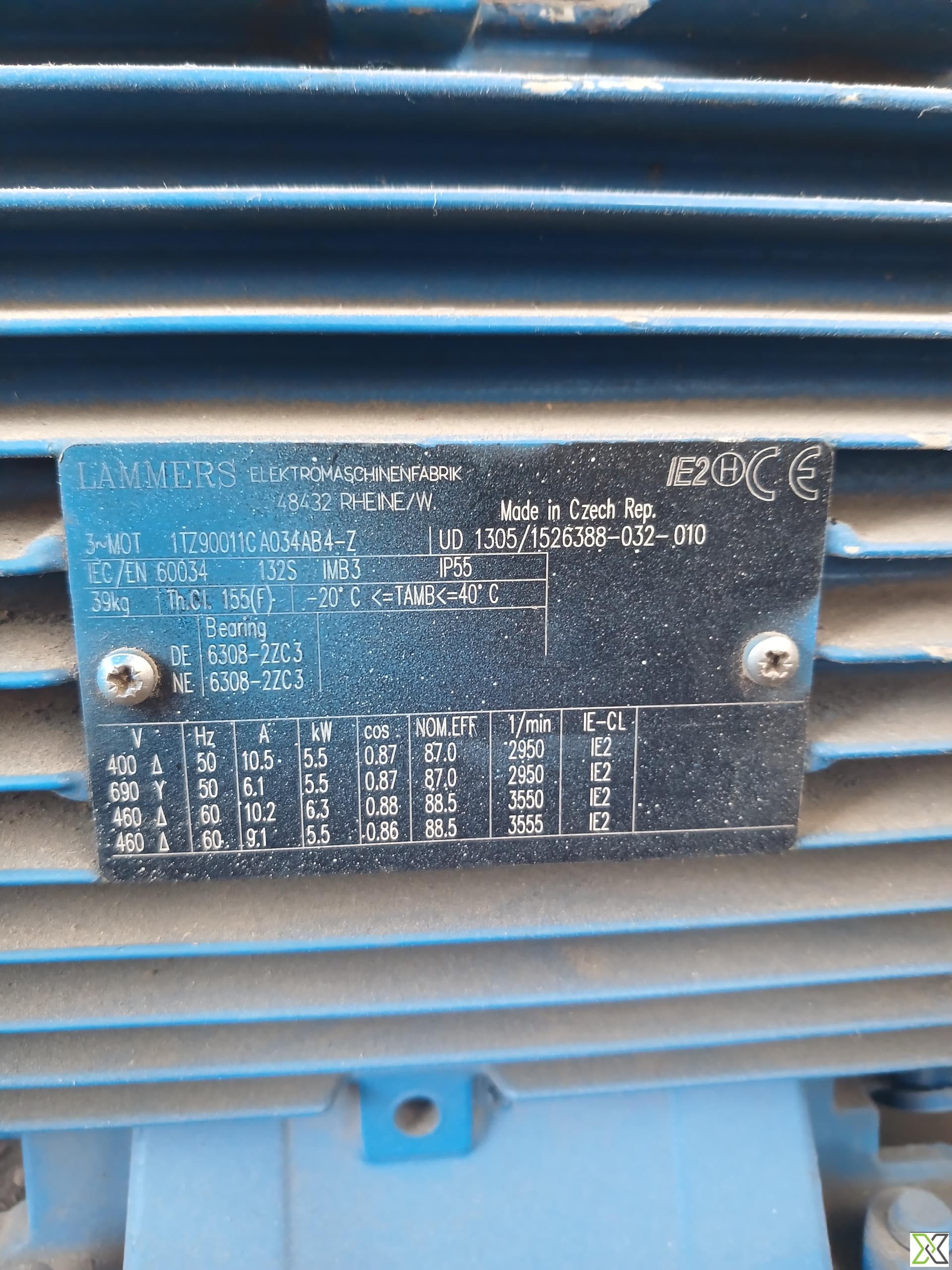

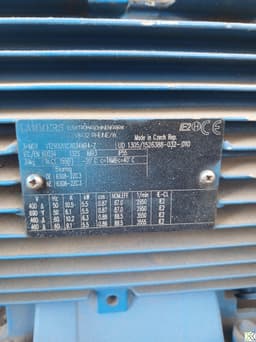

Specifications:

– Manufacturer: LAMMERS Elektromaschinenfabrik
– Model Number: 17Z90011C A034AB4-Z
– Country of Manufacture: Czech Republic
– Manufacturer Location: 48432 Rheine, Germany
– Standard Compliance: IEC/EN 60034
– Frame Size: 132S
– Mounting Type: IM B3 (Foot-mounted, horizontal)
– Enclosure Protection: IP55 (dust-tight, water jet-resistant)
– Cooling Method: IC411 (Self-ventilated – likely by frame design)
– Insulation Class: F (Thermal class 155°C)
– Ambient Operating Temperature Range: –20°C to +40°C
– Bearings (Drive & Non-Drive End): 6308-2ZC3
– Weight: 39 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	17Z90011C A034AB4-Z
Model Number	17Z90011C A034AB4-Z
Weight	39 kg
CFIHOS ID	CFIHOS-30000340
Color	Blue
ISO 15926 Pt 4	2752
PCA RDS Code	RDS415124
CFIHOS ID	CFIHOS-30000340
Direction of Rotation	Clockwise
IFC Class	CFIHOS-30000340
Explosion Protection Gas Group	Group IIB
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 1
Normal Output Power	Up to 18.5 kW
UNSPSC Code	CFIHOS-30000340
