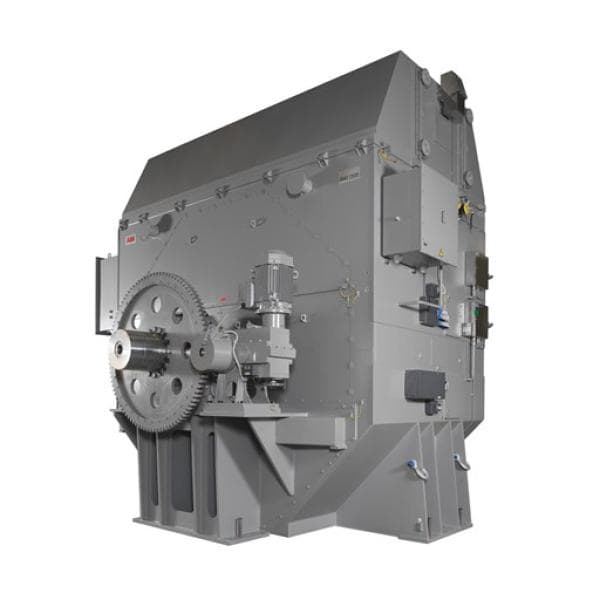

Low-Speed Motor (Below 6 Pole) – AC/DC Excitation, Variable Speed Ready

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United States
Condition
Equipment code

CFIHOS-30000340

Get Quotation Whatsapp

Short Description

Heavy-duty low-speed motors with modular welded steel frames and laminated pole rotors. Shaft heights from 710–2500mm, excitation in AC/DC (brushed or brushless), and support for LCI, Cycloconverter, and VSD systems.

Description

Low-Speed Motor (Below 6 Pole) – AC/DC Excitation, Variable Speed Ready

Low-Speed Motors (below 6 poles) are engineered to deliver high torque and dependable performance for large-scale, demanding industrial applications. These motors are built using a rugged modular frame fabricated from welded steel, ensuring mechanical resilience and adaptability for horizontal or vertical installation environments.

With shaft heights ranging from 710 mm to 2500 mm, these motors are well-suited for critical infrastructure such as rolling mills, cement kilns, marine propulsion systems, and other heavy-duty mechanical loads. The rotor is designed with laminated poles wound using rectangular copper wire to optimize magnetic flux and reduce losses under continuous load conditions.

The motor supports multiple starting methods for fixed-speed operations—including Direct-on-Line (DOL), reactor, autotransformer, capacitor, Load Commutated Inverter (LCI), and reactor-capacitor configurations. For variable speed applications, it integrates seamlessly with LCI, Cycloconverter, and Voltage Source Inverter (VSI) systems.

Excitation systems are available in both AC and DC, and can be tailored as brushed or brushless setups, complete with integrated slip ring units when required. The motor employs the Micadur Compact Industry insulation system—proven for high dielectric strength and thermal resilience—ensuring extended operational life in high-demand environments.

Specifications:

– Motor Type: Low-Speed (<6 pole) Industrial Motor
– Frame Size: 710 mm to 2500 mm shaft height
– Frame Construction: Modular welded steel frame, horizontal or vertical mounting
– Rotor Design: Laminated poles, rectangular copper wire winding
– Bearing Configuration: Flange or pedestal-mounted bearing options
– Starting Methods:
– Direct-on-Line (DOL)
– Reactor
– Autotransformer
– Capacitor
– Load Commutated Inverter (LCI)
– Reactor-Capacitor
– Variable Speed Compatibility:
– LCI
– Cycloconverter
– Voltage Source Inverter (VSI)
– Excitation System:
– AC or DC excitation
– Brushed or brushless
– Slip ring-equipped as needed
– Insulation: Micadur Compact Industry insulation system
– Applications: Marine propulsion, cement plants, rolling mills, mining conveyors, and other high-torque operations

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
