Description

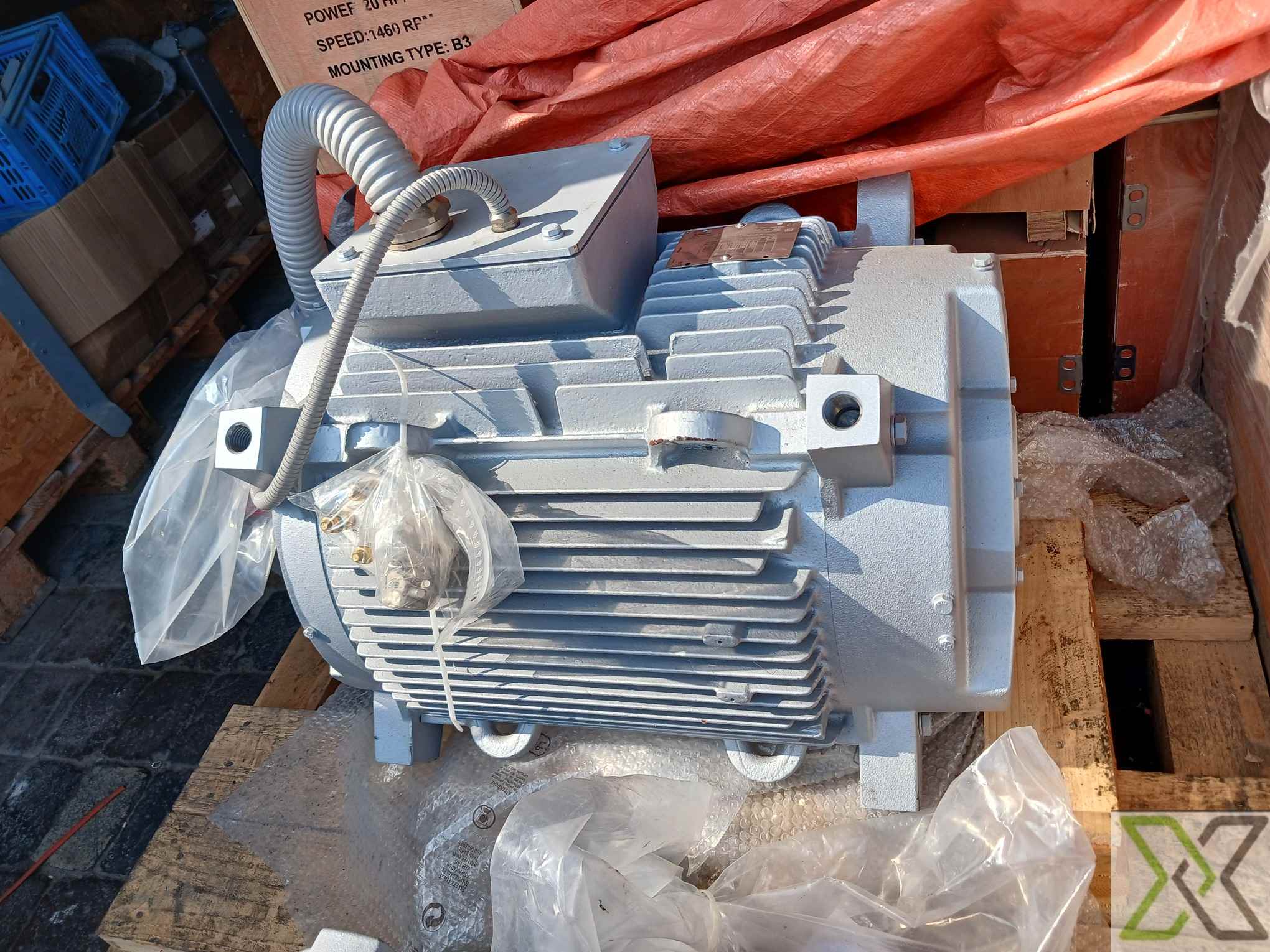

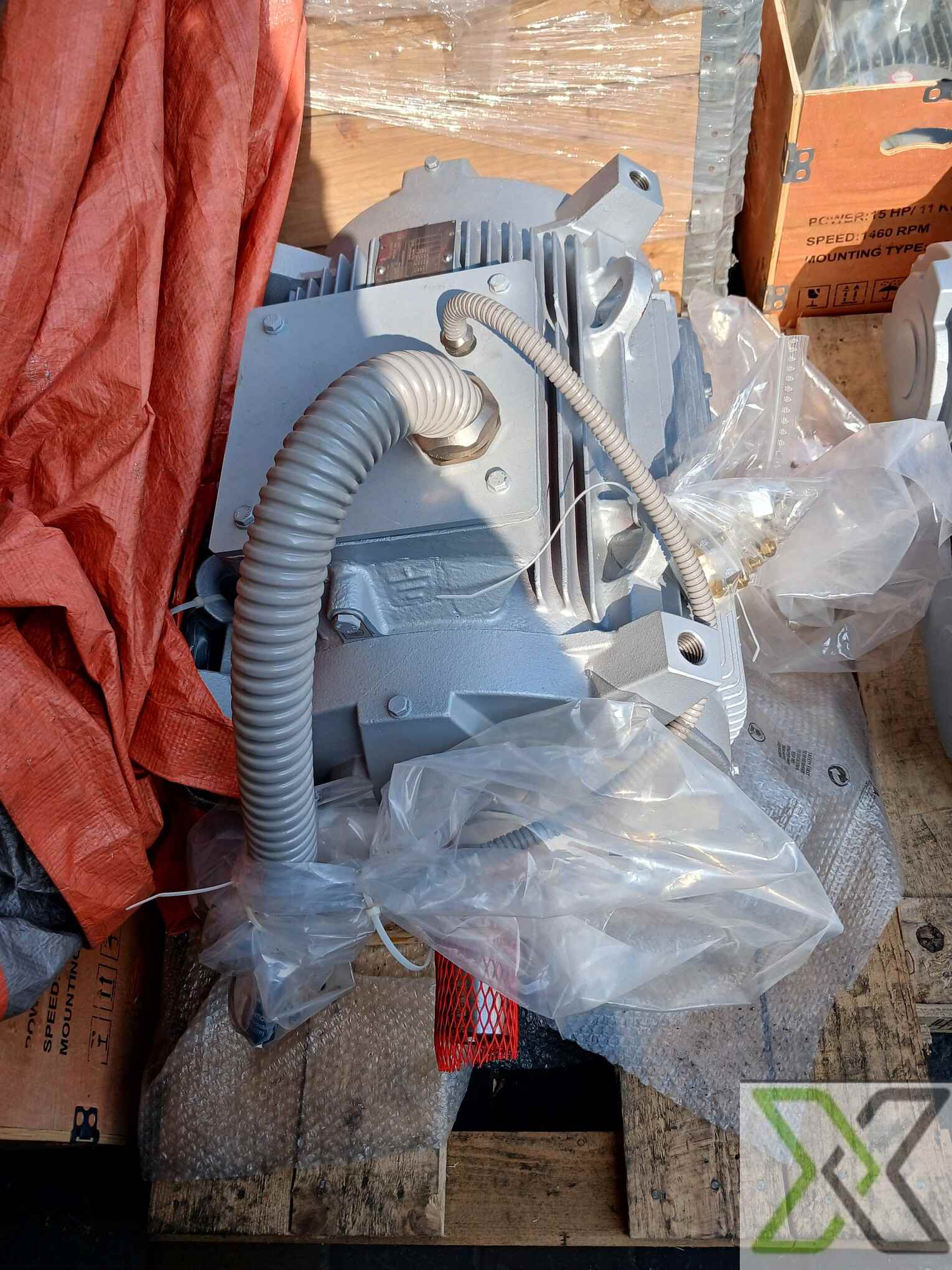

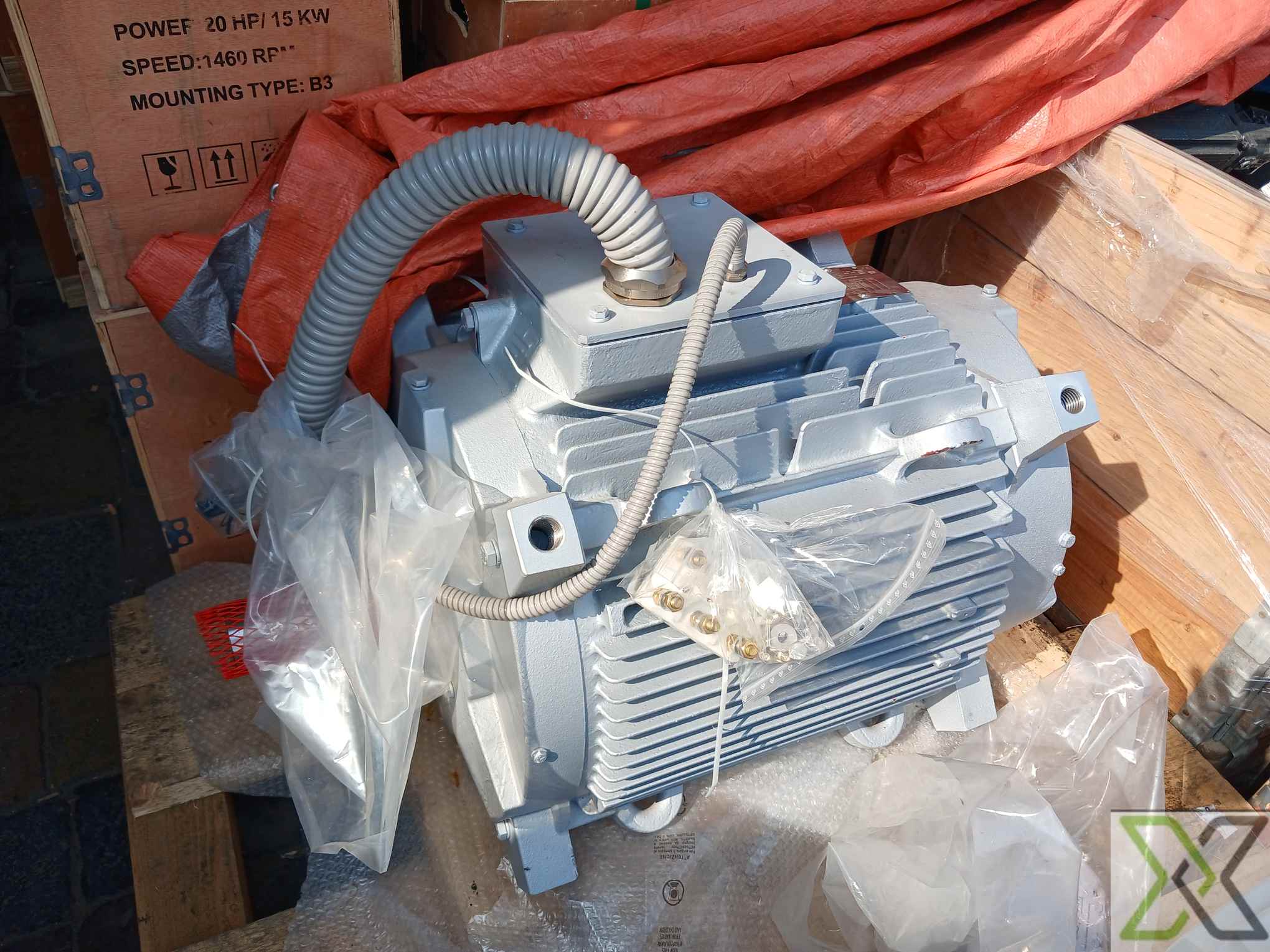

 Nidec Leroy-Somer FLSHT 225 M Motor – Technical Specifications

 General Information

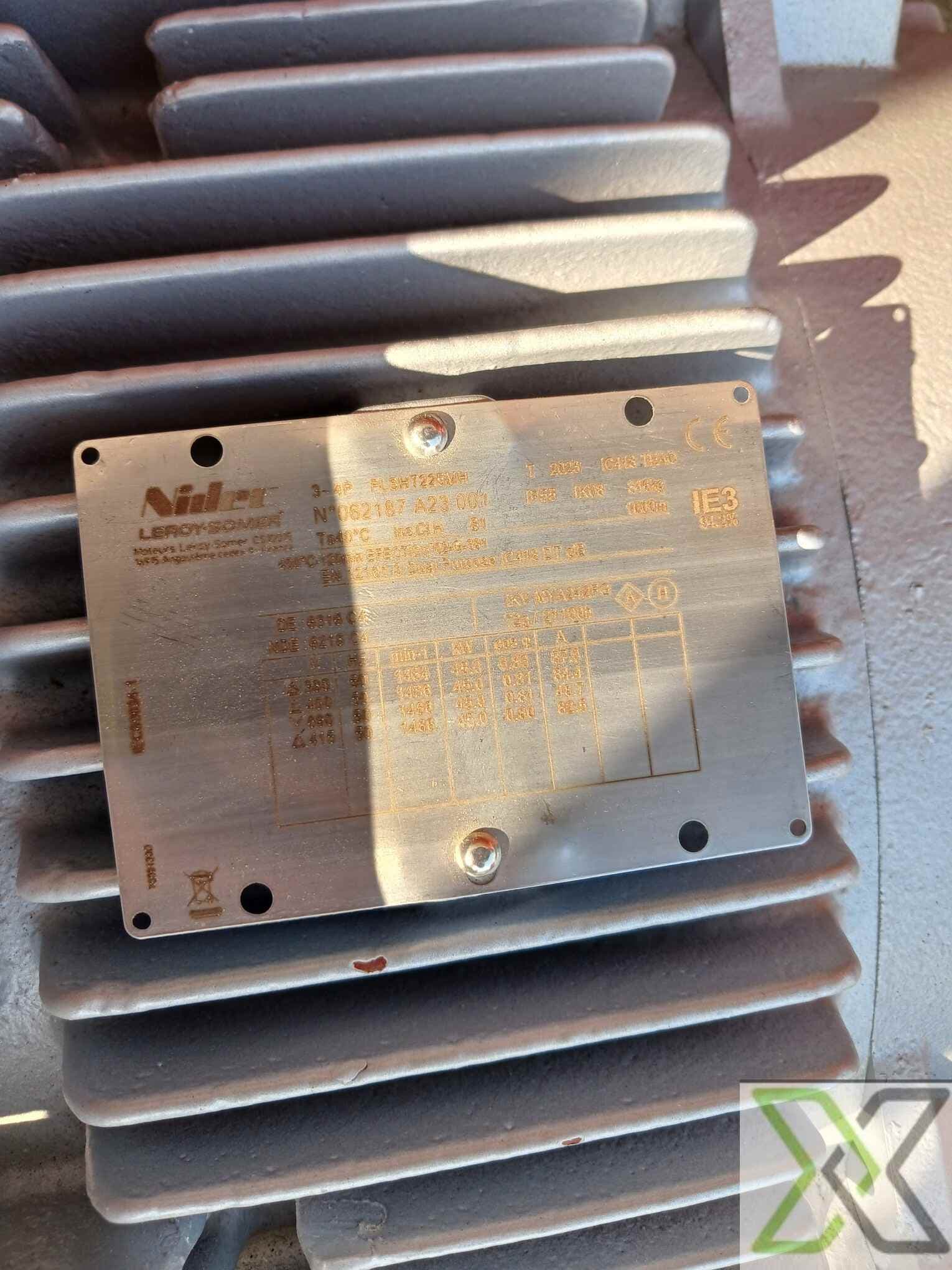

  • Manufacturer: Nidec Leroy-Somer
  • Model: FLSHT 225 M
  • Serial Number: 062187 A23 001
  • Efficiency Class: IE3 (High Efficiency)
  • Compliance: EN 12101-3 Standard for Dual-Purpose IC 411S DT

 Electrical Specifications

  • Power Rating: 45 kW
  • Insulation Class: H (High thermal endurance)
  • Cooling Method: IC 411 TEAO (Totally Enclosed Air Over)
  • Voltage & Current Ratings:
    • 380V, 50Hz: 2951 RPM, 45 kW, 80.0 A
    • 400V, 50Hz: 2951 RPM, 45 kW, 84.3 A
    • 690V, 50Hz: 2951 RPM, 45 kW, 48.7 A
    • 415V, 50Hz: 2948 RPM, 45 kW, 83.0 A

 Protection & Durability

  • Protection Rating: IP55 (Dust & Water Resistant)
  • Weight: 314 kg
  • Construction: Heavy-duty industrial-grade build

 Environmental & Operational Conditions

  • Operating Temperature: Designed for high-temperature environments
  • Mounting: Standard industrial motor base mounting

 Applications

✔ HVAC & Ventilation Systems
✔ Industrial Pumps & Compressors
✔ Heavy-Duty Fans & Blowers
✔ Manufacturing & Process Equipment

Technical Details

Model NumberFLSHT 225 M
Model NumberFLSHT 225 M
Weight314 kg
Voltage380–415V AC
CFIHOS IDCFIHOS-30000340
ISO 15926 Pt 42752
PCA RDS CodeRDS415124
CFIHOS IDCFIHOS-30000340
Speed1480–1500 RPM
Direction of RotationClockwise
IFC ClassIfcElectricMotor
Explosion Protection ZoneZone-free
Normal Output Power30 kW
UNSPSC Code26101600
