NXR General Purpose Motor – CSA Approved, VSD Ready, Class I Div II, Cast Iron

NXR General Purpose Motor – Cast Iron, CSA Certified, VSD Compatible, Class I Div II

Product Details

  • Quantity
    100
  • Availability (Lead Time)
    4-6 Weeks
  • Product Location
    United States
  • Condition
  • Equipment code
    CFIHOS-30000340
Get Quotation Whatsapp

Short Description

Robust NXR General Purpose Motor with cast iron construction, CSA and Class I Div II certification, and VSD compatibility. Features 3.5 PU surge capacity, Class F insulation, and integrated temperature monitoring.

Description

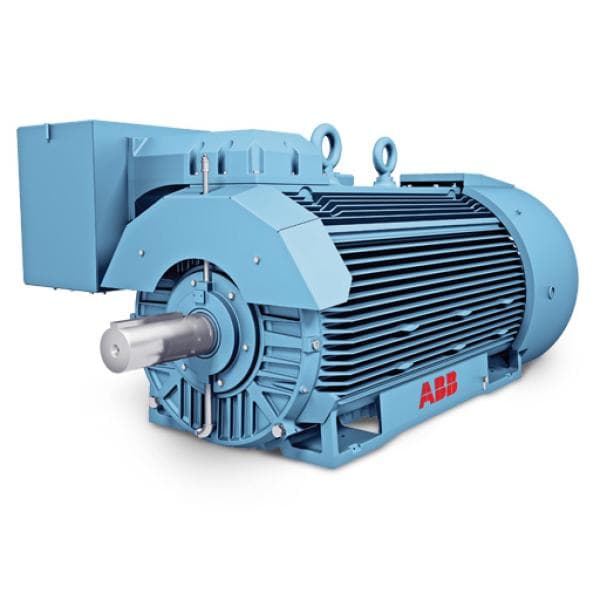

NXR General Purpose Motor – Cast Iron, CSA Certified, VSD Compatible, Class I Div II

The NXR General Purpose Motor is engineered for reliability, energy efficiency, and operational versatility across a wide range of industrial applications. Designed with a rugged cast iron frame and end brackets, this motor delivers long-lasting performance even in challenging environments. It supports Variable Speed Drive (VSD) operations with 2:1 Constant Torque (CT) and 10:1 Variable Torque (VT) capabilities for most ratings, offering the flexibility required in modern industrial systems.

The motor features a 3.5 per unit (PU) surge capability, making it suitable for applications requiring high transient load endurance. Integrated 100 Ohm platinum winding RTDs and space heaters provide precise temperature monitoring and help maintain optimal performance and protection against moisture and thermal stress. The F1 terminal box mounting provides flexible installation, while the specially formulated modified epoxy coating with UV resistance enhances durability in outdoor and corrosive environments.

Bearing configurations are application-optimized: “LR” shaft models feature roller bearings for belted duty, “L” shafts use ball bearings convertible to rollers for varied load types, and “S” shafts are designed with ball bearings for coupled duty. With CSA certification and approval for Class I Division II Group C and D hazardous areas, the NXR General Purpose Motor ensures safe and reliable operation across general-purpose and hazardous-duty requirements.

Specifications:

– Power Rating: Varies by configuration (refer to motor nameplate)
– Efficiency Class: High-efficiency design for reduced energy consumption
– Surge Capability: 3.5 per unit (PU)
– VSD Compatibility: 2:1 CT, 10:1 VT (most ratings)
– Frame Material: Cast iron (frame and end brackets)
– Certifications: CSA approved; Class I Division II, Groups C & D
– Insulation: Class F for superior thermal resistance
– Temperature Monitoring: Equipped with 100 Ohm platinum winding RTDs and space heaters
– Bearing Types:
 • “LR” shaft – Roller bearings (belted duty)
 • “L” shaft – Ball bearings (convertible to roller)
 • “S” shaft – Ball bearings (coupled duty)
– Terminal Box: F1 mounting position
– Coating: UV-resistant modified epoxy paint for corrosion protection

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
